IslandPathversion 1.0

IslandPath Analysis: Aliivibrio salmonicida LFI1238

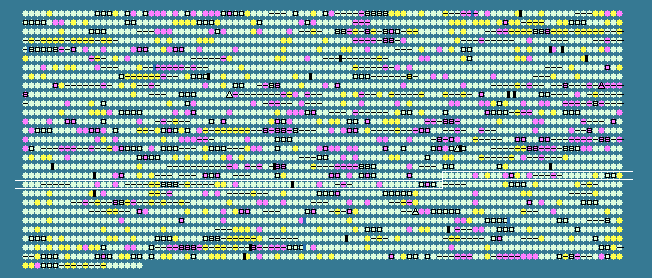

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1871	 39.17	0	2205516..2206457	+	313	209695505	-	VSAL_I2058	-	virulence protein VirC
1872	 37.70	0	2206485..2207171	+	228	209695506	-	VSAL_I2059	-	transcription regulator, GntR family
1873	 38.55	0	2207303..2207992	-	229	209695507	-	VSAL_I2060	-	hypothetical protein
1874	 37.36	0	2208223..2208918	-	231	209695508	-	VSAL_I2061	-	hypothetical protein
1875	 40.59	0	2209199..2212231	+	1010	209695509	-	VSAL_I2062	-	FAD linked oxidase
1876	 34.34	-1	2212400..2213992	+	530	209695510	-	VSAL_I2063	-	hypothetical protein
1877	 38.10	0	2214121..2214540	+	139	209695511	-	VSAL_I2064	-	hypothetical protein
1878	 44.87	+1	2214988..2215143	+	51	209695512	-	VSAL_I2065	-	hypothetical protein
1879	 41.15	0	2215436..2216650	+	404	209695513	-	VSAL_I2066	-	group II intron reverse transcriptase/maturase
1880	 42.51	0	2216849..2219170	+	773	209695514	zntA	VSAL_I2067	-	lead, cadmium, zinc and mercury-transporting ATPase
1881	 35.08	-1	2219231..2221753	-	840	209695515	-	VSAL_I2068	-	membrane protein
1882	 35.94	-1	2222500..2223381	-	293	209695516	-	VSAL_I2070	-	transposase
1883	 45.13	+1	2223705..2224043	+	112	209695517	-	VSAL_I2071	-	hypothetical protein
1884	 38.24	0	2224188..2224493	-	101	209695518	-	VSAL_I2072	-	hypothetical protein
1885	 35.15	-1	2224789..2225283	-	164	209695519	-	VSAL_I2073	-	hypothetical protein
1886	 42.16	0	2225514..2226170	+	218	209695520	-	VSAL_I2074	-	chloramphenicol acetyltransferase
1887	 42.88	+1	2226488..2227576	+	362	209695521	-	VSAL_I2075	-	methyl-accepting chemotaxis protein
1888	 36.10	-1	2227871..2228557	-	228	209695522	-	VSAL_I2076	-	hypothetical protein
1889	 27.16	-2	2228617..2228859	-	80	209695523	-	VSAL_I2077a	-	hypothetical protein
1890	 36.37	0	2228872..2229957	-	361	209695524	serC	VSAL_I2078	-	phosphoserine aminotransferase
1891	 36.71	0	2229962..2230702	-	246	209695525	-	VSAL_I2079	-	glutamine amidotransferase
1892	 36.68	0	2230843..2231649	+	268	209695526	-	VSAL_I2080	-	HTH-type transcriptional regulator, AraC-family
1893	 41.81	0	2231708..2233240	-	510	209695527	-	VSAL_I2081	-	putative phospholipase D
1894	 41.57	0	2233560..2235284	+	574	209695528	-	VSAL_I2082	-	putative helicase (DEAD/DEAH box helicase)
1895	 41.55	0	2235303..2235740	-	145	209695529	-	VSAL_I2083	-	hypothetical protein
1896	 45.16	+1	2235954..2236232	+	92	209695530	rplY	VSAL_I2084	-	50S ribosomal protein L25
1897	 41.44	0	2236539..2236982	+	147	209695531	-	VSAL_I2085	-	heat shock protein
1898	 36.21	-1	2238694..2239041	-	115	209695532	-	VSAL_I2087	-	transposase
1899	 37.78	0	2239038..2239352	-	104	209695533	-	VSAL_I2088	-	transposase
1900	 44.35	+1	2240661..2241386	-	241	209695534	fabG	VSAL_I2090	-	3-oxoacyl-[acyl-carrier-protein] reductase
1901	 40.69	0	2241398..2241859	-	153	209695535	-	VSAL_I2091	-	beta-hydroxydecanoyl-ACP dehydrase
1902	 42.04	0	2241856..2243061	-	401	209695536	-	VSAL_I2092	-	beta-ketoacyl-[ACP] synthase
1903	 39.21	0	2243054..2243683	-	209	209695537	-	VSAL_I2093	-	putative lipoprotein
1904	 40.61	0	2243694..2246030	-	778	209695538	-	VSAL_I2094	-	membrane protein
1905	 36.39	0	2246035..2246655	-	206	209695539	-	VSAL_I2095	-	putative outer membrane protein
1906	 40.31	0	2246648..2247106	-	152	209695540	-	VSAL_I2096	-	putative thioesterase
1907	 42.32	0	2247106..2248641	-	511	209695541	-	VSAL_I2097	-	putative phenylalanine and histidine ammonia-lyase
1908	 40.43	0	2248631..2250322	-	563	209695542	-	VSAL_I2098	-	putative glycosyl transferase
1909	 38.67	0	2250325..2250699	-	124	209695543	-	VSAL_I2099	-	hypothetical protein
1910	 40.17	0	2250711..2252084	-	457	209695544	-	VSAL_I2100	-	hypothetical protein
1911	 40.46	0	2252081..2252641	-	186	209695545	-	VSAL_I2101	-	membrane protein
1912	 37.70	0	2252641..2252892	-	83	209695546	-	VSAL_I2102	-	putative acyl carrier protein
1913	 34.88	-1	2252901..2253158	-	85	209695547	-	VSAL_I2103	-	putative acyl carrier protein
1914	 37.72	0	2253166..2253963	-	265	209695548	-	VSAL_I2104	-	putative acyltransferase
1915	 39.75	0	2253965..2254696	-	243	209695549	-	VSAL_I2105	-	hypothetical protein
1916	 34.72	-1	2254826..2255401	+	191	209695550	-	VSAL_I2106	-	putative lipoprotein
1917	 38.42	0	2255434..2256573	+	379	209695551	-	VSAL_I2107	-	putative O-methyltransferase
1918	 40.02	0	2256654..2257895	+	413	209695552	-	VSAL_I2108	-	FAD dependent oxidoreductase
1919	 38.02	0	2257981..2258577	-	198	209695553	-	VSAL_I2109	-	hypothetical protein
1920	 42.85	+1	2258762..2260495	+	577	209695554	argS	VSAL_I2110	-	arginyl-tRNA synthetase
1921	 39.11	0	2260574..2261023	-	149	209695555	-	VSAL_I2111	-	membrane protein
1922	 44.19	+1	2261339..2262535	+	398	209695556	ackA	VSAL_I2112	-	acetate kinase
1923	 44.66	+1	2262635..2264806	+	723	209695557	pta	VSAL_I2113	-	phosphate acetyltransferase
1924	 39.65	0	2264949..2266436	-	495	209695558	-	VSAL_I2114	-	transposase
1925	 36.21	-1	2266508..2266855	-	115	209695559	-	VSAL_I2115	-	transposase
1926	 37.78	0	2266852..2267166	-	104	209695560	-	VSAL_I2116	-	transposase
1927	 41.48	0	2269187..2270008	+	273	209695561	-	VSAL_I2118	-	phosphate ABC transporter, extracellular solute-binding protein
1928	 43.69	+1	2270085..2271011	+	308	209695562	pstC	VSAL_I2119	-	phosphate ABC transporter, inner membrane component
1929	 38.83	0	2271016..2271870	+	284	209695563	pstA	VSAL_I2120	-	phosphate ABC transporter, permease protein
1930	 38.53	0	2271945..2272694	+	249	209695564	pstB	VSAL_I2121	-	phosphate import ABC transporter, ATP-binding protein
1931	 40.17	0	2273538..2273888	-	116	209695565	-	VSAL_I2124	-	hypothetical protein
1932	 42.42	0	2274021..2274284	-	87	209695566	-	VSAL_I2125	-	hypothetical protein
1933	 44.53	+1	2274292..2274684	-	130	209695567	-	VSAL_I2126	-	hypothetical protein
1934	 44.25	+1	2274875..2275048	+	57	209695568	-	VSAL_I2127	-	hypothetical protein
1935	 37.56	0	2275254..2275844	+	196	209695569	-	VSAL_I2128	-	hypothetical protein
1936	 34.77	-1	2275921..2276547	+	208	209695570	-	VSAL_I2129	-	hypothetical protein
1937	 37.84	0	2276649..2278289	-	546	209695571	-	VSAL_I2130	-	methyl-accepting chemotaxis protein
1938	 37.68	0	2278417..2281293	-	958	209695572	-	VSAL_I2131	-	response regulator, histidine kinase
1939	 39.46	0	2281368..2282363	+	331	209695573	torT	VSAL_I2132	-	periplasmic solute binding receptor protein
1940	 40.79	0	2282428..2282883	+	151	209695574	mgsA	VSAL_I2133	-	methylglyoxal synthase
1941	 39.58	0	2282975..2285038	-	687	209695575	-	VSAL_I2134	-	helicase IV
1942	 40.54	0	2285204..2287408	+	734	209695576	-	VSAL_I2135	-	inner membrane protein
1943	 38.31	0	2287475..2288620	-	381	209695577	nspC	VSAL_I2136	-	carboxynorspermidine decarboxylase
1944	 42.33	0	2288695..2289939	-	414	209695578	-	VSAL_I2137	-	saccharopine dehydrogenase
1945	 39.98	0	2289942..2292845	-	967	209695579	-	VSAL_I2138	-	putative diaminobutyrate--2-oxoglutarate aminotransferase
1946	 39.28	0	2294246..2294800	-	184	209695580	pgsA	VSAL_I2139	-	cdp-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferas (phosphatidylglycerophosphate synthase)
1947	 38.86	0	2294845..2296671	-	608	209695581	uvrC	VSAL_I2140	-	UvrABC system protein C (excinuclease ABC subunit C)
1948	 40.31	0	2296671..2297315	-	214	209695582	varA	VSAL_I2141	-	response regulator VarA
1949	 37.68	0	2297501..2299870	-	789	209695583	polB	VSAL_I2142	-	DNA polymerase II
1950	 35.14	-1	2299874..2300650	-	258	209695584	-	VSAL_I2143	-	hypothetical protein
1951	 38.94	0	2300762..2302348	-	528	209695585	-	VSAL_I2144	-	putative sodium/proton antiporter
1952	 42.51	0	2302858..2303271	+	137	209695586	-	VSAL_I2145	-	DNA binding protein, global metabolism regulator
1953	 39.71	0	2303350..2304102	-	250	209695587	-	VSAL_I2146	-	putative MltA-interacting protein MipA
1954	 33.69	-1	2304376..2305218	-	280	209695588	fadR	VSAL_I2147	-	fatty acid metabolism regulator protein
1955	 39.35	0	2305666..2307261	+	531	209695589	-	VSAL_I2148	-	sodium/proton antiporter
1956	 40.12	0	2307336..2307851	+	171	209695590	dsbB	VSAL_I2149	-	disulfide bond formation protein B (disulfide oxidoreductase)
1957	 40.98	0	2307941..2308555	-	204	209695591	-	VSAL_I2150	-	hypothetical protein
1958	 38.50	0	2308657..2309217	+	186	209695592	-	VSAL_I2151	-	membrane protein
1959	 39.66	0	2309269..2310216	+	315	209695593	dusC	VSAL_I2152	-	tRNA-dihydrouridine synthase C
1960	 34.22	-1	2310236..2311708	-	490	209695594	-	VSAL_I2153	-	membrane associated GGDEF protein
1961	 37.56	0	2311829..2312656	-	275	209695595	-	VSAL_I2154	-	hypothetical protein
1962	 41.56	0	2312740..2314683	-	647	209695596	topB	VSAL_I2155	-	DNA topoisomerase III
1963	 41.52	0	2314770..2316773	-	667	209695597	fadH	VSAL_I2156	-	2,4-dienoyl-CoA reductase [NADPH]
1964	 39.81	0	2317002..2318855	+	617	209695598	sppA	VSAL_I2157	-	protease IV (endopeptidase IV)
1965	 41.12	0	2318948..2319961	+	337	209695599	ansA	VSAL_I2158	-	L-asparaginase I
1966	 42.03	0	2320044..2321159	-	371	209695600	-	VSAL_I2159	-	aspartate-semialdehyde dehydrogenase
1967	 37.78	0	2323253..2323567	+	104	209695601	-	VSAL_I2161	-	transposase
1968	 35.92	-1	2323564..2323911	+	115	209695602	-	VSAL_I2162	-	transposase
1969	 39.65	0	2323983..2325470	+	495	209695603	-	VSAL_I2163	-	transposase
1970	 39.28	0	2328370..2328840	+	156	209695604	-	VSAL_I2165	-	phosphohistidine phosphatase SixA
39.44	MEAN

3.11	STD DEV
