IslandPath Analysis: Aliivibrio salmonicida LFI1238

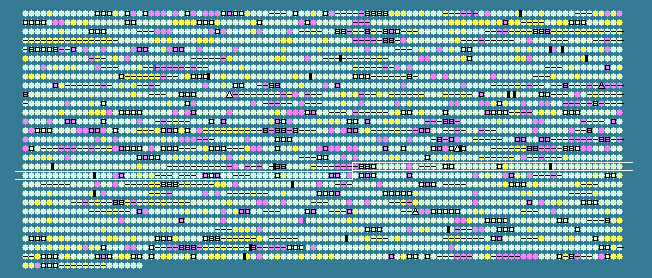

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1756	 28.87	-2	2060173..2060799	-	208	209695390	ibrB	VSAL_I1925	-	immunoglobulin-binding regulator
1757	 37.78	0	2063208..2063522	+	104	209695391	-	VSAL_I1928	-	transposase
1758	 36.21	-1	2063519..2063866	+	115	209695392	-	VSAL_I1929	-	transposase
1759	 39.92	0	2063938..2065425	+	495	209695393	-	VSAL_I1930	-	transposase
1760	 40.40	0	2065558..2066307	-	249	209695394	moeB	VSAL_I1931	-	molybdopterin biosynthesis protein MoeB
1761	 42.09	0	2066319..2067563	-	414	209695395	moeA	VSAL_I1932	-	molybdopterin biosynthesis protein MoeA
1762	 40.98	0	2067717..2068370	+	217	209695396	folE	VSAL_I1933	-	GTP cyclohydrolase I
1763	 39.38	0	2068438..2069892	-	484	209695397	cls	VSAL_I1934	-	cardiolipin synthetase
1764	 39.35	0	2070168..2071514	+	448	209695398	-	VSAL_I1935	-	sodium-dependent transporter
1765	 34.84	-1	2071607..2072005	-	132	209695399	-	VSAL_I1936	-	hypothetical protein
1766	 37.32	0	2072018..2073220	-	400	209695400	-	VSAL_I1937	-	putative signaling protein
1767	 36.09	-1	2073336..2074061	-	241	209695401	lpxH	VSAL_I1938	-	UDP-2,3-diacylglucosamine hydrolase
1768	 39.76	0	2074118..2074615	-	165	209695402	ppiB	VSAL_I1939	-	peptidyl-prolyl cis-trans isomerase B
1769	 40.10	0	2074764..2076152	+	462	209695403	cysS	VSAL_I1940	-	cysteinyl-tRNA synthetase
1770	 37.65	0	2076233..2076811	+	192	209695404	tdk	VSAL_I1941	-	thymidine kinase
1771	 37.78	0	2077364..2077678	+	104	209695405	-	VSAL_I1943	-	transposase
1772	 36.21	-1	2077675..2078022	+	115	209695406	-	VSAL_I1944	-	transposase
1773	 40.00	0	2082386..2084050	+	554	209695407	oppA	VSAL_I1946	-	oligopeptide transport system permease protein B
1774	 41.86	0	2085095..2085997	+	300	209695408	oppC	VSAL_I1948	-	oligopeptide transport system permease protein C
1775	 40.58	0	2086048..2087013	+	321	209695409	oppD	VSAL_I1949	-	oligopeptide transport ATP-binding protein D
1776	 40.68	0	2087013..2088005	+	330	209695410	oppF	VSAL_I1950	-	oligopeptide transport ATP-binding protein F
1777	 38.51	0	2088186..2090348	+	720	209695411	-	VSAL_I1951	-	methyl-accepting chemotaxis protein
1778	 39.90	0	2090451..2091623	-	390	209695412	-	VSAL_I1952	-	hypothetical protein
1779	 39.97	0	2091688..2092425	-	245	209695413	pflA	VSAL_I1953	-	pyruvate formate-lyase 1 activating enzyme
1780	 39.14	0	2092573..2093898	-	441	209695414	-	VSAL_I1954	-	transposase
1781	 43.35	+1	2094014..2096290	-	758	209695415	pflB	VSAL_I1955	-	formate acetyltransferase 1
1782	 37.98	0	2096688..2097548	-	286	209695416	-	VSAL_I1956	-	putative formate transporter 1
1783	 40.86	0	2098078..2098848	+	256	209695417	aotP	VSAL_I1957	-	arginine/ornithine periplasmic binding protein-dependent transporter, ATP-binding component
1784	 39.38	0	2098933..2099709	+	258	209695418	aotJ	VSAL_I1958	-	arginine/ornithine periplasmic binding protein-dependent transporter
1785	 41.03	0	2099799..2100539	+	246	209695419	aotQ	VSAL_I1959	-	arginine/ornithine periplasmic binding protein-dependent transporter, inner membrane component
1786	 39.23	0	2100542..2101219	+	225	209695420	aotM	VSAL_I1960	-	arginine/ornithine periplasmic binding protein-dependent transporter, inner membrane component
1787	 37.48	0	2101503..2102153	-	216	209695421	grxB	VSAL_I1961	-	glutaredoxin 2
1788	 39.16	0	2102307..2103113	-	268	209695422	xthA	VSAL_I1962	-	exodeoxyribonuclease III
1789	 37.51	0	2104217..2105389	+	390	209695423	-	VSAL_I1963	-	putative secretion protein, HlyD family
1790	 37.13	0	2108585..2109268	-	227	209695424	-	VSAL_I1965	-	hypothetical protein
1791	 42.35	0	2109374..2110438	-	354	209695425	-	VSAL_I1966	-	putative pyridoxal-phosphate dependent enzyme
1792	 36.97	0	2110558..2111025	+	155	209695426	-	VSAL_I1967	-	HTH-type transcriptional regulator, AsnC family
1793	 42.82	+1	2111094..2111957	-	287	209695427	tesB	VSAL_I1968	-	acyl-CoA thioesterase II
1794	 40.29	0	2112219..2112707	+	162	209695428	-	VSAL_I1969	-	putative lipoprotein
1795	 36.96	0	2112749..2113051	-	100	209695429	-	VSAL_I1970	-	methylated-DNA methyltransferase
1796	 40.08	0	2113168..2113908	+	246	209695430	-	VSAL_I1971	-	membrane protein
1797	 39.04	0	2113990..2114901	-	303	209695431	-	VSAL_I1972	-	periplasmic solute binding protein
1798	 40.36	0	2114894..2115775	-	293	209695432	-	VSAL_I1973	-	ABC transporter, membrane protein
1799	 38.98	0	2115775..2116482	-	235	209695433	-	VSAL_I1974	-	ABC transporter, ATP-binding component
1800	 38.76	0	2116807..2117469	+	220	209695434	-	VSAL_I1975	-	putative lipoprotein
1801	 38.75	0	2117471..2118430	+	319	209695435	-	VSAL_I1976	-	putative nickel transporter
1802	 37.90	0	2118542..2120293	-	583	209695436	-	VSAL_I1977	-	membrane associated GGDEF protein
1803	 36.25	-1	2120425..2121759	-	444	209695437	-	VSAL_I1978	-	signal transduction protein, histidine kinase
1804	 38.79	0	2121749..2122408	-	219	209695438	-	VSAL_I1979	-	putative transcriptional regulator
1805	 36.95	0	2122413..2122799	-	128	209695439	-	VSAL_I1980	-	hypothetical protein
1806	 36.87	0	2122929..2123606	-	225	209695440	-	VSAL_I1981	-	membrane protein
1807	 36.56	0	2123700..2124287	-	195	209695441	tfoX	VSAL_I1982	-	putative DNA transformation protein TfoX
1808	 38.62	0	2124662..2125663	-	333	209695442	purR	VSAL_I1983	-	HTH-type transcriptional repressor PurR (purine nucleotide synthesis repressor)
1809	 38.12	0	2125988..2126635	-	215	209695443	torD	VSAL_I1984	-	chaperone protein TorD
1810	 39.77	0	2126867..2127565	+	232	209695444	torR	VSAL_I1985	-	torCAD operon transcriptional regulatory protein TorR
1811	 36.80	0	2127761..2129173	+	470	209695445	-	VSAL_I1986	-	putative lipoprotein
1812	 37.67	0	2129295..2130239	+	314	209695446	rluF	VSAL_I1987	-	ribosomal large subunit pseudouridine synthase F
1813	 38.59	0	2130818..2131369	+	183	209695447	-	VSAL_I1988	-	membrane protein
1814	 38.13	0	2131373..2133082	+	569	209695448	-	VSAL_I1989	-	ABC transporter ATP-binding protein
1815	 36.31	-1	2133072..2133911	+	279	209695449	-	VSAL_I1990	-	putative cobalt transport protein
1816	 32.49	-2	2133986..2134339	-	117	209695450	-	VSAL_I1991	-	hypothetical protein
1817	 35.94	-1	2135106..2135987	+	293	209695451	-	VSAL_I1993	-	transposase
1818	 38.50	0	2136897..2137670	+	257	209695452	-	VSAL_I1995	-	phospholipase A1 precursor
1819	 35.97	-1	2137808..2138452	+	214	209695453	-	VSAL_I1996	-	putative formate-dependent nitrite reductase complex NrfG subunit
1820	 44.54	+1	2138553..2139989	-	478	209695454	nrfA	VSAL_I1997	-	cytochrome c-552 precursor (ammonia-forming cytochrome nitrite reductase) (cytochrome C nitrite reductase)
1821	 40.24	0	2140482..2141075	+	197	209695455	nrfB	VSAL_I1998	-	cytochrome c-type protein NrfB precursor
1822	 43.67	+1	2141077..2141763	+	228	209695456	nrfC	VSAL_I1999	-	cytochrome c-type biogenesis protein NrfC
1823	 40.65	0	2141765..2142721	+	318	209695457	nrfD	VSAL_I2000	-	cytochrome c-type biogenesis protein NrfD
1824	 40.12	0	2142795..2144681	+	628	209695458	ccmF	VSAL_I2001	-	cytochrome c-type biogenesis protein CcmF
1825	 38.07	0	2144678..2145205	+	175	209695459	-	VSAL_I2002	-	thiol/disulfide interchange protein
1826	 37.06	0	2145205..2145660	+	151	209695460	-	VSAL_I2003	-	cytochrome c biogenesis protein
1827	 39.08	0	2145663..2146376	-	237	209695461	-	VSAL_I2004	-	aspartate racemase
1828	 42.47	0	2146411..2147712	-	433	209695462	dcuA	VSAL_I2005	-	anaerobic C4-dicarboxylate transporter
1829	 37.07	0	2148040..2148921	+	293	209695463	-	VSAL_I2006	-	HTH-type transcriptional regulator, LysR family
1830	 38.19	0	2148918..2149679	-	253	209695464	-	VSAL_I2007	-	phosphatidylglycerophosphatase B
1831	 35.92	-1	2152275..2152622	-	115	209695465	-	VSAL_I2010	-	transposase
1832	 37.78	0	2152619..2152933	-	104	209695466	-	VSAL_I2011	-	transposase
1833	 35.94	-1	2157061..2157942	+	293	209695467	-	VSAL_I2015	-	transposase
1834	 41.99	0	2158722..2160326	+	534	209695468	-	VSAL_I2017	-	MFS transporter
1835	 40.71	0	2160396..2161100	+	234	209695469	rsuA	VSAL_I2018	-	ribosomal small subunit pseudouridine synthase A (16S pseudouridine 516 synthase)
1836	 42.45	0	2161267..2162472	+	401	209695470	bcr	VSAL_I2019	-	bicyclomycin resistance protein
1837	 37.68	0	2162473..2163162	+	229	209695471	-	VSAL_I2020	-	hypothetical protein
1838	 41.96	0	2164796..2166175	+	459	209695472	vcmH	VSAL_I2022	-	multidrug efflux pump
1839	 41.96	0	2166290..2166961	+	223	209695473	-	VSAL_I2023	-	ABC transporter, ATP-binding protein
1840	 39.93	0	2166942..2169395	+	817	209695474	-	VSAL_I2024	-	predicted permease
1841	 39.22	0	2169395..2170516	+	373	209695475	-	VSAL_I2025	-	membrane protein
1842	 39.43	0	2170673..2171821	+	382	209695476	nhaAv	VSAL_I2026	-	sodium/proton antiporter
1843	 39.14	0	2171879..2173204	-	441	209695477	-	VSAL_I2027	-	transposase
1844	 43.06	+1	2173803..2175005	+	400	209695478	-	VSAL_I2028	-	putative short-chain alcohol dehydrogenase
1845	 41.00	0	2175149..2176831	-	560	209695479	-	VSAL_I2029	-	putative transport protein
1846	 38.64	0	2176977..2177240	-	87	209695480	grxA	VSAL_I2030	-	glutaredoxin 1
1847	 38.83	0	2177492..2178346	-	284	209695481	hexR	VSAL_I2031	-	HTH-type transcriptional regulator HexR
1848	 39.23	0	2178698..2180341	-	547	209695482	-	VSAL_I2032	-	pyridoxal-dependent decarboxylase
1849	 36.65	0	2180520..2181032	-	170	209695483	-	VSAL_I2033	-	hypothetical protein
1850	 39.93	0	2181204..2182037	-	277	209695484	-	VSAL_I2034	-	membrane protein
1851	 37.32	0	2182127..2183053	-	308	209695485	-	VSAL_I2035	-	hypothetical protein
1852	 34.04	-1	2183809..2184375	-	188	209695486	-	VSAL_I2037	-	transposase
1853	 35.70	-1	2184393..2184815	-	140	209695487	-	VSAL_I2038	-	transposase
1854	 40.58	0	2185049..2185600	-	183	209695488	-	VSAL_I2039	-	hypothetical protein
1855	 34.95	-1	2185906..2187207	+	433	209695489	-	VSAL_I2040	-	putative lipoprotein
39.44	MEAN

3.11	STD DEV
