IslandPath Analysis: Aliivibrio salmonicida LFI1238

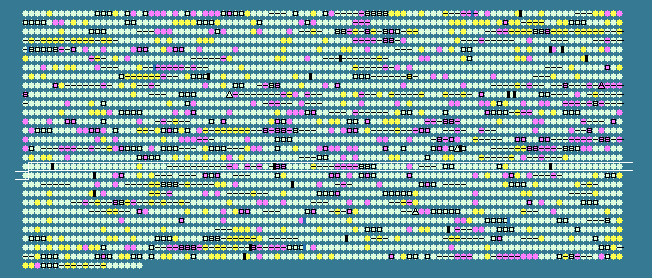

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1702	 40.53	0	2002600..2003655	-	351	209695336	rnfD	VSAL_I1869	-	electron transport complex protein RnfD
1703	 42.58	+1	2003658..2005808	-	716	209695337	rnfC	VSAL_I1870	-	electron transport complex protein RnfC
1704	 40.85	0	2005812..2006396	-	194	209695338	rnfB	VSAL_I1871	-	electron transport complex protein RnfB
1705	 39.18	0	2006399..2006980	-	193	209695339	rnfA	VSAL_I1872	-	electron transport complex protein RnfA
1706	 39.00	0	2007661..2009691	+	676	209695340	uvrB	VSAL_I1873	-	UvrABS system protein B (excinuclease ABC subunit B)
1707	 39.93	0	2010023..2011432	+	469	209695341	luxO	VSAL_I1874	-	two component signal response regulator LuxO
1708	 36.04	-1	2011444..2011776	+	110	209695342	luxU	VSAL_I1875	-	phosphorelay protein LuxU
1709	 40.96	0	2011826..2012704	-	292	209695343	-	VSAL_I1876	-	hypothetical protein
1710	 39.39	0	2013073..2014062	+	329	209695344	moaA	VSAL_I1877	-	molybdenum cofactor biosynthesis protein A
1711	 40.00	0	2014075..2014554	+	159	209695345	moaC	VSAL_I1878	-	molybdenum cofactor biosynthesis protein C
1712	 40.65	0	2014551..2014796	+	81	209695346	moaD	VSAL_I1879	-	molybdopterin-converting factor subunit 1
1713	 42.06	0	2014798..2015244	+	148	209695347	moaE	VSAL_I1880	-	molybdopterin-converting factor subunit 2
1714	 41.20	0	2015333..2016298	-	321	209695348	-	VSAL_I1881	-	hypothetical protein
1715	 40.56	0	2016302..2017810	-	502	209695349	-	VSAL_I1882	-	membrane protein
1716	 39.17	0	2017913..2018683	-	256	209695350	-	VSAL_I1883	-	putative lipoprotein
1717	 41.03	0	2018763..2019737	-	324	209695351	-	VSAL_I1884	-	putative methyltransferase
1718	 39.64	0	2019787..2020515	-	242	209695352	-	VSAL_I1885	-	putative methyltransferase
1719	 42.85	+1	2021027..2022802	+	591	209695353	aspS	VSAL_I1886	-	aspartyl-tRNA synthetase
1720	 43.87	+1	2022901..2023422	+	173	209695354	ruvC	VSAL_I1887	-	crossover junction endodeoxyribonuclease RuvC
1721	 40.26	0	2023519..2024139	+	206	209695355	ruvA	VSAL_I1888	-	holliday junction ATP-dependent DNA helicase RuvA
1722	 41.22	0	2024185..2025198	+	337	209695356	ruvB	VSAL_I1889	-	holliday junction ATP-dependent DNA helicase RuvB
1723	 40.38	0	2025572..2027161	+	529	209695357	cydA	VSAL_I1890	-	cytochrome d ubiquinol oxidase subunit I
1724	 39.40	0	2027179..2028315	+	378	209695358	cydB	VSAL_I1891	-	cytochrome d ubiquinol oxidase subunit II
1725	 37.96	0	2028327..2028434	+	35	209695359	-	VSAL_I1892	-	hypothetical protein
1726	 35.97	-1	2028427..2028729	+	100	209695360	-	VSAL_I1893	-	membrane protein
1727	 36.54	0	2028919..2029323	+	134	209695361	ybgC	VSAL_I1894	-	acyl-CoA thioester hydrolase
1728	 39.30	0	2029313..2029999	+	228	209695362	tolQ	VSAL_I1895	-	TolQ protein, inner membrane component
1729	 40.04	0	2029999..2030445	+	148	209695363	tolR	VSAL_I1896	-	TolR protein, membrane component
1730	 40.18	0	2030462..2031469	+	335	209695364	tolA	VSAL_I1897	-	TolA protein, membrane component
1731	 39.39	0	2031480..2032832	+	450	209695365	tolB	VSAL_I1898	-	TolB protein precursor, periplasmic component
1732	 42.47	0	2032865..2033422	+	185	209695366	pal	VSAL_I1899	-	peptidoglycan-associated lipoprotein precursor
1733	 41.18	0	2033447..2034211	+	254	209695367	-	VSAL_I1900	-	hypothetical protein
1734	 40.67	0	2034338..2035387	+	349	209695368	nadA	VSAL_I1901	-	quinolinate synthetase A
1735	 33.12	-2	2035463..2035921	-	152	209695369	-	VSAL_I1902	-	hypothetical protein
1736	 35.81	-1	2036033..2037040	-	335	209695370	-	VSAL_I1903	-	HTH-type transcriptional regulator, AraC family
1737	 40.29	0	2037316..2038437	+	373	209695371	-	VSAL_I1904	-	secretion protein, HlyD family
1738	 35.20	-1	2038427..2039446	+	339	209695372	-	VSAL_I1905	-	membrane protein
1739	 39.92	0	2039473..2040534	+	353	209695373	-	VSAL_I1906	-	membrane protein
1740	 33.63	-1	2040537..2041199	+	220	209695374	-	VSAL_I1907	-	putative ion channel
1741	 40.13	0	2041652..2042254	-	200	209695375	-	VSAL_I1908	-	hypothetical protein
1742	 39.14	0	2042634..2043029	+	131	209695376	-	VSAL_I1909	-	membrane protein
1743	 35.70	-1	2045374..2045796	+	140	209695377	-	VSAL_I1911	-	transposase
1744	 34.04	-1	2045814..2046380	+	188	209695378	-	VSAL_I1912	-	transposase
1745	 37.12	0	2047052..2047447	+	131	209695379	-	VSAL_I1913	-	hypothetical protein
1746	 40.68	0	2047714..2049075	+	453	209695380	-	VSAL_I1914	-	putative GTP-binding protein
1747	 38.97	0	2049181..2049606	+	141	209695381	-	VSAL_I1915	-	putative acetyltransferase
1748	 38.94	0	2049660..2050640	-	326	209695382	-	VSAL_I1916	-	putative alcohol dehydrogenase
1749	 43.71	+1	2050803..2051120	-	105	209695383	-	VSAL_I1917	-	hypothetical protein
1750	 40.31	0	2051215..2052375	-	386	209695384	-	VSAL_I1918	-	MFS transporter
1751	 36.15	-1	2052717..2053427	+	236	209695385	-	VSAL_I1919	-	membrane protein
1752	 38.60	0	2053473..2054327	-	284	209695386	-	VSAL_I1920	-	inner membrane protein
1753	 32.61	-2	2055011..2055976	-	321	209695387	-	VSAL_I1921	-	putative membrane protein, putative phage gene
1754	 27.18	-2	2056403..2058628	-	741	209695388	-	VSAL_I1922	-	hypothetical protein, putative phage gene
1755	 34.62	-1	2059548..2060168	-	206	209695389	-	VSAL_I1924	-	hypothetical protein, putative phage gene
1756	 28.87	-2	2060173..2060799	-	208	209695390	ibrB	VSAL_I1925	-	immunoglobulin-binding regulator
1757	 37.78	0	2063208..2063522	+	104	209695391	-	VSAL_I1928	-	transposase
1758	 36.21	-1	2063519..2063866	+	115	209695392	-	VSAL_I1929	-	transposase
1759	 39.92	0	2063938..2065425	+	495	209695393	-	VSAL_I1930	-	transposase
1760	 40.40	0	2065558..2066307	-	249	209695394	moeB	VSAL_I1931	-	molybdopterin biosynthesis protein MoeB
1761	 42.09	0	2066319..2067563	-	414	209695395	moeA	VSAL_I1932	-	molybdopterin biosynthesis protein MoeA
1762	 40.98	0	2067717..2068370	+	217	209695396	folE	VSAL_I1933	-	GTP cyclohydrolase I
1763	 39.38	0	2068438..2069892	-	484	209695397	cls	VSAL_I1934	-	cardiolipin synthetase
1764	 39.35	0	2070168..2071514	+	448	209695398	-	VSAL_I1935	-	sodium-dependent transporter
1765	 34.84	-1	2071607..2072005	-	132	209695399	-	VSAL_I1936	-	hypothetical protein
1766	 37.32	0	2072018..2073220	-	400	209695400	-	VSAL_I1937	-	putative signaling protein
1767	 36.09	-1	2073336..2074061	-	241	209695401	lpxH	VSAL_I1938	-	UDP-2,3-diacylglucosamine hydrolase
1768	 39.76	0	2074118..2074615	-	165	209695402	ppiB	VSAL_I1939	-	peptidyl-prolyl cis-trans isomerase B
1769	 40.10	0	2074764..2076152	+	462	209695403	cysS	VSAL_I1940	-	cysteinyl-tRNA synthetase
1770	 37.65	0	2076233..2076811	+	192	209695404	tdk	VSAL_I1941	-	thymidine kinase
1771	 37.78	0	2077364..2077678	+	104	209695405	-	VSAL_I1943	-	transposase
1772	 36.21	-1	2077675..2078022	+	115	209695406	-	VSAL_I1944	-	transposase
1773	 40.00	0	2082386..2084050	+	554	209695407	oppA	VSAL_I1946	-	oligopeptide transport system permease protein B
1774	 41.86	0	2085095..2085997	+	300	209695408	oppC	VSAL_I1948	-	oligopeptide transport system permease protein C
1775	 40.58	0	2086048..2087013	+	321	209695409	oppD	VSAL_I1949	-	oligopeptide transport ATP-binding protein D
1776	 40.68	0	2087013..2088005	+	330	209695410	oppF	VSAL_I1950	-	oligopeptide transport ATP-binding protein F
1777	 38.51	0	2088186..2090348	+	720	209695411	-	VSAL_I1951	-	methyl-accepting chemotaxis protein
1778	 39.90	0	2090451..2091623	-	390	209695412	-	VSAL_I1952	-	hypothetical protein
1779	 39.97	0	2091688..2092425	-	245	209695413	pflA	VSAL_I1953	-	pyruvate formate-lyase 1 activating enzyme
1780	 39.14	0	2092573..2093898	-	441	209695414	-	VSAL_I1954	-	transposase
1781	 43.35	+1	2094014..2096290	-	758	209695415	pflB	VSAL_I1955	-	formate acetyltransferase 1
1782	 37.98	0	2096688..2097548	-	286	209695416	-	VSAL_I1956	-	putative formate transporter 1
1783	 40.86	0	2098078..2098848	+	256	209695417	aotP	VSAL_I1957	-	arginine/ornithine periplasmic binding protein-dependent transporter, ATP-binding component
1784	 39.38	0	2098933..2099709	+	258	209695418	aotJ	VSAL_I1958	-	arginine/ornithine periplasmic binding protein-dependent transporter
1785	 41.03	0	2099799..2100539	+	246	209695419	aotQ	VSAL_I1959	-	arginine/ornithine periplasmic binding protein-dependent transporter, inner membrane component
1786	 39.23	0	2100542..2101219	+	225	209695420	aotM	VSAL_I1960	-	arginine/ornithine periplasmic binding protein-dependent transporter, inner membrane component
1787	 37.48	0	2101503..2102153	-	216	209695421	grxB	VSAL_I1961	-	glutaredoxin 2
1788	 39.16	0	2102307..2103113	-	268	209695422	xthA	VSAL_I1962	-	exodeoxyribonuclease III
1789	 37.51	0	2104217..2105389	+	390	209695423	-	VSAL_I1963	-	putative secretion protein, HlyD family
1790	 37.13	0	2108585..2109268	-	227	209695424	-	VSAL_I1965	-	hypothetical protein
1791	 42.35	0	2109374..2110438	-	354	209695425	-	VSAL_I1966	-	putative pyridoxal-phosphate dependent enzyme
1792	 36.97	0	2110558..2111025	+	155	209695426	-	VSAL_I1967	-	HTH-type transcriptional regulator, AsnC family
1793	 42.82	+1	2111094..2111957	-	287	209695427	tesB	VSAL_I1968	-	acyl-CoA thioesterase II
1794	 40.29	0	2112219..2112707	+	162	209695428	-	VSAL_I1969	-	putative lipoprotein
1795	 36.96	0	2112749..2113051	-	100	209695429	-	VSAL_I1970	-	methylated-DNA methyltransferase
1796	 40.08	0	2113168..2113908	+	246	209695430	-	VSAL_I1971	-	membrane protein
1797	 39.04	0	2113990..2114901	-	303	209695431	-	VSAL_I1972	-	periplasmic solute binding protein
1798	 40.36	0	2114894..2115775	-	293	209695432	-	VSAL_I1973	-	ABC transporter, membrane protein
1799	 38.98	0	2115775..2116482	-	235	209695433	-	VSAL_I1974	-	ABC transporter, ATP-binding component
1800	 38.76	0	2116807..2117469	+	220	209695434	-	VSAL_I1975	-	putative lipoprotein
1801	 38.75	0	2117471..2118430	+	319	209695435	-	VSAL_I1976	-	putative nickel transporter
39.44	MEAN

3.11	STD DEV
