IslandPath Analysis: Aliivibrio salmonicida LFI1238

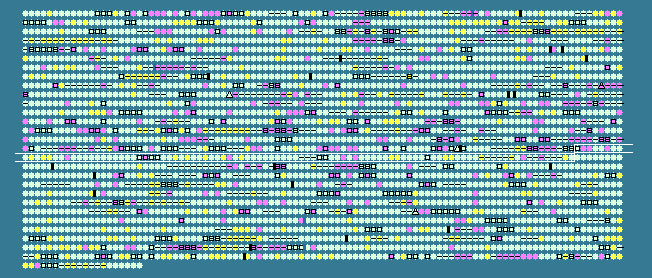

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1593	 39.65	0	1860781..1862268	+	495	209695227	-	VSAL_I1747	-	transposase
1594	 35.78	-1	1863104..1863634	-	176	209695228	huvZ	VSAL_I1748	-	heme uptake and utilization protein HuvZ
1595	 33.73	-1	1863660..1864166	-	168	209695229	huvX	VSAL_I1749	-	heme uptake and utilization protein HuvX
1596	 38.70	0	1864187..1865509	-	440	209695230	phuW	VSAL_I1750	-	putative coproporphyrinogen oxidase PhuW
1597	 39.21	0	1866457..1867137	+	226	209695231	exbB1	VSAL_I1752	-	TonB system transport protein ExbB1
1598	 32.63	-2	1867137..1867562	+	141	209695232	exbD1	VSAL_I1753	-	TonB system transport protein ExbD1
1599	 38.14	0	1867552..1868424	+	290	209695233	huvB	VSAL_I1754	-	heme transporter protein HuvB, putative periplasmic binding protein
1600	 39.50	0	1868428..1869465	+	345	209695234	huvC	VSAL_I1755	-	heme transporter protein HuvC, transmembrane permease component
1601	 37.93	0	1869462..1870244	+	260	209695235	hutD	VSAL_I1756	-	heme transporter protein HuvD, ATP-binding component
1602	 44.35	+1	1870335..1870688	-	117	209695236	rplT	VSAL_I1757	-	50S ribosomal protein L20
1603	 40.51	0	1870730..1870924	-	64	209695237	rpmI	VSAL_I1758	-	50S ribosomal subunit protein L35
1604	 44.20	+1	1871032..1871583	-	183	209695238	infC	VSAL_I1759	-	translation initiation factor IF-3
1605	 43.08	+1	1871587..1873515	-	642	209695239	thrS	VSAL_I1760	-	threonyl-tRNA synthetase
1606	 37.88	0	1873744..1874490	-	248	209695240	-	VSAL_I1761	-	putative sporulation-control protein
1607	 39.24	0	1874557..1875639	-	360	209695241	-	VSAL_I1762	-	putative peptidase
1608	 33.96	-1	1875664..1875981	-	105	209695242	-	VSAL_I1763	-	hypothetical protein
1609	 38.51	0	1876072..1877424	-	450	209695243	-	VSAL_I1764	-	putative heat shock protein
1610	 39.72	0	1877488..1878051	-	187	209695244	-	VSAL_I1765	-	putative membrane-associated phosphoesterase
1611	 36.02	-1	1878265..1878972	+	235	209695245	-	VSAL_I1766	-	hypothetical protein
1612	 41.99	0	1879456..1882113	-	885	209695246	gyrA	VSAL_I1767	-	DNA gyrase subunit A
1613	 39.94	0	1882401..1883126	+	241	209695247	ubiG	VSAL_I1768	-	3-demethylubiquinone-9 3-methyltransferase
1614	 40.23	0	1883610..1885886	+	758	209695248	nrdA	VSAL_I1769	-	ribonucleoside-diphosphate reductase 1 alpha chain
1615	 37.21	0	1886055..1887188	+	377	209695249	nrdB	VSAL_I1770	-	ribonucleoside-diphosphate reductase 1 beta chain
1616	 40.94	0	1889511..1889786	+	91	209695250	-	VSAL_I1772	-	putative ferredoxin
1617	 41.93	0	1889844..1891076	-	410	209695251	-	VSAL_I1773	-	putative molybdopterin binding protein
1618	 38.19	0	1891303..1892475	+	390	209695252	tyrP	VSAL_I1774	-	tyrosine-specific transport protein (tyrosine permease)
1619	 40.77	0	1892637..1893551	+	304	209695253	-	VSAL_I1775	-	hypothetical protein
1620	 39.14	0	1893600..1894925	-	441	209695254	-	VSAL_I1776	-	transposase
1621	 35.94	-1	1895311..1896192	-	293	209695255	-	VSAL_I1777	-	transposase
1622	 36.21	-1	1896603..1896950	+	115	209695256	-	VSAL_I1779	-	transposase
1623	 39.78	0	1897021..1898508	+	495	209695257	-	VSAL_I1780	-	transposase
1624	 41.34	0	1898601..1898987	-	128	209695258	-	VSAL_I1781	-	hypothetical protein
1625	 40.37	0	1899190..1899843	-	217	209695259	-	VSAL_I1782	-	Metallo-beta-lactamase
1626	 44.56	+1	1899903..1901024	-	373	209695260	-	VSAL_I1783	-	putative lipoprotein
1627	 39.80	0	1901005..1902024	-	339	209695261	-	VSAL_I1784	-	putative lipoprotein
1628	 43.20	+1	1902035..1903423	-	462	209695262	-	VSAL_I1785	-	hypothetical protein
1629	 41.79	0	1903553..1904806	-	417	209695263	-	VSAL_I1786	-	putative iron-regulated protein
1630	 37.33	0	1905014..1905613	-	199	209695264	ribA	VSAL_I1787	-	GTP cyclohydrolase-2
1631	 43.54	+1	1905921..1907066	-	381	209695265	adhB	VSAL_I1788	-	alcohol dehydrogenase 2
1632	 41.42	0	1907270..1907986	-	238	209695266	-	VSAL_I1789	-	hypothetical protein
1633	 42.40	0	1907988..1911206	-	1072	209695267	-	VSAL_I1790	-	restriction enzyme
1634	 43.54	+1	1912607..1914370	-	587	209695268	-	VSAL_I1792	-	N-6 adenine-specific DNA methylase
1635	 35.21	-1	1914702..1915766	+	354	209695269	-	VSAL_I1793	-	hypothetical protein
1636	 36.55	0	1916221..1916967	-	248	209695270	-	VSAL_I1795	-	hypothetical protein
1637	 43.02	+1	1917737..1919119	+	460	209695271	-	VSAL_I1796	-	sodium/alanine symporter
1638	 39.09	0	1919516..1921201	+	561	209695272	-	VSAL_I1797	-	mechanosensitive ion channel
1639	 38.79	0	1921280..1921921	-	213	209695273	-	VSAL_I1798	-	amino acid transport protein, LysE type
1640	 40.15	0	1922143..1922274	+	43	209695274	-	VSAL_I1799	-	hypothetical protein
1641	 42.56	+1	1922402..1923886	+	494	209695275	-	VSAL_I1800	-	carboxypeptidase
1642	 36.11	-1	1924100..1924351	+	83	209695276	hipB	VSAL_I1801	-	HTH-type transcriptional regulator HipB
1643	 37.26	0	1924351..1925673	+	440	209695277	hipA	VSAL_I1802	-	transcriptional regulator, HipA-like
1644	 37.58	0	1925836..1927200	-	454	209695278	-	VSAL_I1803	-	hypothetical protein
1645	 37.92	0	1927204..1928316	-	370	209695279	-	VSAL_I1804	-	hypothetical protein
1646	 38.74	0	1928432..1928653	-	73	209695280	-	VSAL_I1805	-	hypothetical protein
1647	 40.52	0	1928797..1930368	-	523	209695281	-	VSAL_I1806	-	hypothetical protein
1648	 40.41	0	1930948..1931625	+	225	209695282	-	VSAL_I1807	-	hypothetical protein
1649	 42.29	0	1931745..1932872	+	375	209695283	-	VSAL_I1808	-	hypothetical protein
1650	 37.78	0	1932956..1933270	+	104	209695284	-	VSAL_I1809	-	transposase
1651	 36.21	-1	1933267..1933614	+	115	209695285	-	VSAL_I1810	-	transposase
1652	 42.82	+1	1935733..1937103	-	456	209695286	-	VSAL_I1813	-	sodium/dicarboxylate symporter
1653	 40.81	0	1937360..1938001	+	213	209695287	-	VSAL_I1814	-	thiopurine S-methyltransferase
1654	 35.12	-1	1938151..1938876	-	241	209695288	-	VSAL_I1815	-	putative nucleotidyl transferase
1655	 36.82	0	1938973..1939746	-	257	209695289	-	VSAL_I1816	-	membrane protein
1656	 35.05	-1	1939747..1940967	-	406	209695290	-	VSAL_I1817	-	putative aminotransferase
1657	 36.14	-1	1943870..1944973	+	367	209695291	-	VSAL_I1819	-	outer membrane protein A
1658	 36.90	0	1944970..1947069	+	699	209695292	-	VSAL_I1820	-	putative lipoprotein
1659	 38.02	0	1949064..1949618	-	184	209695293	-	VSAL_I1823	-	putative exonuclease
1660	 37.13	0	1949687..1951135	-	482	209695294	-	VSAL_I1824	-	membrane associated receptor
1661	 38.07	0	1951455..1952087	+	210	209695295	-	VSAL_I1825	-	hypothetical protein
1662	 44.15	+1	1952087..1953907	+	606	209695296	-	VSAL_I1826	-	putative heat-shock chaperone protein
1663	 43.17	+1	1954046..1956862	+	938	209695297	-	VSAL_I1827	-	putative chaperone heat-shock protein
1664	 37.29	0	1956982..1957284	+	100	209695298	-	VSAL_I1828	-	hypothetical protein
1665	 36.71	0	1957348..1957821	-	157	209695299	-	VSAL_I1829	-	hypothetical protein
1666	 40.10	0	1958017..1959168	+	383	209695300	-	VSAL_I1830	-	hypothetical protein
1667	 42.82	+1	1959321..1960079	-	252	209695301	udp	VSAL_I1831	-	uridine phosphorylase
1668	 36.21	-1	1966663..1967010	-	115	209695302	-	VSAL_I1834	-	transposase
1669	 40.36	0	1967437..1969158	-	573	209695303	cydC	VSAL_I1836	-	transport ATP-binding protein CydC
1670	 40.83	0	1969151..1970923	-	590	209695304	cydD	VSAL_I1837	-	transport ATP-binding protein CydD
1671	 43.89	+1	1971073..1972038	-	321	209695305	trxB	VSAL_I1838	-	thioredoxin reductase
1672	 43.25	+1	1972198..1973316	-	372	209695306	aladh	VSAL_I1839	-	alanine dehydrogenase
1673	 38.01	0	1973473..1973964	+	163	209695307	lrp	VSAL_I1840	-	leucine-responsive regulatory protein
1674	 41.09	0	1974174..1977449	+	1091	209695308	-	VSAL_I1841	-	DNA translocase FtsK
1675	 38.53	0	1977479..1978075	+	198	209695309	-	VSAL_I1842	-	outer-membrane lipoprotein carrier protein precursor
1676	 41.87	0	1978120..1979466	+	448	209695310	-	VSAL_I1843	-	hypothetical protein
1677	 43.20	+1	1979589..1980896	+	435	209695311	serS	VSAL_I1844	-	seryl-tRNA synthetase
1678	 40.92	0	1981008..1981442	-	144	209695312	trxC	VSAL_I1845	-	thioredoxin 2
1679	 41.36	0	1981576..1981899	-	107	209695313	-	VSAL_I1846	-	hypothetical protein
1680	 40.23	0	1982083..1983387	+	434	209695314	gsk	VSAL_I1847	-	inosine-guanosine kinase
1681	 40.53	0	1983456..1984331	-	291	209695315	-	VSAL_I1848	-	putative aldose 1-epimerase
1682	 43.20	+1	1984513..1985505	-	330	209695316	gap	VSAL_I1849	-	glyceraldehydes-3-phosphate dehydrogenase
1683	 38.77	0	1985842..1986246	+	134	209695317	-	VSAL_I1850	-	putative methionine sulfoxide reductase
1684	 35.93	-1	1986310..1987194	-	294	209695318	-	VSAL_I1851	-	hypothetical protein
1685	 36.84	0	1987276..1987560	+	94	209695319	-	VSAL_I1852	-	hypothetical protein
1686	 38.00	0	1987705..1987854	+	49	209695320	-	VSAL_I1853	-	hypothetical protein
1687	 35.34	-1	1987870..1988718	-	282	209695321	-	VSAL_I1854	-	putative ion transport protein
1688	 41.67	0	1989295..1991946	+	883	209695322	adhE	VSAL_I1855	-	aldehyde-alcohol dehydrogenase
1689	 36.90	0	1992080..1992751	-	223	209695323	-	VSAL_I1856	-	hypothetical protein
1690	 41.42	0	1993015..1993521	-	168	209695324	-	VSAL_I1857	-	hypothetical protein
1691	 44.10	+1	1993731..1994315	-	194	209695325	sodB	VSAL_I1858	-	superoxide dismutase [Fe]
1692	 39.88	0	1994551..1994886	+	111	209695326	-	VSAL_I1859	-	putative glutaredoxin
39.44	MEAN

3.11	STD DEV
