IslandPath Analysis: Aliivibrio salmonicida LFI1238

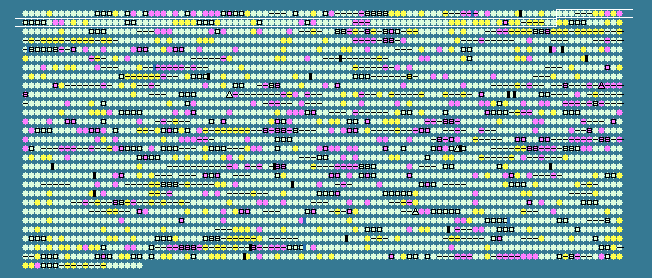

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
90	 41.18	0	136794..137672	+	292	209693724	-	VSAL_I0101	-	hypothetical protein
91	 39.39	0	137656..137919	+	87	209693725	-	VSAL_I0102	-	hypothetical protein
92	 38.81	0	137970..139940	-	656	209693726	-	VSAL_I0103	-	HTH-type transcriptional regulator
93	 42.38	0	140087..140827	-	246	209693727	-	VSAL_I0104	-	hypothetical protein
94	 42.60	+1	140840..141886	-	348	209693728	-	VSAL_I0105	-	hypothetical protein
95	 40.72	0	141927..143063	-	378	209693729	-	VSAL_I0106	-	hypothetical protein
96	 45.62	+1	143122..143772	-	216	209693730	-	VSAL_I0107	-	membrane protein
97	 47.18	+2	143787..144566	-	259	209693731	-	VSAL_I0108	-	membrane protein
98	 28.62	-2	144627..144923	-	98	209693732	-	VSAL_I0109	-	hypothetical protein
99	 45.18	+1	144926..145288	-	120	209693733	-	VSAL_I0110	-	hypothetical protein
100	 31.03	-2	145290..145637	-	115	209693734	-	VSAL_I0111	-	hypothetical protein
101	 36.05	-1	145902..146783	+	293	209693735	-	VSAL_I0112	-	transposase
102	 37.78	0	146904..147218	+	104	209693736	-	VSAL_I0113	-	transposase
103	 36.21	-1	147215..147562	+	115	209693737	-	VSAL_I0114	-	transposase
104	 39.72	0	147634..149121	+	495	209693738	-	VSAL_I0115	-	transposase
105	 36.60	0	149312..151027	-	571	209693739	-	VSAL_I0116	-	hypothetical protein
106	 33.16	-2	151287..151856	-	189	209693740	-	VSAL_I0117	-	putative RNA polymerase sigma factor
107	 33.04	-2	151960..153300	-	446	209693741	-	VSAL_I0118	-	putative protein kinase
108	 38.92	0	153609..154199	+	196	209693742	-	VSAL_I0119	-	hypothetical protein
109	 43.36	+1	154286..155641	-	451	209693743	gor	VSAL_I0120	-	glutathione reductase
110	 41.07	0	155854..156693	-	279	209693744	-	VSAL_I0121	-	hypothetical protein
111	 43.42	+1	156846..158888	+	680	209693745	prlC	VSAL_I0122	-	oligopeptidase A
112	 39.65	0	158962..160401	-	479	209693746	-	VSAL_I0123	-	putative exported peptidase
113	 37.78	0	160523..160837	-	104	209693747	cyaY	VSAL_I0124	-	protein CyaY
114	 42.82	+1	161114..162367	+	417	209693748	lysA	VSAL_I0125	-	diaminopimelate decarboxylase
115	 42.60	+1	162449..163279	+	276	209693749	dapF	VSAL_I0126	-	diaminopimelate epimerase
116	 39.46	0	163276..163977	+	233	209693750	-	VSAL_I0127	-	hypothetical protein
117	 42.11	0	163970..164881	+	303	209693751	xerC	VSAL_I0128	-	tyrosine recombinase XerC
118	 37.78	0	165050..165364	+	104	209693752	-	VSAL_I0129	-	transposase
119	 40.47	0	165725..166915	-	396	209693753	-	VSAL_I0131	-	transposase
120	 39.42	0	167270..167860	+	196	209693754	-	VSAL_I0132	-	putative lipoprotein
121	 37.33	0	167877..169328	+	483	209693755	-	VSAL_I0133	-	hypothetical protein
122	 39.92	0	169900..171447	+	515	209693756	-	VSAL_I0134	-	L-2,4-diaminobutyrate decarboxylase
123	 39.73	0	171464..172792	+	442	209693757	iucD	VSAL_I0135	-	siderophore biosynthetis protein
124	 39.67	0	172803..175262	+	819	209693758	iucC	VSAL_I0136	-	siderophore biosynthesis protein
125	 40.58	0	175286..177451	+	721	209693759	-	VSAL_I0137	-	TonB-dependent iron-siderophore receptor precursor
126	 43.32	+1	177570..178520	+	316	209693760	-	VSAL_I0138	-	iron-siderophore ABC transporter, periplasmic binding protein
127	 43.42	+1	178517..179617	+	366	209693761	fepD	VSAL_I0139	-	iron-siderophore ABC transporter, membrane permease component
128	 46.00	+2	179607..180632	+	341	209693762	fecD	VSAL_I0140	-	iron-siderophore ABC transporter, membrane permease component
129	 43.00	+1	180647..181453	+	268	209693763	fepC	VSAL_I0141	-	iron-siderophore ABC transporter, ATP-binding protein
130	 37.78	0	181578..181892	+	104	209693764	-	VSAL_I0142	-	transposase
131	 36.21	-1	181889..182236	+	115	209693765	-	VSAL_I0143	-	transposase
132	 39.72	0	182308..183795	+	495	209693766	-	VSAL_I0144	-	transposase
133	 43.75	+1	185316..186620	-	434	209693767	rhlB	VSAL_I0146	-	ATP-dependent RNA helicase RhlB
134	 40.67	0	186733..187059	+	108	209693768	trxA	VSAL_I0147	-	thioredoxin 1
135	 41.83	0	187298..188557	+	419	209693769	rho	VSAL_I0148	-	transcription termination factor rho
136	 41.74	0	188701..189723	+	340	209693770	-	VSAL_I0149	-	hypothetical protein
137	 42.56	+1	189820..191661	+	613	209693771	ubiD	VSAL_I0150	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
138	 39.02	0	191658..191921	+	87	209693772	-	VSAL_I0151	-	putative ferredoxin
139	 43.46	+1	192020..192730	+	236	209693773	fre	VSAL_I0152	-	NAD(P)H-flavin reductase
140	 37.78	0	194735..195049	-	104	209693774	-	VSAL_I0155	-	transposase
141	 38.69	0	195363..197342	-	659	209693775	-	VSAL_I0157	-	membrane associated sulfatase
142	 41.51	0	197379..198197	-	272	209693776	mutM	VSAL_I0158	-	formamidopyrimidine-DNA glycosylase
143	 42.89	+1	198490..199431	+	313	209693777	hldD	VSAL_I0159	-	ADP-L-glycero-D-manno-heptose-6-epimerase
144	 39.77	0	199602..200828	+	408	209693778	waaL	VSAL_I0160	-	O-antigen ligase WaaL
145	 41.83	0	200825..201895	+	356	209693779	rfaF	VSAL_I0161	-	ADP-heptose-LPS heptosyltransferase II
146	 40.06	0	201889..203151	+	420	209693780	kdtA	VSAL_I0162	-	3-deoxy-D-manno-octulosonic-acid transferase
147	 35.03	-1	203198..204199	+	333	209693781	-	VSAL_I0163	-	hypothetical protein
148	 39.60	0	204352..205308	-	318	209693782	-	VSAL_I0164	-	transposase
149	 34.78	-1	205561..206664	-	367	209693783	-	VSAL_I0165	-	hypothetical protein, putative pseudaminic acid biosynthesis protein
150	 37.96	0	207356..208414	-	352	209693784	-	VSAL_I0167	-	nucleotidyl transferase
151	 39.38	0	208430..209074	-	214	209693785	-	VSAL_I0168	-	putative acetyltransferase
152	 40.13	0	209067..210140	-	357	209693786	-	VSAL_I0169	-	N-acetylneuraminic acid synthase
153	 39.75	0	210148..211332	-	394	209693787	-	VSAL_I0170	-	UDP-N-acetylglucosamine 2-epimerase
154	 40.75	0	211370..212515	-	381	209693788	-	VSAL_I0171	-	DegT/DnrJ/EryC1/StrS aminotransferase
155	 37.87	0	212539..213729	-	396	209693789	-	VSAL_I0172	-	polysaccharide biosynthesis protein
156	 33.07	-2	213847..214968	-	373	209693790	-	VSAL_I0173	-	hypothetical protein
157	 34.03	-1	214965..216107	-	380	209693791	rffA	VSAL_I0174	-	lipopolysaccharide biosynthesis protein RffA
158	 35.48	-1	216890..217729	-	279	209693792	wavT	VSAL_I0176	-	putative glycosyl transferase
159	 39.43	0	217730..218287	-	185	209693793	rmlC	VSAL_I0177	-	dTDP-4-dehydrorhamnose 3,5-epimerase
160	 38.42	0	219197..220081	-	294	209693794	rmlA	VSAL_I0179	-	glucose-1-phosphate thymidylyltransferase RmlA
161	 39.93	0	220081..221172	-	363	209693795	rmlB	VSAL_I0180	-	dTDP-D-glucose-4,6-dehydratase
162	 38.19	0	221194..223047	-	617	209693796	-	VSAL_I0181	-	membrane associated sulfatase
163	 36.74	0	223080..223784	-	234	209693797	wavC	VSAL_I0182	-	lipopolysaccharide core oligosaccharide biosynthesis protein WavC
164	 40.71	0	224160..225230	+	356	209693798	-	VSAL_I0183	-	glycosyl transferase
165	 38.06	0	225230..226012	+	260	209693799	waaE	VSAL_I0184	-	glycosyl transferase
166	 41.76	0	226012..227043	+	343	209693800	-	VSAL_I0185	-	glycosyl tranferase
167	 41.10	0	227036..227524	+	162	209693801	coaD	VSAL_I0186	-	phosphopantetheine adenylyltransferase
168	 38.69	0	227568..229547	-	659	209693802	-	VSAL_I0187	-	membrane protein
169	 41.51	0	229584..230402	-	272	209693803	mutM	VSAL_I0188	-	formamidopyrimidine-DNA glycosylase
170	 41.61	0	230590..231048	-	152	209693804	-	VSAL_I0189	-	hypothetical protein
171	 38.10	0	231313..231480	-	55	209693805	rpmG	VSAL_I0190	-	50S ribosomal protein L33
172	 45.99	+2	231494..231730	-	78	209693806	rpmB	VSAL_I0191	-	50S ribosomal protein L28
173	 42.96	+1	231926..232600	-	224	209693807	radC	VSAL_I0192	-	DNA repair protein RadC
174	 46.76	+2	232816..234036	+	406	209693808	coaBC	VSAL_I0193	-	coenzyme A biosynthesis bifunctional protein CoaBC
175	 38.24	0	234260..234850	+	196	209693809	slmA	VSAL_I0194	-	HTH-type regulatory protein, TetR-family
176	 43.21	+1	234906..235847	+	313	209693810	htrB	VSAL_I0195	-	lipid A biosynthesis lauroyl acyltransferase
177	 44.02	+1	235883..236350	+	155	209693811	greB	VSAL_I0196	-	transcription elongation factor GreB
178	 44.24	+1	236541..238877	+	778	209693812	-	VSAL_I0197	-	putative RNA binding protein
179	 42.08	0	239187..239666	-	159	209693813	-	VSAL_I0198	-	hypothetical protein
180	 46.06	+2	239701..240486	-	261	209693814	bioH	VSAL_I0199	-	carboxylesterase BioH
181	 35.94	-1	240896..241777	+	293	209693815	-	VSAL_I0201	-	transposase
182	 43.12	+1	244329..245636	-	435	209693816	envZ	VSAL_I0203	-	sensor outer membrane protein EnvZ
183	 44.72	+1	245950..246669	-	239	209693817	ompR	VSAL_I0204	-	response regulator homolog OmpR
184	 39.41	0	246879..247619	+	246	209693818	-	VSAL_I0205	-	putative partitioning protein ParA
185	 44.71	+1	247781..248290	-	169	209693819	pyrE	VSAL_I0206	-	orotate phosphoribosyltransferase
186	 47.70	+2	248525..249241	-	238	209693820	rph	VSAL_I0207	-	ribonuclease PH
187	 44.21	+1	249413..250276	+	287	209693821	-	VSAL_I0208	-	outer membrane protein
188	 41.03	0	250359..250787	-	142	209693822	-	VSAL_I0209	-	phosphate-starvation-inducible E
189	 38.30	0	250943..251566	+	207	209693823	gmk	VSAL_I0210	-	5'guanylate kinase
39.44	MEAN

3.11	STD DEV
