IslandPathversion 1.0

IslandPath Analysis: Aliivibrio salmonicida LFI1238

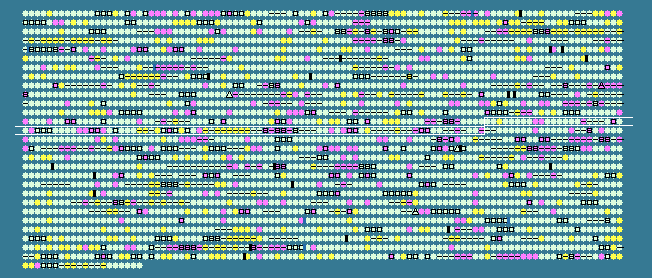

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1278	 38.10	0	1502924..1503259	+	111	209694912	-	VSAL_I1386	-	hypothetical protein
1279	 38.24	0	1503335..1503823	-	162	209694913	-	VSAL_I1387	-	putative lipoprotein
1280	 43.06	+1	1504126..1505718	+	530	209694914	-	VSAL_I1388	-	putative ion transporter
1281	 37.25	0	1505861..1506550	+	229	209694915	rsuA	VSAL_I1389	-	ribosomal small subunit pseudouridine synthase A
1282	 37.56	0	1506586..1507389	-	267	209694916	-	VSAL_I1390	-	membrane protein
1283	 38.17	0	1507476..1508219	+	247	209694917	-	VSAL_I1391	-	hypothetical protein
1284	 40.92	0	1508346..1509254	+	302	209694918	-	VSAL_I1392	-	putative outer membrane protein
1285	 37.84	0	1509379..1509711	-	110	209694919	-	VSAL_I1393	-	hypothetical protein
1286	 34.15	-1	1510487..1512079	+	530	209694920	-	VSAL_I1394	-	hypothetical protein
1287	 33.33	-1	1512083..1512886	+	267	209694921	-	VSAL_I1395	-	membrane protein
1288	 38.53	0	1513088..1513318	+	76	209694922	-	VSAL_I1396	-	putative DNA-damage-inducible protein I (DinI)
1289	 41.19	0	1513835..1515616	-	593	209694923	moeA	VSAL_I1397	-	molybdopterin biosynthesis protein MoeA
1290	 39.66	0	1515613..1516197	-	194	209694924	mobA	VSAL_I1398	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1291	 41.19	0	1516209..1516883	-	224	209694925	-	VSAL_I1399	-	ABC transporter, ATP-binding protein
1292	 40.63	0	1517596..1518417	-	273	209694926	tupA	VSAL_I1401	-	extracellular tungstate binding protein precursor
1293	 39.15	0	1520143..1522170	+	675	209694927	-	VSAL_I1403	-	signal transduction protein, histidine kinase
1294	 35.07	-1	1522197..1522598	+	133	209694928	-	VSAL_I1404	-	hypothetical protein
1295	 36.07	-1	1522687..1522869	-	60	209694929	-	VSAL_I1405	-	hypothetical protein
1296	 37.04	0	1523086..1523517	+	143	209694930	-	VSAL_I1406	-	membrane protein
1297	 37.57	0	1523869..1524600	+	243	209694931	-	VSAL_I1407	-	putative glycosyl transferase
1298	 37.31	0	1524623..1525201	+	192	209694932	-	VSAL_I1408	-	membrane protein
1299	 35.83	-1	1526495..1527376	-	293	209694933	-	VSAL_I1410	-	transposase
1300	 38.56	0	1528352..1528810	+	152	209694934	-	VSAL_I1411	-	hypothetical protein
1301	 38.64	0	1528916..1529311	+	131	209694935	-	VSAL_I1412	-	hypothetical protein
1302	 35.79	-1	1529362..1529850	+	162	209694936	-	VSAL_I1413	-	hypothetical protein
1303	 37.78	0	1530171..1530485	+	104	209694937	-	VSAL_I1415	-	transposase
1304	 36.21	-1	1530482..1530829	+	115	209694938	-	VSAL_I1416	-	transposase
1305	 39.85	0	1530901..1532388	+	495	209694939	-	VSAL_I1417	-	transposase
1306	 38.48	0	1534103..1534549	+	148	209694940	-	VSAL_I1418	-	putative acetyltransferase
1307	 38.57	0	1534590..1535009	+	139	209694941	-	VSAL_I1419	-	putative acetyltransferase
1308	 37.52	0	1535018..1535806	+	262	209694942	-	VSAL_I1420	-	hypothetical protein
1309	 39.59	0	1535830..1536660	+	276	209694943	-	VSAL_I1421	-	sulfurtransferase (rhodanese-like protein)
1310	 32.88	-2	1536688..1536906	+	72	209694944	-	VSAL_I1422	-	hypothetical protein
1311	 35.64	-1	1537500..1537976	+	158	209694945	-	VSAL_I1424	-	putative acetyltransferase
1312	 34.04	-1	1538051..1538617	-	188	209694946	-	VSAL_I1425	-	transposase
1313	 35.70	-1	1538635..1539057	-	140	209694947	-	VSAL_I1426	-	transposase
1314	 31.67	-2	1539188..1539427	-	79	209694948	-	VSAL_I1427	-	hypothetical protein
1315	 39.26	0	1540076..1540750	-	224	209694949	-	VSAL_I1428	-	hypothetical protein
1316	 40.54	0	1541787..1542980	-	397	209694950	-	VSAL_I1430	-	transposase
1317	 36.91	0	1544754..1545284	+	176	209694951	-	VSAL_I1431	-	putative acetyltransferase
1318	 38.46	0	1545349..1545699	+	116	209694952	-	VSAL_I1432	-	hypothetical protein
1319	 40.39	0	1546052..1548943	+	963	209694953	-	VSAL_I1433	-	hypothetical protein
1320	 43.13	+1	1550006..1550791	+	261	209694954	-	VSAL_I1435	-	hypothetical protein
1321	 44.67	+1	1550854..1551594	+	246	209694955	-	VSAL_I1436	-	hypothetical protein
1322	 42.08	0	1551597..1552316	+	239	209694956	-	VSAL_I1437	-	putative allophanate hydrolase subunit 1
1323	 43.78	+1	1552313..1553269	+	318	209694957	-	VSAL_I1438	-	putative allophanate hydrolase subunit 2
1324	 37.78	0	1553364..1553678	+	104	209694958	-	VSAL_I1439	-	transposase
1325	 35.94	-1	1553950..1554831	-	293	209694959	-	VSAL_I1441	-	transposase
1326	 39.65	0	1555101..1556588	+	495	209694960	-	VSAL_I1442	-	transposase
1327	 43.64	+1	1556716..1557957	+	413	209694961	-	VSAL_I1443	-	putative transmembrane transport protein
1328	 40.70	0	1558822..1560015	-	397	209694962	-	VSAL_I1445	-	transposase
1329	 39.93	0	1562147..1563268	+	373	209694963	mltC	VSAL_I1446	-	membrane-bound lytic murein transglycosylase C
1330	 35.28	-1	1563304..1565457	+	717	209694964	-	VSAL_I1447	-	putative metal dependent phosphohydrolases
1331	 44.37	+1	1565543..1566394	-	283	209694965	-	VSAL_I1448	-	putative formate dehydrogenase accessory protein
1332	 41.67	0	1566536..1567543	+	335	209694966	-	VSAL_I1449	-	hypothetical protein
1333	 43.17	+1	1567750..1569426	+	558	209694967	-	VSAL_I1450	-	putative ferredoxin
1334	 44.12	+1	1569431..1570042	+	203	209694968	-	VSAL_I1451	-	putative cytoplasmic chaperone TorD
1335	 44.44	+1	1570121..1570318	+	65	209694969	-	VSAL_I1452	-	hypothetical protein
1336	 45.66	+2	1570330..1573185	+	951	209694970	fdhA	VSAL_I1453	-	formate dehydrogenase
1337	 46.47	+2	1573197..1573805	+	202	209694971	fdhB	VSAL_I1454	-	formate dehydrogenase iron-sulfur subunit
1338	 43.04	+1	1573822..1574841	+	339	209694972	fdnI	VSAL_I1455	-	putative formate dehydrogenase
1339	 39.70	0	1575087..1575620	+	177	209694973	rimL	VSAL_I1456	-	ribosomal-protein-serine acetyltransferase
1340	 37.54	0	1575814..1576692	+	292	209694974	-	VSAL_I1457	-	hypothetical protein
1341	 35.94	-1	1578104..1578985	+	293	209694975	-	VSAL_I1459	-	transposase
1342	 27.05	-2	1579165..1579944	+	259	209694976	-	VSAL_I1460	-	HTH-type transcriptional regulator, AraC family
1343	 34.04	-1	1581620..1582186	-	188	209694977	-	VSAL_I1463	-	transposase
1344	 35.70	-1	1582204..1582626	-	140	209694978	-	VSAL_I1464	-	transposase
1345	 25.00	-2	1583625..1583840	+	71	209694979	-	VSAL_I1465	-	hypothetical protein
1346	 39.60	0	1583876..1584832	-	318	209694980	-	VSAL_I1466	-	transposase
1347	 37.12	0	1585157..1585579	+	140	209694981	-	VSAL_I1467	-	hypothetical protein
1348	 38.25	0	1585901..1586185	-	94	209694982	-	VSAL_I1469	-	putative plasmid stabilisation system protein
1349	 40.16	0	1586175..1586423	-	82	209694983	-	VSAL_I1470	-	hypothetical protein
1350	 41.19	0	1586716..1587504	+	262	209694984	-	VSAL_I1471	-	putative antibiotic resistance protein
1351	 40.18	0	1587526..1587978	+	150	209694985	-	VSAL_I1472	-	NUDIX hydrolase
1352	 34.93	-1	1588003..1588503	+	166	209694986	-	VSAL_I1473	-	putative acetyltransferase
1353	 36.93	0	1588718..1589356	+	212	209694987	-	VSAL_I1475	-	outer membrane protein
1354	 34.95	-1	1589483..1589914	+	143	209694988	-	VSAL_I1476	-	membrane protein
1355	 35.70	-1	1590020..1590442	+	140	209694989	-	VSAL_I1477	-	transposase
1356	 34.04	-1	1590460..1591026	+	188	209694990	-	VSAL_I1478	-	transposase
1357	 36.52	0	1592512..1592919	+	135	209694991	-	VSAL_I1481	-	putative lipoprotein
1358	 44.89	+1	1592965..1593717	+	250	209694992	-	VSAL_I1482	-	glucose 1-dehydrogenase
1359	 41.03	0	1593892..1594086	+	64	209694993	-	VSAL_I1483	-	hypothetical protein
1360	 39.75	0	1594166..1594882	-	238	209694994	-	VSAL_I1484	-	short chain dehydrogenase
1361	 40.92	0	1595114..1595812	+	232	209694995	-	VSAL_I1485	-	hypothetical protein
1362	 38.61	0	1596113..1596643	+	176	209694996	-	VSAL_I1486	-	cold-shock protein
1363	 45.76	+2	1596738..1597091	+	117	209694997	-	VSAL_I1487	-	hypothetical protein
1364	 37.27	0	1597367..1598788	+	473	209694998	-	VSAL_I1488	-	hypothetical protein
1365	 37.66	0	1599131..1599523	+	130	209694999	-	VSAL_I1489	-	hypothetical protein
1366	 35.65	-1	1599692..1599907	-	71	209695000	-	VSAL_I1490	-	hypothetical protein
1367	 35.70	-1	1600270..1600692	+	140	209695001	-	VSAL_I1491	-	transposase
1368	 34.04	-1	1600710..1601276	+	188	209695002	-	VSAL_I1492	-	transposase
1369	 39.48	0	1604231..1604734	+	167	209695003	-	VSAL_I1494	-	putative acetyltransferase
1370	 37.43	0	1604742..1605449	-	235	209695004	-	VSAL_I1495	-	hypothetical protein
1371	 39.47	0	1606036..1606524	+	162	209695005	-	VSAL_I1497	-	putative lipoprotein
1372	 40.40	0	1606663..1606860	+	65	209695006	-	VSAL_I1498	-	hypothetical protein
1373	 34.67	-1	1607000..1607149	+	49	209695007	-	VSAL_I1499	-	hypothetical protein
1374	 39.01	0	1607153..1607434	+	93	209695008	-	VSAL_I1500	-	hypothetical protein
1375	 39.37	0	1607512..1608273	-	253	209695009	-	VSAL_I1501	-	hypothetical protein
1376	 36.84	0	1608471..1608926	+	151	209695010	-	VSAL_I1502	-	putative acyltransferase
1377	 33.94	-1	1608986..1609150	-	54	209695011	-	VSAL_I1503	-	hypothetical protein
39.44	MEAN

3.11	STD DEV
