IslandPathversion 1.0

IslandPath Analysis: Aliivibrio salmonicida LFI1238

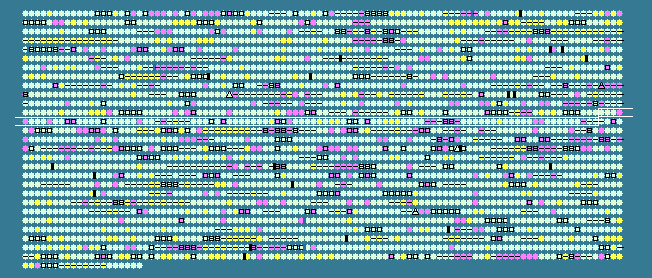

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1197	 40.77	0	1407622..1408011	+	129	209694831	-	VSAL_I1297	-	putative lipoprotein
1198	 37.39	0	1408058..1408648	+	196	209694832	-	VSAL_I1298	-	putative lipoprotein
1199	 38.79	0	1408863..1412438	+	1191	209694833	-	VSAL_I1299	-	hypothetical protein
1200	 33.45	-1	1412441..1413328	+	295	209694834	-	VSAL_I1300	-	hypothetical protein
1201	 34.81	-1	1413481..1413819	+	112	209694835	-	VSAL_I1301	-	hypothetical protein
1202	 38.58	0	1413903..1414646	-	247	209694836	-	VSAL_I1302	-	hypothetical protein
1203	 37.04	0	1414909..1415691	-	260	209694837	-	VSAL_I1303	-	membrane protein
1204	 38.91	0	1415702..1416598	-	298	209694838	-	VSAL_I1304	-	6-phosphogluconate dehydrogenase
1205	 34.60	-1	1416608..1417630	-	340	209694839	-	VSAL_I1305	-	hypothetical protein
1206	 36.32	-1	1417791..1419131	+	446	209694840	-	VSAL_I1306	-	putative HTH-type trancriptional regulator, GntR family
1207	 38.15	0	1419148..1419978	+	276	209694841	-	VSAL_I1307	-	putative antibiotic resistance protein
1208	 33.33	-1	1419991..1420344	-	117	209694842	-	VSAL_I1308	-	transposase
1209	 35.70	-1	1420574..1420996	-	140	209694843	-	VSAL_I1309	-	transposase
1210	 39.13	0	1421218..1421769	+	183	209694844	-	VSAL_I1310	-	hypothetical protein
1211	 40.47	0	1422124..1423413	+	429	209694845	ndh	VSAL_I1311	-	NADH dehydrogenase
1212	 40.08	0	1423587..1424891	+	434	209694846	-	VSAL_I1312	-	putative helicase (DEAD/DEAH box helicase)
1213	 41.16	0	1424901..1425347	+	148	209694847	-	VSAL_I1313	-	hypothetical protein
1214	 37.78	0	1425529..1425843	+	104	209694848	-	VSAL_I1314	-	transposase
1215	 39.89	0	1429491..1430207	-	238	209694849	-	VSAL_I1318	-	transcriptional regulator, two-component response regulator
1216	 38.21	0	1430200..1431882	-	560	209694850	-	VSAL_I1319	-	membrane receptor, histidine kinase
1217	 41.67	0	1432162..1432713	+	183	209694851	-	VSAL_I1320	-	membrane protein
1218	 36.42	0	1432803..1432964	-	53	209694852	-	VSAL_I1321	-	hypothetical protein
1219	 41.21	0	1433272..1434147	+	291	209694853	-	VSAL_I1322	-	heat shock protein HtpX, membrane associated peptidase
1220	 35.96	-1	1434291..1434785	+	164	209694854	-	VSAL_I1323	-	hypothetical protein
1221	 38.01	0	1434877..1435389	-	170	209694855	-	VSAL_I1324	-	hypothetical protein
1222	 41.51	0	1435503..1436786	-	427	209694856	-	VSAL_I1325	-	proton glutamate symport protein
1223	 39.50	0	1437217..1438626	+	469	209694857	-	VSAL_I1326	-	putative amidohydrolase
1224	 34.44	-1	1438827..1440365	+	512	209694858	-	VSAL_I1327	-	hypothetical protein
1225	 38.22	0	1440531..1441082	+	183	209694859	-	VSAL_I1328	-	putative membrane associated peptidase
1226	 44.61	+1	1441205..1442605	-	466	209694860	asnS	VSAL_I1329	-	asparaginyl-tRNA synthetase
1227	 39.39	0	1442862..1443224	+	120	209694861	-	VSAL_I1330	-	6-pyruvoyl tetrahydrobiopterin synthase
1228	 40.31	0	1443279..1444295	-	338	209694862	-	VSAL_I1331	-	hypothetical protein
1229	 41.61	0	1444489..1445733	+	414	209694863	sbcD	VSAL_I1332	-	nuclease sbcCD subunit D
1230	 39.85	0	1445730..1449410	+	1226	209694864	sbcC	VSAL_I1333	-	nuclease sbcCD subunit C
1231	 39.71	0	1449467..1449952	+	161	209694865	-	VSAL_I1334	-	putative thioesterase
1232	 40.54	0	1450389..1451582	-	397	209694866	-	VSAL_I1335	-	transposase
1233	 39.83	0	1452557..1453711	+	384	209694867	-	VSAL_I1337	-	tyrosine-specific transport protein (tyrosine permease)
1234	 35.94	-1	1455044..1455925	+	293	209694868	-	VSAL_I1339	-	transposase
1235	 38.61	0	1456036..1456395	+	119	209694869	-	VSAL_I1340	-	putative lipoprotein
1236	 39.44	0	1456444..1456803	+	119	209694870	-	VSAL_I1341	-	putative lipoprotein
1237	 39.59	0	1456867..1457409	-	180	209694871	-	VSAL_I1342	-	hypothetical protein
1238	 42.88	+1	1457621..1458982	-	453	209694872	sdaA	VSAL_I1343	-	L-serine dehydratase 1
1239	 42.05	0	1459080..1460330	-	416	209694873	sdaC	VSAL_I1344	-	serine transporter
1240	 37.27	0	1460522..1461130	-	202	209694874	-	VSAL_I1345	-	NUDIX hydrolase
1241	 39.97	0	1461130..1462500	-	456	209694875	pabB	VSAL_I1346	-	para-aminobenzoate synthase component I
1242	 45.11	+1	1462671..1464215	+	514	209694876	-	VSAL_I1347	-	fumarate hydratase class I
1243	 35.94	-1	1464260..1465141	-	293	209694877	-	VSAL_I1348	-	transposase
1244	 39.14	0	1465291..1466616	-	441	209694878	-	VSAL_I1349	-	transposase
1245	 34.44	-1	1466801..1467163	+	120	209694879	-	VSAL_I1350	-	putative lipoprotein
1246	 40.88	0	1467216..1468289	+	357	209694880	-	VSAL_I1351	-	putative multidrug resistance protein precursor
1247	 40.28	0	1468292..1469371	+	359	209694881	-	VSAL_I1352	-	organic solvent efflux pump precursor (periplasmic linker protein component)
1248	 42.50	0	1469371..1472448	+	1025	209694882	-	VSAL_I1353	-	putative multi-drug efflux protein
1249	 39.79	0	1472721..1473107	+	128	209694883	-	VSAL_I1354	-	hypothetical protein
1250	 44.08	+1	1473236..1474426	-	396	209694884	metC	VSAL_I1355	-	cystathionine beta-lyase
1251	 40.74	0	1474582..1474932	+	116	209694885	-	VSAL_I1356	-	hypothetical protein
1252	 43.55	+1	1475219..1475737	+	172	209694886	hpc	VSAL_I1357	-	secreted protein Hcp-2 (haemolysin co-regulated protein)
1253	 43.31	+1	1475814..1478078	+	754	209694887	-	VSAL_I1358	-	VgrG preotein, VgrG-2
1254	 39.73	0	1478060..1478653	+	197	209694888	-	VSAL_I1359	-	hypothetical protein
1255	 36.21	-1	1482240..1482587	-	115	209694889	-	VSAL_I1362	-	transposase
1256	 37.78	0	1482584..1482898	-	104	209694890	-	VSAL_I1363	-	transposase
1257	 41.23	0	1482981..1485653	-	890	209694891	-	VSAL_I1364	-	putative exported nuclease
1258	 35.94	-1	1485914..1486795	-	293	209694892	-	VSAL_I1365	-	transposase
1259	 40.94	0	1487015..1487869	+	284	209694893	-	VSAL_I1366	-	ATP-dependent DNA ligase
1260	 41.32	0	1487925..1488926	-	333	209694894	rbsR	VSAL_I1367	-	ribose operon repressor
1261	 45.32	+1	1489002..1489919	-	305	209694895	rbsK	VSAL_I1368	-	ribokinase
1262	 45.16	+1	1490100..1490978	-	292	209694896	rbsB	VSAL_I1369	-	D-ribose-binding periplasmic protein precursor RbsB
1263	 43.62	+1	1491115..1492086	-	323	209694897	rbsC	VSAL_I1370	-	ribose transport system permease protein RbsC
1264	 41.06	0	1492098..1493612	-	504	209694898	rbsA	VSAL_I1371	-	ribose transport ATP-binding protein RbsA
1265	 38.57	0	1493673..1494092	-	139	209694899	rbsD	VSAL_I1372	-	high affinity ribose transport protein RbsD
1266	 40.74	0	1494476..1494637	+	53	209694900	-	VSAL_I1373	-	hypothetical protein
1267	 40.18	0	1494709..1495161	+	150	209694901	-	VSAL_I1374	-	membrane protein
1268	 33.74	-1	1495390..1495632	+	80	209694902	-	VSAL_I1375	-	membrane protein
1269	 34.72	-1	1495877..1496020	+	47	209694903	-	VSAL_I1376	-	hypothetical protein, putative gene remnant
1270	 36.89	0	1496286..1496651	+	121	209694904	-	VSAL_I1377	-	putative lipoprotein
1271	 34.04	-1	1496780..1497346	-	188	209694905	-	VSAL_I1378	-	transposase
1272	 35.70	-1	1497364..1497786	-	140	209694906	-	VSAL_I1379	-	transposase
1273	 35.28	-1	1498417..1499034	+	205	209694907	-	VSAL_I1381	-	putative lipoprotein
1274	 42.37	0	1499112..1500494	-	460	209694908	norM	VSAL_I1382	-	multidrug resistance protein NorM (sodium/drug antiporter)
1275	 37.91	0	1500753..1501364	+	203	209694909	ribE	VSAL_I1383	-	riboflavin synthase alpha chain
1276	 36.76	0	1501380..1501583	-	67	209694910	-	VSAL_I1384	-	hypothetical protein
1277	 38.41	0	1501813..1502679	-	288	209694911	-	VSAL_I1385	-	hypothetical protein
1278	 38.10	0	1502924..1503259	+	111	209694912	-	VSAL_I1386	-	hypothetical protein
1279	 38.24	0	1503335..1503823	-	162	209694913	-	VSAL_I1387	-	putative lipoprotein
1280	 43.06	+1	1504126..1505718	+	530	209694914	-	VSAL_I1388	-	putative ion transporter
1281	 37.25	0	1505861..1506550	+	229	209694915	rsuA	VSAL_I1389	-	ribosomal small subunit pseudouridine synthase A
1282	 37.56	0	1506586..1507389	-	267	209694916	-	VSAL_I1390	-	membrane protein
1283	 38.17	0	1507476..1508219	+	247	209694917	-	VSAL_I1391	-	hypothetical protein
1284	 40.92	0	1508346..1509254	+	302	209694918	-	VSAL_I1392	-	putative outer membrane protein
1285	 37.84	0	1509379..1509711	-	110	209694919	-	VSAL_I1393	-	hypothetical protein
1286	 34.15	-1	1510487..1512079	+	530	209694920	-	VSAL_I1394	-	hypothetical protein
1287	 33.33	-1	1512083..1512886	+	267	209694921	-	VSAL_I1395	-	membrane protein
1288	 38.53	0	1513088..1513318	+	76	209694922	-	VSAL_I1396	-	putative DNA-damage-inducible protein I (DinI)
1289	 41.19	0	1513835..1515616	-	593	209694923	moeA	VSAL_I1397	-	molybdopterin biosynthesis protein MoeA
1290	 39.66	0	1515613..1516197	-	194	209694924	mobA	VSAL_I1398	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1291	 41.19	0	1516209..1516883	-	224	209694925	-	VSAL_I1399	-	ABC transporter, ATP-binding protein
1292	 40.63	0	1517596..1518417	-	273	209694926	tupA	VSAL_I1401	-	extracellular tungstate binding protein precursor
1293	 39.15	0	1520143..1522170	+	675	209694927	-	VSAL_I1403	-	signal transduction protein, histidine kinase
1294	 35.07	-1	1522197..1522598	+	133	209694928	-	VSAL_I1404	-	hypothetical protein
1295	 36.07	-1	1522687..1522869	-	60	209694929	-	VSAL_I1405	-	hypothetical protein
1296	 37.04	0	1523086..1523517	+	143	209694930	-	VSAL_I1406	-	membrane protein
39.44	MEAN

3.11	STD DEV
