IslandPathversion 1.0

IslandPath Analysis: Aliivibrio salmonicida LFI1238

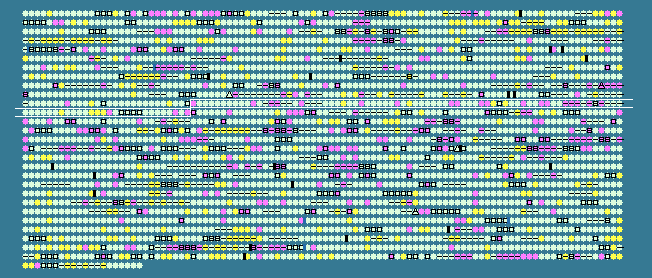

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1029	 34.53	-1	1206727..1207227	-	166	209694663	-	VSAL_I1109	-	hypothetical protein
1030	 36.53	0	1207732..1208481	+	249	209694664	-	VSAL_I1110	-	hypothetical protein
1031	 39.76	0	1209043..1209696	-	217	209694665	vasL	VSAL_I1112	-	serine/threonine phosphoprotein phosphatase
1032	 39.25	0	1213243..1214070	-	275	209694666	vasF	VSAL_I1114	-	putative type VI secretion protein VasF
1033	 38.78	0	1214072..1215394	-	440	209694667	vasE	VSAL_I1115	-	putative type VI secretion protein VasE
1034	 37.83	0	1215406..1215894	-	162	209694668	vasD	VSAL_I1116	-	putative type VI secretion protein VasD
1035	 39.13	0	1215928..1217289	-	453	209694669	vasC	VSAL_I1117	-	putative type VI secretion protein VasC
1036	 39.82	0	1218905..1221523	-	872	209694670	vasG	VSAL_I1119	-	chaperone ClpB
1037	 38.92	0	1221520..1222449	-	309	209694671	vasG	VSAL_I1120	-	putative type VI secretion protein VasG
1038	 37.39	0	1222512..1224263	-	583	209694672	vasA	VSAL_I1121	-	putative type VI secretion protein VasA
1039	 34.98	-1	1224260..1224685	-	141	209694673	vasS	VSAL_I1122	-	putative type VI secretion protein VasS
1040	 39.30	0	1224773..1226248	-	491	209694674	vasR	VSAL_I1123	-	putative type VI secretion protein VasR
1041	 37.78	0	1226252..1226746	-	164	209694675	vasQ	VSAL_I1124	-	putative type VI secretion protein VasQ
1042	 32.23	-2	1226761..1228302	-	513	209694676	vasJ	VSAL_I1125	-	putative type VI secretion protein VasJ
1043	 27.62	-2	1228554..1228763	-	69	209694677	-	VSAL_I1126	-	hypothetical protein
1044	 40.29	0	1228750..1229310	-	186	209694678	-	VSAL_I1127	-	primosomal replication protein N''
1045	 41.63	0	1229341..1230111	-	256	209694679	-	VSAL_I1128	-	membrane protein
1046	 38.66	0	1230178..1232262	-	694	209694680	-	VSAL_I1129	-	probable ATP-dependent DNA helicase DinG
1047	 30.45	-2	1233860..1234483	+	207	209694681	-	VSAL_I1131	-	hypothetical protein
1048	 40.94	0	1234971..1235969	+	332	209694682	-	VSAL_I1132	-	putative outer membrane protein
1049	 41.58	0	1236478..1237374	+	298	209694683	hisG	VSAL_I1133	-	ATP phosphoribosyltransferase
1050	 42.21	0	1237380..1238675	+	431	209694684	hisD	VSAL_I1134	-	histidinol dehydrogenase
1051	 40.06	0	1238690..1239730	+	346	209694685	hisC	VSAL_I1135	-	histidinol-phosphate aminotransferase
1052	 41.62	0	1239808..1240881	+	357	209694686	hisB	VSAL_I1136	-	histidine biosynthesis bifunctional protein HisB [includes: histidinol-phosphatase and imidazoleglycerol-phosphate dehydratase]
1053	 41.63	0	1240890..1241504	+	204	209694687	hisH	VSAL_I1137	-	imidazole glycerol phosphate synthase subunit HisH (imidazole glycerol synthase glutamine amidotransferase subunit)
1054	 44.85	+1	1241619..1242356	+	245	209694688	hisA	VSAL_I1138	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino) methylideneamino] imidazole-4-carboxamide isomerase (phosphoribosylformimino-5-aminoimidazole carboxamide ribotid isomerase)
1055	 42.51	0	1242338..1243111	+	257	209694689	hisF	VSAL_I1139	-	imidazole glycerol phosphate synthase subunit HisF
1056	 41.55	0	1243108..1243728	+	206	209694690	hisI	VSAL_I1140	-	histidine biosynthesis bifunctional protein HisIE [includes: phosphoribosyl-AMP cyclohydrolase and phosphoribosyl-ATP pyrophosphatase]
1057	 34.35	-1	1243866..1244357	+	163	209694691	-	VSAL_I1141	-	V10 pilin
1058	 39.16	0	1244482..1245168	+	228	209694692	-	VSAL_I1142	-	RNA psedouridine synthase
1059	 40.99	0	1245165..1246130	+	321	209694693	-	VSAL_I1143	-	hypothetical protein
1060	 36.84	0	1246208..1246606	-	132	209694694	-	VSAL_I1144	-	putative lipoprotein
1061	 41.91	0	1246625..1246927	-	100	209694695	-	VSAL_I1145	-	hypothetical protein
1062	 40.66	0	1247050..1247472	-	140	209694696	yciA	VSAL_I1146	-	acyl-CoA thioester hydrolase (p14 protein)
1063	 33.52	-1	1247571..1248116	-	181	209694697	ispZ	VSAL_I1147	-	probable intracellular septation protein
1064	 41.02	0	1249890..1250696	-	268	209694698	trpA	VSAL_I1149	-	tryptophan synthase alpha chain
1065	 44.75	+1	1250696..1251886	-	396	209694699	trpB	VSAL_I1150	-	tryptophan synthase beta chain 1
1066	 39.63	0	1251897..1253309	-	470	209694700	trpC	VSAL_I1151	-	tryptophan biosynthesis protein TrpCF
1067	 42.36	0	1253315..1254322	-	335	209694701	trpD	VSAL_I1152	-	anthranilate phosphoribosyltransferase
1068	 41.87	0	1254333..1254941	-	202	209694702	trpG	VSAL_I1153	-	anthranilate synthase component II
1069	 40.42	0	1254941..1256578	-	545	209694703	trpE	VSAL_I1154	-	anthranilate synthase component I
1070	 42.91	+1	1256941..1257786	+	281	209694704	-	VSAL_I1155	-	hypothetical protein
1071	 41.22	0	1257859..1258479	+	206	209694705	-	VSAL_I1156	-	hypothetical protein
1072	 32.52	-2	1258540..1261008	-	822	209694706	ainR	VSAL_I1157	-	autoinducer regulatory protein AinR
1073	 33.08	-2	1261020..1262210	-	396	209694707	ainS	VSAL_I1158	-	autoinducer synthase
1074	 42.44	0	1262544..1263608	+	354	209694708	rluB	VSAL_I1159	-	ribosomal large subunit pseudouridine synthase B (rRNA pseudouridylate synthase B)
1075	 40.76	0	1263713..1264453	-	246	209694709	-	VSAL_I1160	-	putative NAD-or NADP-dependent oxidoreductase
1076	 40.96	0	1264620..1265681	+	353	209694710	sohB	VSAL_I1161	-	probable protease SohB
1077	 33.74	-1	1265754..1265999	-	81	209694711	-	VSAL_I1162	-	hypothetical protein
1078	 35.66	-1	1266064..1266192	+	42	209694712	-	VSAL_I1163	-	hypothetical protein
1079	 42.99	+1	1266401..1269040	+	879	209694713	topA	VSAL_I1164	-	DNA topoisomerase I (omega protein)
1080	 40.62	0	1270324..1271517	-	397	209694714	-	VSAL_I1166	-	transposase
1081	 43.43	+1	1272188..1272484	+	98	209694715	vasV-1	VSAL_I1168	-	putative type VI secretion protein VasV-1, PAAR domain protein
1082	 36.87	0	1272880..1274265	+	461	209694716	vasJ-1	VSAL_I1169	-	putative type VI secretion protein VasJ-1
1083	 40.20	0	1274426..1274818	+	130	209694717	hcp-3	VSAL_I1170	-	hemolysin-coregulated protein Hcp-3
1084	 35.29	-1	1274890..1275399	+	169	209694718	vasQ-1	VSAL_I1171	-	putative type VI secretion protein VasQ-1
1085	 41.09	0	1275399..1276880	+	493	209694719	vasRA-1	VSAL_I1172	-	putative type VI secretion protein VasRA-1
1086	 36.42	0	1276930..1278291	+	453	209694720	vasRB-1	VSAL_I1173	-	putative type VI secretion protein VasRB-1
1087	 35.46	-1	1278288..1278710	+	140	209694721	vasS-1	VSAL_I1174	-	putative type VI secretion protein VasS-1
1088	 35.07	-1	1278703..1280484	+	593	209694722	vasA-1	VSAL_I1175	-	putative type VI secretion protein VasA-1
1089	 36.79	0	1280466..1281449	+	327	209694723	vasB-1	VSAL_I1176	-	putative type VI secretion protein VasB-1
1090	 39.52	0	1281456..1284074	+	872	209694724	vasG-1	VSAL_I1177	-	chaperone ClpB-1
1091	 31.45	-2	1284155..1284313	+	52	209694725	vasV-1	VSAL_I1178	-	putative type VI secretion protein VasV-1
1092	 35.45	-1	1284376..1285320	+	314	209694726	vasC-1	VSAL_I1179	-	putative type VI secretion protein VasC-1
1093	 34.41	-1	1285317..1285781	+	154	209694727	vasD-1	VSAL_I1180	-	putative type VI secretion protein VasD-1
1094	 37.97	0	1285784..1287100	+	438	209694728	vasE-1	VSAL_I1181	-	putative type VI secretion protein VasE-1
1095	 35.38	-1	1287108..1288232	+	374	209694729	vasF-1	VSAL_I1182	-	putative type VI secretion protein VasF-1
1096	 39.30	0	1290747..1292054	+	435	209694730	-	VSAL_I1184	-	transposase
1097	 32.69	-2	1293110..1293727	+	205	209694731	vasX-1	VSAL_I1185	-	putative type VI secretion protein VasX-1
1098	 40.25	0	1293881..1294516	-	211	209694732	-	VSAL_I1186	-	putative lysine exporter protein
1099	 40.26	0	1294730..1295566	+	278	209694733	-	VSAL_I1187	-	transcriptional regulator, AraC-family
1100	 42.58	+1	1295639..1296352	+	237	209694734	-	VSAL_I1188	-	putative branched-chain amino acid transport protein
1101	 38.94	0	1296349..1296669	+	106	209694735	-	VSAL_I1189	-	putative branched-chain amino acid transport protein
1102	 39.51	0	1296672..1297286	-	204	209694736	-	VSAL_I1190	-	putative fumarylacetoacetate hydrolase
1103	 37.51	0	1297498..1298334	+	278	209694737	-	VSAL_I1191	-	HTH-type transcriptional regulator, AraC family
1104	 39.48	0	1298406..1299218	-	270	209694738	-	VSAL_I1192	-	putative acetyltransferase
1105	 40.65	0	1299497..1300726	+	409	209694739	-	VSAL_I1193	-	zinc metallopeptidase
1106	 41.83	0	1300729..1302093	+	454	209694740	dcuC	VSAL_I1194	-	anaerobic C4-dicarboxylate transporter DcuC
1107	 44.15	+1	1302210..1303466	-	418	209694741	-	VSAL_I1195	-	adenylosuccinate synthetase
1108	 39.69	0	1303596..1304492	+	298	209694742	-	VSAL_I1196	-	HTH-type transcriptional regulator, LysR family
1109	 42.51	0	1304769..1306163	+	464	209694743	gadB	VSAL_I1197	-	glutamate decarboxylase beta
1110	 42.44	0	1306260..1308137	+	625	209694744	-	VSAL_I1198	-	probable membrane permease
1111	 40.64	0	1308200..1309102	-	300	209694745	-	VSAL_I1199	-	HTH-type transcriptional regulator, LysR-family
1112	 43.19	+1	1309250..1310101	+	283	209694746	-	VSAL_I1200	-	putative pirin
1113	 43.11	+1	1310164..1311135	+	323	209694747	-	VSAL_I1201	-	putative IMP dehydrogenase/GMP reductase
1114	 43.30	+1	1311319..1311840	+	173	209694748	hcp	VSAL_I1202	-	secreted protein Hcp-1 (haemolysin co-regulated protein)
1115	 32.39	-2	1311948..1312160	-	70	209694749	-	VSAL_I1203	-	hypothetical protein
1116	 38.45	0	1312374..1314290	+	638	209694750	-	VSAL_I1204	-	putative phospholipase
1117	 39.78	0	1314395..1315882	-	495	209694751	-	VSAL_I1205	-	transposase
1118	 36.21	-1	1315953..1316300	-	115	209694752	-	VSAL_I1206	-	transposase
1119	 37.78	0	1316297..1316611	-	104	209694753	-	VSAL_I1207	-	transposase
1120	 36.05	-1	1317707..1318588	-	293	209694754	-	VSAL_I1209	-	transposase
1121	 40.26	0	1318900..1319895	+	331	209694755	-	VSAL_I1210	-	putative NADP or NAD utilising oxidoreductase
1122	 36.96	0	1319907..1321394	+	495	209694756	-	VSAL_I1211	-	putative extracellular solute-binding protein
1123	 36.42	0	1321384..1322226	-	280	209694757	-	VSAL_I1212	-	transcriptional regulator, AraC-family
1124	 38.81	0	1322229..1322831	-	200	209694758	-	VSAL_I1213	-	transporter, LysE family
1125	 38.02	0	1323029..1323775	+	248	209694759	-	VSAL_I1214	-	putative mobile metallo-beta-lactamase
1126	 32.60	-2	1323927..1324475	+	182	209694760	-	VSAL_I1215	-	membrane protein
1127	 39.04	0	1324485..1324712	+	75	209694761	-	VSAL_I1216	-	putative HTH-type transcriptional regulator
1128	 34.29	-1	1324786..1325310	-	174	209694762	-	VSAL_I1217	-	hypothetical protein
39.44	MEAN

3.11	STD DEV
