IslandPathversion 1.0

IslandPath Analysis: Aliivibrio salmonicida LFI1238

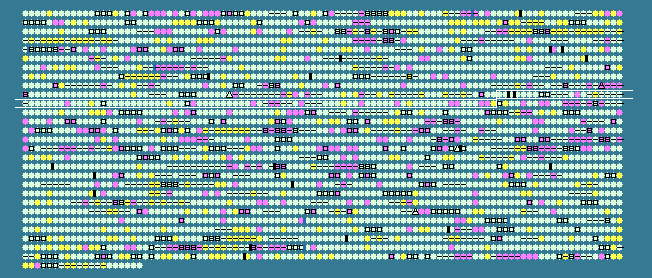

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.44 STD DEV: 3.11
Aliivibrio salmonicida LFI1238 chromosome 1, complete genome - 1..3325165
2820 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
980	 37.98	0	1146101..1146595	+	164	209694614	-	VSAL_I1054	-	putative acetyltransferase
981	 39.58	0	1146709..1147524	+	271	209694615	-	VSAL_I1055	-	phosphorylase
982	 39.55	0	1147951..1148658	-	235	209694616	cah	VSAL_I1056	-	carbonic anhydrase precursor
983	 38.87	0	1149433..1151238	-	601	209694617	-	VSAL_I1057	-	putative sulfatase
984	 36.84	0	1151258..1151485	-	75	209694618	-	VSAL_I1058	-	hypothetical protein
985	 37.27	0	1151562..1152578	+	338	209694619	ndpA	VSAL_I1059	-	nucleoid-associated protein Ndpa
986	 39.13	0	1152720..1153910	+	396	209694620	-	VSAL_I1060	-	hypothetical protein
987	 39.58	0	1154092..1155579	-	495	209694621	-	VSAL_I1061	-	transposase
988	 36.21	-1	1155651..1155998	-	115	209694622	-	VSAL_I1062	-	transposase
989	 37.33	0	1156366..1157490	+	374	209694623	rnd	VSAL_I1064	-	ribonuclease D (rnase d)
990	 37.93	0	1157566..1157826	-	86	209694624	minE	VSAL_I1065	-	cell division topological specificity factor
991	 40.10	0	1157829..1158641	-	270	209694625	minD	VSAL_I1066	-	septum site-determining protein MinD (cell division inhibitor MinD)
992	 40.84	0	1158665..1159330	-	221	209694626	minC	VSAL_I1067	-	septum site-determining protein MinC (cell division inhibitor)
993	 32.27	-2	1159542..1159823	+	93	209694627	-	VSAL_I1068	-	hypothetical protein
994	 40.51	0	1159825..1160799	+	324	209694628	-	VSAL_I1069	-	hypothetical protein
995	 41.36	0	1160921..1162963	-	680	209694629	-	VSAL_I1070	-	FAD dependent oxidoreductase
996	 44.47	+1	1163084..1164295	+	403	209694630	fabB	VSAL_I1071	-	3-ketoacyl-ACP synthase FabB
997	 38.90	0	1164455..1165585	+	376	209694631	pdxB	VSAL_I1072	-	erythronate-4-phosphate dehydrogenase
998	 40.53	0	1165585..1166598	+	337	209694632	asd	VSAL_I1073	-	aspartate-semialdehyde dehydrogenase
999	 38.54	0	1166802..1170623	+	1273	209694633	-	VSAL_I1074	-	hypothetical protein
1000	 41.06	0	1170713..1171501	+	262	209694634	truA	VSAL_I1075	-	tRNA pseudouridine synthase A
1001	 41.08	0	1171682..1172572	+	296	209694635	accD	VSAL_I1076	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit beta
1002	 40.91	0	1172671..1173951	+	426	209694636	folC	VSAL_I1077	-	FolC bifunctional protein (tetrahydrofolate synthase) (folylpolyglutamate synthase)
1003	 39.12	0	1173961..1174530	+	189	209694637	-	VSAL_I1078	-	putative sporulation and cell division protein
1004	 40.24	0	1174592..1175083	+	163	209694638	cvpA	VSAL_I1079	-	colicin V production protein (protein DedE)
1005	 41.45	0	1175118..1176632	+	504	209694639	purF	VSAL_I1080	-	amidophosphoribosyltransferase
1006	 38.36	0	1176715..1177590	-	291	209694640	aphB	VSAL_I1081	-	transcriptional regulator AphB
1007	 38.59	0	1177829..1178932	+	367	209694641	-	VSAL_I1082	-	response regulator
1008	 35.62	-1	1178975..1179367	+	130	209694642	-	VSAL_I1083	-	inner membrane protein
1009	 40.66	0	1179452..1179997	+	181	209694643	apt	VSAL_I1084	-	adenine phosphoribosyltransferase
1010	 41.96	0	1180101..1182245	+	714	209694644	dnaX	VSAL_I1085	-	DNA polymerase III subunit tau
1011	 41.96	0	1182334..1182669	+	111	209694645	-	VSAL_I1086	-	hypothetical protein
1012	 46.43	+2	1182772..1183374	+	200	209694646	recR	VSAL_I1087	-	recombination protein RecR
1013	 41.00	0	1183346..1183906	-	186	209694647	-	VSAL_I1088	-	integral membrane protein
1014	 39.79	0	1184217..1185083	-	288	209694648	-	VSAL_I1090	-	transposase
1015	 40.91	0	1185629..1186975	-	448	209694649	-	VSAL_I1091	-	deoxyguanosinetriphosphate triphosphohydrolase
1016	 39.71	0	1187116..1188543	+	475	209694650	calB	VSAL_I1092	-	coniferyl aldehyde dehydrogenase
1017	 42.37	0	1188622..1189506	+	294	209694651	-	VSAL_I1093	-	integral membrane protein
1018	 42.38	0	1189612..1190760	-	382	209694652	-	VSAL_I1094	-	iron-containing alcohol dehydrogenase
1019	 41.02	0	1190957..1191841	+	294	209694653	-	VSAL_I1095	-	transcriptional regulator, AraC-family
1020	 36.52	0	1191884..1192417	+	177	209694654	-	VSAL_I1096	-	hypothetical protein
1021	 40.99	0	1192485..1193699	-	404	209694655	-	VSAL_I1097	-	aminotransferase
1022	 40.59	0	1194026..1195348	+	440	209694656	menF	VSAL_I1098	-	menaquinone-specific isochorismate synthase
1023	 41.52	0	1195345..1197078	+	577	209694657	menD	VSAL_I1099	-	menaquinone biosynthesis protein MenD
1024	 41.38	0	1197062..1197856	+	264	209694658	-	VSAL_I1100	-	acyl-CoA thioester hydrolase
1025	 44.64	+1	1197861..1198727	+	288	209694659	menB	VSAL_I1101	-	naphthoate synthase
1026	 41.64	0	1198806..1199780	+	324	209694660	menC	VSAL_I1102	-	O-succinylbenzoate-CoA synthase
1027	 42.20	0	1199768..1201165	+	465	209694661	menE	VSAL_I1103	-	2-succinylbenzoate--CoA ligase (O-succinylbenzoyl-CoA synthetase)
1028	 37.78	0	1201850..1202164	+	104	209694662	-	VSAL_I1105	-	transposase
1029	 34.53	-1	1206727..1207227	-	166	209694663	-	VSAL_I1109	-	hypothetical protein
1030	 36.53	0	1207732..1208481	+	249	209694664	-	VSAL_I1110	-	hypothetical protein
1031	 39.76	0	1209043..1209696	-	217	209694665	vasL	VSAL_I1112	-	serine/threonine phosphoprotein phosphatase
1032	 39.25	0	1213243..1214070	-	275	209694666	vasF	VSAL_I1114	-	putative type VI secretion protein VasF
1033	 38.78	0	1214072..1215394	-	440	209694667	vasE	VSAL_I1115	-	putative type VI secretion protein VasE
1034	 37.83	0	1215406..1215894	-	162	209694668	vasD	VSAL_I1116	-	putative type VI secretion protein VasD
1035	 39.13	0	1215928..1217289	-	453	209694669	vasC	VSAL_I1117	-	putative type VI secretion protein VasC
1036	 39.82	0	1218905..1221523	-	872	209694670	vasG	VSAL_I1119	-	chaperone ClpB
1037	 38.92	0	1221520..1222449	-	309	209694671	vasG	VSAL_I1120	-	putative type VI secretion protein VasG
1038	 37.39	0	1222512..1224263	-	583	209694672	vasA	VSAL_I1121	-	putative type VI secretion protein VasA
1039	 34.98	-1	1224260..1224685	-	141	209694673	vasS	VSAL_I1122	-	putative type VI secretion protein VasS
1040	 39.30	0	1224773..1226248	-	491	209694674	vasR	VSAL_I1123	-	putative type VI secretion protein VasR
1041	 37.78	0	1226252..1226746	-	164	209694675	vasQ	VSAL_I1124	-	putative type VI secretion protein VasQ
1042	 32.23	-2	1226761..1228302	-	513	209694676	vasJ	VSAL_I1125	-	putative type VI secretion protein VasJ
1043	 27.62	-2	1228554..1228763	-	69	209694677	-	VSAL_I1126	-	hypothetical protein
1044	 40.29	0	1228750..1229310	-	186	209694678	-	VSAL_I1127	-	primosomal replication protein N''
1045	 41.63	0	1229341..1230111	-	256	209694679	-	VSAL_I1128	-	membrane protein
1046	 38.66	0	1230178..1232262	-	694	209694680	-	VSAL_I1129	-	probable ATP-dependent DNA helicase DinG
1047	 30.45	-2	1233860..1234483	+	207	209694681	-	VSAL_I1131	-	hypothetical protein
1048	 40.94	0	1234971..1235969	+	332	209694682	-	VSAL_I1132	-	putative outer membrane protein
1049	 41.58	0	1236478..1237374	+	298	209694683	hisG	VSAL_I1133	-	ATP phosphoribosyltransferase
1050	 42.21	0	1237380..1238675	+	431	209694684	hisD	VSAL_I1134	-	histidinol dehydrogenase
1051	 40.06	0	1238690..1239730	+	346	209694685	hisC	VSAL_I1135	-	histidinol-phosphate aminotransferase
1052	 41.62	0	1239808..1240881	+	357	209694686	hisB	VSAL_I1136	-	histidine biosynthesis bifunctional protein HisB [includes: histidinol-phosphatase and imidazoleglycerol-phosphate dehydratase]
1053	 41.63	0	1240890..1241504	+	204	209694687	hisH	VSAL_I1137	-	imidazole glycerol phosphate synthase subunit HisH (imidazole glycerol synthase glutamine amidotransferase subunit)
1054	 44.85	+1	1241619..1242356	+	245	209694688	hisA	VSAL_I1138	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino) methylideneamino] imidazole-4-carboxamide isomerase (phosphoribosylformimino-5-aminoimidazole carboxamide ribotid isomerase)
1055	 42.51	0	1242338..1243111	+	257	209694689	hisF	VSAL_I1139	-	imidazole glycerol phosphate synthase subunit HisF
1056	 41.55	0	1243108..1243728	+	206	209694690	hisI	VSAL_I1140	-	histidine biosynthesis bifunctional protein HisIE [includes: phosphoribosyl-AMP cyclohydrolase and phosphoribosyl-ATP pyrophosphatase]
1057	 34.35	-1	1243866..1244357	+	163	209694691	-	VSAL_I1141	-	V10 pilin
1058	 39.16	0	1244482..1245168	+	228	209694692	-	VSAL_I1142	-	RNA psedouridine synthase
1059	 40.99	0	1245165..1246130	+	321	209694693	-	VSAL_I1143	-	hypothetical protein
1060	 36.84	0	1246208..1246606	-	132	209694694	-	VSAL_I1144	-	putative lipoprotein
1061	 41.91	0	1246625..1246927	-	100	209694695	-	VSAL_I1145	-	hypothetical protein
1062	 40.66	0	1247050..1247472	-	140	209694696	yciA	VSAL_I1146	-	acyl-CoA thioester hydrolase (p14 protein)
1063	 33.52	-1	1247571..1248116	-	181	209694697	ispZ	VSAL_I1147	-	probable intracellular septation protein
1064	 41.02	0	1249890..1250696	-	268	209694698	trpA	VSAL_I1149	-	tryptophan synthase alpha chain
1065	 44.75	+1	1250696..1251886	-	396	209694699	trpB	VSAL_I1150	-	tryptophan synthase beta chain 1
1066	 39.63	0	1251897..1253309	-	470	209694700	trpC	VSAL_I1151	-	tryptophan biosynthesis protein TrpCF
1067	 42.36	0	1253315..1254322	-	335	209694701	trpD	VSAL_I1152	-	anthranilate phosphoribosyltransferase
1068	 41.87	0	1254333..1254941	-	202	209694702	trpG	VSAL_I1153	-	anthranilate synthase component II
1069	 40.42	0	1254941..1256578	-	545	209694703	trpE	VSAL_I1154	-	anthranilate synthase component I
1070	 42.91	+1	1256941..1257786	+	281	209694704	-	VSAL_I1155	-	hypothetical protein
1071	 41.22	0	1257859..1258479	+	206	209694705	-	VSAL_I1156	-	hypothetical protein
1072	 32.52	-2	1258540..1261008	-	822	209694706	ainR	VSAL_I1157	-	autoinducer regulatory protein AinR
1073	 33.08	-2	1261020..1262210	-	396	209694707	ainS	VSAL_I1158	-	autoinducer synthase
1074	 42.44	0	1262544..1263608	+	354	209694708	rluB	VSAL_I1159	-	ribosomal large subunit pseudouridine synthase B (rRNA pseudouridylate synthase B)
1075	 40.76	0	1263713..1264453	-	246	209694709	-	VSAL_I1160	-	putative NAD-or NADP-dependent oxidoreductase
1076	 40.96	0	1264620..1265681	+	353	209694710	sohB	VSAL_I1161	-	probable protease SohB
1077	 33.74	-1	1265754..1265999	-	81	209694711	-	VSAL_I1162	-	hypothetical protein
1078	 35.66	-1	1266064..1266192	+	42	209694712	-	VSAL_I1163	-	hypothetical protein
1079	 42.99	+1	1266401..1269040	+	879	209694713	topA	VSAL_I1164	-	DNA topoisomerase I (omega protein)
39.44	MEAN

3.11	STD DEV
