IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

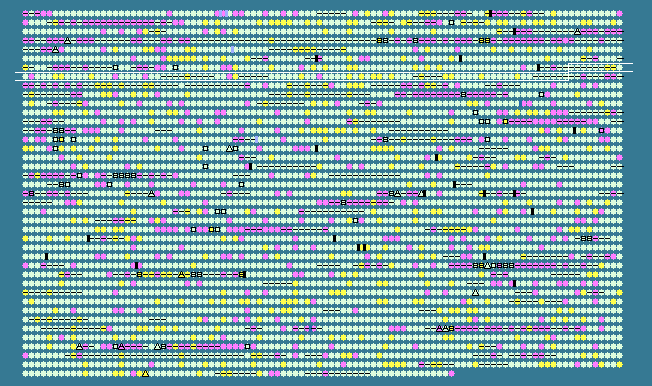

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 44.90   STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
692	 45.24	0	722282..722659	+	125	196155517	-	MADE_00694	-	ribosomal protein L7/L12
693	 47.16	0	727093..731265	+	1390	196155518	-	MADE_00697	-	RNA polymerase, beta prime subunit
694	 45.60	0	731575..731949	+	124	196155519	-	MADE_00698	-	30S ribosomal protein S12
695	 47.35	0	732025..732495	+	156	196155520	-	MADE_00699	-	30S ribosomal subunit protein S7
696	 47.51	0	732523..734088	+	521	196155521	-	MADE_00700	-	elongation factor EF-2
697	 45.93	0	734184..734588	+	134	196155522	-	MADE_00701	-	Translation elongation factor EF-Tu
698	 50.94	+1	734624..734782	-	52	196155523	-	MADE_00702	-	hypothetical protein
699	 48.44	+1	735375..736208	+	277	196155524	-	MADE_00703	-	probable reverse transcriptase/maturase family protein
700	 41.62	0	736793..739351	+	852	196155525	-	MADE_00704	-	sensory box/GGDEF/EAL domain protein
701	 47.63	0	739549..740877	+	442	196155526	-	MADE_00705	-	hypothetical protein
702	 30.43	-2	741428..741565	+	45	196155527	-	MADE_00706	-	hypothetical protein
703	 42.69	0	741707..742711	+	334	196155528	-	MADE_00707	-	methyl-accepting chemotaxis sensory transducer
704	 46.25	0	742770..743822	+	350	196155529	-	MADE_00708	-	putative NADPH-dependent aldose reductase
705	 43.29	0	743930..745084	+	384	196155530	-	MADE_00709	-	nptA protein
706	 49.40	+1	745149..746312	-	387	196155531	-	MADE_00710	-	hypothetical protein
707	 49.10	+1	746571..748517	+	648	196155532	-	MADE_00711	-	acetyl-coenzyme A synthetase (Acetate--CoA ligase) (Acyl-activating enzyme)
708	 43.88	0	748535..749179	+	214	196155533	-	MADE_00712	-	putative regulator in two-component regulatory system ; LuxR family protein
709	 44.84	0	749139..750059	-	306	196155534	-	MADE_00713	-	ABC-type amino acid transport/signal transduction system,periplasmic component/domain
710	 45.52	0	750179..750613	-	144	196155535	-	MADE_00714	-	aspartyl protease
711	 46.22	0	750631..751662	-	343	196155536	-	MADE_00715	-	Succinylglutamate desuccinylase/aspartoacylase
712	 50.11	+1	751711..752616	-	301	196155537	-	MADE_00716	-	ribosomal protein S6 modification protein
713	 42.98	0	752663..752776	+	37	196155538	-	MADE_00717	-	hypothetical protein
714	 44.55	0	753006..753629	+	207	196155539	-	MADE_00718	-	hypothetical protein
715	 46.52	0	753659..757102	-	1147	196155540	-	MADE_00719	-	Multidomain protein contains Na+/proline symporter PutP-like domain, sensory histidine kinase and receiver domain
716	 39.33	-1	757360..757626	+	88	196155541	-	MADE_00720	-	hypothetical protein
717	 47.92	0	757630..759336	+	568	196155542	-	MADE_00721	-	Na+/solute symporter, Ssf family protein
718	 44.90	0	759440..761281	+	613	196155543	-	MADE_00722	-	Signaling protein with a cAMP-binding, CBS domains and predicted nucleotidyltransferase domain
719	 43.17	0	761287..761967	+	226	196155544	-	MADE_00723	-	putative DNA polymerase, exonuclease activity
720	 44.24	0	761969..762958	-	329	196155545	-	MADE_00724	-	putative response regulator
721	 40.48	-1	763085..763504	-	139	196155546	-	MADE_00725	-	hypothetical protein
722	 43.09	0	763786..764943	+	385	196155547	-	MADE_00726	-	TPR domain protein
723	 47.28	0	766036..767247	-	403	196155548	-	MADE_00729	-	putative Na+ dependent nucleoside transporter
724	 44.23	0	767260..767883	-	207	196155549	-	MADE_00730	-	uridine kinase
725	 43.19	0	768072..769025	-	317	196155550	-	MADE_00731	-	hypothetical protein
726	 42.75	0	769025..769831	-	268	196155551	-	MADE_00732	-	hypothetical protein
727	 46.31	0	770304..773477	+	1057	196155552	-	MADE_00733	-	putative Outer membrane protein with a TonB box
728	 48.66	+1	773682..774353	+	223	196155553	-	MADE_00734	-	DJ-1/PfpI family protein
729	 42.58	0	774438..774902	-	154	196155554	-	MADE_00735	-	arginine repressor
730	 48.24	0	775142..776080	+	312	196155555	-	MADE_00736	-	malate dehydrogenase
731	 42.35	0	776271..777080	-	269	196155556	-	MADE_00737	-	methionine sulfoxide reductase A
732	 42.37	0	777102..777278	-	58	196155557	-	MADE_00738	-	hypothetical protein
733	 47.26	0	777304..777705	+	133	196155558	-	MADE_00739	-	catalase-peroxidase KatB
734	 45.33	0	777702..778193	+	163	196155559	-	MADE_00740	-	catalase
735	 37.12	-2	778190..778321	-	43	196155560	-	MADE_00741	-	hypothetical protein
736	 49.39	+1	778347..780968	-	873	196155561	-	MADE_00742	-	phosphoenolpyruvate carboxylase
737	 46.86	0	781201..781821	+	206	196155562	-	MADE_00743	-	FKBP-type 22KD peptidyl-prolyl cis-trans isomerase (rotamase)
738	 45.21	0	782153..783331	+	392	196155563	-	MADE_00744	-	Short-chain alcohol dehydrogenase family enzyme (paraquat)
739	 47.58	0	783839..785179	+	446	196155564	-	MADE_00745	-	Na(+)-translocating NADH-quinone reductase subunit A
740	 47.36	0	785183..786373	+	396	196155565	-	MADE_00746	-	Na(+)-translocating NADH-quinone reductase subunit B
741	 47.19	0	786375..787139	+	254	196155566	-	MADE_00747	-	Na(+)-translocating NADH-quinone reductase subunit C
742	 42.34	0	787150..787782	+	210	196155567	-	MADE_00748	-	NADH-ubiquinone oxidoreductase
743	 44.01	0	787786..788394	+	202	196155568	-	MADE_00749	-	Na+-transporting NADH:ubiquinone oxidoreductase, subunit NqrE
744	 45.82	0	788415..789647	+	410	196155569	-	MADE_00750	-	Na(+)-translocating NADH-quinone reductase subunit F
745	 46.34	0	789738..790790	+	350	196155570	-	MADE_00751	-	thiamin biosynthesis lipoprotein ApbE
746	 42.74	0	790800..791033	+	77	196155571	-	MADE_00752	-	uncharacterized conserved membrane
747	 49.52	+1	791269..792318	+	349	196155572	-	MADE_00753	-	DNA polymerase IV
748	 43.37	0	792401..792649	+	82	196155573	-	MADE_00754	-	hypothetical protein
749	 44.89	0	792713..793603	+	296	196155574	-	MADE_00755	-	Zn-dependent hydrolase, glyoxylase family protein
750	 40.99	-1	793653..793874	-	73	196155575	-	MADE_00756	-	hypothetical protein
751	 45.15	0	793980..794927	-	315	196155576	-	MADE_00757	-	sterol desaturase family protein, putative
752	 45.24	0	794962..795633	+	223	196155577	-	MADE_00758	-	putative transcriptional regulator (Crp family) protein
753	 43.11	0	795637..796311	-	224	196155578	-	MADE_00759	-	transcriptional regulator, TetR family protein
754	 47.84	0	796613..797701	+	362	196155579	-	MADE_00760	-	putative enzyme
755	 49.93	+1	797701..798435	+	244	196155580	-	MADE_00761	-	isochorismatase family protein
756	 47.14	0	798573..798956	+	127	196155581	-	MADE_00762	-	endoribonuclease L-PSP family protein
757	 49.58	+1	799015..799851	+	278	196155582	-	MADE_00763	-	hydrolase, alpha/beta fold family protein
758	 45.21	0	799902..800558	+	218	196155583	-	MADE_00764	-	Nitroreductase
759	 51.41	+1	800582..801112	+	176	196155584	-	MADE_00765	-	NAD(P)H-flavin oxidoreductase
760	 49.90	+1	801132..802622	+	496	196155585	-	MADE_00766	-	methylmalonate-semialdehyde dehydrogenase
761	 46.36	0	802913..805231	+	772	196155586	-	MADE_00767	-	TonB-dependent receptor
762	 48.67	+1	805522..807021	+	499	196155587	-	MADE_00768	-	cytosine/purines, uracil, thiamine, allantoin transporter
763	 44.08	0	807112..807846	-	244	196155588	-	MADE_00769	-	protein containing HTH domain
764	 47.65	0	807977..808381	+	134	196155589	-	MADE_00770	-	hypothetical protein
765	 44.07	0	808389..809198	+	269	196155590	-	MADE_00771	-	hypothetical protein
766	 43.31	0	809209..809679	+	156	196155591	-	MADE_00772	-	YiaAB two helix protein
767	 48.56	+1	809865..810698	+	277	196155592	-	MADE_00773	-	glutamine amidotransferase class-II domain protein
768	 46.42	0	810695..811687	-	330	196155593	-	MADE_00774	-	transcriptional regulator, LysR family protein
769	 44.57	0	811862..812377	+	171	196155594	-	MADE_00775	-	glyoxalase family protein
770	 47.35	0	812529..813170	-	213	196155595	-	MADE_00776	-	probable metallo-beta-lactamase
771	 48.70	+1	813174..814481	-	435	196155596	-	MADE_00777	-	putative cationic amino acid transport protein
772	 49.30	+1	814501..816141	-	546	196155597	-	MADE_00778	-	predicted metal-dependent amidohydrolase with the TIM-barrel fold protein
773	 48.08	0	816213..817229	-	338	196155598	-	MADE_00779	-	Threonine dehydratase
774	 44.48	0	817536..820388	+	950	196155599	-	MADE_00780	-	PAS sensor diguanylate cyclase and phophodiesterase
775	 43.47	0	820401..820775	+	124	196155600	-	MADE_00781	-	hypothetical protein
776	 46.90	0	820906..823131	-	741	196155601	-	MADE_00782	-	Dipeptidyl peptidase IV
777	 49.20	+1	823313..823810	+	165	196155602	-	MADE_00783	-	nucleoside-diphosphate-sugar epimerase
778	 42.26	0	823897..824658	+	253	196155603	-	MADE_00784	-	putative RNA methyltransferase
779	 42.02	0	824672..825166	+	164	196155604	-	MADE_00785	-	hypothetical protein
780	 41.71	0	825446..826018	+	190	196155605	-	MADE_00786	-	hypothetical protein
781	 44.44	0	826095..828218	+	707	196155606	-	MADE_00787	-	cellulose synthase catalytic subunit
782	 44.97	0	828218..830494	+	758	196155607	-	MADE_00788	-	celB protein
783	 48.68	+1	830488..831588	+	366	196155608	-	MADE_00789	-	endoglucanase Y
784	 48.00	0	831585..834032	+	815	196155609	-	MADE_00790	-	cellulose synthase operon protein C
785	 45.27	0	834084..835499	-	471	196155610	-	MADE_00791	-	Rhs family protein
786	 45.64	0	835683..835877	-	64	196155611	-	MADE_00792	-	TonB system transport protein ExbD2
787	 47.05	0	836130..837215	-	361	196155612	-	MADE_00793	-	phage-related DNA polymerase
788	 43.12	0	837212..837967	-	251	196155613	-	MADE_00794	-	DNA-directed DNA polymerase I
789	 43.19	0	838078..838290	-	70	196155614	-	MADE_00795	-	hypothetical protein
790	 43.63	0	838370..839068	-	232	196155615	-	MADE_00796	-	hypothetical protein
791	 46.23	0	839065..839700	-	211	196155616	-	MADE_00797	-	hypothetical protein
44.90	MEAN

3.40	STD DEV
