IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

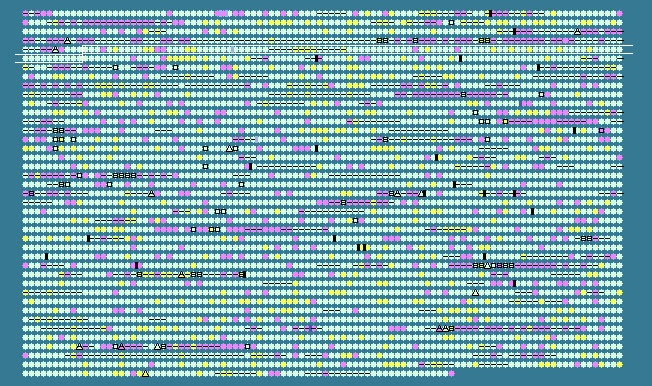

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.90 STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
411	 44.01	0	430770..431078	+	102	196155236	-	MADE_00413	-	purine-binding chemotaxis protein CheW
412	 47.25	0	431167..431676	+	169	196155237	-	MADE_00414	-	CheD
413	 47.95	0	431679..432725	+	348	196155238	-	MADE_00415	-	chemotaxis-specific methylesterase
414	 41.38	-1	433156..433416	+	86	196155239	-	MADE_00416	-	hypothetical protein
415	 46.93	0	433413..433640	-	75	196155240	-	MADE_00417	-	hypothetical protein
416	 49.02	+1	433845..433997	+	50	196155241	-	MADE_00418	-	hypothetical protein
417	 45.61	0	434236..434349	+	37	196155242	-	MADE_00419	-	hypothetical protein
418	 47.46	0	434502..435506	+	334	196155243	-	MADE_00420	-	hypothetical maturase
419	 46.56	0	435631..436356	-	241	196155244	-	MADE_00421	-	Cryptic haloacid dehalogenase 1
420	 43.22	0	436533..438332	-	599	196155245	-	MADE_00422	-	GGDEF family protein
421	 49.83	+1	438475..439359	-	294	196155246	-	MADE_00423	-	predicted permease, DMT superfamily protein
422	 48.75	+1	439643..440161	+	172	196155247	-	MADE_00424	-	putative hydrolase/phosphatase protein
423	 37.82	-2	440165..440320	-	51	196155248	-	MADE_00425	-	hypothetical protein
424	 40.18	-1	440399..444241	+	1280	196155249	-	MADE_00426	-	putative two-component system sensor kinase/response regulator fusion protein
425	 46.91	0	444260..444583	-	107	196155250	-	MADE_00427	-	hypothetical protein
426	 44.08	0	444648..445652	-	334	196155251	-	MADE_00428	-	Twin-arginine translocation pathway signal
427	 46.97	0	445656..446660	-	334	196155252	-	MADE_00429	-	transcriptional repressor, LacI family protein
428	 50.18	+1	447058..448191	+	377	196155253	-	MADE_00430	-	oxidoreductase, Gfo/Idh/MocA family protein
429	 49.06	+1	448228..449295	+	355	196155254	-	MADE_00431	-	Xylose isomerase-like TIM barrel
430	 46.48	0	449346..450539	+	397	196155255	-	MADE_00432	-	putative nucleoside permease protein
431	 45.38	0	450532..451461	+	309	196155256	-	MADE_00433	-	Twin-arginine translocation pathway signal
432	 47.21	0	451506..453191	+	561	196155257	-	MADE_00434	-	oxidoreductase
433	 44.98	0	453191..453808	+	205	196155258	-	MADE_00435	-	Twin-arginine translocation pathway signal
434	 44.80	0	453796..454641	+	281	196155259	-	MADE_00436	-	putative multi-domain protein
435	 44.04	0	454638..455786	-	382	196155260	-	MADE_00437	-	Iron-containing alcohol dehydrogenase
436	 45.11	0	461725..462726	+	333	196155261	-	MADE_00438	-	branched-chain amino acid aminotransferase
437	 45.52	0	462797..463543	-	248	196155262	-	MADE_00439	-	phosphoglyceromutase
438	 43.07	0	463720..464181	-	153	196155263	-	MADE_00440	-	hypothetical protein
439	 45.77	0	464656..467373	+	905	196155264	-	MADE_00441	-	aconitate hydratase 1
440	 41.62	0	467438..467932	-	164	196155265	-	MADE_00442	-	hypothetical protein
441	 45.33	0	468072..470288	-	738	196155266	-	MADE_00443	-	Bacterial type II secretion system protein E:GAF domain
442	 45.51	0	470706..471017	+	103	196155267	-	MADE_00444	-	30S ribosomal protein S10
443	 45.85	0	471036..471674	+	212	196155268	-	MADE_00445	-	50S ribosomal subunit protein L3
444	 48.18	0	471693..472298	+	201	196155269	-	MADE_00446	-	50S ribosomal protein L4
445	 44.58	0	472355..472594	+	79	196155270	-	MADE_00447	-	50S ribosomal protein L23
446	 49.21	+1	472609..473433	+	274	196155271	-	MADE_00448	-	50S ribosomal protein L2
447	 48.77	+1	473563..473724	+	53	196155272	-	MADE_00449	-	30S ribosomal protein S19
448	 49.55	+1	473736..474068	+	110	196155273	-	MADE_00450	-	ribosomal protein L22
449	 50.00	+1	474078..474509	+	143	196155274	-	MADE_00451	-	30S ribosomal protein S3
450	 48.18	0	474512..474922	+	136	196155275	-	MADE_00452	-	50S ribosomal protein L16
451	 44.27	0	474922..475113	+	63	196155276	-	MADE_00453	-	ribosomal protein L29
452	 43.80	0	475113..475370	+	85	196155277	-	MADE_00454	-	ribosomal protein S17
453	 47.98	0	475367..475564	-	65	196155278	-	MADE_00455	-	hypothetical protein
454	 49.02	+1	475769..475921	+	50	196155279	-	MADE_00456	-	hypothetical protein
455	 47.72	0	476160..477431	+	423	196155280	-	MADE_00457	-	hypothetical maturase
456	 44.60	0	477574..478665	-	363	196155281	-	MADE_00458	-	glycosyl transferase, group 1 family protein
457	 45.28	0	478694..479773	-	359	196155282	-	MADE_00459	-	lipopolysaccharide heptosyltransferase-1, putative
458	 44.70	0	479903..481213	+	436	196155283	-	MADE_00460	-	3-deoxy-D-manno-octulosonic-acid transferase
459	 47.13	0	481493..483202	-	569	196155284	-	MADE_00461	-	Na+/H+ antiporter
460	 45.61	0	483620..484450	+	276	196155285	-	MADE_00462	-	hypothetical protein
461	 43.82	0	484696..485229	+	177	196155286	-	MADE_00463	-	hypothetical protein
462	 48.14	0	485328..487238	-	636	196155287	-	MADE_00464	-	methyl-accepting chemotaxis protein
463	 46.44	0	487541..489730	-	729	196155288	-	MADE_00465	-	peptidyl-dipeptidase Dcp
464	 44.89	0	489977..490504	+	175	196155289	-	MADE_00466	-	formyltetrahydrofolate deformylase
465	 46.02	0	490613..491416	-	267	196155290	-	MADE_00467	-	formyltetrahydrofolate deformylase
466	 37.72	-2	491459..491572	+	37	196155291	-	MADE_00468	-	hypothetical protein
467	 47.86	0	491690..492343	-	217	196155292	-	MADE_00469	-	2,5 RNA ligase
468	 49.12	+1	492587..495271	+	894	196155293	-	MADE_00470	-	ATP-dependent helicase HrpB
469	 48.34	+1	495379..496644	-	421	196155294	-	MADE_00471	-	membrane-bound lytic transglycolase-related protein
470	 47.73	0	497043..499271	+	742	196155295	-	MADE_00472	-	penicillin-binding protein 1B
471	 42.74	0	499417..499533	-	38	196155296	-	MADE_00473	-	hypothetical protein
472	 43.43	0	499539..499835	-	98	196155297	-	MADE_00474	-	hypothetical protein
473	 34.04	-2	500006..500146	-	46	196155298	-	MADE_00475	-	hypothetical protein
474	 46.67	0	500248..501177	-	309	196155299	-	MADE_00476	-	hypothetical protein
475	 42.92	0	501636..502271	+	211	196155300	-	MADE_00477	-	AraC-type DNA-binding domain-containing protein
476	 47.79	0	502320..503135	-	271	196155301	-	MADE_00478	-	hypothetical protein
477	 48.08	0	503418..503756	+	112	196155302	-	MADE_00479	-	nitrogen regulatory protein P-II
478	 48.32	+1	503789..505036	+	415	196155303	-	MADE_00480	-	putative ammonium transporter
479	 48.94	+1	505270..506961	+	563	196155304	-	MADE_00481	-	gamma-glutamyltranspeptidase
480	 47.68	0	507123..508049	+	308	196155305	-	MADE_00482	-	putative melanin biosynthesis protein TyrA
481	 45.68	0	508119..509195	-	358	196155306	-	MADE_00483	-	adenylate cyclase
482	 48.75	+1	509372..510688	-	438	196155307	-	MADE_00484	-	Glutamate-1-semialdehyde aminotransferase
483	 48.17	0	510657..511721	-	354	196155308	-	MADE_00485	-	aspartate carbamoyltransferase
484	 45.33	0	511802..512476	-	224	196155309	-	MADE_00486	-	transcriptional regulator, TetR family protein
485	 48.60	+1	512593..513732	+	379	196155310	-	MADE_00487	-	efflux transporter, RND family, MFP subunit
486	 48.20	0	513732..516878	+	1048	196155311	-	MADE_00488	-	AcrB/AcrD/AcrF family protein
487	 46.30	0	517043..517759	+	238	196155312	-	MADE_00489	-	hypothetical protein
488	 45.35	0	517756..520884	-	1042	196155313	-	MADE_00490	-	sensor protein BarA
489	 43.97	0	521065..521205	+	46	196155314	-	MADE_00491	-	hypothetical protein
490	 49.04	+1	521202..523487	+	761	196155315	-	MADE_00492	-	DNA topoisomerase IV, subunit A
491	 45.37	0	523551..524090	+	179	196155316	-	MADE_00493	-	2,4-dihydroxyhept-2-ene-1,7-dioic acid aldolase
492	 45.63	0	524100..526262	+	720	196155317	-	MADE_00494	-	sensory box protein
493	 45.61	0	526383..527156	-	257	196155318	-	MADE_00495	-	hypothetical protein
494	 43.65	0	527188..527313	+	41	196155319	-	MADE_00497	-	hypothetical protein
495	 49.52	+1	527305..528774	-	489	196155320	-	MADE_00496	-	succinylglutamic semialdehyde dehydrogenase
496	 47.30	0	528788..529825	-	345	196155321	-	MADE_00498	-	arginine N-succinyltransferase
497	 47.64	0	529846..531054	-	402	196155322	-	MADE_00499	-	bifunctional N-succinyldiaminopimelate-aminotransferase/ acetylornithine transaminase protein
498	 43.65	0	531521..532741	-	406	196155323	-	MADE_00500	-	putative signal transduction protein
499	 46.84	0	532982..533566	-	194	196155324	-	MADE_00501	-	P-aminobenzoate synthetase, component II
500	 46.13	0	533666..534673	-	335	196155325	-	MADE_00502	-	tryptophanyl-tRNA synthetase
501	 44.72	0	534739..535458	-	239	196155326	-	MADE_00503	-	ribulose-phosphate 3-epimerase
502	 43.80	0	535723..536544	+	273	196155327	-	MADE_00504	-	hypothetical protein
503	 47.57	0	536715..537023	+	102	196155328	-	MADE_00505	-	hypothetical protein
504	 42.29	0	537032..537232	+	66	196155329	-	MADE_00506	-	hypothetical protein
505	 43.99	0	537324..538205	-	293	196155330	-	MADE_00507	-	DNA adenine methylase
506	 44.51	0	538432..539943	-	503	196155331	-	MADE_00508	-	DamX-related protein
507	 47.29	0	540115..541167	-	350	196155332	-	MADE_00509	-	3-dehydroquinate synthase
508	 45.16	0	541214..541729	-	171	196155333	-	MADE_00510	-	shikimate kinase
509	 45.38	0	542000..543643	-	547	196155334	-	MADE_00511	-	putative type IV pilus biogenesis protein PilQ (cytoplasmic ATPase)
510	 46.95	0	543775..544266	-	163	196155335	-	MADE_00512	-	putative Type IV pilus biogenesis protein PilP
44.90	MEAN

3.40	STD DEV
