IslandPathversion 1.0

IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

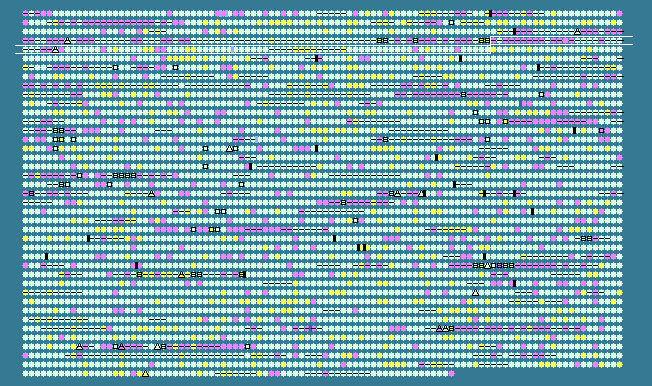

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.90 STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
379	 37.04	-2	400142..400870	-	242	196155204	-	MADE_00381	-	lipid A phosphoethanolamine transferase, associated with polymyxin resistance
380	 42.97	0	400991..402733	-	580	196155205	-	MADE_00382	-	glycosyl transferase, family 39
381	 40.73	-1	402708..403424	-	238	196155206	-	MADE_00383	-	hypothetical protein
382	 39.46	-1	403425..404159	-	244	196155207	-	MADE_00384	-	glycosyl transferase, group 2 family protein
383	 40.62	-1	405096..405740	+	214	196155208	-	MADE_00385	-	transcriptional regulator
384	 38.19	-1	405724..407163	+	479	196155209	-	MADE_00386	-	putative sensor transduction kinase (copper resistance)
385	 39.88	-1	408753..409271	+	172	196155210	-	MADE_00387	-	putative metal-binding protein
386	 38.70	-1	409352..409705	+	117	196155211	-	MADE_00388	-	putative copper resistance (CopC-like) protein
387	 39.19	-1	409727..410614	+	295	196155212	-	MADE_00389	-	putative copper export protein
388	 42.02	0	410680..411105	+	141	196155213	-	MADE_00390	-	putative orphan protein
389	 37.30	-2	411353..411604	+	83	196155214	-	MADE_00391	-	hypothetical protein
390	 36.68	-2	411863..412699	+	278	196155215	-	MADE_00392	-	methionyl-tRNA formyltransferase
391	 36.88	-2	412806..413228	+	140	196155216	-	MADE_00393	-	hypothetical protein
392	 41.38	-1	413494..413928	+	144	196155217	-	MADE_00394	-	putative Zn(II)-responsive transcriptional regulator, regulates Zn export (MerR family) protein
393	 47.33	0	414004..416247	+	747	196155218	-	MADE_00395	-	Cation transport ATPase
394	 42.56	0	416277..416612	+	111	196155219	-	MADE_00396	-	putative secreted protein containing plastocyanin domain
395	 46.33	0	416783..416959	+	58	196155220	-	MADE_00397	-	hypothetical protein
396	 42.50	0	416985..417617	+	210	196155221	-	MADE_00398	-	predicted protein-S-isoprenylcysteine methyltransferase
397	 40.71	-1	417646..418011	+	121	196155222	-	MADE_00399	-	hypothetical protein
398	 45.15	0	418164..418400	+	78	196155223	-	MADE_00400	-	hypothetical protein
399	 46.21	0	418614..418745	+	43	196155224	-	MADE_00401	-	hypothetical protein
400	 41.67	0	418847..419002	+	51	196155225	-	MADE_00402	-	hypothetical protein
401	 42.31	0	419158..420483	-	441	196155226	-	MADE_00403	-	Amino acid permease-associated region
402	 43.08	0	420641..421348	-	235	196155227	-	MADE_00404	-	hypothetical protein
403	 46.67	0	421397..423211	-	604	196155228	-	MADE_00405	-	Multicopper oxidase
404	 41.13	-1	423877..424581	-	234	196155229	-	MADE_00406	-	hypothetical protein
405	 39.13	-1	424601..425014	-	137	196155230	-	MADE_00407	-	hypothetical protein
406	 42.71	0	426300..426491	-	63	196155231	-	MADE_00408	-	site-specific recombinase, phage integrase family protein
407	 33.33	-2	426810..426926	+	38	196155232	-	MADE_00409	-	hypothetical protein
408	 45.49	0	427105..428289	+	394	196155233	-	MADE_00410	-	methyl-accepting chemotaxis protein
409	 47.27	0	428346..428711	+	121	196155234	-	MADE_00411	-	chemotaxis protein CheY
410	 47.36	0	428749..430773	+	674	196155235	-	MADE_00412	-	probable two-component sensor (CheA)
411	 44.01	0	430770..431078	+	102	196155236	-	MADE_00413	-	purine-binding chemotaxis protein CheW
412	 47.25	0	431167..431676	+	169	196155237	-	MADE_00414	-	CheD
413	 47.95	0	431679..432725	+	348	196155238	-	MADE_00415	-	chemotaxis-specific methylesterase
414	 41.38	-1	433156..433416	+	86	196155239	-	MADE_00416	-	hypothetical protein
415	 46.93	0	433413..433640	-	75	196155240	-	MADE_00417	-	hypothetical protein
416	 49.02	+1	433845..433997	+	50	196155241	-	MADE_00418	-	hypothetical protein
417	 45.61	0	434236..434349	+	37	196155242	-	MADE_00419	-	hypothetical protein
418	 47.46	0	434502..435506	+	334	196155243	-	MADE_00420	-	hypothetical maturase
419	 46.56	0	435631..436356	-	241	196155244	-	MADE_00421	-	Cryptic haloacid dehalogenase 1
420	 43.22	0	436533..438332	-	599	196155245	-	MADE_00422	-	GGDEF family protein
421	 49.83	+1	438475..439359	-	294	196155246	-	MADE_00423	-	predicted permease, DMT superfamily protein
422	 48.75	+1	439643..440161	+	172	196155247	-	MADE_00424	-	putative hydrolase/phosphatase protein
423	 37.82	-2	440165..440320	-	51	196155248	-	MADE_00425	-	hypothetical protein
424	 40.18	-1	440399..444241	+	1280	196155249	-	MADE_00426	-	putative two-component system sensor kinase/response regulator fusion protein
425	 46.91	0	444260..444583	-	107	196155250	-	MADE_00427	-	hypothetical protein
426	 44.08	0	444648..445652	-	334	196155251	-	MADE_00428	-	Twin-arginine translocation pathway signal
427	 46.97	0	445656..446660	-	334	196155252	-	MADE_00429	-	transcriptional repressor, LacI family protein
428	 50.18	+1	447058..448191	+	377	196155253	-	MADE_00430	-	oxidoreductase, Gfo/Idh/MocA family protein
429	 49.06	+1	448228..449295	+	355	196155254	-	MADE_00431	-	Xylose isomerase-like TIM barrel
430	 46.48	0	449346..450539	+	397	196155255	-	MADE_00432	-	putative nucleoside permease protein
431	 45.38	0	450532..451461	+	309	196155256	-	MADE_00433	-	Twin-arginine translocation pathway signal
432	 47.21	0	451506..453191	+	561	196155257	-	MADE_00434	-	oxidoreductase
433	 44.98	0	453191..453808	+	205	196155258	-	MADE_00435	-	Twin-arginine translocation pathway signal
434	 44.80	0	453796..454641	+	281	196155259	-	MADE_00436	-	putative multi-domain protein
435	 44.04	0	454638..455786	-	382	196155260	-	MADE_00437	-	Iron-containing alcohol dehydrogenase
436	 45.11	0	461725..462726	+	333	196155261	-	MADE_00438	-	branched-chain amino acid aminotransferase
437	 45.52	0	462797..463543	-	248	196155262	-	MADE_00439	-	phosphoglyceromutase
438	 43.07	0	463720..464181	-	153	196155263	-	MADE_00440	-	hypothetical protein
439	 45.77	0	464656..467373	+	905	196155264	-	MADE_00441	-	aconitate hydratase 1
440	 41.62	0	467438..467932	-	164	196155265	-	MADE_00442	-	hypothetical protein
441	 45.33	0	468072..470288	-	738	196155266	-	MADE_00443	-	Bacterial type II secretion system protein E:GAF domain
442	 45.51	0	470706..471017	+	103	196155267	-	MADE_00444	-	30S ribosomal protein S10
443	 45.85	0	471036..471674	+	212	196155268	-	MADE_00445	-	50S ribosomal subunit protein L3
444	 48.18	0	471693..472298	+	201	196155269	-	MADE_00446	-	50S ribosomal protein L4
445	 44.58	0	472355..472594	+	79	196155270	-	MADE_00447	-	50S ribosomal protein L23
446	 49.21	+1	472609..473433	+	274	196155271	-	MADE_00448	-	50S ribosomal protein L2
447	 48.77	+1	473563..473724	+	53	196155272	-	MADE_00449	-	30S ribosomal protein S19
448	 49.55	+1	473736..474068	+	110	196155273	-	MADE_00450	-	ribosomal protein L22
449	 50.00	+1	474078..474509	+	143	196155274	-	MADE_00451	-	30S ribosomal protein S3
450	 48.18	0	474512..474922	+	136	196155275	-	MADE_00452	-	50S ribosomal protein L16
451	 44.27	0	474922..475113	+	63	196155276	-	MADE_00453	-	ribosomal protein L29
452	 43.80	0	475113..475370	+	85	196155277	-	MADE_00454	-	ribosomal protein S17
453	 47.98	0	475367..475564	-	65	196155278	-	MADE_00455	-	hypothetical protein
454	 49.02	+1	475769..475921	+	50	196155279	-	MADE_00456	-	hypothetical protein
455	 47.72	0	476160..477431	+	423	196155280	-	MADE_00457	-	hypothetical maturase
456	 44.60	0	477574..478665	-	363	196155281	-	MADE_00458	-	glycosyl transferase, group 1 family protein
457	 45.28	0	478694..479773	-	359	196155282	-	MADE_00459	-	lipopolysaccharide heptosyltransferase-1, putative
458	 44.70	0	479903..481213	+	436	196155283	-	MADE_00460	-	3-deoxy-D-manno-octulosonic-acid transferase
459	 47.13	0	481493..483202	-	569	196155284	-	MADE_00461	-	Na+/H+ antiporter
460	 45.61	0	483620..484450	+	276	196155285	-	MADE_00462	-	hypothetical protein
461	 43.82	0	484696..485229	+	177	196155286	-	MADE_00463	-	hypothetical protein
462	 48.14	0	485328..487238	-	636	196155287	-	MADE_00464	-	methyl-accepting chemotaxis protein
463	 46.44	0	487541..489730	-	729	196155288	-	MADE_00465	-	peptidyl-dipeptidase Dcp
464	 44.89	0	489977..490504	+	175	196155289	-	MADE_00466	-	formyltetrahydrofolate deformylase
465	 46.02	0	490613..491416	-	267	196155290	-	MADE_00467	-	formyltetrahydrofolate deformylase
466	 37.72	-2	491459..491572	+	37	196155291	-	MADE_00468	-	hypothetical protein
467	 47.86	0	491690..492343	-	217	196155292	-	MADE_00469	-	2,5 RNA ligase
468	 49.12	+1	492587..495271	+	894	196155293	-	MADE_00470	-	ATP-dependent helicase HrpB
469	 48.34	+1	495379..496644	-	421	196155294	-	MADE_00471	-	membrane-bound lytic transglycolase-related protein
470	 47.73	0	497043..499271	+	742	196155295	-	MADE_00472	-	penicillin-binding protein 1B
471	 42.74	0	499417..499533	-	38	196155296	-	MADE_00473	-	hypothetical protein
472	 43.43	0	499539..499835	-	98	196155297	-	MADE_00474	-	hypothetical protein
473	 34.04	-2	500006..500146	-	46	196155298	-	MADE_00475	-	hypothetical protein
474	 46.67	0	500248..501177	-	309	196155299	-	MADE_00476	-	hypothetical protein
475	 42.92	0	501636..502271	+	211	196155300	-	MADE_00477	-	AraC-type DNA-binding domain-containing protein
476	 47.79	0	502320..503135	-	271	196155301	-	MADE_00478	-	hypothetical protein
477	 48.08	0	503418..503756	+	112	196155302	-	MADE_00479	-	nitrogen regulatory protein P-II
478	 48.32	+1	503789..505036	+	415	196155303	-	MADE_00480	-	putative ammonium transporter
44.90	MEAN

3.40	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
