IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

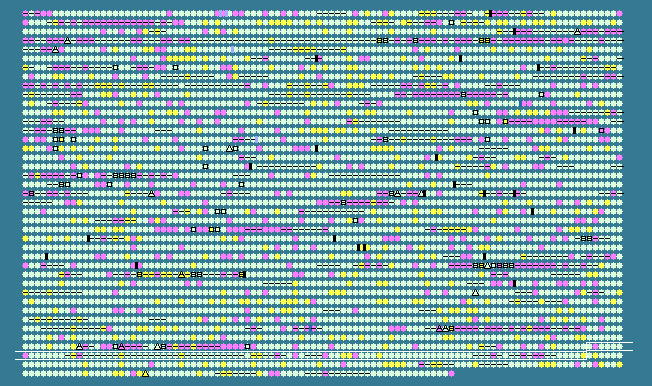

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.90 STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3795	 44.86	0	4123595..4124158	-	187	196158620	-	MADE_03825	-	CBS domain protein
3796	 35.71	-2	4124472..4124597	+	41	196158621	-	MADE_03826	-	hypothetical protein
3797	 44.21	0	4124758..4125327	+	189	196158622	-	MADE_03827	-	putative cytochrome b561
3798	 43.74	0	4125351..4125917	+	188	196158623	-	MADE_03828	-	YceI
3799	 46.87	0	4125984..4127276	-	430	196158624	-	MADE_03829	-	Respiratory NADH dehydrogenase II
3800	 46.75	0	4127457..4129469	-	670	196158625	-	MADE_03830	-	putative TonB-dependent receptor protein
3801	 37.78	-2	4129471..4129560	+	29	196158626	-	MADE_03831	-	hypothetical protein
3802	 43.69	0	4129806..4130249	+	147	196158627	-	MADE_03832	-	hypothetical protein
3803	 44.97	0	4130518..4131342	+	274	196158628	-	MADE_03833	-	putative transcriptional regulator, LysR family protein
3804	 45.38	0	4131469..4132863	-	464	196158629	-	MADE_03834	-	Long-chain fatty acid transport protein
3805	 46.75	0	4133216..4134214	+	332	196158630	-	MADE_03835	-	predicted NADP-dependent oxidoreductase
3806	 45.45	0	4134293..4135357	-	354	196158631	-	MADE_03836	-	diguanylate cyclase
3807	 44.87	0	4135430..4137301	-	623	196158632	-	MADE_03837	-	Signal transduction histidine kinase
3808	 43.92	0	4137375..4138262	-	295	196158633	-	MADE_03838	-	ABC transporter substrate binding protein
3809	 49.34	+1	4138521..4139507	-	328	196158634	-	MADE_03839	-	flavin dependent oxidoreductase
3810	 40.91	-1	4139619..4139750	+	43	196158635	-	MADE_03840	-	hypothetical protein
3811	 42.39	0	4140064..4140582	-	172	196158636	-	MADE_03841	-	CBS domain pair, putative
3812	 46.30	0	4140601..4140816	-	71	196158637	-	MADE_03842	-	hypothetical protein
3813	 46.04	0	4140972..4141766	-	264	196158638	-	MADE_03843	-	Parvulin-like peptidyl-prolyl isomerase
3814	 45.03	0	4141822..4142505	-	227	196158639	-	MADE_03844	-	respiratory nitrate reductase, gamma subunit
3815	 47.91	0	4142508..4143248	-	246	196158640	-	MADE_03845	-	nitrate reductase molybdenum cofactor assembly chaperone
3816	 47.95	0	4143248..4144561	-	437	196158641	-	MADE_03846	-	nitrate reductase, beta subunit
3817	 49.36	+1	4144783..4148208	-	1141	196158642	-	MADE_03847	-	nitrate reductase, alpha subunit
3818	 43.58	0	4148916..4150682	+	588	196158643	-	MADE_03848	-	Signal transduction histidine kinase, nitrate/nitrite-specific
3819	 45.42	0	4150707..4151765	-	352	196158644	-	MADE_03849	-	molybdenum ABC transporter, ATP-binding protein
3820	 45.19	0	4151768..4152442	-	224	196158645	-	MADE_03850	-	molybdenum ABC transporter, permease protein
3821	 43.59	0	4152444..4153223	-	259	196158646	-	MADE_03851	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
3822	 46.07	0	4153294..4154934	-	546	196158647	-	MADE_03852	-	Nitrate/nitrite transporter
3823	 46.48	0	4155216..4155869	+	217	196158648	-	MADE_03853	-	Nitrate/nitrite response regulator (CheY, HTH domain)
3824	 47.65	0	4155872..4157107	+	411	196158649	-	MADE_03854	-	molybdopterin biosynthesis protein
3825	 41.98	0	4157328..4157489	+	53	196158650	-	MADE_03855	-	hypothetical protein
3826	 42.12	0	4157499..4157942	+	147	196158651	-	MADE_03856	-	hypothetical protein
3827	 48.82	+1	4157920..4158384	-	154	196158652	-	MADE_03857	-	molybdenum cofactor biosynthesis protein E
3828	 43.50	0	4158387..4158632	-	81	196158653	-	MADE_03858	-	molybdopterin converting factor, subunit 1
3829	 45.57	0	4158629..4159102	-	157	196158654	-	MADE_03859	-	molybdenum cofactor biosynthesis protein C
3830	 45.79	0	4159120..4159665	-	181	196158655	-	MADE_03860	-	molybdenum cofactor biosynthesis protein B
3831	 45.79	0	4159652..4160245	-	197	196158656	-	MADE_03861	-	molybdopterin guanine dinucleotide synthase
3832	 46.03	0	4160247..4161089	-	280	196158657	-	MADE_03862	-	molybdenum cofactor biosynthesis protein A
3833	 43.78	0	4161471..4162667	-	398	196158658	-	MADE_03863	-	hypothetical protein
3834	 48.03	0	4162885..4163619	+	244	196158659	-	MADE_03864	-	molybdopterin biosynthesis protein MoeB
3835	 41.88	0	4163658..4164242	-	194	196158660	-	MADE_03865	-	putative lipid carrier protein
3836	 43.98	0	4164293..4166095	-	600	196158661	-	MADE_03866	-	thiamine pyrophosphate-binding domain protein
3837	 45.35	0	4166280..4167278	+	332	196158662	-	MADE_03867	-	putative protease
3838	 44.07	0	4167325..4168218	+	297	196158663	-	MADE_03868	-	putative protease
3839	 50.00	+1	4168428..4168571	+	47	196158664	-	MADE_03869	-	acyl-CoA dehydrogenase-like protein
3840	 50.77	+1	4168909..4169103	+	64	196158665	-	MADE_03870	-	probable oxoisovalerate dehydrogenase alpha and beta subunits
3841	 44.20	0	4169148..4169837	-	229	196158666	-	MADE_03871	-	regulator of cell morphogenesis and NO signaling
3842	 46.88	0	4169988..4171508	+	506	196158667	-	MADE_03872	-	anaerobic nitric oxide reductase transcription regulator
3843	 41.00	-1	4171559..4171897	+	112	196158668	-	MADE_03873	-	Invasion gene expression up-regulator, SirB
3844	 45.80	0	4171904..4173106	-	400	196158669	-	MADE_03874	-	Heme/copper membrane protein
3845	 45.68	0	4173112..4174407	-	431	196158670	-	MADE_03875	-	Nitrate/nitrite transporter
3846	 39.58	-1	4174359..4174502	+	47	196158671	-	MADE_03876	-	hypothetical protein
3847	 44.10	0	4174862..4176328	+	488	196158672	-	MADE_03877	-	Nitrate transporter
3848	 44.69	0	4176396..4178156	+	586	196158673	-	MADE_03878	-	Serine/threonine protein kinase
3849	 41.72	0	4178162..4178602	+	146	196158674	-	MADE_03879	-	Hemerythrin HHE cation binding domain protein
3850	 47.97	0	4179096..4179464	+	122	196158675	-	MADE_03880	-	ABC transporter ATPase
3851	 40.71	-1	4179806..4180198	-	130	196158676	-	MADE_03881	-	hypothetical protein
3852	 42.99	0	4180318..4182108	-	596	196158677	-	MADE_03882	-	anaerobic ribonucleoside triphosphate reductase
3853	 43.62	0	4182092..4182538	-	148	196158678	-	MADE_03883	-	Radical enzyme activating protein
3854	 48.83	+1	4182934..4184766	-	610	196158679	-	MADE_03884	-	Glucosamine-fructose-6-phosphate aminotransferase
3855	 49.01	+1	4184769..4185578	-	269	196158680	-	MADE_03885	-	transcriptional regulator, DeoR family protein
3856	 36.36	-2	4185565..4185696	+	43	196158681	-	MADE_03886	-	hypothetical protein
3857	 45.63	0	4185744..4186784	-	346	196158682	-	MADE_03887	-	YvaA
3858	 46.65	0	4187011..4188369	-	452	196158683	-	MADE_03888	-	bifunctional N-acetyl glucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyl transferase
3859	 43.80	0	4188637..4190022	+	461	196158684	-	MADE_03889	-	diguanylate cyclase
3860	 49.60	+1	4190026..4190910	-	294	196158685	-	MADE_03890	-	probable transmembrane protein
3861	 46.87	0	4190918..4191412	-	164	196158686	-	MADE_03891	-	Methylated DNA-protein cysteine methyltransferase
3862	 48.04	0	4191414..4192841	-	475	196158687	-	MADE_03892	-	ada regulatory protein
3863	 45.97	0	4193120..4194211	+	363	196158688	-	MADE_03893	-	putative beta-lactamase
3864	 45.10	0	4194252..4196171	-	639	196158689	-	MADE_03894	-	arginine decarboxylase
3865	 42.19	0	4196321..4196749	-	142	196158690	-	MADE_03895	-	arginine decarboxylase
3866	 48.37	+1	4196949..4198298	-	449	196158691	-	MADE_03896	-	NAD(P) transhydrogenase subunit beta
3867	 46.45	0	4198349..4198630	-	93	196158692	-	MADE_03897	-	probable NAD(P) transhydrogenase subunit alpha
3868	 46.98	0	4198633..4199790	-	385	196158693	-	MADE_03898	-	NAD(P) transhydrogenase subunit alpha
3869	 47.72	0	4200363..4203239	+	958	196158694	-	MADE_03899	-	TonB-dependent receptor
3870	 47.99	0	4203324..4204892	+	522	196158695	-	MADE_03900	-	putative tryptophan halogenase
3871	 45.58	0	4204929..4205663	+	244	196158696	-	MADE_03901	-	SapC related protein
3872	 46.58	0	4205642..4206343	+	233	196158697	-	MADE_03902	-	hypothetical protein
3873	 47.78	0	4206562..4209786	-	1074	196158698	-	MADE_03903	-	TonB-dependent receptor
3874	 46.70	0	4209939..4210529	+	196	196158699	-	MADE_03904	-	putative RNA polymerase sigma-70 factor FecI
3875	 45.80	0	4210522..4211628	+	368	196158700	-	MADE_03905	-	putative regulatory protein
3876	 46.59	0	4211805..4212551	+	248	196158701	-	MADE_03906	-	hypothetical protein
3877	 45.67	0	4212660..4212959	-	99	196158702	-	MADE_03907	-	peptidyl-prolyl cis-trans isomerase C
3878	 47.05	0	4213025..4213921	-	298	196158703	-	MADE_03908	-	protoheme IX farnesyltransferase (Heme O synthase)
3879	 41.13	-1	4214119..4214490	-	123	196158704	-	MADE_03909	-	cytochrome o ubiquinol oxidase protein (Ubiquinol oxidase chain D)
3880	 46.76	0	4214490..4215107	-	205	196158705	-	MADE_03910	-	cytochrome o ubiquinol oxidase subunit III (Ubiquinol oxidase chain C)
3881	 46.91	0	4215104..4217092	-	662	196158706	-	MADE_03911	-	Ubiquinol oxidase polypeptide I
3882	 45.33	0	4217095..4218036	-	313	196158707	-	MADE_03912	-	Ubiquinol oxidase polypeptide II (Cytochrome o subunit 2) (Oxidase BO(3) subunit 2) (Cytochrome o ubiquinol oxidase subunit
3883	 45.10	0	4218186..4218593	-	135	196158708	-	MADE_03913	-	hypothetical protein
3884	 36.98	-2	4219137..4219328	+	63	196158709	-	MADE_03914	-	SpoVT/AbrB-like protein
3885	 42.16	0	4219417..4219722	+	101	196158710	-	MADE_03915	-	predicted nucleic acid-binding protein,contains PIN domain
3886	 41.23	-1	4220342..4221151	-	269	196158711	-	MADE_03916	-	hypothetical protein
3887	 40.05	-1	4221554..4222282	+	242	196158712	-	MADE_03917	-	hypothetical protein
3888	 47.17	0	4222663..4224303	-	546	196158713	-	MADE_03918	-	Chaperonin GroEL (HSP60 family) protein
3889	 46.74	0	4224344..4224634	-	96	196158714	-	MADE_03919	-	co-chaperonin GroES
3890	 47.30	0	4224925..4225461	-	178	196158715	-	MADE_03920	-	fxsA protein
3891	 42.22	0	4225675..4225989	+	104	196158716	-	MADE_03922	-	periplasmic divalent cation tolerance protein
3892	 47.94	0	4226013..4227908	+	631	196158717	-	MADE_03921	-	thiol:disulfide interchange protein precursor
3893	 48.30	0	4227910..4228791	+	293	196158718	-	MADE_03923	-	peptidase M23B
3894	 48.98	+1	4229010..4229450	+	146	196158719	-	MADE_03924	-	3-dehydroquinate dehydratase (3-dehydroquinase) (Type II DHQase)
44.90	MEAN

3.40	STD DEV
