IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

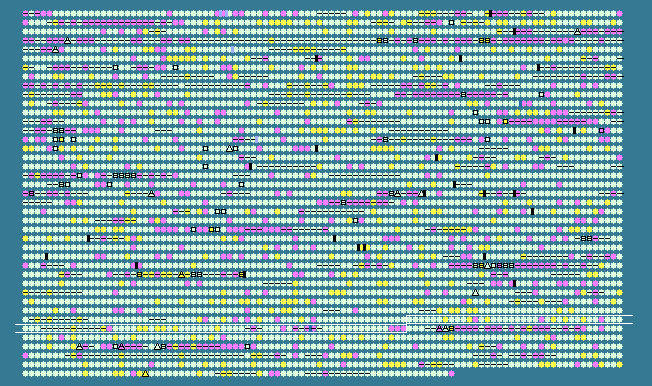

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.90 STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3465	 46.88	0	3767116..3767676	+	186	196158290	-	MADE_03493	-	response regulator
3466	 45.70	0	3767698..3768522	+	274	196158291	-	MADE_03494	-	ABC-type phosphate/phosphonate transport system, periplasmic component
3467	 44.62	0	3768534..3770207	+	557	196158292	-	MADE_03495	-	Signal transduction histidine kinase
3468	 42.38	0	3770281..3771585	+	434	196158293	-	MADE_03496	-	response regulator
3469	 47.33	0	3771837..3773186	+	449	196158294	-	MADE_03497	-	glutathione reductase
3470	 47.40	0	3773321..3775510	-	729	196158295	-	MADE_03498	-	Anaerobic dehydrogenase
3471	 48.41	+1	3775770..3779105	+	1111	196158296	-	MADE_03499	-	amidohydrolase
3472	 47.83	0	3779330..3779881	+	183	196158297	-	MADE_03500	-	hypothetical protein
3473	 46.25	0	3780014..3781159	+	381	196158298	-	MADE_03501	-	lipoprotein, putative
3474	 45.68	0	3781223..3782680	+	485	196158299	-	MADE_03502	-	hypothetical protein
3475	 48.76	+1	3782692..3784674	+	660	196158300	-	MADE_03503	-	Secreted protein with uncharacterized domain
3476	 40.00	-1	3784664..3784783	+	39	196158301	-	MADE_03504	-	hypothetical protein
3477	 45.65	0	3784800..3785570	+	256	196158302	-	MADE_03505	-	Possible biopolymer transport protein, ExbB family
3478	 49.20	+1	3785586..3786644	+	352	196158303	-	MADE_03506	-	Secreted protein, containing von Willebrand factor (vWF) type A domain
3479	 48.26	0	3786658..3787608	+	316	196158304	-	MADE_03507	-	Secreted protein, containing von Willebrand factor (vWF) type A domain
3480	 46.08	0	3787686..3789230	-	514	196158305	-	MADE_03508	-	Hydroxymethylglutaryl-coenzyme A reductase
3481	 47.21	0	3789685..3790938	+	417	196158306	-	MADE_03509	-	membrane-fusion protein
3482	 47.63	0	3790938..3793112	+	724	196158307	-	MADE_03510	-	toxin secretion ABC transporter, ATP-binding subunit/permease protein, putative
3483	 41.99	0	3793109..3793420	+	103	196158308	-	MADE_03511	-	putative transcriptional regulator, LuxR family protein
3484	 46.34	0	3793576..3793698	+	40	196158309	-	MADE_03512	-	hypothetical protein
3485	 45.81	0	3793817..3794818	+	333	196158310	-	MADE_03513	-	hypothetical protein
3486	 43.03	0	3795027..3795356	+	109	196158311	-	MADE_03514	-	HtaR suppressor protein
3487	 40.57	-1	3795377..3795832	+	151	196158312	-	MADE_03515	-	hypothetical protein
3488	 45.67	0	3796024..3797352	-	442	196158313	-	MADE_03516	-	ATP-dependent protease ATP-binding subunit
3489	 48.45	+1	3797435..3797917	-	160	196158314	-	MADE_03517	-	ATP-dependent protease peptidase subunit
3490	 45.77	0	3798287..3798865	-	192	196158315	-	MADE_03518	-	Sporulation related
3491	 51.00	+1	3798998..3801187	-	729	196158316	-	MADE_03519	-	primosome assembly protein PriA
3492	 41.78	0	3801542..3801754	+	70	196158317	-	MADE_03520	-	50S ribosomal subunit protein L31
3493	 46.86	0	3801922..3802239	-	105	196158318	-	MADE_03521	-	hypothetical protein
3494	 49.11	+1	3802790..3804025	+	411	196158319	-	MADE_03522	-	NADP-dependent malic enzyme
3495	 46.85	0	3804199..3804531	-	110	196158320	-	MADE_03523	-	transcriptional repressor protein MetJ
3496	 48.20	0	3804693..3805580	+	295	196158321	-	MADE_03524	-	5,10-methylenetetrahydrofolate reductase
3497	 39.86	-1	3805586..3805723	+	45	196158322	-	MADE_03525	-	hypothetical protein
3498	 42.37	0	3805819..3806703	+	294	196158323	-	MADE_03526	-	tRNA processing exoribonuclease BN; required for maturation of tRNA encoded by bacteriophages; dimer
3499	 47.73	0	3806914..3807552	-	212	196158324	-	MADE_03527	-	glutamine synthetase
3500	 44.44	0	3807549..3807791	-	80	196158325	-	MADE_03528	-	hypothetical protein
3501	 47.34	0	3807973..3808950	+	325	196158326	-	MADE_03529	-	proline iminopeptidase
3502	 47.03	0	3808947..3809384	+	145	196158327	-	MADE_03530	-	D-tyrosyl-tRNA deacylase
3503	 44.48	0	3809590..3810504	+	304	196158328	-	MADE_03531	-	fused GNAT family acetyltransferase/PaaI-related uncharacterized conserved domain
3504	 45.32	0	3810603..3811436	-	277	196158329	-	MADE_03532	-	RNA polymerase sigma factor
3505	 42.79	0	3812069..3813295	+	408	196158330	-	MADE_03533	-	EAL domain protein
3506	 43.20	0	3813450..3814685	+	411	196158331	-	MADE_03534	-	diguanylate phosphodiesterase
3507	 44.85	0	3814699..3815679	-	326	196158332	-	MADE_03535	-	cell division protein
3508	 47.76	0	3815676..3816389	-	237	196158333	-	MADE_03536	-	FtsE
3509	 50.06	+1	3816416..3818041	-	541	196158334	-	MADE_03537	-	signal recognition particle GTPase
3510	 46.08	0	3818129..3818779	+	216	196158335	-	MADE_03538	-	putative methyltransferase
3511	 48.01	0	3818868..3819446	-	192	196158336	-	MADE_03539	-	putative orphan protein
3512	 44.28	0	3819447..3820049	-	200	196158337	-	MADE_03540	-	multiple antibiotic resistance (MarC)-related protein
3513	 44.81	0	3820505..3820687	+	60	196158338	-	MADE_03541	-	hypothetical protein
3514	 49.22	+1	3820817..3822100	-	427	196158339	-	MADE_03542	-	aminopeptidase B
3515	 39.72	-1	3822100..3822240	+	46	196158340	-	MADE_03543	-	hypothetical protein
3516	 43.93	0	3822334..3823050	+	238	196158341	-	MADE_03544	-	sugar fermentation stimulation protein
3517	 46.62	0	3823262..3823720	+	152	196158342	-	MADE_03545	-	putative DnaK suppressor protein
3518	 46.95	0	3823796..3824779	+	327	196158343	-	MADE_03546	-	putative glutamyl-tRNA synthetase-relatedprotein
3519	 42.98	0	3824802..3824915	-	37	196158344	-	MADE_03547	-	hypothetical protein
3520	 48.48	+1	3824878..3826197	+	439	196158345	-	MADE_03548	-	poly(A) polymerase I
3521	 48.80	+1	3826190..3826687	+	165	196158346	-	MADE_03549	-	7,8-dihydro-6-hydroxymethylpterin- pyrophosphokinase
3522	 46.67	0	3826746..3827540	+	264	196158347	-	MADE_03550	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
3523	 48.41	+1	3827552..3828400	+	282	196158348	-	MADE_03551	-	pantothenate synthetase
3524	 48.56	+1	3828609..3830243	-	544	196158349	-	MADE_03552	-	Glutamate decarboxylase putative
3525	 45.22	0	3830792..3831523	+	243	196158350	-	MADE_03553	-	putative orphan protein; putative EAL domain
3526	 50.22	+1	3831617..3832285	-	222	196158351	-	MADE_03554	-	putative methyltransferase SAM dependent
3527	 42.89	0	3832285..3833100	-	271	196158352	-	MADE_03555	-	ABC-type multidrug transport system, permease component
3528	 46.84	0	3833127..3834059	-	310	196158353	-	MADE_03556	-	ABC transporter, ATP-binding protein
3529	 45.65	0	3834720..3835409	+	229	196158354	-	MADE_03557	-	two component transcriptional regulator, winged helix family
3530	 47.58	0	3835522..3837690	+	722	196158355	-	MADE_03558	-	putative sensor histidine kinase
3531	 46.41	0	3837973..3840258	+	761	196158356	-	MADE_03559	-	putative outer membrane receptor for iron transport
3532	 47.72	0	3840331..3841011	+	226	196158357	-	MADE_03560	-	putative hydroxylase
3533	 52.38	+2	3841173..3841298	+	41	196158358	-	MADE_03561	-	hypothetical protein
3534	 43.00	0	3841428..3842120	+	230	196158359	-	MADE_03562	-	putative secreted protein
3535	 45.38	0	3842174..3843352	-	392	196158360	-	MADE_03563	-	TonB domain protein
3536	 46.35	0	3843405..3844487	-	360	196158361	-	MADE_03564	-	hypothetical protein
3537	 48.30	0	3844637..3845812	-	391	196158362	-	MADE_03565	-	permease
3538	 46.92	0	3846067..3847752	-	561	196158363	-	MADE_03566	-	Carbon starvation regulatory protein
3539	 41.37	-1	3848051..3848548	+	165	196158364	-	MADE_03567	-	membrane protein
3540	 44.51	0	3848599..3849618	-	339	196158365	-	MADE_03568	-	esterase
3541	 43.47	0	3849956..3850843	+	295	196158366	-	MADE_03569	-	GumN
3542	 46.33	0	3851093..3852277	-	394	196158367	-	MADE_03570	-	elongation factor Tu
3543	 44.64	0	3852341..3852685	-	114	196158368	-	MADE_03571	-	elongation factor EF-2
3544	 40.18	-1	3852734..3853492	-	252	196158369	-	MADE_03572	-	putative transcriptional acitvator, Baf family
3545	 45.90	0	3853629..3854615	-	328	196158370	-	MADE_03573	-	putative BirA bifunctional protein
3546	 41.37	-1	3854612..3855694	-	360	196158371	-	MADE_03574	-	UDP-N-acetylenolpyruvoylglucosamine reductase (UDP-N-acetylmuramate dehydrogenase)
3547	 42.71	0	3855787..3857364	-	525	196158372	-	MADE_03575	-	methyl-accepting chemotaxis protein
3548	 40.10	-1	3857714..3857905	+	63	196158373	-	MADE_03576	-	RNA-binding protein
3549	 40.22	-1	3863248..3863712	+	154	196158374	-	MADE_03577	-	RNA-binding protein
3550	 42.23	0	3863777..3865102	-	441	196158375	-	MADE_03578	-	putative orphan protein
3551	 41.71	0	3865255..3866364	+	369	196158376	-	MADE_03579	-	tRNA (uracil-5-)-methyltransferase
3552	 46.63	0	3866414..3867007	-	197	196158377	-	MADE_03580	-	putative transcriptional regulator, TetR family protein
3553	 44.68	0	3867349..3868476	+	375	196158378	-	MADE_03581	-	hypothetical putative delta-9 fatty acid desaturase
3554	 45.92	0	3868681..3870102	+	473	196158379	-	MADE_03582	-	soluble pyridine nucleotide transhydrogenase
3555	 44.12	0	3870157..3870462	-	101	196158380	-	MADE_03583	-	soluble pyridine nucleotide transhydrogenase
3556	 46.94	0	3870577..3871164	+	195	196158381	-	MADE_03584	-	uracil-DNA glycosylase
3557	 43.17	0	3871161..3873386	-	741	196158382	-	MADE_03585	-	response regulator/GGDEF/EAL domain protein
3558	 43.82	0	3873528..3874433	+	301	196158383	-	MADE_03586	-	hypothetical protein
3559	 46.32	0	3874430..3875176	-	248	196158384	-	MADE_03587	-	phosphoadenosine phosphosulfate reductase
3560	 47.68	0	3875166..3876887	-	573	196158385	-	MADE_03588	-	putative sulfite reductase (NADPH) hemoprotein beta-component
3561	 46.74	0	3876887..3878713	-	608	196158386	-	MADE_03589	-	sulfite reductase, alpha subunit (flavoprotein)
3562	 32.59	-2	3878720..3878854	-	44	196158387	-	MADE_03590	-	hypothetical protein
3563	 41.27	-1	3878912..3879667	-	251	196158388	-	MADE_03591	-	hypothetical protein
3564	 41.09	-1	3879671..3880663	-	330	196158389	-	MADE_03592	-	hypothetical protein
44.90	MEAN

3.40	STD DEV
