IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

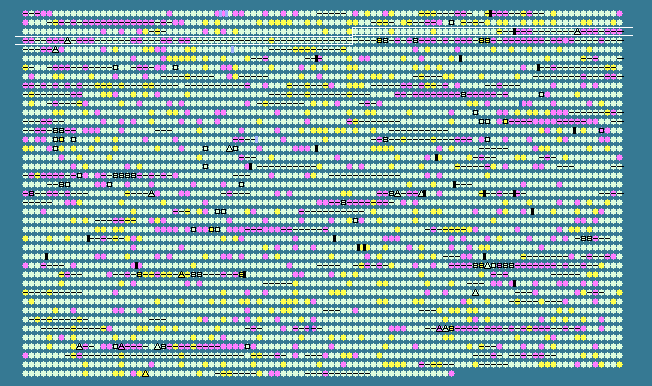

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.90 STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
256	 46.14	0	277860..278351	+	163	196155081	-	MADE_00258	-	MSHA pilin protein MshA
257	 47.62	0	278353..278814	+	153	196155082	-	MADE_00259	-	putative Mannose-sensitive agglutinin (MSHA) biogenesis protein MshC (pilus type IV)
258	 44.99	0	278789..279397	+	202	196155083	-	MADE_00260	-	putative Mannose-sensitive agglutinin (MSHA) biogenesis protein MshD (pilus type IV)
259	 42.20	0	279397..280152	+	251	196155084	-	MADE_00261	-	Tfp pilus assembly protein PilW
260	 43.94	0	280142..280603	+	153	196155085	-	MADE_00262	-	putative Mannose-sensitive agglutinin (MSHA) biogenesis protein MshP (pilus type IV)
261	 46.68	0	280783..284289	+	1168	196155086	-	MADE_00263	-	putative Mannose-sensitive agglutinin (MSHA) biogenesis protein MshQ (pilus type IV)
262	 48.75	+1	284644..285687	+	347	196155087	-	MADE_00264	-	rod shape-determining protein MreB
263	 47.84	0	285782..286615	+	277	196155088	-	MADE_00265	-	Rod shape-determining protein
264	 44.66	0	286626..287084	+	152	196155089	-	MADE_00266	-	rod shape-determining protein MreD
265	 47.04	0	287121..287711	+	196	196155090	-	MADE_00267	-	septum formation protein Maf
266	 45.54	0	287708..289174	+	488	196155091	-	MADE_00268	-	cytoplasmic axial filament protein
267	 46.17	0	289201..293196	+	1331	196155092	-	MADE_00269	-	putative protease
268	 46.15	0	293189..294007	+	272	196155093	-	MADE_00270	-	predicted amidohydrolase, nitrilase family protein
269	 49.90	+1	293970..295442	+	490	196155094	-	MADE_00271	-	putative suppressor of CsrA inhibitory activity; putative peptidase; involved in the control of DNA gyrase
270	 45.70	0	295542..296099	-	185	196155095	-	MADE_00272	-	hypothetical protein
271	 47.30	0	296172..297503	+	443	196155096	-	MADE_00273	-	pmbA protein
272	 45.38	0	297583..298437	-	284	196155097	-	MADE_00274	-	transcriptional regulator, AraC family protein
273	 47.98	0	298542..301667	+	1041	196155098	-	MADE_00275	-	beta-D-galactosidase
274	 46.05	0	301849..302556	-	235	196155099	-	MADE_00276	-	aerobic respiration control protein ArcA
275	 43.97	0	302711..304393	-	560	196155100	-	MADE_00277	-	Signal transduction histidine kinase (contains HAMP domain)
276	 46.46	0	304466..305890	-	474	196155101	-	MADE_00278	-	glycogen synthase
277	 45.24	0	306061..307143	-	360	196155102	-	MADE_00279	-	ribosomal RNA small subunit methyltransferase C
278	 47.71	0	307143..307907	-	254	196155103	-	MADE_00280	-	tRNA (guanine-N(7)-)-methyltransferase
279	 46.78	0	307954..308652	-	232	196155104	-	MADE_00281	-	putative hydrolase
280	 48.69	+1	308793..309860	+	355	196155105	-	MADE_00282	-	A/G-specific adenine glycosylase
281	 42.12	0	309914..310186	+	90	196155106	-	MADE_00283	-	Fe(II) trafficking protein YggX
282	 44.74	0	310215..310328	+	37	196155107	-	MADE_00284	-	hypothetical protein
283	 32.97	-2	311058..312155	+	365	196155108	-	MADE_00285	-	hypothetical protein
284	 32.55	-2	312148..313299	+	383	196155109	-	MADE_00286	-	hypothetical protein
285	 40.94	-1	313553..313894	+	113	196155110	-	MADE_00287	-	probable C-5 cytosine-specific DNA methylase
286	 45.39	0	313977..314996	-	339	196155111	-	MADE_00288	-	hypothetical protein
287	 44.66	0	315125..315883	+	252	196155112	-	MADE_00289	-	putative transmembrane protein
288	 42.13	0	315905..316654	+	249	196155113	-	MADE_00290	-	hypothetical protein
289	 44.22	0	316656..316949	-	97	196155114	-	MADE_00291	-	ribonuclease H-related protein
290	 43.14	0	317008..317415	-	135	196155115	-	MADE_00292	-	hypothetical protein
291	 44.87	0	317682..318149	-	155	196155116	-	MADE_00293	-	hypothetical protein
292	 43.18	0	318168..320198	-	676	196155117	-	MADE_00294	-	ATPase, AAA family protein
293	 42.62	0	320211..321104	-	297	196155118	-	MADE_00295	-	site-specific recombinase, phage integrase family protein
294	 39.18	-1	321226..321858	-	210	196155119	-	MADE_00296	-	hypothetical protein
295	 39.70	-1	322181..324286	+	701	196155120	-	MADE_00297	-	hypothetical Membrane Spanning Protein
296	 39.71	-1	324455..325678	+	407	196155121	-	MADE_00298	-	UvrD/REP helicase
297	 41.44	-1	325983..326870	+	295	196155122	-	MADE_00299	-	SMF protein
298	 38.46	-1	326867..327100	+	77	196155123	-	MADE_00300	-	hypothetical protein
299	 40.28	-1	327385..327528	+	47	196155124	-	MADE_00301	-	hypothetical protein
300	 40.07	-1	328319..328585	-	88	196155125	-	MADE_00302	-	hypothetical protein
301	 40.35	-1	328696..329208	-	170	196155126	-	MADE_00303	-	hypothetical protein
302	 39.34	-1	329229..329927	-	232	196155127	-	MADE_00304	-	hypothetical protein
303	 41.94	0	329932..333078	-	1048	196155128	-	MADE_00305	-	Heavy metal efflux pump CzcA
304	 41.89	0	333091..334329	-	412	196155129	-	MADE_00306	-	Secretion protein HlyD
305	 41.06	-1	334326..335528	-	400	196155130	-	MADE_00307	-	Outer membrane efflux protein
306	 37.35	-2	335703..336647	-	314	196155131	-	MADE_00308	-	peptidase M56, BlaR1
307	 39.18	-1	336656..336826	-	56	196155132	-	MADE_00309	-	Penicillinase repressor
308	 41.47	-1	337187..338476	-	429	196155133	-	MADE_00310	-	site-specific recombinase, phage integrase family protein
309	 41.43	-1	339940..340458	+	172	196155134	-	MADE_00311	-	putative metal-binding protein
310	 38.00	-2	340702..341472	+	256	196155135	-	MADE_00312	-	methionyl-tRNA formyltransferase
311	 35.96	-2	341839..341952	-	37	196155136	-	MADE_00313	-	hypothetical protein
312	 41.22	-1	342408..343814	-	468	196155137	-	MADE_00314	-	sensory histidine kinase in two-component region
313	 43.27	0	343798..344481	-	227	196155138	-	MADE_00315	-	probable two component response regulator transcription regulator protein
314	 44.72	0	344807..344929	-	40	196155139	-	MADE_00316	-	hypothetical protein
315	 45.80	0	345394..345738	+	114	196155140	-	MADE_00317	-	transcriptional regulator, MerR family protein
316	 45.13	0	345738..347102	+	454	196155141	-	MADE_00318	-	putative cation efflux protein
317	 45.42	0	347099..349117	+	672	196155142	-	MADE_00319	-	putative cation efflux system protein
318	 46.21	0	349114..352251	+	1045	196155143	-	MADE_00320	-	cation efflux system protein CusA
319	 41.09	-1	352369..352497	+	42	196155144	-	MADE_00321	-	hypothetical protein
320	 40.74	-1	352562..352696	-	44	196155145	-	MADE_00322	-	hypothetical protein
321	 43.86	0	352788..352901	+	37	196155146	-	MADE_00323	-	hypothetical protein
322	 43.28	0	352910..353824	+	304	196155147	-	MADE_00324	-	putative copper export protein
323	 41.46	-1	353836..354315	+	159	196155148	-	MADE_00325	-	putative orphan protein
324	 41.20	-1	354350..354832	+	160	196155149	-	MADE_00326	-	L-asparaginase
325	 40.63	-1	354847..355545	+	232	196155150	-	MADE_00327	-	hypothetical protein
326	 44.44	0	355694..355819	+	41	196155151	-	MADE_00328	-	hypothetical protein
327	 36.00	-2	355816..355965	-	49	196155152	-	MADE_00329	-	hypothetical protein
328	 39.68	-1	356049..356804	-	251	196155153	-	MADE_00330	-	hypothetical protein
329	 42.55	0	356814..357095	-	93	196155154	-	MADE_00331	-	hypothetical protein
330	 42.78	0	357225..359342	-	705	196155155	-	MADE_00332	-	FAD linked oxidase, N-terminal
331	 44.25	0	359776..359949	+	57	196155156	-	MADE_00333	-	hypothetical protein
332	 46.30	0	360012..360173	+	53	196155157	-	MADE_00334	-	hypothetical protein
333	 45.36	0	360300..360482	+	60	196155158	-	MADE_00335	-	nitric oxide reductase, cytochrome c-containing subunit
334	 44.44	0	360579..361010	+	143	196155159	-	MADE_00336	-	hypothetical protein
335	 42.32	0	361173..361439	+	88	196155160	-	MADE_00337	-	hypothetical protein
336	 43.47	0	361513..362301	+	262	196155161	-	MADE_00338	-	putative exported protein of unknown function
337	 46.67	0	362303..362422	+	39	196155162	-	MADE_00339	-	hypothetical protein
338	 47.50	0	362487..364244	+	585	196155163	-	MADE_00340	-	putative NADH oxidoreductase; putative nitric oxide dioxygenase
339	 42.56	0	364244..365002	+	252	196155164	-	MADE_00341	-	hypothetical protein
340	 45.83	0	365002..365793	+	263	196155165	-	MADE_00342	-	putative exported protein of unknown function with cytochrome Cfamily domain
341	 44.41	0	365911..367029	+	372	196155166	-	MADE_00343	-	hypothetical protein
342	 48.83	+1	367044..367598	+	184	196155167	-	MADE_00344	-	hydrogenase 2 maturation protease
343	 43.45	0	367595..368029	+	144	196155168	-	MADE_00345	-	HupH hydrogenase expression protein
344	 48.09	0	368007..369029	+	340	196155169	-	MADE_00346	-	Ni-Fe hydrogenase, small subunit
345	 46.75	0	369047..370924	+	625	196155170	-	MADE_00347	-	Ni-Fe hydrogenase large chain
346	 45.71	0	371176..371385	+	69	196155171	-	MADE_00348	-	hydrogenase assembly chaperone hypC/hupF
347	 46.30	0	371441..371764	+	107	196155172	-	MADE_00349	-	hydrogenase expression/formation protein HypA
348	 43.37	0	371754..372500	+	248	196155173	-	MADE_00350	-	hydrogenase accessory protein HypB
349	 45.50	0	372507..373640	+	377	196155174	-	MADE_00351	-	Hydrogenase formation HypD protein
350	 45.77	0	373640..375946	+	768	196155175	-	MADE_00352	-	Hydrogenase maturation protein HypF
351	 46.25	0	375946..376998	+	350	196155176	-	MADE_00353	-	Hydrogenase expression/formation protein HypE
352	 44.53	0	377117..377527	+	136	196155177	-	MADE_00354	-	putative Zn(II)-responsive transcriptional regulator, regulates Zn export (MerR family) protein
353	 47.25	0	377552..379900	+	782	196155178	-	MADE_00355	-	Cation transport ATPase
354	 45.76	0	379913..380266	+	117	196155179	-	MADE_00356	-	putative secreted protein containing plastocyanin domain
355	 44.03	0	380259..380417	-	52	196155180	-	MADE_00357	-	hypothetical protein
44.90	MEAN

3.40	STD DEV
