IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

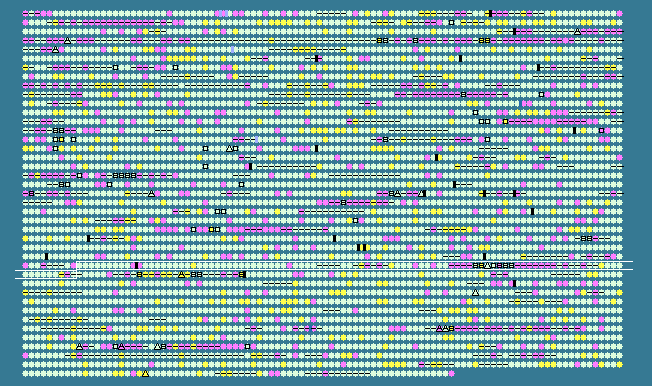

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.90 STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2810	 45.54	0	3082458..3083579	+	373	196157635	-	MADE_02834	-	sigma-54 depedent transcriptional activator PspF
2811	 45.71	0	3083583..3085319	+	578	196157636	-	MADE_02835	-	putative ABC transporter, periplasmic peptide-binding protein
2812	 44.58	0	3085352..3086347	+	331	196157637	-	MADE_02836	-	peptide transport protein (ABC superfamily, membrane)
2813	 47.22	0	3086436..3087227	+	263	196157638	-	MADE_02837	-	peptide transport protein (ABC superfamily, membrane)
2814	 47.59	0	3087229..3088224	+	331	196157639	-	MADE_02838	-	putative peptide ABC transporter, ATP-binding protein
2815	 43.41	0	3088224..3089027	+	267	196157640	-	MADE_02839	-	peptide ABC transporter, ATP-binding protein
2816	 47.48	0	3089145..3090275	-	376	196157641	-	MADE_02840	-	oxaloacetate decarboxylase, beta subunit
2817	 48.15	0	3090279..3092093	-	604	196157642	-	MADE_02841	-	oxaloacetate decarboxylase
2818	 41.55	0	3092112..3092318	-	68	196157643	-	MADE_02842	-	putative oxaloacetate decarboxylase subunit gamma
2819	 36.81	-2	3092329..3092472	+	47	196157644	-	MADE_02843	-	oxaloacetate decarboxylase
2820	 37.21	-2	3092995..3093123	-	42	196157645	-	MADE_02844	-	hypothetical protein
2821	 43.23	0	3093375..3093566	-	63	196157646	-	MADE_02845	-	carbon storage regulator
2822	 46.65	0	3093701..3096298	-	865	196157647	-	MADE_02846	-	alanyl-tRNA synthetase
2823	 45.02	0	3096594..3097055	-	153	196157648	-	MADE_02847	-	Regulatory protein RecX
2824	 44.69	0	3097175..3098512	+	445	196157649	-	MADE_02848	-	hypothetical protein
2825	 47.27	0	3098502..3100589	+	695	196157650	-	MADE_02849	-	putative peptidase M13 family protein
2826	 44.17	0	3100653..3100772	+	39	196157651	-	MADE_02850	-	hypothetical protein
2827	 44.92	0	3100753..3101313	-	186	196157652	-	MADE_02851	-	putative transcriptional repressor for the cellular response to osmotic stress (TetR/AcrR family) protein
2828	 47.22	0	3101402..3103828	-	808	196157653	-	MADE_02852	-	TonB-dependent receptor
2829	 48.47	+1	3104046..3105683	-	545	196157654	-	MADE_02853	-	low affinity sulfate transporter
2830	 46.79	0	3105695..3106348	-	217	196157655	-	MADE_02854	-	carbonic anhydrase
2831	 46.54	0	3106507..3107475	+	322	196157656	-	MADE_02855	-	transcriptional regulator, LysR family protein
2832	 46.62	0	3107493..3108380	+	295	196157657	-	MADE_02856	-	Transcriptional regulator
2833	 43.51	0	3108442..3108726	-	94	196157658	-	MADE_02857	-	hypothetical protein
2834	 47.88	0	3108751..3109341	-	196	196157659	-	MADE_02858	-	hypothetical protein
2835	 47.05	0	3109380..3112004	-	874	196157660	-	MADE_02859	-	B12-dependent methionine synthase
2836	 47.75	0	3112014..3113081	-	355	196157661	-	MADE_02860	-	B12-dependent methionine synthase
2837	 46.86	0	3113085..3114023	-	312	196157662	-	MADE_02861	-	homoserine O-succinyltransferase
2838	 43.68	0	3114190..3114624	-	144	196157663	-	MADE_02862	-	ATPase involved in DNA repair
2839	 44.92	0	3114684..3115175	-	163	196157664	-	MADE_02863	-	chemotaxis protein CheW
2840	 44.73	0	3115193..3116008	-	271	196157665	-	MADE_02864	-	CheW protein
2841	 46.41	0	3116016..3116780	-	254	196157666	-	MADE_02865	-	putative ParA family protein
2842	 47.12	0	3116809..3117918	-	369	196157667	-	MADE_02866	-	chemotaxis-specific methylesterase
2843	 47.61	0	3117968..3120223	-	751	196157668	-	MADE_02867	-	chemotaxis protein cheA
2844	 44.31	0	3120236..3120991	-	251	196157669	-	MADE_02868	-	chemotaxis protein cheZ
2845	 41.16	-1	3121026..3121421	-	131	196157670	-	MADE_02869	-	chemotaxis protein CheY
2846	 45.90	0	3121446..3122177	-	243	196157671	-	MADE_02870	-	flagellar biosynthesis sigma factor FliA
2847	 47.87	0	3122174..3123040	-	288	196157672	-	MADE_02871	-	flagellar biosynthetic protein FlhG
2848	 43.93	0	3123046..3124479	-	477	196157673	-	MADE_02872	-	flagellar biosynthesis protein
2849	 47.24	0	3124509..3126608	-	699	196157674	-	MADE_02873	-	flagellar biosynthesis protein
2850	 47.29	0	3126798..3127922	-	374	196157675	-	MADE_02874	-	flagellar biosynthesis protein
2851	 44.36	0	3128011..3128790	-	259	196157676	-	MADE_02875	-	flagellar biosynthesis protein
2852	 47.78	0	3128803..3129072	-	89	196157677	-	MADE_02876	-	flagellar biosynthesis
2853	 44.84	0	3129081..3129836	-	251	196157678	-	MADE_02877	-	flagellar biosynthesis
2854	 44.63	0	3129829..3130191	-	120	196157679	-	MADE_02878	-	polar flagellar assembly protein FliO
2855	 45.10	0	3130310..3130717	-	135	196157680	-	MADE_02879	-	flagellar motor switch protein
2856	 46.27	0	3130735..3131793	-	352	196157681	-	MADE_02880	-	flagellar motor switch protein
2857	 49.44	+1	3131821..3132360	-	179	196157682	-	MADE_02881	-	flagellar basal body-associated protein
2858	 34.78	-2	3132359..3132496	+	45	196157683	-	MADE_02882	-	hypothetical protein
2859	 48.16	0	3132582..3134888	-	768	196157684	-	MADE_02883	-	polar flagellar hook-length control protein FliK
2860	 41.23	-1	3135126..3135239	-	37	196157685	-	MADE_02884	-	hypothetical protein
2861	 44.74	0	3135236..3135682	-	148	196157686	-	MADE_02885	-	Flagellar biosynthesis chaperone
2862	 53.41	+2	3135755..3137089	-	444	196157687	-	MADE_02886	-	flagellum-specific ATP synthase
2863	 46.87	0	3137082..3137864	-	260	196157688	-	MADE_02887	-	flagellar assembly protein
2864	 45.82	0	3137919..3138959	-	346	196157689	-	MADE_02888	-	flagellar motor protein
2865	 48.38	+1	3138972..3140666	-	564	196157690	-	MADE_02889	-	flagellar M-ring protein
2866	 40.65	-1	3140679..3141047	-	122	196157691	-	MADE_02890	-	Flagellar hook-basal body protein
2867	 48.36	+1	3141260..3142597	-	445	196157692	-	MADE_02891	-	flagellar regulatory protein C
2868	 46.72	0	3142614..3143756	-	380	196157693	-	MADE_02892	-	putative sensory box sensor histidine kinase in two-component regulatory system
2869	 36.81	-2	3143733..3143876	+	47	196157694	-	MADE_02893	-	hypothetical protein
2870	 47.40	0	3143893..3145356	-	487	196157695	-	MADE_02894	-	polar flagellar protein FlaK
2871	 41.85	0	3145561..3146358	-	265	196157696	-	MADE_02895	-	hag; flagellin
2872	 40.34	-1	3146585..3147583	+	332	196157697	-	MADE_02896	-	polysaccharide biosynthesis protein
2873	 40.26	-1	3147583..3148752	+	389	196157698	-	MADE_02897	-	putative DegT/DnrJ/EryC1/StrS aminotransferase
2874	 40.00	-1	3148821..3149525	+	234	196157699	-	MADE_02898	-	putative Acylneuraminate cytidylyltransferase
2875	 36.61	-2	3150319..3150837	-	172	196157700	-	MADE_02899	-	Methionyl-tRNA formyltransferase-like protein
2876	 43.65	0	3151143..3151268	-	41	196157701	-	MADE_02900	-	ISMca4, transposase, OrfAB
2877	 49.06	+1	3151737..3151895	-	52	196157702	-	MADE_02901	-	ISxcd1 transposase
2878	 47.64	0	3152350..3153153	-	267	196157703	-	MADE_02902	-	Integrase, catalytic region
2879	 41.67	0	3153156..3153419	-	87	196157704	-	MADE_02903	-	transposase ORF-A, IS-type
2880	 39.78	-1	3153468..3153653	-	61	196157705	-	MADE_02904	-	putative orphan protein; putative transposase (IS66 family element,Orf2-like)
2881	 47.40	0	3153956..3155590	-	544	196157706	-	MADE_02905	-	Transposase, IS4 family protein
2882	 43.58	0	3156059..3157102	-	347	196157707	-	MADE_02906	-	probable transposase
2883	 39.08	-1	3157321..3158364	-	347	196157708	-	MADE_02907	-	NeuB:Antifreeze-like protein
2884	 32.54	-2	3158802..3158927	-	41	196157709	-	MADE_02908	-	hypothetical protein
2885	 37.37	-2	3159020..3159688	-	222	196157710	-	MADE_02909	-	probable methionyl-tRNA formyltransferase
2886	 39.97	-1	3159685..3160362	-	225	196157711	-	MADE_02910	-	putative LmbE-like protein
2887	 39.66	-1	3160650..3162752	-	700	196157712	-	MADE_02911	-	Maf-1
2888	 35.69	-2	3162764..3163060	-	98	196157713	-	MADE_02912	-	hypothetical protein
2889	 38.33	-1	3163062..3163481	-	139	196157714	-	MADE_02913	-	Flagellin-specific chaperone FliS
2890	 41.53	0	3163518..3164933	-	471	196157715	-	MADE_02914	-	Flagellar capping protein
2891	 37.60	-2	3164962..3165477	-	171	196157716	-	MADE_02915	-	FlaG
2892	 44.69	0	3165551..3166510	-	319	196157717	-	MADE_02916	-	flagellin
2893	 45.21	0	3166998..3167957	-	319	196157718	-	MADE_02917	-	flagellin
2894	 40.00	-1	3168487..3169701	-	404	196157719	-	MADE_02918	-	putative flagellar synthesis; flagellar regulon; hook-associated protein
2895	 44.00	0	3169709..3171751	-	680	196157720	-	MADE_02919	-	Flagellar hook-associated protein
2896	 46.79	0	3171768..3172718	-	316	196157721	-	MADE_02920	-	putative flagellar biosynthesis
2897	 50.58	+1	3172779..3173891	-	370	196157722	-	MADE_02921	-	flagellar P-ring protein precursor
2898	 48.02	0	3173912..3174592	-	226	196157723	-	MADE_02922	-	flagellar L-ring protein FlgH
2899	 46.64	0	3174604..3175392	-	262	196157724	-	MADE_02923	-	flagellar biosynthesis; cell-distal portion of basal-body rod
2900	 46.77	0	3175439..3176182	-	247	196157725	-	MADE_02924	-	flagellar basal-body rod protein FlgF
2901	 46.03	0	3176407..3177792	-	461	196157726	-	MADE_02925	-	flagellar hook protein
2902	 44.25	0	3177807..3178493	-	228	196157727	-	MADE_02926	-	basal-body rod modification protein FlgD
2903	 47.92	0	3178525..3178908	-	127	196157728	-	MADE_02927	-	flagellar basal-body rod protein FlgC
2904	 46.44	0	3178950..3179384	-	144	196157729	-	MADE_02928	-	flagellar basal-body rod protein FlgB
2905	 45.85	0	3179581..3180411	-	276	196157730	-	MADE_02929	-	chemotaxis protein methyltransferase CheR
2906	 43.37	0	3180427..3181173	-	248	196157731	-	MADE_02930	-	chemotaxis protein
2907	 51.28	+1	3181222..3181338	+	38	196157732	-	MADE_02931	-	flagellar basal body P-ring biosynthesis protein FlgA
2908	 35.51	-2	3181450..3181587	+	45	196157733	-	MADE_02932	-	hypothetical protein
2909	 43.93	0	3181694..3182344	+	216	196157734	-	MADE_02933	-	putative flagellar basal-body P-ring formation protein FlgA
44.90	MEAN

3.40	STD DEV
