IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

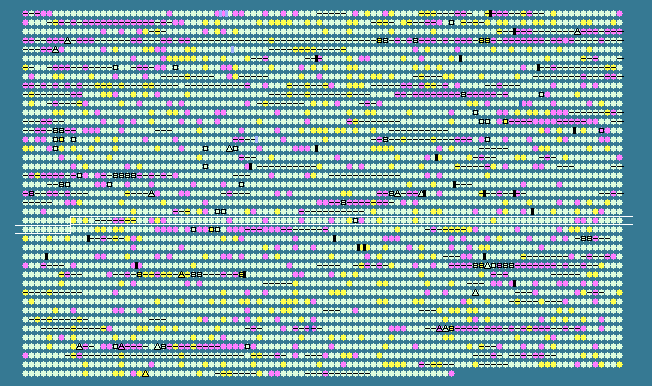

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.90 STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2309	 48.79	+1	2520172..2521374	-	400	196157134	-	MADE_02333	-	3-oxoacyl-(acyl-carrier-protein) synthase II
2310	 46.00	0	2521352..2522164	-	270	196157135	-	MADE_02334	-	fatty acid/phospholipid synthesis protein
2311	 50.88	+1	2522210..2522380	-	56	196157136	-	MADE_02335	-	50S ribosomal protein L32
2312	 45.70	0	2522384..2523046	-	220	196157137	-	MADE_02336	-	hypothetical protein
2313	 46.63	0	2523114..2523692	+	192	196157138	-	MADE_02337	-	maf protein, putative
2314	 44.82	0	2523711..2524415	-	234	196157139	-	MADE_02338	-	putative phosphoglycolate phosphatase, contains a phosphatase-like domain
2315	 47.88	0	2524423..2525364	-	313	196157140	-	MADE_02339	-	ribosomal large subunit pseudouridine synthase C (pseudouridylate synthase) (uracil hydrolyase
2316	 37.12	-2	2525419..2525550	+	43	196157141	-	MADE_02340	-	hypothetical protein
2317	 39.17	-1	2525592..2525711	+	39	196157142	-	MADE_02341	-	hypothetical protein
2318	 49.38	+1	2526167..2529562	+	1131	196157143	-	MADE_02342	-	RNase E
2319	 48.68	+1	2529695..2530789	+	364	196157144	-	MADE_02343	-	hypothetical protein
2320	 47.04	0	2530989..2531360	+	123	196157145	-	MADE_02344	-	Cryptic haloacid dehalogenase 1
2321	 47.15	0	2531412..2531867	-	151	196157146	-	MADE_02345	-	elaA protein
2322	 34.75	-2	2531869..2532009	-	46	196157147	-	MADE_02346	-	hypothetical protein
2323	 49.44	+1	2532252..2534591	+	779	196157148	-	MADE_02347	-	putative formate dehydrogenase oxidoreductase protein
2324	 39.47	-1	2534649..2534762	+	37	196157149	-	MADE_02348	-	hypothetical protein
2325	 44.97	0	2535320..2535955	-	211	196157150	-	MADE_02349	-	molybdopterin guanine dinucleotide synthase
2326	 44.94	0	2536047..2536856	-	269	196157151	-	MADE_02350	-	putative zinc metalloendopeptidase
2327	 46.56	0	2537221..2537772	-	183	196157152	-	MADE_02351	-	nucleoprotein/polynucleotide-associated enzyme
2328	 47.16	0	2537909..2540569	-	886	196157153	-	MADE_02352	-	DNA topoisomerase I
2329	 41.53	0	2540713..2540895	-	60	196157154	-	MADE_02353	-	hypothetical protein
2330	 48.17	0	2540967..2542307	+	446	196157155	-	MADE_02354	-	Succinylarginine dihydrolase
2331	 45.90	0	2542363..2544900	-	845	196157156	-	MADE_02355	-	invasin domain protein
2332	 44.47	0	2545015..2546361	+	448	196157157	-	MADE_02356	-	putative proton/glutamate symporter
2333	 44.34	0	2546537..2547763	-	408	196157158	-	MADE_02357	-	ABC transporter integral membrane subunit
2334	 47.87	0	2547750..2548478	-	242	196157159	-	MADE_02358	-	ABC transporter ATP-binding subunit
2335	 41.10	-1	2548587..2548805	+	72	196157160	-	MADE_02359	-	translation initiation factor IF-1
2336	 45.38	0	2548986..2550056	-	356	196157161	-	MADE_02360	-	ATP-dependent specificity subunit of clpA-clpP serine protease
2337	 46.24	0	2550091..2550555	-	154	196157162	-	MADE_02361	-	ATP-dependent Clp protease, ATP-binding subunit ClpA
2338	 47.52	0	2550558..2551262	-	234	196157163	-	MADE_02362	-	ATP-dependent Clp protease, ATP-binding subunit ClpA
2339	 43.30	0	2551287..2551607	-	106	196157164	-	MADE_02363	-	ATP-dependent Clp protease adaptor protein ClpS
2340	 47.03	0	2551849..2552067	+	72	196157165	-	MADE_02364	-	stress response protein CspD
2341	 39.84	-1	2552023..2552145	-	40	196157166	-	MADE_02365	-	hypothetical protein
2342	 45.77	0	2552604..2554823	-	739	196157167	-	MADE_02366	-	isocitrate dehydrogenase, NADP-dependent
2343	 45.86	0	2555335..2555877	+	180	196157168	-	MADE_02367	-	ribosomal large subunit pseudouridine synthase E
2344	 46.22	0	2556281..2557390	+	369	196157169	-	MADE_02368	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
2345	 47.85	0	2557390..2558016	+	208	196157170	-	MADE_02369	-	hypothetical protein
2346	 45.69	0	2558030..2559397	+	455	196157171	-	MADE_02370	-	adenylosuccinate lyase
2347	 41.33	-1	2559388..2559537	-	49	196157172	-	MADE_02371	-	hypothetical protein
2348	 44.65	0	2559539..2560192	+	217	196157173	-	MADE_02372	-	adenylate/guanylate cyclase
2349	 47.64	0	2560365..2561531	+	388	196157174	-	MADE_02373	-	putative enzyme with RmlC-like domain
2350	 46.41	0	2561541..2561999	+	152	196157175	-	MADE_02374	-	putative Glr3403 protein
2351	 44.36	0	2562016..2562432	-	138	196157176	-	MADE_02375	-	hypothetical protein
2352	 40.43	-1	2562453..2562593	-	46	196157177	-	MADE_02376	-	hypothetical protein
2353	 46.76	0	2562751..2562966	+	71	196157178	-	MADE_02377	-	integral membrane protein TerC
2354	 48.13	0	2563331..2563837	+	168	196157179	-	MADE_02378	-	Ferredoxin/oxidoreductase
2355	 49.16	+1	2563834..2566095	+	753	196157180	-	MADE_02379	-	Twin-arginine translocation pathway signal
2356	 43.35	0	2566458..2567495	-	345	196157181	-	MADE_02380	-	ISCps1, transposase
2357	 40.67	-1	2568041..2568190	-	49	196157182	-	MADE_02381	-	hypothetical protein
2358	 47.24	0	2568516..2570888	-	790	196157183	-	MADE_02382	-	phosphoenolpyruvate synthase
2359	 42.31	0	2571161..2571973	+	270	196157184	-	MADE_02383	-	hypothetical protein
2360	 48.83	+1	2572048..2572260	-	70	196157185	-	MADE_02384	-	hypothetical protein
2361	 45.79	0	2572530..2574488	-	652	196157186	-	MADE_02385	-	TPR domain protein
2362	 46.49	0	2574653..2577313	-	886	196157187	-	MADE_02386	-	TonB-dependent receptor
2363	 46.16	0	2577380..2578876	-	498	196157188	-	MADE_02387	-	hypothetical protein
2364	 47.08	0	2578951..2579670	-	239	196157189	-	MADE_02388	-	DNA polymerase III, epsilon subunit
2365	 48.20	0	2579768..2580238	+	156	196157190	-	MADE_02389	-	ribonuclease HI
2366	 48.47	+1	2580314..2581291	-	325	196157191	-	MADE_02390	-	oxidoreductase, zinc-binding dehydrogenase family protein
2367	 46.65	0	2581443..2582636	+	397	196157192	-	MADE_02391	-	putative methyltransferase with S-adenosyl-L-methionine-dependent methyltransferase activity and a PUA domain
2368	 44.84	0	2582735..2582986	-	83	196157193	-	MADE_02392	-	membrane protein-like protein
2369	 45.27	0	2583257..2583457	-	66	196157194	-	MADE_02393	-	membrane protein-like protein
2370	 47.23	0	2583781..2587737	-	1318	196157195	-	MADE_02394	-	helicase, ATP-dependent
2371	 47.80	0	2587910..2589181	-	423	196157196	-	MADE_02395	-	NA+/H+ antiporter NHAC
2372	 44.49	0	2589531..2590883	-	450	196157197	-	MADE_02396	-	transcriptional regulator, AraC family protein
2373	 44.85	0	2590932..2591843	-	303	196157198	-	MADE_02397	-	GGDEF domain protein
2374	 45.82	0	2592285..2594990	+	901	196157199	-	MADE_02398	-	putative tonB-dependent receptor
2375	 47.50	0	2595014..2595133	-	39	196157200	-	MADE_02399	-	hypothetical protein
2376	 48.23	0	2595132..2596178	+	348	196157201	-	MADE_02400	-	putative acid phosphatase
2377	 43.84	0	2596193..2598409	+	738	196157202	-	MADE_02401	-	putative phytase domain protein
2378	 47.20	0	2598487..2598933	-	148	196157203	-	MADE_02402	-	CBS domain protein
2379	 49.14	+1	2599071..2600114	-	347	196157204	-	MADE_02403	-	Asparaginase family protein
2380	 44.54	0	2600234..2603944	-	1236	196157205	-	MADE_02404	-	putative sensor protein
2381	 46.07	0	2604172..2605608	+	478	196157206	-	MADE_02405	-	exodeoxyribonuclease I
2382	 47.16	0	2605735..2607390	+	551	196157207	-	MADE_02406	-	hypothetical protein
2383	 43.58	0	2607589..2609100	-	503	196157208	-	MADE_02407	-	GGDEF domain protein
2384	 47.17	0	2609125..2610360	-	411	196157209	-	MADE_02408	-	Kynureninase
2385	 46.14	0	2610353..2611492	-	379	196157210	-	MADE_02409	-	putative lipase/esterase
2386	 47.16	0	2611586..2612836	-	416	196157211	-	MADE_02410	-	acetyl-CoA acetyltransferase with thiolase domain
2387	 42.76	0	2613059..2613514	+	151	196157212	-	MADE_02411	-	Transcriptional regulator, MerR family protein
2388	 46.92	0	2613511..2614680	+	389	196157213	-	MADE_02412	-	isovaleryl-CoA dehydrogenase
2389	 48.07	0	2614888..2616495	+	535	196157214	-	MADE_02413	-	methylcrotonyl CoA carboxylase, beta subunit
2390	 45.32	0	2616507..2617307	+	266	196157215	-	MADE_02414	-	Enoyl-CoA hydratase/isomerase
2391	 45.63	0	2617297..2619297	+	666	196157216	-	MADE_02415	-	methylcrotonyl-CoA carboxylase, alpha subunit
2392	 44.59	0	2619302..2620198	+	298	196157217	-	MADE_02416	-	hydroxymethylglutaryl-CoA lyase
2393	 36.88	-2	2620361..2620501	-	46	196157218	-	MADE_02417	-	hypothetical protein
2394	 40.63	-1	2620585..2621571	+	328	196157219	-	MADE_02418	-	hypothetical protein
2395	 43.90	0	2621579..2622733	-	384	196157220	-	MADE_02419	-	permease of the major facilitator superfamily
2396	 40.64	-1	2622810..2623343	-	177	196157221	-	MADE_02420	-	hypothetical protein
2397	 46.60	0	2623937..2625232	+	431	196157222	-	MADE_02421	-	glucose-1-phosphate adenylyltransferase
2398	 46.02	0	2625269..2626072	-	267	196157223	-	MADE_02422	-	acyltransferase 3
2399	 47.32	0	2626145..2627467	-	440	196157224	-	MADE_02423	-	major facilitator family transporter
2400	 46.08	0	2627638..2628453	+	271	196157225	-	MADE_02424	-	putative acyl-CoA thioesterase, TesB family protein
2401	 45.51	0	2628490..2629335	-	281	196157226	-	MADE_02425	-	putative signal transduction protein
2402	 46.31	0	2629834..2631105	+	423	196157227	-	MADE_02426	-	putative glycosyltransferase
2403	 46.31	0	2631142..2631534	-	130	196157228	-	MADE_02427	-	putative selenocysteine lyase
2404	 44.19	0	2631549..2631944	-	131	196157229	-	MADE_02428	-	hypothetical protein
2405	 41.73	0	2632115..2632900	+	261	196157230	-	MADE_02429	-	hypothetical protein
2406	 45.19	0	2633062..2633871	+	269	196157231	-	MADE_02430	-	exodeoxyribonuclease III
2407	 43.63	0	2633939..2634550	+	203	196157232	-	MADE_02431	-	hypothetical protein
2408	 47.87	0	2634640..2635815	+	391	196157233	-	MADE_02432	-	hypothetical protein
44.90	MEAN

3.40	STD DEV
