IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

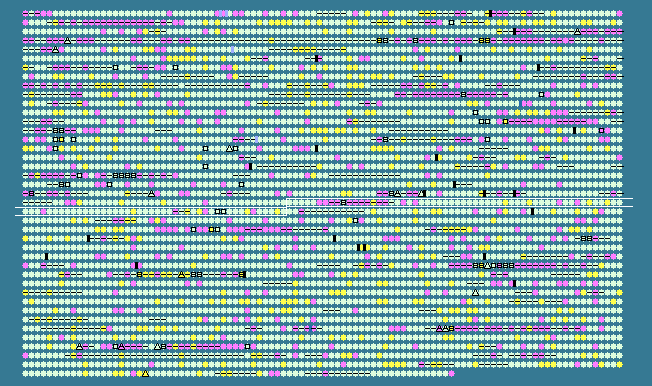

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.90 STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2145	 45.98	0	2331619..2332488	-	289	196156970	-	MADE_02165	-	isoquinoline 1-oxidoreductase maturation factor
2146	 45.77	0	2332508..2333689	-	393	196156971	-	MADE_02166	-	hypothetical protein
2147	 44.56	0	2333689..2334525	-	278	196156972	-	MADE_02167	-	ATPase associated with various cellular activities, AAA_5
2148	 47.83	0	2334796..2335761	+	321	196156973	-	MADE_02168	-	cysteine synthase A
2149	 42.70	0	2336005..2336463	+	152	196156974	-	MADE_02169	-	putative lipoprotein
2150	 35.52	-2	2336703..2336885	+	60	196156975	-	MADE_02170	-	hypothetical protein
2151	 39.58	-1	2338808..2338951	+	47	196156976	-	MADE_02173	-	hypothetical protein
2152	 39.93	-1	2339106..2339954	+	282	196156977	-	MADE_02174	-	hypothetical protein
2153	 40.85	-1	2340519..2340944	+	141	196156978	-	MADE_02175	-	hypothetical protein
2154	 42.87	0	2341608..2342645	-	345	196156979	-	MADE_02176	-	ISCps1, transposase
2155	 41.38	-1	2342855..2343202	+	115	196156980	-	MADE_02177	-	hypothetical protein
2156	 34.75	-2	2343306..2343587	-	93	196156981	-	MADE_02178	-	plasmid stabilization system protein
2157	 40.35	-1	2343584..2343868	-	94	196156982	-	MADE_02179	-	RelB protein
2158	 38.51	-1	2344093..2344440	+	115	196156983	-	MADE_02180	-	RelE-like Cytotoxic translational repressor of toxin-antitoxin stability system
2159	 53.66	+2	2344667..2344789	-	40	196156984	-	MADE_02181	-	hypothetical protein
2160	 39.52	-1	2344828..2345037	-	69	196156985	-	MADE_02182	-	hypothetical protein
2161	 38.69	-1	2345111..2345278	-	55	196156986	-	MADE_02183	-	hypothetical protein
2162	 42.25	0	2346529..2346786	+	85	196156987	-	MADE_02186	-	Antitoxin of toxin-antitoxin stability system
2163	 43.18	0	2346813..2347076	+	87	196156988	-	MADE_02187	-	toxin of toxin-antitoxin stability system
2164	 41.32	-1	2347173..2347610	+	145	196156989	-	MADE_02188	-	hypothetical protein
2165	 42.92	0	2347759..2347998	+	79	196156990	-	MADE_02189	-	hypothetical protein
2166	 39.84	-1	2348041..2348163	+	40	196156991	-	MADE_02190	-	putative lipoprotein
2167	 43.18	0	2348353..2349144	+	263	196156992	-	MADE_02191	-	phenazine biosynthesis protein, PhzF family
2168	 46.76	0	2349303..2351045	-	580	196156993	-	MADE_02192	-	gamma-glutamyltranspeptidase
2169	 44.44	0	2351075..2351839	-	254	196156994	-	MADE_02193	-	enoyl-CoA hydratase
2170	 44.10	0	2351953..2352537	+	194	196156995	-	MADE_02194	-	membrane protein, Rhomboid family
2171	 46.27	0	2352724..2355219	-	831	196156996	-	MADE_02195	-	Dipeptidyl peptidase IV
2172	 41.98	0	2355391..2355945	+	184	196156997	-	MADE_02196	-	Glutathione peroxidase
2173	 42.88	0	2357004..2358626	+	540	196156998	-	MADE_02197	-	response regulator receiver protein
2174	 42.77	0	2358672..2359190	-	172	196156999	-	MADE_02198	-	GCN5-related N-acetyltransferase
2175	 45.54	0	2359330..2360214	-	294	196157000	-	MADE_02199	-	molybdenum cofactor biosynthesis protein A
2176	 46.25	0	2360755..2362488	+	577	196157001	-	MADE_02200	-	ABC transporter, ATP-binding protein
2177	 42.13	0	2362505..2362720	+	71	196157002	-	MADE_02201	-	hypothetical protein
2178	 43.21	0	2362788..2363111	+	107	196157003	-	MADE_02202	-	hypothetical protein
2179	 48.21	0	2363235..2364578	-	447	196157004	-	MADE_02203	-	3-deoxy-D-arabino-heptulosonate 7-phosphate (DAHP) synthase
2180	 45.51	0	2364750..2365685	-	311	196157005	-	MADE_02204	-	vitamin B12-transporter ATPase
2181	 48.77	+1	2365690..2366661	-	323	196157006	-	MADE_02205	-	putative hemin transport system permease transmembrane protein
2182	 44.51	0	2366677..2367150	-	157	196157007	-	MADE_02206	-	phosphotyrosine protein phosphatase
2183	 47.38	0	2367262..2367966	+	234	196157008	-	MADE_02207	-	peptidase E
2184	 47.29	0	2367937..2368638	-	233	196157009	-	MADE_02208	-	cobyrinic acid a,c-diamide synthase:dethiobiotin synthase
2185	 48.57	+1	2368635..2369612	-	325	196157010	-	MADE_02209	-	Biotin biosynthesis protein BioC
2186	 48.18	0	2369612..2371012	-	466	196157011	-	MADE_02210	-	8-amino-7-oxononanoate synthase
2187	 46.67	0	2371012..2372136	-	374	196157012	-	MADE_02211	-	Biotin synthase
2188	 47.56	0	2372208..2373500	+	430	196157013	-	MADE_02212	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
2189	 42.53	0	2373619..2374140	+	173	196157014	-	MADE_02213	-	hypothetical protein
2190	 38.30	-1	2374511..2374792	+	93	196157015	-	MADE_02214	-	hypothetical protein
2191	 45.81	0	2374836..2376125	-	429	196157016	-	MADE_02215	-	CN5-related N-acetyltransferase
2192	 44.42	0	2376122..2377609	-	495	196157017	-	MADE_02216	-	glutathione synthase
2193	 41.37	-1	2377861..2378109	+	82	196157018	-	MADE_02217	-	putative sodium/calcium exchange protein
2194	 46.62	0	2378410..2379816	+	468	196157019	-	MADE_02218	-	putative amino acid permease
2195	 49.32	+1	2379943..2380599	-	218	196157020	-	MADE_02219	-	predicted transcription negative regulator
2196	 46.09	0	2380650..2381276	-	208	196157021	-	MADE_02220	-	hypothetical protein
2197	 43.92	0	2381406..2381915	+	169	196157022	-	MADE_02221	-	Thioesterase superfamily protein
2198	 48.59	+1	2382083..2384644	-	853	196157023	-	MADE_02222	-	putative TonB-dependent receptor
2199	 42.69	0	2385229..2385399	-	56	196157024	-	MADE_02223	-	hypothetical protein
2200	 43.17	0	2385589..2385771	+	60	196157025	-	MADE_02224	-	hypothetical protein
2201	 44.75	0	2385843..2386394	-	183	196157026	-	MADE_02225	-	putative alkylhydroperoxidase AhpD family core domain protein MED92
2202	 43.49	0	2386547..2387137	+	196	196157027	-	MADE_02226	-	transcriptional regulator, TetR family protein
2203	 43.06	0	2387216..2387698	-	160	196157028	-	MADE_02227	-	hypothetical protein
2204	 40.68	-1	2387784..2387960	-	58	196157029	-	MADE_02228	-	putative orphan protein
2205	 47.75	0	2387960..2389159	-	399	196157030	-	MADE_02229	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
2206	 48.33	+1	2389478..2390911	+	477	196157031	-	MADE_02230	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
2207	 48.34	+1	2390949..2392061	+	370	196157032	-	MADE_02231	-	putative ATP-binding protein in pho regulon
2208	 43.61	0	2392058..2392534	+	158	196157033	-	MADE_02232	-	hypothetical protein
2209	 43.47	0	2392650..2393507	+	285	196157034	-	MADE_02233	-	Mg/Co transporter
2210	 47.66	0	2393612..2395126	+	504	196157035	-	MADE_02234	-	apolipoprotein N-acyltransferase
2211	 42.77	0	2395279..2395596	+	105	196157036	-	MADE_02235	-	plasmid stabilization system
2212	 42.97	0	2395590..2395838	-	82	196157037	-	MADE_02236	-	Antitoxin of toxin-antitoxin system Phd
2213	 47.76	0	2396030..2398108	-	692	196157038	-	MADE_02237	-	phosphate acetyltransferase
2214	 46.53	0	2398213..2399394	-	393	196157039	-	MADE_02238	-	acetate/propionate kinase
2215	 42.32	0	2399803..2400258	+	151	196157040	-	MADE_02239	-	small heat shock protein
2216	 45.04	0	2400368..2400760	-	130	196157041	-	MADE_02240	-	hypothetical protein
2217	 45.74	0	2400846..2401385	-	179	196157042	-	MADE_02241	-	hypothetical protein
2218	 43.72	0	2401647..2402108	-	153	196157043	-	MADE_02242	-	Transcription elongation factor GreA
2219	 49.04	+1	2402241..2405462	-	1073	196157044	-	MADE_02243	-	carbamoyl-phosphate synthase large subunit
2220	 45.50	0	2405476..2406798	-	440	196157045	-	MADE_02244	-	carbamoyl-phosphate synthase small subunit
2221	 47.01	0	2406959..2407762	-	267	196157046	-	MADE_02245	-	dihydrodipicolinate reductase
2222	 45.26	0	2408172..2408867	+	231	196157047	-	MADE_02246	-	cytochrome b561 family protein
2223	 43.45	0	2408908..2409075	+	55	196157048	-	MADE_02247	-	hypothetical protein
2224	 47.72	0	2409116..2411026	-	636	196157049	-	MADE_02248	-	Propionyl CoA synthase
2225	 42.26	0	2411169..2413745	-	858	196157050	-	MADE_02249	-	sensory box/GGDEF/EAL domain protein
2226	 37.72	-2	2414083..2414196	+	37	196157051	-	MADE_02250	-	hypothetical protein
2227	 46.00	0	2414193..2414705	-	170	196157052	-	MADE_02251	-	cytochrome c
2228	 49.49	+1	2415134..2416303	-	389	196157053	-	MADE_02252	-	Chaperone protein dnaJ
2229	 45.78	0	2416498..2418426	-	642	196157054	-	MADE_02253	-	Chaperone protein dnaK
2230	 48.74	+1	2418544..2419179	-	211	196157055	-	MADE_02254	-	heat shock protein GrpE
2231	 40.35	-1	2419170..2419283	-	37	196157056	-	MADE_02255	-	hypothetical protein
2232	 45.75	0	2419428..2422448	+	1006	196157057	-	MADE_02256	-	Multidomain protein, contains Na+/proline symporter PutP-like domain, sensory histidine kinase and receiver domain
2233	 47.95	0	2422445..2423272	-	275	196157058	-	MADE_02257	-	putative transposase
2234	 45.73	0	2423485..2423976	-	163	196157059	-	MADE_02258	-	transposase IS3/IS911 family protein
2235	 44.35	0	2424061..2424432	+	123	196157060	-	MADE_02259	-	two-component sensor histidine kinase
2236	 43.65	0	2424473..2425141	-	222	196157061	-	MADE_02260	-	Response regulator, LuxR family (CheY, HTH domains)
2237	 47.20	0	2425342..2427720	-	792	196157062	-	MADE_02261	-	putative TonB-dependent receptor
2238	 48.87	+1	2428044..2429330	+	428	196157063	-	MADE_02262	-	GntP family permease
2239	 34.21	-2	2429317..2429430	-	37	196157064	-	MADE_02263	-	hypothetical protein
2240	 45.82	0	2429395..2430828	+	477	196157065	-	MADE_02264	-	homoserine O-acetyltransferase
2241	 47.18	0	2430825..2431886	+	353	196157066	-	MADE_02265	-	poly (3-hydroxybutyrate) depolymerase
2242	 47.53	0	2431879..2432646	+	255	196157067	-	MADE_02266	-	putative 3-hydroxybutyrate dehydrogenase
2243	 49.10	+1	2432767..2433927	-	386	196157068	-	MADE_02267	-	alcohol dehydrogenase, iron-containing
2244	 45.32	0	2434264..2435139	+	291	196157069	-	MADE_02268	-	NAD kinase
44.90	MEAN

3.40	STD DEV
