IslandPathversion 1.0

IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

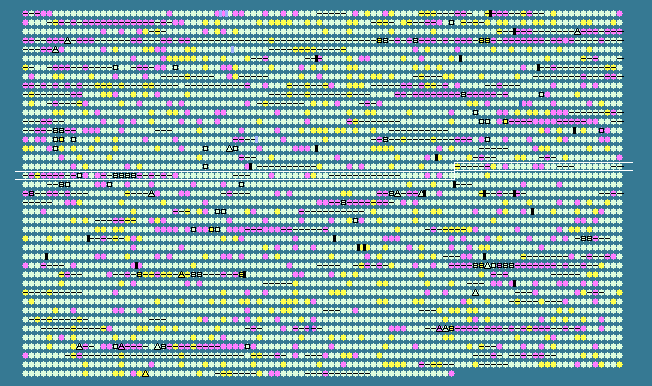

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.90 STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1773	 49.00	+1	1928201..1929355	+	384	196156598	-	MADE_01789	-	putative ABC-type transport system, periplasmic component
1774	 46.51	0	1929355..1931100	+	581	196156599	-	MADE_01790	-	putative ABC-type transport system, permease component
1775	 48.20	0	1931090..1931728	+	212	196156600	-	MADE_01791	-	putative ABC transporter ATP-binding protein
1776	 46.12	0	1931722..1932378	+	218	196156601	-	MADE_01792	-	putative CDP-alcohol phosphatidyltransferase
1777	 46.49	0	1932572..1933369	+	265	196156602	-	MADE_01793	-	putative C-5 sterol desaturase
1778	 37.63	-2	1933343..1933435	-	30	196156603	-	MADE_01794	-	hypothetical protein
1779	 48.81	+1	1933437..1933604	-	55	196156604	-	MADE_01795	-	endonuclease
1780	 46.18	0	1933730..1934305	-	191	196156605	-	MADE_01796	-	Exopolysaccharide synthesis, ExoD
1781	 40.92	-1	1934405..1934773	+	122	196156606	-	MADE_01797	-	hypothetical protein
1782	 46.24	0	1934790..1935161	+	123	196156607	-	MADE_01798	-	response regulator
1783	 46.38	0	1935403..1936161	+	252	196156608	-	MADE_01799	-	hypothetical protein
1784	 44.13	0	1936225..1937067	+	280	196156609	-	MADE_01800	-	hypothetical protein
1785	 45.75	0	1937147..1937605	-	152	196156610	-	MADE_01801	-	hypothetical protein
1786	 41.36	-1	1937762..1937923	+	53	196156611	-	MADE_01802	-	hypothetical transcriptional regulator, LysR family protein
1787	 41.29	-1	1937920..1938447	+	175	196156612	-	MADE_01803	-	transcriptional regulator, LysR family protein
1788	 43.69	0	1938596..1939927	+	443	196156613	-	MADE_01804	-	hypothetical protein
1789	 45.31	0	1940014..1941324	-	436	196156614	-	MADE_01805	-	hypothetical protein
1790	 47.40	0	1941321..1942763	-	480	196156615	-	MADE_01806	-	Delta 1-pyrroline-5-carboxylate reductase
1791	 46.47	0	1942760..1943482	-	240	196156616	-	MADE_01807	-	ABC transporter, ATP-binding protein
1792	 46.84	0	1944449..1945618	+	389	196156617	-	MADE_01808	-	oxidoreductase, FMN-binding protein
1793	 44.79	0	1945721..1946200	-	159	196156618	-	MADE_01809	-	SsrA-binding protein
1794	 43.99	0	1946337..1946777	+	146	196156619	-	MADE_01810	-	cyclase/dehydrase
1795	 46.84	0	1946774..1947121	+	115	196156620	-	MADE_01811	-	hypothetical protein
1796	 47.59	0	1947194..1947670	-	158	196156621	-	MADE_01812	-	transcriptional regulator, MarR family protein
1797	 43.99	0	1947703..1949673	-	656	196156622	-	MADE_01813	-	Choline-glycine betaine transporter
1798	 44.73	0	1950254..1951201	+	315	196156623	-	MADE_01814	-	MscS Mechanosensitive ion channel
1799	 47.03	0	1951248..1951802	-	184	196156624	-	MADE_01815	-	restriction endonuclease
1800	 46.90	0	1952296..1953231	+	311	196156625	-	MADE_01816	-	polyribonucleotide nucleotidyltransferase
1801	 44.63	0	1953245..1954306	+	353	196156626	-	MADE_01817	-	Polynucleotide phosphorylase
1802	 36.84	-2	1954329..1954442	-	37	196156627	-	MADE_01818	-	hypothetical protein
1803	 48.64	+1	1954482..1954775	+	97	196156628	-	MADE_01819	-	Deoxycytidine triphosphate deaminase
1804	 33.33	-2	1955176..1955313	-	45	196156629	-	MADE_01820	-	hypothetical protein
1805	 39.57	-1	1955545..1956762	+	405	196156630	-	MADE_01821	-	hypothetical protein
1806	 36.92	-2	1957196..1957390	+	64	196156631	-	MADE_01822	-	hypothetical protein
1807	 40.80	-1	1957471..1958073	+	200	196156632	-	MADE_01823	-	Methyltransferase type 11
1808	 42.03	0	1958205..1958411	+	68	196156633	-	MADE_01824	-	hypothetical protein
1809	 37.09	-2	1958565..1959230	+	221	196156634	-	MADE_01825	-	hypothetical protein
1810	 42.87	0	1959488..1960525	-	345	196156635	-	MADE_01826	-	ISCps1, transposase
1811	 39.90	-1	1960688..1961068	+	126	196156636	-	MADE_01827	-	hypothetical protein
1812	 44.32	0	1961195..1962295	+	366	196156637	-	MADE_01828	-	beta-lactamase precursor
1813	 41.21	-1	1962323..1962703	+	126	196156638	-	MADE_01829	-	Glyoxalase/dioxygenase superfamily protein
1814	 38.62	-1	1963622..1963867	-	81	196156639	-	MADE_01830	-	CcdA protein
1815	 43.50	0	1964009..1964824	-	271	196156640	-	MADE_01831	-	hypothetical protein
1816	 45.73	0	1964989..1965480	+	163	196156641	-	MADE_01832	-	transposase IS3/IS911 family protein
1817	 47.95	0	1965693..1966520	+	275	196156642	-	MADE_01833	-	putative transposase
1818	 45.73	0	1966868..1967359	+	163	196156643	-	MADE_01834	-	transposase IS3/IS911 family protein
1819	 47.95	0	1967572..1968399	+	275	196156644	-	MADE_01835	-	putative transposase
1820	 35.16	-2	1968436..1968654	+	72	196156645	-	MADE_01836	-	hypothetical protein
1821	 42.19	0	1968709..1969092	+	127	196156646	-	MADE_01837	-	hypothetical protein
1822	 38.10	-1	1969195..1969425	+	76	196156647	-	MADE_01838	-	hypothetical protein
1823	 42.46	0	1969440..1969691	+	83	196156648	-	MADE_01839	-	hypothetical protein
1824	 39.85	-1	1969737..1970273	+	178	196156649	-	MADE_01840	-	hypothetical protein
1825	 44.20	0	1970364..1970639	+	91	196156650	-	MADE_01841	-	hypothetical protein
1826	 35.90	-2	1970736..1970852	+	38	196156651	-	MADE_01842	-	hypothetical protein
1827	 45.83	0	1971008..1971319	+	103	196156652	-	MADE_01843	-	hypothetical protein
1828	 45.78	0	1971449..1971922	-	157	196156653	-	MADE_01844	-	Cytidine deaminase
1829	 46.67	0	1972085..1972894	+	269	196156654	-	MADE_01845	-	TPR domain protein
1830	 47.61	0	1972907..1974496	+	529	196156655	-	MADE_01846	-	hypothetical protein
1831	 44.17	0	1974583..1975320	-	245	196156656	-	MADE_01847	-	putative sulfate transport protein CysZ
1832	 45.93	0	1975551..1979138	+	1195	196156657	-	MADE_01848	-	Chromosome segregation ATPase, sms
1833	 47.40	0	1979159..1980757	+	532	196156658	-	MADE_01849	-	putative cell division protein ZipA
1834	 45.54	0	1981002..1981517	+	171	196156659	-	MADE_01850	-	NAD-dependent DNA ligase
1835	 47.30	0	1981484..1983037	+	517	196156660	-	MADE_01851	-	DNA ligase, NAD-dependent
1836	 44.38	0	1983207..1983731	-	174	196156661	-	MADE_01852	-	flagellar biosynthesis protein FlhF
1837	 44.96	0	1983822..1983950	-	42	196156662	-	MADE_01853	-	hypothetical protein
1838	 45.93	0	1983940..1986543	+	867	196156663	-	MADE_01854	-	DNA internalization-related competence protein ComEC/Rec2
1839	 44.42	0	1986796..1988004	+	402	196156664	-	MADE_01855	-	ABC-type multidrug transport system, ATPase and permease component
1840	 46.15	0	1987992..1988381	+	129	196156665	-	MADE_01856	-	transport ATP-binding protein MsbA
1841	 45.71	0	1988378..1989427	+	349	196156666	-	MADE_01857	-	tetraacyldisaccharide 4-kinase
1842	 40.51	-1	1989417..1989611	+	64	196156667	-	MADE_01858	-	hypothetical protein
1843	 46.18	0	1989665..1990411	+	248	196156668	-	MADE_01859	-	3-deoxy-manno-octulosonate cytidylyltransferase
1844	 46.52	0	1990559..1991218	+	219	196156669	-	MADE_01860	-	Short chain dehydrogenase family protein
1845	 46.43	0	1991366..1992823	-	485	196156670	-	MADE_01861	-	MiaB-like tRNA modifying enzyme YliG
1846	 43.31	0	1993213..1993683	+	156	196156671	-	MADE_01862	-	hypothetical protein
1847	 41.79	0	1993721..1994134	-	137	196156672	-	MADE_01863	-	hypothetical protein
1848	 41.23	-1	1994223..1994336	+	37	196156673	-	MADE_01864	-	hypothetical protein
1849	 48.52	+1	1994352..1995128	-	258	196156674	-	MADE_01865	-	HesA/MoeB/ThiF family protein
1850	 44.34	0	1995347..1996309	+	320	196156675	-	MADE_01866	-	predicted glutathione S-transferase
1851	 44.79	0	1996346..1997209	+	287	196156676	-	MADE_01867	-	Pirin-like protein
1852	 45.11	0	1997539..1998999	+	486	196156677	-	MADE_01868	-	phosphomannomutase
1853	 42.08	0	1999200..1999622	-	140	196156678	-	MADE_01869	-	hypothetical protein
1854	 47.10	0	1999710..2000987	-	425	196156679	-	MADE_01870	-	Citrate synthase
1855	 46.24	0	2001788..2002066	+	92	196156680	-	MADE_01871	-	putative succinate dehydrogenase, hydrophobic subunit, cytochrome b556 with sdhD
1856	 45.40	0	2002060..2002407	+	115	196156681	-	MADE_01872	-	putative succinate dehydrogenase, hydrophobic subunit, cytochrome b556 with sdhC
1857	 47.77	0	2002409..2004181	+	590	196156682	-	MADE_01873	-	succinate dehydrogenase catalytic subunit(fumarrate reductase)
1858	 45.85	0	2004196..2004906	+	236	196156683	-	MADE_01874	-	succinate dehydrogenase catalytic subunit
1859	 47.30	0	2005081..2007900	+	939	196156684	-	MADE_01875	-	2-oxoglutarate decarboxylase
1860	 46.23	0	2007910..2009421	+	503	196156685	-	MADE_01876	-	dihydrolipoyltranssuccinate transferase, component of the 2-oxoglutarate dehydrogenase complex
1861	 47.04	0	2009574..2010740	+	388	196156686	-	MADE_01877	-	succinyl-CoA synthetase subunit beta
1862	 46.16	0	2010740..2011612	+	290	196156687	-	MADE_01878	-	Succinyl-CoA synthetase, alpha subunit
1863	 45.83	0	2011941..2014757	+	938	196156688	-	MADE_01879	-	TonB-dependent receptor
1864	 43.98	0	2014886..2016406	+	506	196156689	-	MADE_01880	-	putative tryptophan halogenase
1865	 46.38	0	2016697..2019747	+	1016	196156690	-	MADE_01881	-	TonB-dependent receptor
1866	 47.21	0	2019744..2024162	+	1472	196156691	-	MADE_01882	-	putative pullulanase
1867	 45.25	0	2024338..2025201	+	287	196156692	-	MADE_01883	-	hypothetical protein
1868	 37.40	-2	2025700..2025822	+	40	196156693	-	MADE_01884	-	hypothetical protein
1869	 42.08	0	2025844..2026392	+	182	196156694	-	MADE_01885	-	putative cold-shock RNA methyltransferase
1870	 41.25	-1	2026486..2027382	+	298	196156695	-	MADE_01886	-	Uvs051
1871	 46.17	0	2027565..2029457	+	630	196156696	-	MADE_01887	-	putative glycosidase
1872	 44.03	0	2029653..2031587	+	644	196156697	-	MADE_01888	-	putative alpha-amylase
44.90	MEAN

3.40	STD DEV
