IslandPathversion 1.0

IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

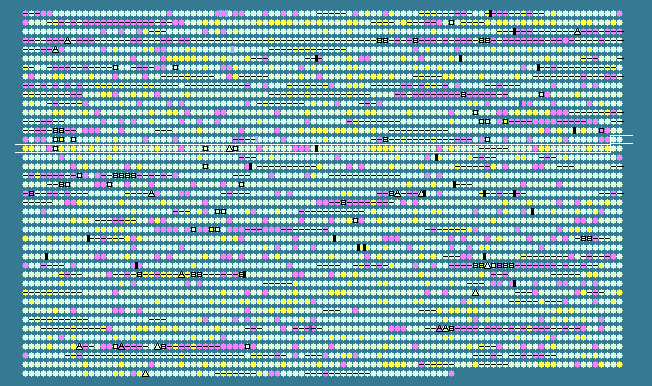

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.90 STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1499	 46.08	0	1617084..1618817	+	577	196156324	-	MADE_01510	-	D-lactate dehydrogenase
1500	 47.37	0	1619005..1621035	+	676	196156325	-	MADE_01511	-	putative high-affinity choline transport protein
1501	 49.43	+1	1621174..1622049	-	291	196156326	-	MADE_01512	-	3-hydroxyisobutyrate dehydrogenase
1502	 49.40	+1	1622064..1623563	-	499	196156327	-	MADE_01513	-	methylmalonate-semialdehyde dehydrogenase, putative
1503	 42.99	0	1623677..1624546	+	289	196156328	-	MADE_01514	-	transcriptional regulatory protein
1504	 44.05	0	1624607..1625950	+	447	196156329	-	MADE_01515	-	sensor histidine kinase
1505	 40.33	-1	1625947..1626246	+	99	196156330	-	MADE_01516	-	DNA-binding response regulator, LuxR family protein
1506	 46.58	0	1626277..1627197	+	306	196156331	-	MADE_01517	-	transposase
1507	 49.06	+1	1629358..1630476	+	372	196156332	-	MADE_01521	-	S-adenosyl-L-homocysteine hydrolase
1508	 47.10	0	1630617..1631822	+	401	196156333	-	MADE_01522	-	putative metal-dependent dipeptidase
1509	 48.42	+1	1631849..1633552	-	567	196156334	-	MADE_01523	-	hypothetical protein
1510	 45.76	0	1633868..1635235	+	455	196156335	-	MADE_01524	-	Beta-lactamase-like:RNA-metabolising metallo-beta-lactamase
1511	 47.85	0	1635264..1635821	-	185	196156336	-	MADE_01525	-	lipoprotein
1512	 48.57	+1	1636100..1638895	+	931	196156337	-	MADE_01526	-	glycosyl hydrolase, BNR repeat-containing protein
1513	 45.40	0	1638879..1639226	+	115	196156338	-	MADE_01527	-	hypothetical protein
1514	 45.68	0	1639378..1641540	-	720	196156339	-	MADE_01528	-	TonB-dependent receptor
1515	 46.88	0	1641827..1643701	+	624	196156340	-	MADE_01529	-	putative orphan protein
1516	 50.93	+1	1643775..1644257	+	160	196156341	-	MADE_01530	-	hypothetical protein
1517	 44.44	0	1644276..1645139	-	287	196156342	-	MADE_01531	-	putative MadN protein
1518	 46.90	0	1645211..1646080	-	289	196156343	-	MADE_01532	-	glycerol uptake facilitator protein GlpF
1519	 41.67	0	1646440..1646571	-	43	196156344	-	MADE_01533	-	hypothetical protein
1520	 47.79	0	1646806..1648749	+	647	196156345	-	MADE_01534	-	Outer membrane receptor for ferrienterochelin and colicins
1521	 46.19	0	1648990..1650132	+	380	196156346	-	MADE_01535	-	hypothetical protein
1522	 47.65	0	1650135..1651091	+	318	196156347	-	MADE_01536	-	ABC-type hemin transport system, periplasmic component
1523	 49.78	+1	1651091..1652227	+	378	196156348	-	MADE_01537	-	ABC-type hemin transport system, pemease component
1524	 45.25	0	1652233..1653063	+	276	196156349	-	MADE_01538	-	ABC-type hemin transport system, ATPase component
1525	 45.22	0	1653101..1653832	+	243	196156350	-	MADE_01539	-	uncharacterized metal-binding protein
1526	 44.11	0	1653807..1654103	-	98	196156351	-	MADE_01540	-	hypothetical protein
1527	 38.44	-1	1654111..1654404	+	97	196156352	-	MADE_01541	-	Stress responsive alpha-beta barrel
1528	 42.33	0	1654478..1655188	+	236	196156353	-	MADE_01542	-	hypothetical protein
1529	 43.81	0	1655282..1655701	+	139	196156354	-	MADE_01543	-	probable RTX (repeat in structural toxin)
1530	 44.18	0	1655807..1656313	+	168	196156355	-	MADE_01544	-	hypothetical protein
1531	 44.80	0	1656384..1657421	+	345	196156356	-	MADE_01545	-	ISCps1, transposase
1532	 44.24	0	1657605..1659548	+	647	196156357	-	MADE_01546	-	hypothetical protein
1533	 44.61	0	1662355..1663347	+	330	196156358	-	MADE_01549	-	cytochrome-c peroxidase
1534	 46.23	0	1663599..1665413	+	604	196156359	-	MADE_01550	-	hypothetical protein
1535	 47.46	0	1665410..1666237	-	275	196156360	-	MADE_01551	-	integrase
1536	 44.90	0	1666285..1666578	-	97	196156361	-	MADE_01552	-	transposase, IS911
1537	 41.57	0	1666723..1667220	+	165	196156362	-	MADE_01553	-	hypothetical protein
1538	 45.25	0	1667486..1669357	+	623	196156363	-	MADE_01554	-	1,4-alpha-glucan branching enzyme
1539	 43.21	0	1669535..1670425	-	296	196156364	-	MADE_01555	-	transport protein
1540	 39.84	-1	1670452..1670697	-	81	196156365	-	MADE_01556	-	hypothetical protein
1541	 47.38	0	1670995..1672083	+	362	196156366	-	MADE_01557	-	glucose-fructose oxidoreductase
1542	 42.55	0	1672065..1672205	-	46	196156367	-	MADE_01558	-	hypothetical protein
1543	 46.46	0	1672198..1673271	-	357	196156368	-	MADE_01559	-	hypothetical protein
1544	 44.36	0	1673362..1674150	-	262	196156369	-	MADE_01560	-	lipase-related protein
1545	 47.34	0	1674347..1674703	-	118	196156370	-	MADE_01561	-	translation initiation inhibitor
1546	 41.24	-1	1674974..1675150	+	58	196156371	-	MADE_01562	-	Prevent-host-death protein
1547	 38.01	-2	1675164..1675484	+	106	196156372	-	MADE_01563	-	hypothetical protein
1548	 40.23	-1	1675944..1676204	+	86	196156373	-	MADE_01564	-	predicted transcriptional regulators containing the CopG/Arc/MetJ DNA-binding domain
1549	 44.22	0	1676191..1676484	+	97	196156374	-	MADE_01565	-	Plasmid stabilization system A
1550	 43.44	0	1677013..1678110	-	365	196156375	-	MADE_01566	-	hypothetical protein
1551	 45.82	0	1678139..1679203	-	354	196156376	-	MADE_01567	-	putative orphan protein; putative signal peptide
1552	 47.26	0	1679300..1679773	-	157	196156377	-	MADE_01568	-	putative unknown lipoprotein
1553	 47.58	0	1679878..1681470	-	530	196156378	-	MADE_01569	-	hypothetical protein
1554	 47.62	0	1681632..1682366	-	244	196156379	-	MADE_01570	-	hypothetical protein
1555	 46.25	0	1682363..1682896	-	177	196156380	-	MADE_01571	-	putative RNA polymerase sigma factor (ECF family) protein
1556	 47.50	0	1683066..1685126	-	686	196156381	-	MADE_01572	-	TonB-dependent receptor, putative
1557	 47.07	0	1685469..1685912	+	147	196156382	-	MADE_01573	-	RDD domain containing protein
1558	 48.12	0	1686023..1687084	-	353	196156383	-	MADE_01574	-	predicted permease
1559	 49.41	+1	1687085..1688185	-	366	196156384	-	MADE_01575	-	permease YjgP/YjgQ
1560	 50.45	+1	1688413..1689954	+	513	196156385	-	MADE_01576	-	leucyl aminopeptidase
1561	 50.35	+1	1689961..1690383	+	140	196156386	-	MADE_01577	-	DNA polymerase III chi subunit
1562	 49.26	+1	1690419..1693193	+	924	196156387	-	MADE_01578	-	valyl-tRNA synthetase
1563	 43.80	0	1693338..1696013	-	891	196156388	-	MADE_01579	-	Response regulator receiver:ATP-binding region, ATPase-like protein
1564	 46.88	0	1696064..1697347	-	427	196156389	-	MADE_01580	-	signal peptide prediction
1565	 43.46	0	1697534..1698382	+	282	196156390	-	MADE_01581	-	SPFH domain/Band 7 family protein
1566	 46.45	0	1698390..1698671	+	93	196156391	-	MADE_01582	-	hypothetical protein
1567	 41.84	0	1698776..1700209	-	477	196156392	-	MADE_01583	-	Response regulator containing a CheY-like receiver domain and a GGDEF domain
1568	 44.53	0	1700384..1701196	-	270	196156393	-	MADE_01584	-	hypothetical protein
1569	 47.37	0	1701310..1701708	-	132	196156394	-	MADE_01585	-	hypothetical protein
1570	 40.66	-1	1701741..1702409	-	222	196156395	-	MADE_01586	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1571	 45.26	0	1702672..1703811	+	379	196156396	-	MADE_01587	-	HD-GYP domain protein
1572	 50.47	+1	1703902..1705296	-	464	196156397	-	MADE_01588	-	two-component system, response regulator
1573	 42.91	0	1705301..1706386	-	361	196156398	-	MADE_01589	-	nitrogen regulation protein NR(II)
1574	 45.77	0	1706518..1707144	-	208	196156399	-	MADE_01590	-	hypothetical protein
1575	 46.74	0	1707428..1708837	-	469	196156400	-	MADE_01591	-	glutamine synthetase
1576	 46.37	0	1709296..1711128	+	610	196156401	-	MADE_01592	-	BipA protein
1577	 41.80	0	1711366..1711743	+	125	196156402	-	MADE_01593	-	rteB, two-component system response regulator
1578	 47.11	0	1711885..1713060	+	391	196156403	-	MADE_01594	-	Aminotransferase, class I and II
1579	 47.87	0	1713244..1714440	-	398	196156404	-	MADE_01595	-	putative manganese/divalent cation transport protein (NRAMP family)
1580	 44.87	0	1714681..1715382	+	233	196156405	-	MADE_01596	-	yecA family protein
1581	 45.50	0	1715422..1715610	-	62	196156406	-	MADE_01597	-	hypothetical protein
1582	 41.96	0	1715793..1716221	-	142	196156407	-	MADE_01598	-	hypothetical protein
1583	 46.44	0	1716223..1717839	-	538	196156408	-	MADE_01599	-	putative Voltage-gated ClC-type chloride channel clcA
1584	 42.35	0	1717982..1718713	+	243	196156409	-	MADE_01600	-	hypothetical protein
1585	 43.33	0	1718827..1719276	-	149	196156410	-	MADE_01601	-	azurin precursor
1586	 41.13	-1	1719378..1719518	+	46	196156411	-	MADE_01602	-	hypothetical protein
1587	 49.64	+1	1719690..1721063	+	457	196156412	-	MADE_01603	-	Fumarase
1588	 48.45	+1	1721415..1722188	+	257	196156413	-	MADE_01604	-	septum site-determining protein MinC
1589	 46.30	0	1722219..1723028	+	269	196156414	-	MADE_01605	-	septum site-determining protein MinD
1590	 46.74	0	1723028..1723288	+	86	196156415	-	MADE_01606	-	cell division topological specificity factor MinE
1591	 44.52	0	1723349..1724188	-	279	196156416	-	MADE_01607	-	UDP-galactose-lipid carrier transferase MED92
1592	 45.77	0	1724319..1725098	+	259	196156417	-	MADE_01608	-	hypothetical protein
1593	 45.87	0	1725250..1725600	+	116	196156418	-	MADE_01609	-	HesB protein family
1594	 45.55	0	1725749..1726321	+	190	196156419	-	MADE_01610	-	putative glutathione S-transferase enzyme with thioredoxin-like domain
1595	 48.97	+1	1726330..1727301	-	323	196156420	-	MADE_01611	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
1596	 45.53	0	1727428..1729296	+	622	196156421	-	MADE_01612	-	homocysteine synthase
1597	 43.62	0	1729497..1729943	+	148	196156422	-	MADE_01613	-	hypothetical protein
1598	 49.38	+1	1730047..1731168	-	373	196156423	-	MADE_01614	-	xenobiotic reductase B
44.90	MEAN

3.40	STD DEV
