IslandPathversion 1.0

IslandPath Analysis: Alteromonas macleodii 'Deep ecotype'

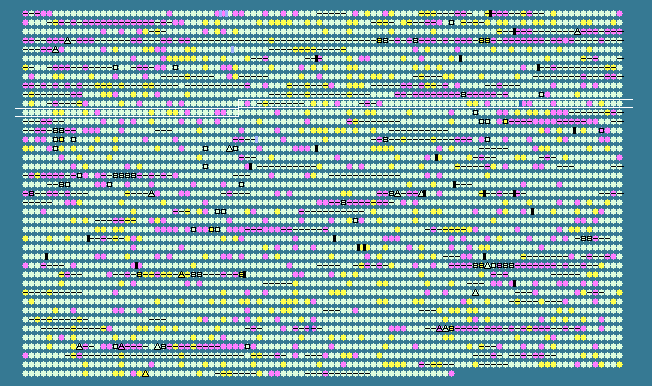

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.90 STD DEV: 3.40
Alteromonas macleodii 'Deep ecotype', complete genome - 1..4412282
4072 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1037	 43.07	0	1107199..1107855	+	218	196155862	-	MADE_01043	-	hypothetical protein
1038	 41.06	-1	1108251..1108457	-	68	196155863	-	MADE_01044	-	Antitoxin of toxin-antitoxin stability system, StbD family protein
1039	 46.20	0	1108858..1109976	-	372	196155864	-	MADE_01045	-	Succinylglutamate desuccinylase/aspartoacylase
1040	 46.69	0	1110068..1110838	-	256	196155865	-	MADE_01046	-	molybdopterin biosynthesis protein MoeB
1041	 48.92	+1	1110963..1111469	+	168	196155866	-	MADE_01047	-	molybdenum cofactor biosynthesis protein B
1042	 45.81	0	1111466..1111954	+	162	196155867	-	MADE_01048	-	molybdenum cofactor biosynthesis protein C
1043	 48.19	0	1112041..1112289	+	82	196155868	-	MADE_01049	-	molybdopterin converting factor, small subunit
1044	 47.05	0	1112292..1112765	+	157	196155869	-	MADE_01050	-	putative molybdenum cofactor biosynthesisprotein E
1045	 48.02	0	1112765..1114153	+	462	196155870	-	MADE_01051	-	molybdate-binding periplasmic protein precursor
1046	 47.37	0	1114150..1114890	+	246	196155871	-	MADE_01052	-	molybdenum ABC transporter, permease protein
1047	 45.64	0	1114892..1116037	+	381	196155872	-	MADE_01053	-	molybdenum ABC transporter, ATP-binding protein
1048	 42.27	0	1116024..1117400	-	458	196155873	-	MADE_01054	-	coproporphyrinogen III oxidase
1049	 49.39	+1	1117581..1118234	+	217	196155874	-	MADE_01055	-	hypothetical protein
1050	 46.38	0	1118371..1119006	+	211	196155875	-	MADE_01056	-	probable DSBA oxidoreductase
1051	 48.94	+1	1119037..1120029	+	330	196155876	-	MADE_01057	-	putative xanthine dehydrogenase accessory factor
1052	 47.39	0	1120026..1122608	-	860	196155877	-	MADE_01058	-	TonB-dependent receptor
1053	 32.54	-2	1122828..1122953	-	41	196155878	-	MADE_01059	-	hypothetical protein
1054	 47.38	0	1122961..1123629	+	222	196155879	-	MADE_01060	-	Phosphoglycerate/bisphosphoglycerate mutase
1055	 47.25	0	1123641..1124876	+	411	196155880	-	MADE_01061	-	putative acyl-CoA dehydrogenase
1056	 46.08	0	1124879..1125937	+	352	196155881	-	MADE_01062	-	aminoglycoside phosphotransferase
1057	 46.97	0	1126012..1126986	+	324	196155882	-	MADE_01063	-	Zinc-containing alcohol dehydrogenase superfamily protein
1058	 41.07	-1	1127161..1127328	-	55	196155883	-	MADE_01064	-	hypothetical protein
1059	 43.07	0	1127597..1128130	-	177	196155884	-	MADE_01065	-	SEC-C motif domain protein
1060	 41.12	-1	1128251..1128661	-	136	196155885	-	MADE_01066	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
1061	 44.36	0	1128966..1129364	+	132	196155886	-	MADE_01067	-	membrane protein-like protein
1062	 43.95	0	1129389..1130066	-	225	196155887	-	MADE_01068	-	Ferric reductase-like transmembrane component
1063	 46.03	0	1130175..1131182	-	335	196155888	-	MADE_01069	-	oxidoreductase, molybdopterin binding
1064	 47.77	0	1131383..1132726	-	447	196155889	-	MADE_01070	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
1065	 42.00	0	1132806..1133405	-	199	196155890	-	MADE_01071	-	metal dependent phosphohydrolase
1066	 45.13	0	1133407..1134627	-	406	196155891	-	MADE_01072	-	aminotransferase, class I
1067	 43.65	0	1134900..1135694	+	264	196155892	-	MADE_01073	-	putative cytochrome c oxidase, subunit I
1068	 46.36	0	1136094..1136423	+	109	196155893	-	MADE_01074	-	hypothetical protein
1069	 45.47	0	1136528..1139608	-	1026	196155894	-	MADE_01075	-	AcrB/AcrD/AcrF family protein
1070	 46.69	0	1139605..1142973	-	1122	196155895	-	MADE_01076	-	AcrB/AcrD/AcrF family protein
1071	 45.00	0	1142998..1144128	-	376	196155896	-	MADE_01077	-	HlyD family secretion protein
1072	 42.99	0	1144342..1144776	-	144	196155897	-	MADE_01078	-	putative inner membrane protein
1073	 44.88	0	1144808..1145725	-	305	196155898	-	MADE_01079	-	hypothetical protein
1074	 47.70	0	1145758..1146495	+	245	196155899	-	MADE_01080	-	LamB/YcsF family protein
1075	 50.07	+1	1146552..1147286	+	244	196155900	-	MADE_01081	-	Allophanate hydrolase, subunit 1
1076	 48.58	+1	1147240..1148223	+	327	196155901	-	MADE_01082	-	putative carboxylase
1077	 44.41	0	1148220..1149086	+	288	196155902	-	MADE_01083	-	D-alanine transaminase
1078	 39.86	-1	1149142..1149570	-	142	196155903	-	MADE_01084	-	ferric uptake regulator
1079	 44.43	0	1149874..1151892	+	672	196155904	-	MADE_01085	-	methyl-accepting chemotaxis protein
1080	 45.52	0	1152028..1152552	-	174	196155905	-	MADE_01086	-	flavodoxin
1081	 41.55	0	1152579..1152797	-	72	196155906	-	MADE_01087	-	hypothetical protein
1082	 42.86	0	1152922..1153614	-	230	196155907	-	MADE_01088	-	hypothetical esterase/lipase ybfF
1083	 46.25	0	1153749..1153988	+	79	196155908	-	MADE_01089	-	hypothetical protein
1084	 39.52	-1	1159935..1160936	+	333	196155909	-	MADE_01090	-	sensory box/GGDEF family protein
1085	 40.98	-1	1160983..1161348	-	121	196155910	-	MADE_01091	-	hypothetical protein
1086	 42.88	0	1161351..1164629	-	1092	196155911	-	MADE_01092	-	transcriptional regulator
1087	 46.87	0	1164834..1165328	+	164	196155912	-	MADE_01093	-	hypothetical protein
1088	 41.67	0	1165480..1166331	+	283	196155913	-	MADE_01094	-	hypothetical protein
1089	 40.92	-1	1166328..1167092	+	254	196155914	-	MADE_01095	-	hypothetical protein
1090	 42.09	0	1167392..1167928	+	178	196155915	-	MADE_01096	-	adenine phosphoribosyltransferase
1091	 47.05	0	1167972..1170764	+	930	196155916	-	MADE_01097	-	DNA polymerase III subunits gamma and tau
1092	 48.18	0	1170803..1171132	+	109	196155917	-	MADE_01098	-	hypothetical protein
1093	 42.20	0	1171624..1174092	+	822	196155918	-	MADE_01099	-	bacteriophytochrome protein
1094	 41.43	-1	1174097..1176493	+	798	196155919	-	MADE_01100	-	sensory box/GGDEF family protein
1095	 41.03	-1	1176465..1176581	+	38	196155920	-	MADE_01101	-	hypothetical protein
1096	 41.88	0	1176708..1177655	+	315	196155921	-	MADE_01102	-	hypothetical protein
1097	 50.10	+1	1177742..1178260	+	172	196155922	-	MADE_01103	-	recombination protein RecR
1098	 45.76	0	1178473..1180395	+	640	196155923	-	MADE_01104	-	heat shock protein 90
1099	 47.60	0	1180744..1181388	+	214	196155924	-	MADE_01105	-	adenylate kinase(ATP-AMP transphosphorylase)
1100	 48.23	0	1181538..1181933	+	131	196155925	-	MADE_01106	-	uncharacterized relative of glutathione S-transferase
1101	 47.94	0	1182235..1184850	-	871	196155926	-	MADE_01107	-	TonB-dependent receptor
1102	 45.79	0	1185581..1188445	+	954	196155927	-	MADE_01108	-	peptidase, M16 family protein
1103	 45.61	0	1188536..1190767	-	743	196155928	-	MADE_01109	-	methyl-accepting chemotaxis protein
1104	 43.21	0	1190984..1191844	+	286	196155929	-	MADE_01110	-	putative transporter (formate/nitrite transporter family) protein
1105	 46.93	0	1191949..1192566	-	205	196155930	-	MADE_01111	-	phosphoribosyl-ATP pyrophosphatase/phosphoribosyl-AMP cyclohydrolase
1106	 48.95	+1	1192563..1193375	-	270	196155931	-	MADE_01112	-	imidazole glycerol phosphate synthase subunit HisF
1107	 49.32	+1	1193357..1194094	-	245	196155932	-	MADE_01113	-	phosphoribosylformimino-5-aminoimidazole carboxamide ribotide isomerase
1108	 46.19	0	1194094..1194723	-	209	196155933	-	MADE_01114	-	imidazole glycerol phosphate synthase subunit HisH
1109	 47.43	0	1194723..1195793	-	356	196155934	-	MADE_01115	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
1110	 45.19	0	1195790..1196869	-	359	196155935	-	MADE_01116	-	histidinol-phosphate aminotransferase
1111	 50.19	+1	1196869..1198173	-	434	196155936	-	MADE_01117	-	Histidinol dehydrogenase
1112	 47.62	0	1198187..1199089	-	300	196155937	-	MADE_01118	-	ATP phosphoribosyltransferase
1113	 38.62	-1	1199491..1199736	+	81	196155938	-	MADE_01119	-	hypothetical protein
1114	 46.54	0	1199934..1201652	+	572	196155939	-	MADE_01120	-	iron-regulated outer membrane virulence protein
1115	 45.20	0	1201649..1202221	-	190	196155940	-	MADE_01121	-	putative lipoprotein
1116	 42.28	0	1202386..1202631	-	81	196155941	-	MADE_01122	-	Na(+)-translocating NADH-quinone reductase subunit B
1117	 42.67	0	1202780..1203325	-	181	196155942	-	MADE_01123	-	hypothetical protein
1118	 45.54	0	1203414..1204322	+	302	196155943	-	MADE_01124	-	hypothetical protein
1119	 46.90	0	1204407..1205711	+	434	196155944	-	MADE_01125	-	alpha-amylase, putative
1120	 44.75	0	1205830..1206048	+	72	196155945	-	MADE_01126	-	putative orphan protein
1121	 42.18	0	1206288..1206581	+	97	196155946	-	MADE_01127	-	putative orphan protein
1122	 50.91	+1	1206696..1207298	-	200	196155947	-	MADE_01128	-	hypothetical protein
1123	 43.69	0	1207443..1208108	-	221	196155948	-	MADE_01129	-	putative calcium binding protein
1124	 44.74	0	1208311..1208424	-	37	196155949	-	MADE_01130	-	hypothetical protein
1125	 48.85	+1	1208519..1210438	+	639	196155950	-	MADE_01131	-	ATP-dependent helicase
1126	 49.51	+1	1210517..1211227	+	236	196155951	-	MADE_01132	-	peptidase M22, glycoprotease
1127	 42.52	0	1211338..1211631	+	97	196155952	-	MADE_01133	-	hypothetical protein
1128	 32.52	-2	1211847..1211969	+	40	196155953	-	MADE_01134	-	hypothetical protein
1129	 46.42	0	1212017..1212673	+	218	196155954	-	MADE_01135	-	Starvation-inducible outer membrane lipoprotein
1130	 43.21	0	1212770..1213609	+	279	196155955	-	MADE_01136	-	hydrolase, alpha/beta fold family protein
1131	 45.61	0	1213731..1215383	+	550	196155956	-	MADE_01137	-	acyl-CoA synthetase (long-chain-fatty-acid-CoA ligase), acyl-adenylate activating enzyme
1132	 46.55	0	1215445..1216602	+	385	196155957	-	MADE_01138	-	ribonuclease D
1133	 41.41	-1	1216661..1216957	+	98	196155958	-	MADE_01139	-	hypothetical protein
1134	 35.51	-2	1216932..1217069	-	45	196155959	-	MADE_01140	-	hypothetical protein
1135	 45.58	0	1217056..1218027	+	323	196155960	-	MADE_01141	-	putative transglycosylase
1136	 45.59	0	1218030..1218698	+	222	196155961	-	MADE_01142	-	putative fumarylacetoacetate hydrolase family protein
44.90	MEAN

3.40	STD DEV
