IslandPath Analysis: Agrobacterium tumefaciens str. C58

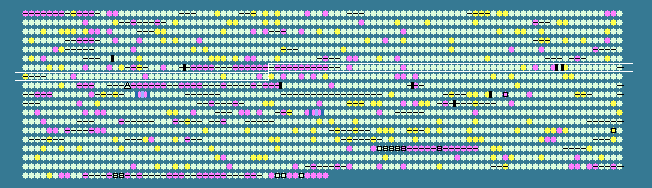

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.48 STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
642	 56.29	0	702043..702909	+	288	15891291	-	Atu3651	-	hypothetical protein
643	 55.04	-1	703047..703889	+	280	159185843	-	Atu3652	-	hypothetical protein
644	 52.32	-2	703937..704173	-	78	17937360	-	Atu3653	-	hypothetical protein
645	 50.78	-2	704727..705242	-	171	159185844	-	Atu3654	-	hypothetical protein
646	 52.91	-1	705579..706145	+	188	159185845	-	Atu3655	-	antioxidant enzyme
647	 55.56	-1	706326..706712	+	128	15891287	-	Atu3656	-	acetyltransferase
648	 47.39	-2	706981..707229	+	82	15891286	-	Atu3657	-	hypothetical protein
649	 52.76	-2	707492..708577	+	361	159185846	-	Atu3658	-	MerR family transcriptional regulator
650	 53.94	-1	709086..709745	-	219	159185847	-	Atu3661	-	hypothetical protein
651	 51.71	-2	710360..711970	+	536	15891283	-	Atu3662	-	hypothetical protein
652	 57.68	0	712197..712619	-	140	159185848	-	Atu3663	-	hypothetical protein
653	 58.85	0	712794..713765	+	323	159185849	ephA	Atu3664	-	epoxide hydrolase
654	 59.17	0	714038..714784	-	248	15891280	ditI	Atu3665	-	short-chain dehydrogenase
655	 52.78	-2	714854..715033	+	59	15891279	-	Atu8034	-	hypothetical protein
656	 58.82	0	715046..715504	+	152	15891278	-	Atu3666	-	hypothetical protein
657	 56.84	0	715559..716026	+	155	15891277	panD	Atu3667	-	aspartate alpha-decarboxylase
658	 60.15	0	716058..716579	-	173	15891276	-	Atu3668	-	siderophore biosynthesis protein
659	 58.59	0	716694..718055	-	453	159185850	-	Atu3669	-	siderophore biosynthesis protein
660	 59.34	0	718087..721473	-	1128	159185851	-	Atu3670	-	siderophore biosynthesis protein
661	 59.18	0	721484..722551	-	355	15891273	-	Atu3671	-	siderophore biosynthesis protein
662	 61.67	0	722591..727153	-	1520	15891272	-	Atu3672	-	polyketide synthase, siderophore biosynthesis protein
663	 59.83	0	727195..729447	-	750	159185852	-	Atu3673	-	siderophore biosynthesis protein
664	 48.04	-2	729520..729723	-	67	17937381	-	Atu3674	-	hypothetical protein
665	 61.56	0	729769..734331	+	1520	15891270	-	Atu3675	-	peptide synthetase, siderophore biosynthesis protein
666	 59.31	0	734328..735224	+	298	15891269	-	Atu3676	-	putative siderophore biosynthesis protein
667	 60.43	0	735221..736696	+	491	15891268	-	Atu3677	-	polyketide synthase, siderophore biosynthesis protein
668	 59.58	0	736711..736950	+	79	159185853	-	Atu3678	-	putative siderophore biosynthesis protein
669	 62.24	0	736961..737479	+	172	15891266	-	Atu3679	-	putative siderophore biosynthesis protein
670	 59.22	0	737476..738039	+	187	159185854	-	Atu3680	-	putative siderophore biosynthesis protein
671	 61.39	0	738077..742510	+	1477	159185855	-	Atu3681	-	polyketide synthetase, siderophore biosynthesis protein
672	 61.25	0	742507..749706	+	2399	15891263	-	Atu3682	-	non-ribosomal peptide synthetase, siderophore biosynthesis protein
673	 60.28	0	749718..757409	+	2563	159185856	-	Atu3683	-	peptide synthetase, siderophore biosynthesis protein
674	 59.77	0	757414..759081	+	555	15891261	-	Atu3684	-	siderophore biosynthesis protein
675	 58.23	0	759096..759842	+	248	159185857	-	Atu3685	-	thioesterase, putative siderophore biosynthesis protein
676	 58.84	0	759870..760763	+	297	15891259	-	Atu3686	-	putative siderophore biosynthesis protein
677	 56.83	0	760897..763335	+	812	159185858	-	Atu3687	-	TonB-dependent receptor
678	 59.28	0	763389..764309	+	306	159185859	fecB	Atu3688	-	ABC transporter, membrane spanning protein (iron(III) dicitrate)
679	 62.76	0	764306..765355	+	349	15891256	fecC	Atu3689	-	ABC transporter, membrane spanning protein (iron(III) dicitrate)
680	 60.92	0	765352..766326	+	324	159185860	fecD	Atu3690	-	ABC transporter, membrane spanning protein (iron (III) dicitrate)
681	 58.08	0	766319..767122	+	267	15891254	fecE	Atu3691	-	ABC transporter, nucleotide binding/ATPase protein (iron (III) dicitrate)
682	 58.93	0	767474..768016	+	180	159185861	-	Atu3692	-	sigma factor
683	 60.19	0	768064..769035	+	323	15891252	fecR	Atu3693	-	two component sensor kinase
684	 63.88	+1	769161..771206	-	681	159185862	pbpC	Atu3694	-	penicillin binding protein
685	 61.04	0	771236..776692	-	1818	159185863	-	Atu3695	-	hypothetical protein
686	 53.97	-1	776811..776999	-	62	17937403	-	Atu3696	-	hypothetical protein
687	 60.80	0	777010..777657	-	215	159185864	lonD	Atu3697	-	ATP-dependent protease LA 2
688	 60.06	0	777750..778718	-	322	159185865	-	Atu3698	-	putative thioredoxin
689	 54.71	-1	778772..779281	-	169	15891247	-	Atu3699	-	hypothetical protein
690	 58.01	0	779833..780525	+	230	15891246	-	Atu3701	-	glutathione S-transferase
691	 62.99	+1	781025..782167	-	380	159185866	trmU	Atu3703	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
692	 57.77	0	782420..783610	-	396	159185867	-	Atu3704	-	hypothetical protein
693	 62.19	0	784049..784696	-	215	159185868	-	Atu3705	-	hypothetical protein
694	 58.90	0	785354..786949	-	531	15891242	serA	Atu3706	-	D-3-phosphoglycerate dehydrogenase
695	 60.73	0	787033..788211	-	392	15891241	serC	Atu3707	-	phosphoserine aminotransferase
696	 57.09	0	788425..789270	-	281	159185869	-	Atu3708	-	outer surface protein
697	 59.94	0	789459..790811	-	450	159185870	mrsA	Atu3709	-	phosphoglucomutase/phosphomannomutase
698	 60.25	0	791000..792946	-	648	159185871	ftsH	Atu3710	-	metalloprotease
699	 59.91	0	793101..794432	-	443	15891237	mesJ	Atu3711	-	hypothetical protein
700	 60.81	0	794457..795446	-	329	159185872	-	Atu3712	-	hypothetical protein
701	 64.04	+1	795620..796153	-	177	15891235	palA	Atu3713	-	omp16 protein
702	 59.56	0	796364..797671	-	435	159185873	tolB	Atu3714	-	translocation protein TolB
703	 61.04	0	797692..798846	-	384	15891233	tolA	Atu3715	-	hypothetical protein
704	 61.66	0	798856..799314	-	152	15891232	tolR	Atu3716	-	tolR protein
705	 58.47	0	799373..800092	-	239	159185874	tolQ	Atu3717	-	tolQ protein
706	 58.96	0	800354..800794	-	146	15891230	-	Atu3718	-	hypothetical protein
707	 57.39	0	800919..801446	-	175	159185875	mutT	Atu3719	-	MutT/nudix family protein
708	 57.51	0	801446..802024	-	192	159185876	-	Atu3720	-	hypothetical protein
709	 53.42	-1	802060..802278	-	72	159185877	-	Atu3721	-	hypothetical protein
710	 62.44	0	802331..803371	-	346	15891226	ruvB	Atu3722	-	Holliday junction DNA helicase B
711	 60.19	0	803458..804075	-	205	15891225	ruvA	Atu3723	-	Holliday junction DNA helicase motor protein
712	 62.38	0	804103..804615	-	170	15891224	ruvC	Atu3724	-	Holliday junction resolvase
713	 61.26	0	804862..807171	+	769	159185878	-	Atu3725	-	methyl-accepting chemotaxis protein
714	 60.98	0	807318..808319	+	333	15891222	-	Atu3726	-	flavin dependant oxidoreductase
715	 56.89	0	808406..809152	-	248	15891221	-	Atu3727	-	hypothetical protein
716	 58.13	0	809350..809853	+	167	159185879	-	Atu3728	-	hypothetical protein
717	 59.48	0	809890..810543	-	217	159185880	-	Atu3729	-	hypothetical protein
718	 58.79	0	810848..811672	-	274	15891218	-	Atu3730	-	hypothetical protein
719	 62.93	+1	811772..812359	-	195	15891217	-	Atu3731	-	5-formyltetrahydrofolate cyclo-ligase
720	 61.66	0	812359..813636	-	425	15891216	-	Atu3732	-	hemolysin
721	 47.89	-2	813639..813851	-	70	17937438	-	Atu3733	-	hypothetical protein
722	 57.41	0	814088..814465	-	125	15891215	-	Atu8191	-	hypothetical protein
723	 58.24	0	814477..814749	-	90	159186374	-	Atu8192	-	hypothetical protein
724	 61.12	0	815073..817055	+	660	15891213	tktA	Atu3736	-	transketolase
725	 60.63	0	817118..818128	+	336	15891212	gapA	Atu3737	-	glyceraldehyde 3-phosphate dehydrogenase
726	 61.63	0	818445..820310	+	621	159185881	-	Atu3738	-	potassium/proton antiporter
727	 60.93	0	820378..821580	+	400	159185882	pgk	Atu3739	-	phosphoglycerate kinase
728	 59.36	0	821772..822797	+	341	15891209	-	Atu3740	-	fructose bisphosphate aldolase
729	 61.78	0	823147..824436	+	429	15891208	-	Atu3741	-	MFS permease
730	 57.56	0	825027..825542	+	171	159185883	-	Atu3742	-	hypothetical protein
731	 57.21	0	825696..825917	-	73	15891206	rpmE	Atu3743	-	50S ribosomal protein L31
732	 62.50	0	826179..827978	+	599	15891205	-	Atu3744	-	ABC transporter, nucleotide binding/ATPase protein
733	 62.65	0	828081..829724	-	547	15891204	-	Atu3745	-	putative FAD-binding dehydrogenase
734	 63.10	+1	829813..830598	-	261	159185884	motB	Atu3746	-	hypothetical protein
735	 61.78	0	830847..831869	-	340	159185885	-	Atu3747	-	hypothetical protein
736	 61.80	0	832071..832871	-	266	15891201	suhB	Atu3748	-	extragenic suppressor protein SuhB
737	 61.19	0	833035..834147	-	370	15891200	enhC	Atu3749	-	enhanced entry protein
738	 60.09	0	834144..834797	-	217	159185886	thiE	Atu3750	-	thiamine-phosphate pyrophosphorylase
739	 60.26	0	834902..835666	+	254	15891198	-	Atu3751	-	hypothetical protein
740	 52.54	-2	835769..835945	-	58	17937457	-	Atu3752	-	hypothetical protein
741	 56.37	0	836179..836382	+	67	15891197	-	Atu3753	-	hypothetical protein
59.48	MEAN

3.31	STD DEV
