IslandPathversion 1.0

IslandPath Analysis: Agrobacterium tumefaciens str. C58

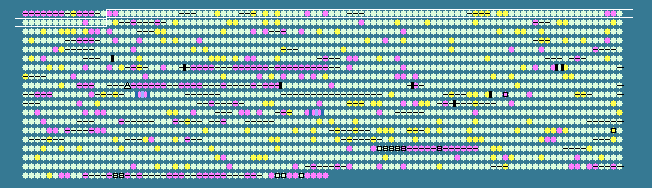

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.48 STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
15	 53.74	-1	10885..11178	+	97	15891909	-	Atu3017	-	phosphoglyceromutase
16	 55.21	-1	11249..11632	+	127	159185567	-	Atu3018	-	hypothetical protein
17	 56.80	0	11703..12239	-	178	159185568	-	Atu3019	-	hypothetical protein
18	 56.40	0	12671..13381	+	236	159185569	-	Atu3020	-	GntR family transcriptional regulator
19	 60.04	0	13412..14527	+	371	15891905	-	Atu3021	-	ABC transporter, nucleotide binding/ATPase protein (sugar)
20	 56.56	0	14524..15453	+	309	15891904	-	Atu3022	-	ABC transporter, membrane spanning protein (sugar)
21	 56.92	0	15465..16346	+	293	15891903	-	Atu3023	-	ABC transporter, membrane spanning protein (sugar)
22	 57.06	0	16407..17936	+	509	159185570	-	Atu3024	-	ABC transporter, membrane spanning protein (sugar)
23	 58.82	0	18008..20338	+	776	15891901	-	Atu3025	-	oligo alginate lyase
24	 62.40	0	20354..21103	+	249	15891900	-	Atu3026	-	short chain dehydrogenase
25	 61.28	0	21120..22289	+	389	159186368	-	Atu8093	-	hypothetical protein
26	 60.64	0	22325..23320	+	331	159185571	-	Atu3027	-	dehydrogenase
27	 56.52	0	23317..24114	+	265	15891897	-	Atu3028	-	hypothetical protein
28	 56.25	0	24114..25361	+	415	159185572	gudD	Atu3029	-	glucarate dehydratase
29	 60.21	0	25394..25780	-	128	15891895	-	Atu3030	-	hypothetical protein
30	 58.90	0	25864..26082	+	72	15891894	-	Atu3031	-	hypothetical protein
31	 56.79	0	26127..26531	+	134	15891893	-	Atu3032	-	hypothetical protein
32	 62.92	+1	26596..26835	+	79	159185573	-	Atu3033	-	hypothetical protein
33	 65.39	+1	26854..27402	+	182	159185574	-	Atu3034	-	ROK family transcriptional regulator
34	 60.16	0	27551..29794	-	747	159185575	-	Atu3035	-	two component response regulator
35	 62.39	0	30038..31066	+	342	159185576	-	Atu3036	-	ABC transporter, membrane spanning protein (dipeptide)
36	 60.09	0	31066..31947	+	293	15891888	-	Atu3037	-	ABC transporter, membrane spanning protein (dipeptide)
37	 60.23	0	31952..33598	+	548	15891887	-	Atu3038	-	ABC transporter, nucleotide binding/ATPase protein (dipeptide)
38	 62.17	0	33615..35171	+	518	15891886	-	Atu3039	-	hydantoinase beta subunit-like protein
39	 63.58	+1	35164..36297	+	377	159185577	-	Atu3040	-	hypothetical protein
40	 57.43	0	36341..37954	+	537	15891884	-	Atu3041	-	ABC transporter, substrate binding protein (dipeptide)
41	 63.60	+1	38070..39146	+	358	15891883	-	Atu3042	-	hypothetical protein
42	 61.99	0	39143..40681	+	512	15891882	-	Atu3043	-	hydantoinase beta subunit-like protein
43	 64.02	+1	40726..41670	+	314	159185578	asg	Atu3044	-	asparaginase
44	 57.76	0	41736..42083	-	115	15891880	-	Atu3045	-	hypothetical protein
45	 58.97	0	42150..43475	-	441	159185579	-	Atu3046	-	oxidoreductase
46	 56.12	-1	43487..44377	-	296	159185580	-	Atu3047	-	ABC transporter, membrane spanning protein (oligopeptide)
47	 57.62	0	44419..45369	-	316	15891877	-	Atu3048	-	ABC transporter, membrane spanning protein (oligopeptide)
48	 55.90	-1	45499..47160	-	553	159185581	-	Atu3049	-	ABC transporter, substrate binding protein (oligopeptide)
49	 59.83	0	47297..48628	-	443	159185582	-	Atu3050	-	putative AgaE
50	 60.48	0	48630..49340	-	236	15891874	-	Atu3051	-	agropine synthesis reductase
51	 55.97	-1	49337..49822	-	161	159185583	-	Atu3052	-	MarR family transcriptional regulator
52	 56.28	0	50111..51757	-	548	159185584	-	Atu3053	-	ABC transporter, nucleotide binding/ATPase protein (peptide)
53	 59.15	0	52166..53335	+	389	159185585	-	Atu3054	-	hypothetical protein
54	 58.06	0	53535..54800	-	421	159185586	-	Atu3055	-	hypothetical protein
55	 56.59	0	54845..56809	-	654	15891869	crdS	Atu3056	-	beta 1,3 glucan synthase catalytic subunit
56	 56.93	0	56941..58398	-	485	159185587	-	Atu3057	-	hypothetical protein
57	 57.32	0	58822..60405	+	527	159185588	-	Atu3059	-	Na+/H+ antiporter
58	 58.93	0	60688..62652	-	654	15891866	-	Atu3060	-	ABC transporter, nucleotide binding/ATPase protein
59	 57.74	0	62905..64674	+	589	15891865	-	Atu3061	-	GGDEF family protein
60	 60.74	0	64913..65941	+	342	159185589	-	Atu3062	-	LacI family transcription regulator
61	 58.07	0	65974..66927	+	317	15891863	-	Atu3063	-	ABC transporter, nucleotide binding/ATPase protein
62	 60.20	0	66924..67727	+	267	15891862	-	Atu3064	-	ABC transporter, nucleotide binding/ATPase protein
63	 61.19	0	67724..68728	+	334	15891861	-	Atu3065	-	ABC transporter, membrane spanning protein (sugar)
64	 59.27	0	68733..69800	+	355	15891860	-	Atu3066	-	resiniferatoxin-binding, phosphotriesterase-related protein
65	 60.31	0	69825..70595	+	256	15891859	-	Atu3067	-	hypothetical protein
66	 62.32	0	70605..71501	-	298	15891858	-	Atu3068	-	ribokinase
67	 61.68	0	71526..72368	+	280	15891857	-	Atu3069	-	hypothetical protein
68	 58.70	0	72383..73624	+	413	159185590	amaB	Atu3070	-	allantoate amidohydrolase
69	 57.41	0	73728..74213	+	161	159185591	-	Atu3071	-	hypothetical protein
70	 61.61	0	74687..78721	-	1344	15891854	-	Atu3072	-	peptide synthetase
71	 57.86	0	78886..79578	-	230	159185592	-	Atu3073	-	aspartate racemase
72	 60.85	0	79784..80557	-	257	15891852	-	Atu3074	-	short chain dehydrogenase
73	 60.93	0	80645..81289	+	214	159185593	-	Atu3075	-	TetR family transcriptional regulator
74	 62.21	0	81388..82710	-	440	159185594	uraA	Atu3076	-	uracil transport protein
75	 56.22	0	82966..84123	-	385	159185595	ampC	Atu3077	-	beta-lactamase
76	 63.37	+1	84258..85136	+	292	15891848	ampR	Atu3078	-	LysR family transcriptional regulator
77	 64.86	+1	85146..86363	-	405	159185596	chrA	Atu3079	-	chromate transport protein
78	 65.44	+1	86466..87689	-	407	15891846	-	Atu3080	-	hypothetical protein
79	 60.78	0	87692..89185	-	497	15891845	-	Atu3081	-	hypothetical protein
80	 64.44	+1	89262..89711	-	149	15891844	-	Atu8183	-	hypothetical protein
81	 63.49	+1	89708..90148	-	146	15891843	-	Atu3083	-	hypothetical protein
82	 60.41	0	90145..90687	-	180	159185597	sigW	Atu3084	-	RNA polymerase sigma factor
83	 62.77	0	90839..91582	-	247	15891841	-	Atu3085	-	hydantoin racemase
84	 59.22	0	91594..92412	-	272	15891840	-	Atu3086	-	ABC transporter, membrane spanning protein (spermidine/putrescine)
85	 57.79	0	92416..93327	-	303	159185598	-	Atu3087	-	ABC transporter, membrane spanning protein (spermidine/putrescine)
86	 58.84	0	93565..94854	-	429	15891838	-	Atu3088	-	ABC transporter, substrate binding protein (spermidine/putrescine)
87	 62.25	0	94885..95970	-	361	159185599	-	Atu3089	-	ABC transporter, nucleotide binding/ATPase protein (spermidine/putrescine)
88	 59.02	0	96196..97176	-	326	15891836	-	Atu3090	-	DNA polymerase III subunit epsilon
89	 58.58	0	97368..98270	+	300	159185600	-	Atu3091	-	hypothetical protein
90	 59.26	0	98307..98792	-	161	159185601	-	Atu3092	-	hypothetical protein
91	 62.53	0	98889..99782	-	297	159185602	-	Atu3093	-	transglycosylase
92	 60.22	0	100201..101985	-	594	15891832	mcpA	Atu3094	-	methyl-accepting chemotaxis protein
93	 59.70	0	102222..102695	+	157	159185603	-	Atu3095	-	hypothetical protein
94	 56.77	0	102956..104299	+	447	15891830	ugpB	Atu3096	-	ABC transporter, substrate binding protein (sn-glycerol 3-phosphate)
95	 59.71	0	104382..105272	+	296	15891829	ugpA	Atu3097	-	sn-glycerol-3-phosphate ABC transporter membrane protein
96	 62.15	0	105280..106164	+	294	15891828	ugpE	Atu3098	-	sn-glycerol-3-phosphate ABC transporter membrane protein
97	 62.57	0	106196..107317	+	373	159185604	ugpC	Atu3099	-	glycerol-3-phosphate transporter ATP-binding subunit
98	 54.83	-1	107390..108217	-	275	15891826	-	Atu3100	-	ABC transporter, membrane spanning protein (sugar)
99	 55.63	-1	108214..109092	-	292	159185605	-	Atu3101	-	ABC transporter, membrane spanning protein (sugar)
100	 59.22	0	109168..110442	-	424	15891824	-	Atu3102	-	ABC transporter, substrate binding protein (sugar)
101	 61.36	0	110515..111588	-	357	15891823	-	Atu3103	-	ABC transporter, nucleotide binding/ATPase protein (sugar)
102	 59.46	0	111596..113107	-	503	15891822	arfA	Atu3104	-	alpha-L-arabinofuranosidase
103	 57.53	0	113228..114157	-	309	15891821	celI	Atu3105	-	hypothetical protein
104	 59.29	0	114351..115637	-	428	159185606	-	Atu3106	-	ABC transporter, substrate binding protein (sugar)
105	 61.77	0	115756..116817	+	353	159185607	-	Atu3107	-	LacI family transcription regulator
106	 61.41	0	116810..118693	+	627	15891818	-	Atu3108	-	hypothetical protein
107	 61.65	0	118690..119706	+	338	15891817	-	Atu3109	-	2-hydroxyacid dehydrogenase
108	 61.09	0	119703..120491	+	262	15891816	-	Atu3110	-	hypothetical protein
109	 59.87	0	120666..121739	-	357	159185608	-	Atu3111	-	ABC transporter, nucleotide binding/ATPase protein (sugar)
110	 58.22	0	121831..122706	-	291	15891814	-	Atu3112	-	ABC transporter, membrane spanning protein (sugar)
111	 55.97	-1	122699..123586	-	295	159185609	-	Atu3113	-	ABC transporter, membrane spanning protein (sugar)
112	 60.31	0	123659..124948	-	429	159185610	-	Atu3114	-	ABC transporter, substrate binding protein (sugar)
113	 58.66	0	125066..125764	+	232	15891811	-	Atu3115	-	TetR family transcriptional regulator
114	 60.07	0	126031..127152	+	373	159185611	-	Atu3116	-	oxidoreductase
59.48	MEAN

3.31	STD DEV
