IslandPath Analysis: Agrobacterium tumefaciens str. C58

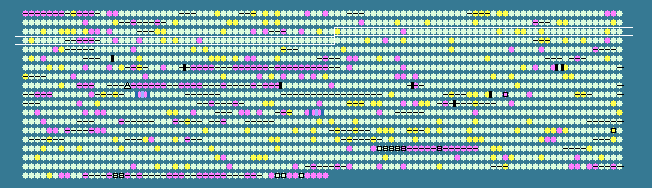

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.48 STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
253	 64.35	+1	275818..277329	+	503	159185661	-	Atu3259	-	dehydrogenase
254	 58.86	0	277383..278381	-	332	159185662	-	Atu3260	-	ABC transporter, substrate binding protein
255	 62.49	0	278398..280218	-	606	159185663	-	Atu3261	-	ABC transporter, membrane spanning protein
256	 60.89	0	280319..282154	-	611	15891671	-	Atu3262	-	ABC transporter, nucleotide binding/ATPase protein
257	 61.90	0	282210..283406	-	398	159185664	selA	Atu3263	-	L-seryl-tRNA(Ser) selenium transferase
258	 61.38	0	283481..284332	+	283	15891669	-	Atu3264	-	IclR family transcriptional regulator
259	 61.28	0	284339..284821	-	160	159185665	-	Atu3265	-	hypothetical protein
260	 59.31	0	284917..286140	-	407	159185666	-	Atu3266	-	dihydroorotase
261	 60.73	0	286142..287017	-	291	15891666	-	Atu3267	-	ABC transporter, membrane spanning protein (dipeptide)
262	 60.29	0	287017..287925	-	302	159185667	-	Atu3268	-	ABC transporter, membrane spanning protein (dipeptide)
263	 59.20	0	288288..289814	-	508	159185668	-	Atu3269	-	ABC transporter, substrate binding protein (dipeptide)
264	 49.79	-2	289874..290116	-	80	15891663	-	Atu3270	-	hypothetical protein
265	 58.13	0	290253..291377	+	374	159185669	-	Atu3271	-	glycosyltransferase
266	 59.57	0	291854..293050	+	398	159185670	pssN	Atu3272	-	exopolysaccharide export protein
267	 61.50	0	293317..294594	+	425	159185671	-	Atu3273	-	HlyD family secretion protein
268	 59.85	0	294591..297731	+	1046	15891659	-	Atu3274	-	AcrB/AcrD/AcrF family protein
269	 60.79	0	297728..298306	-	192	15891658	ialB	Atu3275	-	invasion associated protein B
270	 60.78	0	298306..302331	-	1341	15891657	-	Atu3276	-	hypothetical protein
271	 60.95	0	302505..303029	-	174	159185672	-	Atu3277	-	nitrilotriacetate monooxygenase
272	 61.63	0	303029..303922	-	297	15891655	-	Atu3278	-	aryl-alcohol dehydrogenase
273	 61.40	0	303922..305079	-	385	15891654	-	Atu3279	-	methanesulfonate sulfonatase
274	 61.99	0	305181..305885	+	234	15891653	-	Atu3280	-	GntR family transcriptional regulator
275	 62.77	0	306220..307296	+	358	159185673	-	Atu3281	-	ABC transporter, nucleotide binding/ATPase protein
276	 57.95	0	307348..308598	+	416	15891651	-	Atu3282	-	ABC transporter, substrate binding protein (sugar)
277	 58.58	0	308758..309684	+	308	159185674	malF	Atu3283	-	ABC transporter, membrane spanning protein (sugar)
278	 60.84	0	309689..310546	+	285	159185675	malG	Atu3284	-	ABC transporter, membrane spanning protein (sugar)
279	 60.40	0	310558..312552	+	664	15891648	-	Atu3285	-	alpha-glucosidase
280	 63.61	+1	313002..313787	+	261	15891647	-	Atu3286	-	ABC transporter, membrane spanning protein
281	 60.09	0	313838..314734	+	298	159185676	-	Atu3287	-	thiamine biosynthesis associated protein
282	 60.05	0	314731..315471	+	246	15891645	-	Atu3288	-	hydroxyethylthiazole kinase
283	 63.80	+1	315458..316120	+	220	159185677	-	Atu3289	-	thiamine-phosphate pyrophosphorylase
284	 64.54	+1	316117..316914	+	265	15891643	thiD	Atu3290	-	phosphomethylpyrimidine kinase
285	 59.04	0	317131..317589	-	152	159185678	-	Atu3291	-	Lpr family transcriptional regulator
286	 62.13	0	317717..318883	+	388	15891641	alr	Atu3292	-	alanine racemase
287	 63.09	+1	318891..320147	+	418	15891640	dadA	Atu3293	-	D-amino acid dehydrogenase small subunit
288	 62.87	+1	320197..320907	-	236	159185679	-	Atu3294	-	GntR family transcriptional regulator
289	 62.96	+1	321087..321599	+	170	159185680	-	Atu3295	-	hypothetical protein
290	 60.81	0	321688..323052	-	454	15891637	dctD	Atu3296	-	two component response regulator for C4-dicarboxylate transport
291	 60.74	0	323054..324436	-	460	159185681	dctB	Atu3297	-	two component sensor kinase for C4-dicarboxylate transport
292	 60.80	0	325132..326478	+	448	15891635	dctA	Atu3298	-	C4-dicarboxylate transporter DctA
293	 59.82	0	326656..327093	+	145	159185682	-	Atu3299	-	hypothetical protein
294	 59.42	0	327135..328487	-	450	15891633	-	Atu3300	-	aminotransferase
295	 62.78	0	328525..329244	-	239	159185683	fixR	Atu3301	-	short-chain alcohol dehydrogenase
296	 60.90	0	329494..331140	+	548	159185684	celD	Atu3302	-	cellulose biosynthesis protein
297	 60.00	0	331201..332355	+	384	159185685	celE	Atu3303	-	cellulose synthesis protein
298	 63.55	+1	332380..334626	-	748	159186372	celG	Atu8186	-	cellulose synthesis protein
299	 60.61	0	334719..335774	-	351	15891628	celC	Atu3307	-	endoglucanase
300	 61.55	0	335771..338254	-	827	159185686	celB	Atu3308	-	celB protein
301	 59.86	0	338251..340440	-	729	15891626	celA	Atu3309	-	cellulose synthase
302	 64.33	+1	340535..341434	-	299	15891625	-	Atu8187	-	hypothetical protein
303	 62.87	+1	341868..343052	+	394	15891624	-	Atu3311	-	phosphomannose isomerase
304	 59.40	0	343105..344067	-	320	15891623	-	Atu3312	-	hypothetical protein
305	 59.13	0	344081..344584	-	167	159185687	-	Atu3313	-	hypothetical protein
306	 61.25	0	344599..346536	-	645	15891621	-	Atu3314	-	cellulose synthase
307	 61.18	0	346533..347516	-	327	159185688	galE	Atu3315	-	UDP-glucose 4-epimerase
308	 57.18	0	347518..348540	-	340	15891619	-	Atu3316	-	dTDP-glucose 4-6-dehydratase
309	 57.83	0	348935..349285	+	116	15891618	-	Atu3317	-	hypothetical protein
310	 53.83	-1	349345..350115	-	256	159185689	-	Atu3318	-	LuxR family transcriptional regulator
311	 50.41	-2	350386..350631	+	81	159185690	-	Atu3319	-	hypothetical protein
312	 55.59	-1	351017..351982	+	321	15891615	-	Atu3320	-	fibrinogen binding protein
313	 56.68	0	352131..354152	+	673	159185691	-	Atu3321	-	hypothetical protein
314	 59.54	0	354773..356428	+	551	159185692	-	Atu3322	-	ABC transporter, nucleotide binding/ATPase protein
315	 58.79	0	356437..357795	+	452	159185693	-	Atu3323	-	HlyD family secretion protein
316	 53.94	-1	357879..358373	+	164	159185694	-	Atu3324	-	hypothetical protein
317	 57.60	0	358370..359638	-	422	15891610	exoQ	Atu3325	-	exopolysaccharide production protein
318	 60.94	0	359646..360902	-	418	15891609	exoF	Atu3326	-	exopolysaccharide production protein
319	 56.98	0	361096..361776	-	226	159185695	exoY	Atu3327	-	succinoglycan exopolysaccharide synthesis protein
320	 53.55	-1	362198..362380	-	60	15891607	-	Atu8030	-	hypothetical protein
321	 59.56	0	362396..362944	-	182	15891606	-	Atu3328	-	aldehyde dehydrogenase-like protein
322	 61.80	0	363091..364425	+	444	15891605	bioA	Atu3329	-	beta alanine--pyruvate transaminase
323	 57.87	0	364570..366387	+	605	159185696	mclA	Atu3330	-	methyl-accepting chemotaxis protein
324	 63.49	+1	366526..367311	-	261	15891603	-	Atu3331	-	hypothetical protein
325	 60.59	0	367331..368317	-	328	159185697	-	Atu3332	-	hypothetical protein
326	 63.36	+1	368557..369342	-	261	15891601	-	Atu3333	-	3-ketoacyl-(acyl-carrier-protein) reductase
327	 60.68	0	369339..369572	-	77	159185698	-	Atu3334	-	hypothetical protein
328	 60.82	0	369819..370400	+	193	159185699	-	Atu3335	-	3-methyladenine DNA glycosylase
329	 62.89	+1	370442..370600	-	52	15891598	-	Atu8031	-	hypothetical protein
330	 55.05	-1	370824..371021	-	65	15891597	-	Atu3336	-	hypothetical protein
331	 60.65	0	371196..372209	-	337	15891596	thuR	Atu3337	-	LacI family transcription regulator
332	 58.29	0	372478..373743	+	421	159185700	thuE	Atu3338	-	ABC transporter, substrate binding protein (trehalose/maltose)
333	 59.69	0	373807..374781	+	324	15891594	thuF	Atu3339	-	ABC transporter, membrane spanning protein (trehalose/maltose)
334	 60.19	0	374778..375611	+	277	159185701	thuG	Atu3340	-	ABC transporter, membrane spanning protein (trehalose/maltose)
335	 62.78	0	375622..376650	+	342	15891592	thuK	Atu3341	-	ABC transporter, nucleotide binding/ATPase protein (trehalose/maltose)
336	 60.05	0	376708..377493	+	261	159185702	thuA	Atu3342	-	trehalose utilization-related protein
337	 60.76	0	377500..378549	+	349	15891590	ThuB	Atu3343	-	trehalose utilization-related protein
338	 60.85	0	378583..379338	-	251	15891589	exsD	Atu3344	-	radical activating protein
339	 56.02	-1	379335..379691	-	118	15891588	exsC	Atu3345	-	6-pyruvoyl tetrahydropterin synthase
340	 61.04	0	379691..380401	-	236	15891587	exsB	Atu3346	-	succinoglycan biosynthesis regulator
341	 60.76	0	380545..381678	-	377	15891586	-	Atu3347	-	hypothetical protein
342	 58.43	0	381702..382466	-	254	159185703	-	Atu3348	-	hypothetical protein
343	 59.60	0	382523..383611	-	362	159185704	-	Atu3349	-	ABC transporter, nucleotide binding/ATPase protein
344	 56.48	0	383617..384558	-	313	159185705	-	Atu3350	-	ABC transporter, membrane spanning protein
345	 56.37	0	384551..385453	-	300	15891582	-	Atu3351	-	ABC transporter, membrane spanning protein (sugar)
346	 60.50	0	385597..386829	-	410	15891581	-	Atu3352	-	ABC transporter, substrate binding protein (sugar)
347	 59.12	0	387134..388564	-	476	15891580	manC	Atu3353	-	mannose-1-phosphate guanylyltransferase (GDP)
348	 62.89	+1	388845..391253	-	802	159185706	-	Atu3354	-	pyrroloquinoline-quinone-dependent quinate dehydrogenase
349	 61.56	0	391676..392575	+	299	159185707	-	Atu3355	-	LysR family transcriptional regulator
350	 61.64	0	392736..395024	+	762	15891577	-	Atu3356	-	malic enzyme
351	 60.71	0	395279..396118	+	279	159185708	-	Atu3357	-	ABC transporter, substrate binding protein (amino acid)
352	 58.93	0	396414..397046	+	210	159185709	-	Atu3358	-	ABC transporter, membrane spanning protein (amino acid)
59.48	MEAN

3.31	STD DEV
