IslandPath Analysis: Agrobacterium tumefaciens str. C58

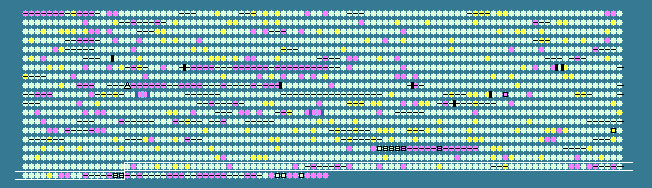

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.48 STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1718	 60.65	0	1931888..1933366	-	492	159186309	gabD	Atu4762	-	succinate semialdehyde dehydrogenase
1719	 54.70	-1	1933488..1933955	+	155	15890230	-	Atu4763	-	AsnC family transcriptional regulator
1720	 58.11	0	1934015..1934575	+	186	15890229	-	Atu4764	-	acetyltransferase
1721	 56.17	-1	1934620..1936143	+	507	15890228	-	Atu4765	-	hypothetical protein
1722	 59.86	0	1936189..1936614	-	141	15890227	-	Atu4766	-	hypothetical protein
1723	 63.16	+1	1936770..1937168	-	132	159186310	-	Atu4767	-	hypothetical protein
1724	 60.96	0	1937229..1937666	-	145	15890225	-	Atu4768	-	hypothetical protein
1725	 61.39	0	1937805..1938524	-	239	159186311	-	Atu4769	-	hypothetical protein
1726	 63.34	+1	1938707..1939819	-	370	15890223	-	Atu4770	-	hypothetical protein
1727	 61.22	0	1939931..1941178	-	415	15890222	-	Atu4771	-	oxalate decarboxylase
1728	 63.66	+1	1941180..1941644	-	154	159186312	-	Atu4772	-	hypothetical protein
1729	 59.47	0	1941969..1942343	-	124	15890220	-	Atu4773	-	two component response regulator
1730	 58.60	0	1942408..1943064	-	218	15890219	nodW	Atu4774	-	two component response regulator
1731	 59.52	0	1943057..1944637	-	526	15890218	-	Atu4775	-	two component sensor kinase
1732	 60.00	0	1944898..1947192	-	764	15890217	fdhF	Atu4776	-	formate dehydrogenase alpha subunit
1733	 59.92	0	1947602..1948120	+	172	159186313	-	Atu4777	-	hypothetical protein
1734	 60.04	0	1948140..1949120	+	326	15890215	cpo	Atu4778	-	non-heme chloroperoxidase
1735	 54.39	-1	1949193..1949591	-	132	159186314	-	Atu4779	-	hypothetical protein
1736	 60.42	0	1949708..1950796	+	362	159186315	-	Atu4780	-	hypothetical protein
1737	 61.70	0	1950972..1953104	-	710	15890211	-	Atu4781	-	two component sensor kinase
1738	 59.97	0	1953101..1953847	-	248	15890210	drrA	Atu4782	-	two component response regulator
1739	 60.45	0	1954065..1955093	+	342	15890209	afuA	Atu4783	-	ABC transporter, substrate binding protein (iron)
1740	 58.48	0	1955192..1956217	+	341	159186316	afuA	Atu4784	-	ABC transporter, substrate binding protein (iron)
1741	 60.44	0	1956296..1958527	+	743	159186317	afuB	Atu4785	-	ABC transporter, membrane spanning protein (iron)
1742	 62.71	0	1958524..1959585	+	353	15890206	afuC	Atu4786	-	ABC transporter, nucleotide binding/ATPase protein (iron)
1743	 60.62	0	1959613..1960422	+	269	159186318	-	Atu4787	-	inositol monophosphatase family protein
1744	 56.30	0	1960559..1961638	-	359	159186319	-	Atu4788	-	hypothetical protein
1745	 56.49	0	1961955..1963025	+	356	159186320	gmd	Atu4789	-	GDP-mannose 4,6-dehydratase
1746	 54.59	-1	1963036..1964004	+	322	159186321	fcl	Atu4790	-	GDP-fucose synthetase
1747	 59.74	0	1964001..1965950	+	649	159186370	-	Atu8097	-	hypothetical protein
1748	 57.46	0	1965987..1966475	+	162	159186322	-	Atu4791	-	hypothetical protein
1749	 55.56	-1	1967017..1967313	-	98	15890199	-	Atu4792	-	hypothetical protein
1750	 58.57	0	1967537..1968796	-	419	15890198	bme11	Atu4793	-	exopolysaccharide production protein
1751	 58.81	0	1968800..1970962	-	720	15890197	bme12	Atu4794	-	polysaccharide biosynthesis protein
1752	 58.23	0	1971017..1971727	-	236	159186323	bme13	Atu4795	-	LuxR family transcriptional regulator
1753	 55.81	-1	1971814..1972458	-	214	159186324	-	Atu4796	-	hypothetical protein
1754	 56.46	0	1972464..1973276	-	270	15890194	rfbF	Atu4797	-	glucose-1-phosphate cytidylyltransferase
1755	 53.60	-1	1973273..1974565	-	430	15890193	-	Atu4798	-	hypothetical protein
1756	 57.39	0	1974870..1975397	+	175	159186325	-	Atu4799	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1757	 56.77	0	1975402..1976745	-	447	159186326	-	Atu4800	-	hypothetical protein
1758	 60.60	0	1976759..1977829	-	356	159186327	-	Atu4801	-	NAD-dependent epimerase/dehydratase
1759	 57.76	0	1977947..1979350	-	467	159186328	hemL	Atu4802	-	glutamate-1-semialdehyde 2,1-aminomutase
1760	 51.58	-2	1979566..1980294	-	242	159186329	-	Atu4803	-	two component response regulator
1761	 57.53	0	1980996..1983404	+	802	15890187	-	Atu4805	-	two component sensor kinase/response regulator hybrid
1762	 60.62	0	1983438..1984397	-	319	15890186	pssF	Atu4806	-	glycosyltransferase
1763	 60.65	0	1984394..1985905	-	503	159186330	pssL	Atu4807	-	exopolysaccharide export protein
1764	 55.96	-1	1986131..1987363	-	410	15890184	amsJ	Atu4808	-	exopolysaccharide synthesis protein
1765	 59.42	0	1987634..1988833	+	399	15890183	-	Atu4809	-	glycosyltransferase
1766	 57.95	0	1988838..1990157	+	439	15890182	-	Atu4810	-	hypothetical protein
1767	 59.08	0	1990412..1991557	+	381	159186331	rfe	Atu4811	-	undecaprenyl-phosphate alpha N-acetylglucosaminyltransferase
1768	 59.94	0	1991565..1992263	+	232	159186332	bme2	Atu4812	-	hypothetical protein
1769	 57.14	0	1992320..1993537	+	405	159186333	bme3	Atu4813	-	hypothetical protein
1770	 63.55	+1	1993541..1994149	+	202	15890178	bme4	Atu4814	-	acetyltransferase
1771	 59.10	0	1994113..1995288	-	391	15890177	bme6	Atu4815	-	glycosyltransferase
1772	 62.15	0	1995285..1996568	-	427	15890176	bme7	Atu4816	-	glycosyltransferase
1773	 57.66	0	1996565..1997818	-	417	159186334	bme8	Atu4817	-	glycosyltransferase
1774	 57.61	0	1998206..1998724	-	172	159186335	lrp	Atu4818	-	AsnC family transcriptional regulator
1775	 58.11	0	1998786..1999451	+	221	159186366	-	Atu8042	-	hypothetical protein
1776	 62.13	0	1999471..1999845	+	124	15890171	-	Atu4819	-	hypothetical protein
1777	 57.83	0	1999884..2000777	-	297	15890170	-	Atu4820	-	hypothetical protein
1778	 58.85	0	2000774..2001553	-	259	15890169	fabG	Atu4821	-	3-oxoacyl-(acyl-carrier protein) reductase
1779	 59.72	0	2001585..2003225	-	546	15890168	-	Atu4822	-	acyl-CoA synthetase
1780	 59.83	0	2003222..2004391	-	389	15890167	acaB	Atu4823	-	acetyl-CoA acetyltransferase
1781	 62.98	+1	2004388..2005254	-	288	159186336	-	Atu4824	-	IclR family transcriptional regulator
1782	 59.19	0	2005256..2006071	-	271	15890165	-	Atu4825	-	dehydrogenase
1783	 57.86	0	2006136..2007146	-	336	159186337	-	Atu4826	-	ABC transporter, substrate binding protein
1784	 58.09	0	2007212..2009089	-	625	159186338	-	Atu4827	-	ABC transporter, membrane spanning protein
1785	 61.78	0	2010184..2010879	-	231	15890161	-	Atu4830	-	hypothetical protein
1786	 60.51	0	2010876..2011265	-	129	159186339	-	Atu4831	-	hypothetical protein
1787	 56.27	0	2011653..2012027	+	124	17938521	-	Atu4832	-	hypothetical protein
1788	 60.63	0	2012401..2014803	+	800	159186340	cga	Atu4833	-	glucoamylase
1789	 61.59	0	2014841..2015845	+	334	15890158	-	Atu4834	-	6-phosphogluconate dehydrogenase-like protein
1790	 60.17	0	2015842..2017227	+	461	15890157	-	Atu4835	-	glucose-6-phosphate 1-dehydrogenase
1791	 57.23	0	2017260..2017937	+	225	15890156	-	Atu4836	-	hypothetical protein
1792	 55.20	-1	2018054..2018611	+	185	15890155	-	Atu4837	-	hypothetical protein
1793	 54.80	-1	2018638..2019168	+	176	15890154	-	Atu4838	-	outer membrane lipoprotein
1794	 59.51	0	2019188..2019886	+	232	15890153	csgA	Atu4839	-	C factor
1795	 54.90	-1	2020376..2020579	-	67	15890152	-	Atu4840	-	hypothetical protein
1796	 54.10	-1	2020610..2021341	-	243	15890151	deoR	Atu4841	-	DeoR family transcriptional regulator
1797	 57.12	0	2021679..2022725	+	348	159186341	-	Atu4842	-	ABC transporter, substrate binding protein (sugar)
1798	 58.13	0	2022797..2024296	+	499	159186342	-	Atu4843	-	ABC transporter, nucleotide binding/ATPase protein (sugar)
1799	 55.21	-1	2024310..2025287	+	325	15890148	rbsC	Atu4844	-	ABC transporter, membrane spanning protein (sugar)
1800	 57.76	0	2025302..2026300	+	332	159186343	ydeZ	Atu4845	-	ABC transporter, membrane spanning protein (sugar)
1801	 56.97	0	2026305..2027387	+	360	159186344	-	Atu4846	-	hypothetical protein
1802	 59.42	0	2027412..2028350	+	312	15890145	rbsk	Atu4847	-	ribokinase
1803	 61.88	0	2028370..2029329	+	319	159186345	deoC	Atu4848	-	2-deoxyribose-5-phosphate aldolase
1804	 59.10	0	2029371..2031737	+	788	159186346	-	Atu4849	-	NADP-dependent aldehyde dehydrogenase
1805	 63.00	+1	2032206..2032778	+	190	15890141	-	Atu4850	-	hypothetical protein
1806	 61.88	0	2033050..2033634	+	194	159186347	-	Atu4851	-	citrate synthase-like protein
1807	 41.44	-2	2033669..2034211	-	180	15890139	-	Atu4852	-	hypothetical protein
1808	 54.93	-1	2034379..2034966	-	195	159186348	-	Atu4853	-	hypothetical protein
1809	 56.37	0	2035584..2035787	+	67	15890137	-	Atu4854	-	hypothetical protein
1810	 60.19	0	2035809..2039609	-	1266	159186349	traA	Atu4855	-	conjugation protein
1811	 53.83	-1	2040246..2041172	+	308	159186350	-	Atu4856	-	nucleotidyltransferase
1812	 58.04	0	2041332..2041667	+	111	15890133	mobC	Atu4857	-	mobilization protein C
1813	 57.72	0	2041664..2043328	+	554	15890132	traG	Atu4858	-	virulence virD4-like protein
1814	 59.03	0	2043675..2044748	-	357	15890131	-	Atu4859	-	hypothetical protein
1815	 55.56	-1	2045216..2046151	+	311	159186351	-	Atu4860	-	hypothetical protein
1816	 59.68	0	2046717..2047475	-	252	15890129	istB	Atu4861	-	IS21 family transposase
1817	 62.06	0	2047472..2048968	-	498	15890128	istA	Atu4862	-	IS21 family transposase
59.48	MEAN

3.31	STD DEV
