IslandPath Analysis: Agrobacterium tumefaciens str. C58

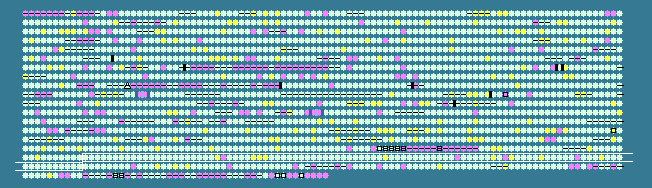

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 59.48   STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1611	 57.22	0	1807112..1808053	-	313	15890337	-	Atu4653	-	ABC transporter, membrane spanning protein (sugar)
1612	 58.37	0	1808071..1809336	-	421	15890336	-	Atu4654	-	ABC transporter, substrate binding protein (sugar)
1613	 62.92	+1	1809583..1810809	+	408	159186259	xylR	Atu4655	-	ROK family transcriptional regulator
1614	 61.96	0	1810829..1813231	+	800	159186260	-	Atu4656	-	hypothetical protein
1615	 59.32	0	1813228..1814139	+	303	15890333	-	Atu4657	-	hypothetical protein
1616	 56.74	0	1814149..1814682	-	177	159186261	-	Atu4658	-	hypothetical protein
1617	 59.68	0	1814687..1815574	-	295	15890331	agpT	Atu4659	-	AraC family transcriptional regulator
1618	 58.49	0	1815772..1817238	+	488	159186262	melA	Atu4660	-	alpha-galactosidase
1619	 59.00	0	1817343..1819430	+	695	159186263	agpA	Atu4661	-	ABC transporter, substrate binding protein (alpha-galactoside)
1620	 60.12	0	1819574..1820581	+	335	15890328	-	Atu4662	-	ABC transporter, membrane spanning protein (oligopeptide )
1621	 59.98	0	1820583..1821719	+	378	159186264	-	Atu4663	-	ABC transporter, membrane spanning protein (oligopeptide)
1622	 59.65	0	1821733..1823400	+	555	159186265	-	Atu4664	-	ABC transporter, nucleotide binding/ATPase protein (oligopeptide)
1623	 59.02	0	1823423..1824796	+	457	159186266	melA	Atu4665	-	alpha-galactosidase
1624	 61.03	0	1825088..1826152	+	354	15890324	-	Atu4666	-	HlyD family secretion protein
1625	 58.82	0	1826164..1828941	+	925	159186267	-	Atu4667	-	ABC transporter, nucleotide binding/ATPase protein
1626	 58.27	0	1828938..1830056	+	372	15890322	-	Atu4668	-	ABC transporter, membrane spanning protein
1627	 57.26	0	1830326..1830793	+	155	159186268	-	Atu4669	-	hypothetical protein
1628	 57.61	0	1831052..1831294	-	80	17938359	-	Atu4670	-	hypothetical protein
1629	 58.56	0	1831642..1832085	-	147	159186269	-	Atu4671	-	response regulator
1630	 62.51	0	1832465..1833427	+	320	15890319	ftsZ1	Atu4673	-	cell division protein FtsZ
1631	 59.51	0	1833717..1834415	+	232	159186270	-	Atu4674	-	GntR family transcriptional regulator
1632	 60.04	0	1834525..1835490	+	321	15890317	dapA	Atu4675	-	dihydrodipicolinate synthase
1633	 63.29	+1	1835558..1836595	-	345	159186271	-	Atu4676	-	putative malate dehydrogenase
1634	 46.36	-2	1836657..1836917	+	86	17938366	-	Atu4677	-	hypothetical protein
1635	 59.48	0	1836914..1837720	+	268	15890315	-	Atu4678	-	ABC transporter, substrate binding protein (amino acid)
1636	 57.36	0	1837793..1838458	+	221	15890314	-	Atu4679	-	ABC transporter, membrane spanning protein (amino acid)
1637	 61.77	0	1838471..1839124	+	217	15890313	-	Atu4680	-	ABC transporter, membrane spanning protein (amino acid)
1638	 58.37	0	1839117..1839839	+	240	15890312	-	Atu4681	-	ABC transporter, nucleotide binding/ATPase protein (amino acid)
1639	 63.53	+1	1839839..1841080	+	413	15890311	dadA	Atu4682	-	D-amino acid dehydrogenase, small subunit
1640	 64.04	+1	1841190..1842899	+	569	15890310	-	Atu4683	-	hypothetical protein
1641	 63.07	+1	1842910..1843938	+	342	15890309	-	Atu4684	-	hypothetical protein
1642	 59.98	0	1844086..1845072	-	328	159186272	-	Atu4685	-	LacI family transcription regulator
1643	 59.81	0	1845265..1845585	-	106	159186273	-	Atu4686	-	hypothetical protein
1644	 58.96	0	1845881..1846684	+	267	159186274	-	Atu4687	-	ABC transporter, substrate binding protein (amino acid)
1645	 57.59	0	1846751..1847455	+	234	15890305	-	Atu4688	-	ABC transporter, membrane spanning protein (amino acid)
1646	 58.18	0	1847452..1848111	+	219	15890304	-	Atu4689	-	ABC transporter, membrane spanning protein (amino acid)
1647	 60.39	0	1848155..1848823	+	222	159186275	-	Atu4690	-	ABC transporter, nucleotide binding/ATPase protein (amino acid)
1648	 62.71	0	1848847..1849782	+	311	15890302	-	Atu4691	-	2-hydroxyacid dehydrogenase
1649	 57.66	0	1850008..1852182	+	724	159186276	-	Atu4692	-	GGDEF family protein
1650	 57.30	0	1852650..1853717	+	355	15890300	-	Atu4693	-	outer membrane protein
1651	 59.55	0	1853909..1855426	-	505	15890299	-	Atu4694	-	chlorohydrolase
1652	 57.41	0	1855589..1857154	+	521	159186277	-	Atu4695	-	ABC transporter, substrate binding protein (oligopeptide)
1653	 58.72	0	1857372..1858340	+	322	159186278	-	Atu4696	-	ABC transporter, membrane spanning protein (oligopeptide)
1654	 60.86	0	1858359..1859306	+	315	15890296	-	Atu4697	-	ABC transporter, membrane spanning protein (oligopeptide)
1655	 61.64	0	1859312..1860505	+	397	159186279	-	Atu4698	-	cytosine deaminase
1656	 60.84	0	1860505..1861998	+	497	159186280	trzA	Atu4699	-	N-ethylammeline chlorohydrolase
1657	 62.15	0	1862000..1862974	+	324	159186281	-	Atu4700	-	ABC transporter, nucleotide binding/ATPase protein (oligopeptide)
1658	 61.39	0	1862971..1863993	+	340	159186282	-	Atu4701	-	ABC transporter, nucleotide binding/ATPase protein (oligopeptide)
1659	 58.70	0	1864002..1864679	-	225	15890291	-	Atu4702	-	GntR family transcriptional regulator
1660	 57.30	0	1864809..1865438	+	209	159186283	-	Atu4703	-	hypothetical protein
1661	 63.07	+1	1865460..1866182	+	240	159186284	huy	Atu4704	-	hydantoin racemase
1662	 57.90	0	1866284..1867207	+	307	15890288	-	Atu4705	-	LysR family transcriptional regulator
1663	 59.17	0	1867324..1867803	+	159	159186285	nuoE	Atu4706	-	formate dehydrogenase subunit gamma
1664	 61.34	0	1867800..1869356	+	518	15890286	nuoF	Atu4707	-	NADH ubiquinone oxidoreductase chain F
1665	 60.91	0	1869361..1872243	+	960	159186286	fdhF	Atu4708	-	formate dehydrogenase alpha subunit
1666	 61.16	0	1872318..1872662	+	114	15890284	fdsD	Atu4709	-	NAD-dependent formate dehydrogenase delta subunit
1667	 62.79	+1	1872778..1874430	+	550	159186287	-	Atu4710	-	MFS permease
1668	 60.85	0	1874533..1875891	-	452	159186288	-	Atu4711	-	two component sensor kinase
1669	 60.18	0	1875888..1876550	-	220	159186289	-	Atu4712	-	two component response regulator
1670	 61.05	0	1876684..1877253	+	189	15890280	-	Atu4713	-	hypothetical protein
1671	 61.93	0	1877357..1877863	-	168	15890279	-	Atu4714	-	hypothetical protein
1672	 58.62	0	1877860..1878207	-	115	15890278	-	Atu8199	-	hypothetical protein
1673	 55.56	-1	1878215..1878394	-	59	15890277	-	Atu8096	-	hypothetical protein
1674	 60.11	0	1878534..1880012	-	492	15890276	-	Atu4716	-	LuxR family transcriptional regulator
1675	 60.31	0	1880247..1881032	+	261	15890275	-	Atu4718	-	GntR family transcriptional regulator
1676	 58.38	0	1881113..1882621	+	502	15890274	dppA	Atu4719	-	ABC transporter, substrate binding protein (dipeptide)
1677	 58.23	0	1882689..1883636	+	315	159186290	dppB	Atu4720	-	ABC transporter, membrane spanning protein (dipeptide)
1678	 62.83	+1	1883713..1884519	+	268	159186291	dppC	Atu4721	-	ABC transporter, membrane spanning protein (dipeptide)
1679	 63.64	+1	1884541..1886325	+	594	15890271	ggt	Atu4722	-	gamma-glutamyltranspeptidase
1680	 59.60	0	1886330..1888141	+	603	159186292	-	Atu4723	-	ABC transporter, nucleotide binding/ATPase protein
1681	 53.92	-1	1888212..1888415	-	67	159186293	-	Atu4724	-	hypothetical protein
1682	 64.80	+1	1888598..1888918	+	106	15890268	-	Atu8200	-	hypothetical protein
1683	 60.92	0	1889112..1889807	+	231	159186294	sodBIII	Atu4726	-	superoxide dismutase
1684	 60.71	0	1889922..1890911	+	329	15890266	-	Atu4727	-	hypothetical protein
1685	 61.95	0	1891371..1893173	+	600	15890265	exsA	Atu4728	-	ABC transporter, nucleotide binding/ATPase protein
1686	 61.42	0	1893354..1894955	+	533	159186295	-	Atu4729	-	ABC transporter, nucleotide binding/ATPase protein
1687	 63.30	+1	1894949..1895899	-	316	15890262	-	Atu4730	-	hypothetical protein
1688	 60.60	0	1895896..1898334	-	812	15890261	-	Atu4731	-	fimbrial usher protein
1689	 61.79	0	1898306..1899022	-	238	15890260	-	Atu4732	-	fimbrial chaperone
1690	 61.24	0	1899044..1899541	-	165	159186296	-	Atu4733	-	hypothetical protein
1691	 58.82	0	1899905..1902694	+	929	159186297	acnB	Atu4734	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1692	 60.91	0	1903103..1905046	+	647	159186298	-	Atu4736	-	methyl-accepting chemotaxis protein
1693	 54.64	-1	1905245..1905427	+	60	15890256	-	Atu4737	-	hypothetical protein
1694	 60.32	0	1905632..1906261	+	209	15890255	cat	Atu4738	-	chloramphenicol acetyltransferase
1695	 60.23	0	1906315..1908117	-	600	159186299	-	Atu4739	-	flavin-containing monooxygenase
1696	 61.73	0	1908230..1909303	-	357	159186300	-	Atu4740	-	zinc-binding dehydrogenase
1697	 63.00	+1	1909460..1911343	-	627	15890252	acoR	Atu4741	-	transcriptional regulator
1698	 62.65	0	1911467..1911790	-	107	159186301	-	Atu4742	-	hypothetical protein
1699	 58.24	0	1911887..1912966	-	359	15890250	-	Atu4743	-	LacI family transcription regulator
1700	 60.70	0	1913329..1914183	+	284	159186302	-	Atu4744	-	ABC transporter, substrate binding protein (sugar)
1701	 59.15	0	1914301..1915791	+	496	159186303	-	Atu4745	-	ABC transporter, nucleotide binding/ATPase protein (sugar)
1702	 59.88	0	1915784..1916800	+	338	15890247	-	Atu4746	-	ABC transporter, membrane spanning protein (sugar)
1703	 61.55	0	1916797..1917792	+	331	15890246	-	Atu4747	-	ABC transporter, membrane spanning protein (sugar)
1704	 60.21	0	1917794..1918645	+	283	159186304	-	Atu4748	-	D-tagatose 3-epimerase
1705	 59.28	0	1918683..1919345	+	220	159186305	-	Atu4749	-	putative fructose transport system kinase
1706	 56.90	0	1919412..1920281	+	289	15890243	dpe	Atu4750	-	D-psicose 3-epimerase
1707	 56.73	0	1920431..1921426	+	331	159186306	-	Atu4751	-	hypothetical protein
1708	 56.67	0	1921454..1922233	-	259	15890241	-	Atu4752	-	ABC transporter, nucleotide binding/ATPase protein (amino acid)
1709	 58.59	0	1922230..1922922	-	230	15890240	-	Atu4753	-	ABC transporter, membrane spanning protein (amino acid)
1710	 58.86	0	1922935..1923600	-	221	15890239	-	Atu4754	-	ABC transporter, membrane spanning protein (amino acid)
59.48	MEAN

3.31	STD DEV
