IslandPath Analysis: Agrobacterium tumefaciens str. C58

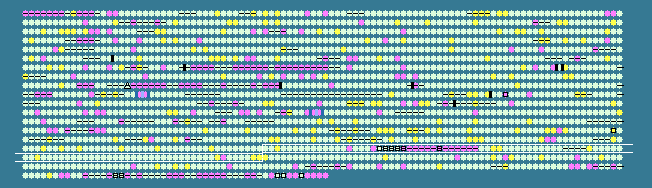

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 59.48   STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1541	 57.14	0	1731089..1731424	-	111	159186232	-	Atu4582	-	ferredoxin
1542	 59.33	0	1731529..1732128	-	199	159186233	sodBII	Atu4583	-	superoxide dismutase
1543	 63.51	+1	1732293..1732862	-	189	15890404	-	Atu4584	-	TetR family transcriptional regulator
1544	 57.01	0	1732909..1733436	+	175	15890403	-	Atu4585	-	hypothetical protein
1545	 56.37	0	1733522..1734589	-	355	15890402	-	Atu4586	-	choloylglycine hydrolase family protein
1546	 58.30	0	1734728..1735528	+	266	159186234	-	Atu4587	-	hypothetical protein
1547	 56.25	0	1735607..1736230	+	207	15890400	-	Atu4588	-	sodium bile acid symporter family protein
1548	 57.09	0	1736276..1736557	+	93	159186235	-	Atu4589	-	transmembrane transport protein
1549	 61.99	0	1736606..1737652	-	348	159186236	-	Atu4590	-	putative oxidoreductase
1550	 61.81	0	1737812..1738717	+	301	15890397	-	Atu4591	-	LysR family transcriptional regulator
1551	 59.87	0	1738816..1739610	-	264	159186237	-	Atu4592	-	hypothetical protein
1552	 56.54	0	1739625..1740473	-	282	15890395	hpaG	Atu4593	-	2-hydroxyhepta-2,4-diene-1, 7-dioate isomerase/5-carboxymethyl-2-oxo-hex-3-ene-1, 7-dioate decarboxylase
1553	 59.97	0	1740482..1741168	-	228	15890394	-	Atu4594	-	hypothetical protein
1554	 56.93	0	1741177..1741926	-	249	159186238	-	Atu4595	-	dehydrogenase
1555	 55.35	-1	1741987..1742976	-	329	15890392	-	Atu4596	-	hypothetical protein
1556	 56.59	0	1743009..1743812	-	267	15890391	-	Atu4597	-	ABC transporter, membrane spanning protein
1557	 58.64	0	1743946..1744755	+	269	15890390	-	Atu4598	-	ABC transporter, nucleotide binding/ATPase protein
1558	 62.91	+1	1744870..1745640	+	256	159186239	-	Atu4599	-	IclR family transcriptional regulator
1559	 53.68	-1	1745721..1747484	-	587	15890388	-	Atu4600	-	ABC transporter, nucleotide binding/ATPase protein
1560	 60.27	0	1747960..1748787	-	275	15890387	-	Atu4601	-	IS426 transposase
1561	 56.92	0	1748784..1749173	-	129	159186240	-	Atu4602	-	IS426 transposase
1562	 58.58	0	1749248..1749556	+	102	15890385	-	Atu4603	-	IS3 family transposase
1563	 60.65	0	1749572..1750501	-	309	15890384	-	Atu4604	-	IS3 family transposase
1564	 55.06	-1	1750495..1750761	-	88	15890383	-	Atu4605	-	IS3 family transposase
1565	 42.52	-2	1751061..1752671	-	536	159186241	-	Atu4606	-	hypothetical protein
1566	 52.01	-2	1752982..1754100	-	372	15890381	nodX	Atu4607	-	sugar acetylase
1567	 52.48	-2	1754100..1755953	-	617	15890380	-	Atu4608	-	hypothetical protein
1568	 51.47	-2	1755953..1756873	-	306	15890379	-	Atu4609	-	glycosyltransferase
1569	 53.30	-1	1756928..1758004	-	358	15890378	-	Atu4610	-	sugar nucleotide epimerase/dehydratase
1570	 53.99	-1	1758309..1758584	-	91	17938300	tnp	Atu4611	-	transposase
1571	 47.76	-2	1758821..1761184	-	787	15890377	-	Atu4613	-	glycosyltransferase
1572	 49.43	-2	1761339..1762220	-	293	15890376	wbbL	Atu4614	-	glycosyltransferase
1573	 54.44	-1	1762307..1763173	-	288	159186242	rfbA	Atu4615	-	glucose-1-phosphate thymidylyltransferase
1574	 54.14	-1	1763170..1764063	-	297	15890374	rfbD	Atu4616	-	dTDP-4-dehydrorhamnose reductase
1575	 55.30	-1	1764068..1765123	-	351	159186243	rffB	Atu4617	-	dTDP-D-glucose-4,6-dehydratase
1576	 55.09	-1	1765126..1765695	-	189	15890372	rfbC	Atu4618	-	dTDP-rhamnose-3,5-epimerase
1577	 60.76	0	1765840..1767906	-	688	159186244	uvrD	Atu4619	-	ATP-dependent DNA helicase
1578	 62.47	0	1768173..1768910	-	245	15890370	dppF	Atu4620	-	ABC transporter, nucleotide binding/ATPase protein (dipeptide)
1579	 63.24	+1	1768907..1769752	-	281	159186245	dppD	Atu4621	-	ABC transporter, nucleotide binding/ATPase protein (dipeptide)
1580	 64.11	+1	1769739..1770638	-	299	15890368	dppC	Atu4622	-	ABC transporter, membrane spanning protein (dipeptide)
1581	 58.89	0	1770635..1771663	-	342	15890367	dppB	Atu4623	-	ABC transporter, membrane spanning protein (dipeptide)
1582	 59.52	0	1771870..1772583	+	237	15890366	-	Atu4624	-	GntR family transcriptional regulator
1583	 57.90	0	1772650..1773630	+	326	15890365	uxuA	Atu4625	-	mannonate dehydratase
1584	 58.10	0	1773708..1775294	+	528	159186246	-	Atu4626	-	ABC transporter, substrate binding protein (oligopeptide)
1585	 59.98	0	1775884..1776690	+	268	159186247	-	Atu4627	-	hypothetical protein
1586	 61.11	0	1776878..1779217	+	779	159186248	-	Atu4628	-	GGDEF family protein
1587	 58.72	0	1779420..1780313	+	297	159186249	-	Atu4629	-	oxidoreductase
1588	 58.68	0	1780356..1780643	+	95	17938319	-	Atu4630	-	hypothetical protein
1589	 56.35	0	1780640..1781473	+	277	159186250	-	Atu4631	-	hypothetical protein
1590	 59.97	0	1781477..1783792	+	771	15890358	-	Atu4632	-	ATP-dependent DNA ligase
1591	 59.18	0	1783743..1784330	-	195	15890357	pit*	Atu4633	-	phosphate permease (N-terminal)
1592	 57.36	0	1784330..1784974	-	214	15890356	-	Atu4634	-	hypothetical protein
1593	 60.56	0	1785088..1785627	+	179	159186251	-	Atu4635	-	hypothetical protein
1594	 61.39	0	1785648..1788794	-	1048	15890354	-	Atu4636	-	AcrB/AcrD/AcrF family protein
1595	 64.25	+1	1788796..1789953	-	385	159186252	nolF	Atu4637	-	nolF secretion protein
1596	 61.63	0	1790133..1790807	+	224	15890352	-	Atu4638	-	two component response regulator
1597	 60.45	0	1790804..1792138	+	444	15890351	-	Atu4639	-	two component sensor kinase
1598	 62.13	0	1792174..1793121	+	315	159186253	-	Atu4640	-	hypothetical protein
1599	 62.71	0	1793183..1794091	-	302	15890349	oxyR	Atu4641	-	LysR family transcriptional regulator
1600	 61.65	0	1794300..1796471	+	723	159186254	katA	Atu4642	-	catalase
1601	 58.19	0	1796568..1796744	-	58	159186255	-	Atu4643	-	hypothetical protein
1602	 58.16	0	1796867..1797736	-	289	15890346	-	Atu4644	-	AraC family transcriptional regulator
1603	 64.39	+1	1797860..1799311	+	483	15890345	vdh	Atu4645	-	vanillin: NAD oxidoreductase
1604	 61.20	0	1799338..1800234	-	298	15890344	-	Atu4646	-	LysR family transcriptional regulator
1605	 60.27	0	1800329..1801282	+	317	159186256	-	Atu4647	-	hypothetical protein
1606	 60.38	0	1801297..1802808	+	503	15890342	betC	Atu4648	-	choline sulfatase
1607	 60.85	0	1802824..1803717	-	297	159186257	-	Atu4649	-	carbohydrate kinase
1608	 59.27	0	1803714..1804754	-	346	15890340	-	Atu4650	-	ABC transporter, nucleotide binding/ATPase protein (sugar)
1609	 59.66	0	1804754..1806124	-	456	159186258	argH	Atu4651	-	argininosuccinate lyase
1610	 58.48	0	1806273..1807115	-	280	15890338	-	Atu4652	-	ABC transporter, membrane spanning protein (sugar)
1611	 57.22	0	1807112..1808053	-	313	15890337	-	Atu4653	-	ABC transporter, membrane spanning protein (sugar)
1612	 58.37	0	1808071..1809336	-	421	15890336	-	Atu4654	-	ABC transporter, substrate binding protein (sugar)
1613	 62.92	+1	1809583..1810809	+	408	159186259	xylR	Atu4655	-	ROK family transcriptional regulator
1614	 61.96	0	1810829..1813231	+	800	159186260	-	Atu4656	-	hypothetical protein
1615	 59.32	0	1813228..1814139	+	303	15890333	-	Atu4657	-	hypothetical protein
1616	 56.74	0	1814149..1814682	-	177	159186261	-	Atu4658	-	hypothetical protein
1617	 59.68	0	1814687..1815574	-	295	15890331	agpT	Atu4659	-	AraC family transcriptional regulator
1618	 58.49	0	1815772..1817238	+	488	159186262	melA	Atu4660	-	alpha-galactosidase
1619	 59.00	0	1817343..1819430	+	695	159186263	agpA	Atu4661	-	ABC transporter, substrate binding protein (alpha-galactoside)
1620	 60.12	0	1819574..1820581	+	335	15890328	-	Atu4662	-	ABC transporter, membrane spanning protein (oligopeptide )
1621	 59.98	0	1820583..1821719	+	378	159186264	-	Atu4663	-	ABC transporter, membrane spanning protein (oligopeptide)
1622	 59.65	0	1821733..1823400	+	555	159186265	-	Atu4664	-	ABC transporter, nucleotide binding/ATPase protein (oligopeptide)
1623	 59.02	0	1823423..1824796	+	457	159186266	melA	Atu4665	-	alpha-galactosidase
1624	 61.03	0	1825088..1826152	+	354	15890324	-	Atu4666	-	HlyD family secretion protein
1625	 58.82	0	1826164..1828941	+	925	159186267	-	Atu4667	-	ABC transporter, nucleotide binding/ATPase protein
1626	 58.27	0	1828938..1830056	+	372	15890322	-	Atu4668	-	ABC transporter, membrane spanning protein
1627	 57.26	0	1830326..1830793	+	155	159186268	-	Atu4669	-	hypothetical protein
1628	 57.61	0	1831052..1831294	-	80	17938359	-	Atu4670	-	hypothetical protein
1629	 58.56	0	1831642..1832085	-	147	159186269	-	Atu4671	-	response regulator
1630	 62.51	0	1832465..1833427	+	320	15890319	ftsZ1	Atu4673	-	cell division protein FtsZ
1631	 59.51	0	1833717..1834415	+	232	159186270	-	Atu4674	-	GntR family transcriptional regulator
1632	 60.04	0	1834525..1835490	+	321	15890317	dapA	Atu4675	-	dihydrodipicolinate synthase
1633	 63.29	+1	1835558..1836595	-	345	159186271	-	Atu4676	-	putative malate dehydrogenase
1634	 46.36	-2	1836657..1836917	+	86	17938366	-	Atu4677	-	hypothetical protein
1635	 59.48	0	1836914..1837720	+	268	15890315	-	Atu4678	-	ABC transporter, substrate binding protein (amino acid)
1636	 57.36	0	1837793..1838458	+	221	15890314	-	Atu4679	-	ABC transporter, membrane spanning protein (amino acid)
1637	 61.77	0	1838471..1839124	+	217	15890313	-	Atu4680	-	ABC transporter, membrane spanning protein (amino acid)
1638	 58.37	0	1839117..1839839	+	240	15890312	-	Atu4681	-	ABC transporter, nucleotide binding/ATPase protein (amino acid)
1639	 63.53	+1	1839839..1841080	+	413	15890311	dadA	Atu4682	-	D-amino acid dehydrogenase, small subunit
1640	 64.04	+1	1841190..1842899	+	569	15890310	-	Atu4683	-	hypothetical protein
59.48	MEAN

3.31	STD DEV
