IslandPath Analysis: Agrobacterium tumefaciens str. C58

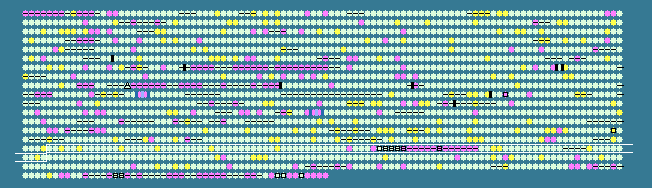

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.48 STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1505	 60.10	0	1689531..1690703	-	390	159186210	pobA	Atu4544	-	4-hydroxybenzoate 3-monooxygenase
1506	 60.93	0	1690822..1691745	+	307	159186211	pobR	Atu4545	-	AraC family transcriptional regulator
1507	 63.12	+1	1691715..1692476	-	253	159186212	pcaR	Atu4546	-	IclR family transcriptional regulator
1508	 60.59	0	1692615..1693322	+	235	15890439	pcaI	Atu4547	-	3-oxoadipate CoA-transferase subunit A
1509	 61.93	0	1693319..1694014	+	231	15890438	pcaJ	Atu4548	-	3-oxoadipate CoA-transferase subunit B
1510	 65.26	+1	1694025..1695230	+	401	159186213	pcaF	Atu4549	-	beta-ketoadipyl CoA thiolase
1511	 62.49	0	1695677..1696705	+	342	159186214	-	Atu4550	-	LacI family transcription regulator
1512	 59.98	0	1696990..1697931	+	313	159186215	-	Atu4551	-	ABC transporter, substrate binding protein
1513	 57.47	0	1698068..1698991	+	307	15890434	-	Atu4552	-	ABC transporter, substrate binding protein
1514	 59.20	0	1699041..1699937	+	298	15890433	iolH	Atu4553	-	myo-inositol catabolism protein
1515	 62.71	0	1699948..1700958	+	336	159186216	iolG	Atu4554	-	myo-inositol 2-dehydrogenase
1516	 61.96	0	1700967..1701752	+	261	159186217	-	Atu4555	-	hypothetical protein
1517	 63.94	+1	1701944..1703005	+	353	15890430	purR	Atu4556	-	LacI family transcription regulator
1518	 60.26	0	1703015..1703794	-	259	159186218	-	Atu4557	-	ABC transporter, membrane spanning protein (sugar)
1519	 59.64	0	1704067..1705062	-	331	159186219	-	Atu4558	-	ABC transporter, membrane spanning protein (sugar)
1520	 61.41	0	1705064..1706167	-	367	159186220	-	Atu4559	-	ABC transporter, nucleotide binding/ATPase protein (sugar)
1521	 62.26	0	1706167..1707528	-	453	15890426	-	Atu4560	-	polygalacturonase
1522	 61.28	0	1707525..1708619	-	364	159186221	-	Atu4561	-	hypothetical protein
1523	 64.01	+1	1708633..1711155	-	840	15890424	-	Atu4562	-	hypothetical protein
1524	 58.86	0	1711350..1712630	+	426	159186222	-	Atu4564	-	ABC transporter, substrate binding protein (sugar)
1525	 61.27	0	1712863..1714845	+	660	15890422	-	Atu4566	-	serine protease
1526	 60.40	0	1714939..1716087	-	382	159186223	-	Atu4567	-	ROK family transcriptional regulator
1527	 57.80	0	1716233..1717462	+	409	15890420	-	Atu4568	-	ABC transporter, substrate binding protein
1528	 62.34	0	1717549..1718589	+	346	15890419	-	Atu4569	-	ABC transporter, nucleotide binding/ATPase protein
1529	 59.30	0	1718589..1719443	+	284	159186224	-	Atu4570	-	ABC transporter, membrane spanning protein
1530	 60.65	0	1719443..1720306	+	287	159186225	-	Atu4571	-	ABC transporter, membrane spanning protein
1531	 61.87	0	1720353..1721249	+	298	159186226	-	Atu4572	-	hypothetical protein
1532	 63.74	+1	1721246..1722031	+	261	159186227	-	Atu4573	-	inositol monophosphatase family protein
1533	 60.00	0	1722094..1722843	-	249	15890414	-	Atu4574	-	dehydrogenase
1534	 59.63	0	1722898..1723863	+	321	15890413	-	Atu4575	-	AraC family transcriptional regulator
1535	 56.52	0	1723997..1725070	-	357	159186228	-	Atu4576	-	ROK family transcriptional regulator
1536	 58.71	0	1725414..1726406	+	330	159186229	-	Atu4577	-	ABC transporter, substrate binding protein
1537	 56.26	0	1726518..1727603	+	361	159186230	-	Atu4578	-	ABC transporter, nucleotide binding/ATPase protein
1538	 57.18	0	1727600..1729285	+	561	15890409	-	Atu4579	-	ABC transporter, membrane spanning protein
1539	 56.01	-1	1729367..1730323	+	318	15890408	-	Atu4580	-	hypothetical protein
1540	 62.90	+1	1730514..1731044	-	176	159186231	-	Atu4581	-	hypothetical protein
1541	 57.14	0	1731089..1731424	-	111	159186232	-	Atu4582	-	ferredoxin
1542	 59.33	0	1731529..1732128	-	199	159186233	sodBII	Atu4583	-	superoxide dismutase
1543	 63.51	+1	1732293..1732862	-	189	15890404	-	Atu4584	-	TetR family transcriptional regulator
1544	 57.01	0	1732909..1733436	+	175	15890403	-	Atu4585	-	hypothetical protein
1545	 56.37	0	1733522..1734589	-	355	15890402	-	Atu4586	-	choloylglycine hydrolase family protein
1546	 58.30	0	1734728..1735528	+	266	159186234	-	Atu4587	-	hypothetical protein
1547	 56.25	0	1735607..1736230	+	207	15890400	-	Atu4588	-	sodium bile acid symporter family protein
1548	 57.09	0	1736276..1736557	+	93	159186235	-	Atu4589	-	transmembrane transport protein
1549	 61.99	0	1736606..1737652	-	348	159186236	-	Atu4590	-	putative oxidoreductase
1550	 61.81	0	1737812..1738717	+	301	15890397	-	Atu4591	-	LysR family transcriptional regulator
1551	 59.87	0	1738816..1739610	-	264	159186237	-	Atu4592	-	hypothetical protein
1552	 56.54	0	1739625..1740473	-	282	15890395	hpaG	Atu4593	-	2-hydroxyhepta-2,4-diene-1, 7-dioate isomerase/5-carboxymethyl-2-oxo-hex-3-ene-1, 7-dioate decarboxylase
1553	 59.97	0	1740482..1741168	-	228	15890394	-	Atu4594	-	hypothetical protein
1554	 56.93	0	1741177..1741926	-	249	159186238	-	Atu4595	-	dehydrogenase
1555	 55.35	-1	1741987..1742976	-	329	15890392	-	Atu4596	-	hypothetical protein
1556	 56.59	0	1743009..1743812	-	267	15890391	-	Atu4597	-	ABC transporter, membrane spanning protein
1557	 58.64	0	1743946..1744755	+	269	15890390	-	Atu4598	-	ABC transporter, nucleotide binding/ATPase protein
1558	 62.91	+1	1744870..1745640	+	256	159186239	-	Atu4599	-	IclR family transcriptional regulator
1559	 53.68	-1	1745721..1747484	-	587	15890388	-	Atu4600	-	ABC transporter, nucleotide binding/ATPase protein
1560	 60.27	0	1747960..1748787	-	275	15890387	-	Atu4601	-	IS426 transposase
1561	 56.92	0	1748784..1749173	-	129	159186240	-	Atu4602	-	IS426 transposase
1562	 58.58	0	1749248..1749556	+	102	15890385	-	Atu4603	-	IS3 family transposase
1563	 60.65	0	1749572..1750501	-	309	15890384	-	Atu4604	-	IS3 family transposase
1564	 55.06	-1	1750495..1750761	-	88	15890383	-	Atu4605	-	IS3 family transposase
1565	 42.52	-2	1751061..1752671	-	536	159186241	-	Atu4606	-	hypothetical protein
1566	 52.01	-2	1752982..1754100	-	372	15890381	nodX	Atu4607	-	sugar acetylase
1567	 52.48	-2	1754100..1755953	-	617	15890380	-	Atu4608	-	hypothetical protein
1568	 51.47	-2	1755953..1756873	-	306	15890379	-	Atu4609	-	glycosyltransferase
1569	 53.30	-1	1756928..1758004	-	358	15890378	-	Atu4610	-	sugar nucleotide epimerase/dehydratase
1570	 53.99	-1	1758309..1758584	-	91	17938300	tnp	Atu4611	-	transposase
1571	 47.76	-2	1758821..1761184	-	787	15890377	-	Atu4613	-	glycosyltransferase
1572	 49.43	-2	1761339..1762220	-	293	15890376	wbbL	Atu4614	-	glycosyltransferase
1573	 54.44	-1	1762307..1763173	-	288	159186242	rfbA	Atu4615	-	glucose-1-phosphate thymidylyltransferase
1574	 54.14	-1	1763170..1764063	-	297	15890374	rfbD	Atu4616	-	dTDP-4-dehydrorhamnose reductase
1575	 55.30	-1	1764068..1765123	-	351	159186243	rffB	Atu4617	-	dTDP-D-glucose-4,6-dehydratase
1576	 55.09	-1	1765126..1765695	-	189	15890372	rfbC	Atu4618	-	dTDP-rhamnose-3,5-epimerase
1577	 60.76	0	1765840..1767906	-	688	159186244	uvrD	Atu4619	-	ATP-dependent DNA helicase
1578	 62.47	0	1768173..1768910	-	245	15890370	dppF	Atu4620	-	ABC transporter, nucleotide binding/ATPase protein (dipeptide)
1579	 63.24	+1	1768907..1769752	-	281	159186245	dppD	Atu4621	-	ABC transporter, nucleotide binding/ATPase protein (dipeptide)
1580	 64.11	+1	1769739..1770638	-	299	15890368	dppC	Atu4622	-	ABC transporter, membrane spanning protein (dipeptide)
1581	 58.89	0	1770635..1771663	-	342	15890367	dppB	Atu4623	-	ABC transporter, membrane spanning protein (dipeptide)
1582	 59.52	0	1771870..1772583	+	237	15890366	-	Atu4624	-	GntR family transcriptional regulator
1583	 57.90	0	1772650..1773630	+	326	15890365	uxuA	Atu4625	-	mannonate dehydratase
1584	 58.10	0	1773708..1775294	+	528	159186246	-	Atu4626	-	ABC transporter, substrate binding protein (oligopeptide)
1585	 59.98	0	1775884..1776690	+	268	159186247	-	Atu4627	-	hypothetical protein
1586	 61.11	0	1776878..1779217	+	779	159186248	-	Atu4628	-	GGDEF family protein
1587	 58.72	0	1779420..1780313	+	297	159186249	-	Atu4629	-	oxidoreductase
1588	 58.68	0	1780356..1780643	+	95	17938319	-	Atu4630	-	hypothetical protein
1589	 56.35	0	1780640..1781473	+	277	159186250	-	Atu4631	-	hypothetical protein
1590	 59.97	0	1781477..1783792	+	771	15890358	-	Atu4632	-	ATP-dependent DNA ligase
1591	 59.18	0	1783743..1784330	-	195	15890357	pit*	Atu4633	-	phosphate permease (N-terminal)
1592	 57.36	0	1784330..1784974	-	214	15890356	-	Atu4634	-	hypothetical protein
1593	 60.56	0	1785088..1785627	+	179	159186251	-	Atu4635	-	hypothetical protein
1594	 61.39	0	1785648..1788794	-	1048	15890354	-	Atu4636	-	AcrB/AcrD/AcrF family protein
1595	 64.25	+1	1788796..1789953	-	385	159186252	nolF	Atu4637	-	nolF secretion protein
1596	 61.63	0	1790133..1790807	+	224	15890352	-	Atu4638	-	two component response regulator
1597	 60.45	0	1790804..1792138	+	444	15890351	-	Atu4639	-	two component sensor kinase
1598	 62.13	0	1792174..1793121	+	315	159186253	-	Atu4640	-	hypothetical protein
1599	 62.71	0	1793183..1794091	-	302	15890349	oxyR	Atu4641	-	LysR family transcriptional regulator
1600	 61.65	0	1794300..1796471	+	723	159186254	katA	Atu4642	-	catalase
1601	 58.19	0	1796568..1796744	-	58	159186255	-	Atu4643	-	hypothetical protein
1602	 58.16	0	1796867..1797736	-	289	15890346	-	Atu4644	-	AraC family transcriptional regulator
1603	 64.39	+1	1797860..1799311	+	483	15890345	vdh	Atu4645	-	vanillin: NAD oxidoreductase
1604	 61.20	0	1799338..1800234	-	298	15890344	-	Atu4646	-	LysR family transcriptional regulator
59.48	MEAN

3.31	STD DEV
