IslandPath Analysis: Agrobacterium tumefaciens str. C58

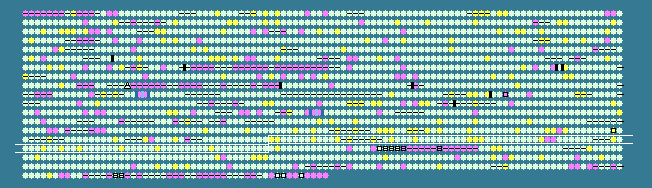

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.48 STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1442	 65.49	+1	1625848..1626870	+	340	15890504	-	Atu4481	-	LacI family transcription regulator
1443	 63.37	+1	1626918..1628372	+	484	159186181	xylB	Atu4482	-	xylulokinase
1444	 58.81	0	1628616..1629926	+	436	159186182	xylA	Atu4483	-	xylose isomerase
1445	 62.35	0	1629917..1630402	-	161	159186183	-	Atu4484	-	hypothetical protein
1446	 59.93	0	1630604..1631983	+	459	159186184	bgl	Atu4485	-	beta-glucosidase
1447	 59.37	0	1632276..1632905	+	209	159186185	-	Atu4486	-	nitroreductase
1448	 62.06	0	1633274..1634314	+	346	159186186	-	Atu4487	-	ABC transporter, nucleotide binding/ATPase protein
1449	 63.83	+1	1634304..1634972	+	222	15890497	-	Atu4488	-	ABC transporter, membrane spanning protein
1450	 59.23	0	1635024..1635803	+	259	15890496	-	Atu4489	-	outer membrane lipoprotein
1451	 62.63	0	1636040..1638244	+	734	159186187	-	Atu4490	-	GGDEF family protein
1452	 61.59	0	1638468..1639412	-	314	159186188	-	Atu4491	-	hypothetical protein
1453	 63.59	+1	1639697..1640605	-	302	159186189	-	Atu4492	-	hypothetical protein
1454	 57.87	0	1640589..1641077	-	162	15890492	-	Atu4493	-	hypothetical protein
1455	 65.88	+1	1641249..1641887	+	212	159186190	kdgA	Atu4494	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1456	 62.50	0	1642010..1642705	+	231	159186191	-	Atu4495	-	hypothetical protein
1457	 57.43	0	1642963..1643655	+	230	159186192	-	Atu4496	-	acetyltransferase
1458	 62.60	0	1643642..1643887	+	81	15890488	-	Atu4497	-	hypothetical protein
1459	 64.38	+1	1643968..1645017	-	349	15890487	-	Atu4498	-	hypothetical protein
1460	 56.25	0	1645011..1645778	-	255	159186193	-	Atu4499	-	hypothetical protein
1461	 62.37	0	1645850..1647082	+	410	15890485	setA	Atu4500	-	MFS permease
1462	 63.54	+1	1647295..1648287	-	330	15890484	-	Atu4501	-	hypothetical protein
1463	 60.82	0	1648772..1649899	-	375	15890483	cobW	Atu4502	-	cobalamin synthesis protein
1464	 59.55	0	1650015..1650815	-	266	15890482	-	Atu4503	-	creatinine amidohydrolase
1465	 57.84	0	1650895..1651404	+	169	159186194	-	Atu4504	-	MarR family transcriptional regulator
1466	 63.05	+1	1651537..1652559	+	340	159186195	pckR	Atu4505	-	LacI family transcription regulator
1467	 56.14	-1	1652752..1652979	+	75	15890479	-	Atu4506	-	hypothetical protein
1468	 61.79	0	1653012..1653974	+	320	15890478	-	Atu4507	-	dehydrogenase
1469	 62.68	0	1654109..1655236	-	375	15890477	-	Atu4508	-	oxoreductase
1470	 60.39	0	1655460..1656272	-	270	15890476	iolB	Atu4509	-	hypothetical protein
1471	 61.61	0	1656372..1657280	-	302	15890475	iolE	Atu4510	-	hypothetical protein
1472	 61.58	0	1657282..1659108	-	608	15890474	iolD	Atu4511	-	acetolactate synthase
1473	 61.44	0	1659105..1660940	-	611	159186196	iolC	Atu4512	-	myo-inositol catabolism IolC protein
1474	 60.54	0	1661227..1662042	-	271	159186197	-	Atu4514	-	RpiR family transcriptional regulator
1475	 63.46	+1	1662144..1662860	-	238	159186198	livF	Atu4515	-	ABC transporter, nucleotide binding/ATPase protein (branched chain amino acid)
1476	 63.01	+1	1662841..1663605	-	254	15890470	livG	Atu4516	-	ABC transporter, nucleotide binding/ATPase protein (branched chain amino acid)
1477	 63.19	+1	1663602..1664609	-	335	15890469	livM	Atu4517	-	ABC transporter, membrane spanning protein (branched chain amino acid)
1478	 62.27	0	1664611..1665474	-	287	159186199	livH	Atu4518	-	ABC transporter, membrane spanning protein (branched chain amino acid)
1479	 59.16	0	1665565..1666737	-	390	159186200	livJ	Atu4519	-	ABC transporter, substrate binding protein (branched amino acid)
1480	 57.60	0	1667077..1667451	+	124	159186377	-	Atu8198	-	hypothetical protein
1481	 58.55	0	1667535..1668359	-	274	15890465	-	Atu4521	-	AraC family transcriptional regulator
1482	 61.71	0	1668480..1670213	-	577	15890464	-	Atu4522	-	hypothetical protein
1483	 61.96	0	1670219..1671067	-	282	159186201	-	Atu4523	-	ABC transporter, membrane spanning protein (oligopeptide)
1484	 61.51	0	1671074..1671868	-	264	159186202	-	Atu4524	-	ABC transporter, membrane spanning protein (oligopeptide)
1485	 59.24	0	1672088..1673623	-	511	15890461	-	Atu4525	-	ABC transporter, substrate binding protein (oligopeptide)
1486	 60.68	0	1673665..1675485	-	606	15890460	-	Atu4526	-	ABC transporter, nucleotide binding/ATPase protein
1487	 64.81	+1	1675567..1675728	+	53	17938216	-	Atu4527	-	hypothetical protein
1488	 42.95	-2	1675753..1675908	+	51	15890459	-	Atu8041	-	hypothetical protein
1489	 55.78	-1	1676076..1676378	+	100	15890458	-	Atu4528	-	hypothetical protein
1490	 61.41	0	1676442..1678343	-	633	159186203	-	Atu4529	-	hypothetical protein
1491	 57.43	0	1678465..1679157	+	230	159186204	-	Atu4530	-	TetR family transcriptional regulator
1492	 58.56	0	1679132..1679575	-	147	159186205	aroQ	Atu4531	-	3-dehydroquinate dehydratase
1493	 62.53	0	1679572..1680441	-	289	15890454	aroE	Atu4532	-	shikimate 5-dehydrogenase
1494	 60.89	0	1680513..1681274	-	253	159186206	-	Atu4533	-	ABC transporter, nucleotide binding/ATPase protein (amino acid)
1495	 60.57	0	1681305..1682141	-	278	15890452	-	Atu4534	-	ABC transporter, substrate binding protein (amino acid)
1496	 58.57	0	1682178..1683017	-	279	159186207	-	Atu4535	-	ABC transporter, substrate binding protein (amino acid)
1497	 62.52	0	1683061..1683711	-	216	15890450	-	Atu4536	-	ABC transporter, membrane spanning protein (amino acid)
1498	 59.19	0	1683722..1684390	-	222	159186208	-	Atu4537	-	ABC transporter, membrane spanning protein (amino acid)
1499	 63.56	+1	1684759..1685820	-	353	15890448	pcaB	Atu4538	-	3-carboxy-cis,cis-muconate cycloisomerase
1500	 59.58	0	1685833..1686453	-	206	15890447	pcaG	Atu4539	-	protocatechuate 3,4-dioxygenase alpha chain
1501	 60.46	0	1686456..1687196	-	246	15890446	pcaH	Atu4540	-	protocatechuate 3,4-dioxygenase beta chain
1502	 61.38	0	1687193..1687627	-	144	15890445	pcaC	Atu4541	-	carboxymuconolactone decarboxylase
1503	 60.78	0	1687631..1688428	-	265	15890444	pcaD	Atu4542	-	beta-ketoadipate enol-lactone hydrolase
1504	 63.89	+1	1688524..1689459	+	311	159186209	pcaQ	Atu4543	-	LysR family transcriptional regulator
1505	 60.10	0	1689531..1690703	-	390	159186210	pobA	Atu4544	-	4-hydroxybenzoate 3-monooxygenase
1506	 60.93	0	1690822..1691745	+	307	159186211	pobR	Atu4545	-	AraC family transcriptional regulator
1507	 63.12	+1	1691715..1692476	-	253	159186212	pcaR	Atu4546	-	IclR family transcriptional regulator
1508	 60.59	0	1692615..1693322	+	235	15890439	pcaI	Atu4547	-	3-oxoadipate CoA-transferase subunit A
1509	 61.93	0	1693319..1694014	+	231	15890438	pcaJ	Atu4548	-	3-oxoadipate CoA-transferase subunit B
1510	 65.26	+1	1694025..1695230	+	401	159186213	pcaF	Atu4549	-	beta-ketoadipyl CoA thiolase
1511	 62.49	0	1695677..1696705	+	342	159186214	-	Atu4550	-	LacI family transcription regulator
1512	 59.98	0	1696990..1697931	+	313	159186215	-	Atu4551	-	ABC transporter, substrate binding protein
1513	 57.47	0	1698068..1698991	+	307	15890434	-	Atu4552	-	ABC transporter, substrate binding protein
1514	 59.20	0	1699041..1699937	+	298	15890433	iolH	Atu4553	-	myo-inositol catabolism protein
1515	 62.71	0	1699948..1700958	+	336	159186216	iolG	Atu4554	-	myo-inositol 2-dehydrogenase
1516	 61.96	0	1700967..1701752	+	261	159186217	-	Atu4555	-	hypothetical protein
1517	 63.94	+1	1701944..1703005	+	353	15890430	purR	Atu4556	-	LacI family transcription regulator
1518	 60.26	0	1703015..1703794	-	259	159186218	-	Atu4557	-	ABC transporter, membrane spanning protein (sugar)
1519	 59.64	0	1704067..1705062	-	331	159186219	-	Atu4558	-	ABC transporter, membrane spanning protein (sugar)
1520	 61.41	0	1705064..1706167	-	367	159186220	-	Atu4559	-	ABC transporter, nucleotide binding/ATPase protein (sugar)
1521	 62.26	0	1706167..1707528	-	453	15890426	-	Atu4560	-	polygalacturonase
1522	 61.28	0	1707525..1708619	-	364	159186221	-	Atu4561	-	hypothetical protein
1523	 64.01	+1	1708633..1711155	-	840	15890424	-	Atu4562	-	hypothetical protein
1524	 58.86	0	1711350..1712630	+	426	159186222	-	Atu4564	-	ABC transporter, substrate binding protein (sugar)
1525	 61.27	0	1712863..1714845	+	660	15890422	-	Atu4566	-	serine protease
1526	 60.40	0	1714939..1716087	-	382	159186223	-	Atu4567	-	ROK family transcriptional regulator
1527	 57.80	0	1716233..1717462	+	409	15890420	-	Atu4568	-	ABC transporter, substrate binding protein
1528	 62.34	0	1717549..1718589	+	346	15890419	-	Atu4569	-	ABC transporter, nucleotide binding/ATPase protein
1529	 59.30	0	1718589..1719443	+	284	159186224	-	Atu4570	-	ABC transporter, membrane spanning protein
1530	 60.65	0	1719443..1720306	+	287	159186225	-	Atu4571	-	ABC transporter, membrane spanning protein
1531	 61.87	0	1720353..1721249	+	298	159186226	-	Atu4572	-	hypothetical protein
1532	 63.74	+1	1721246..1722031	+	261	159186227	-	Atu4573	-	inositol monophosphatase family protein
1533	 60.00	0	1722094..1722843	-	249	15890414	-	Atu4574	-	dehydrogenase
1534	 59.63	0	1722898..1723863	+	321	15890413	-	Atu4575	-	AraC family transcriptional regulator
1535	 56.52	0	1723997..1725070	-	357	159186228	-	Atu4576	-	ROK family transcriptional regulator
1536	 58.71	0	1725414..1726406	+	330	159186229	-	Atu4577	-	ABC transporter, substrate binding protein
1537	 56.26	0	1726518..1727603	+	361	159186230	-	Atu4578	-	ABC transporter, nucleotide binding/ATPase protein
1538	 57.18	0	1727600..1729285	+	561	15890409	-	Atu4579	-	ABC transporter, membrane spanning protein
1539	 56.01	-1	1729367..1730323	+	318	15890408	-	Atu4580	-	hypothetical protein
1540	 62.90	+1	1730514..1731044	-	176	159186231	-	Atu4581	-	hypothetical protein
1541	 57.14	0	1731089..1731424	-	111	159186232	-	Atu4582	-	ferredoxin
59.48	MEAN

3.31	STD DEV
