IslandPath Analysis: Agrobacterium tumefaciens str. C58

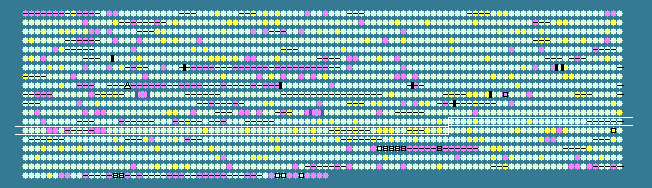

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.48 STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1272	 62.89	+1	1434893..1435924	-	343	159186110	-	Atu4309	-	AraC family transcriptional regulator
1273	 61.40	0	1436024..1437277	+	417	15890672	soxB	Atu4310	-	sarcosine oxidase beta subunit
1274	 61.99	0	1437344..1437664	+	106	15890671	soxD	Atu4311	-	sarcosine oxidase delta subunit
1275	 62.45	0	1437661..1440651	+	996	15890670	soxA	Atu4312	-	sarcosine oxidase alpha subunit
1276	 64.17	+1	1440658..1441218	+	186	15890669	soxG	Atu4313	-	sarcosine oxidase gamma subunit
1277	 62.10	0	1441237..1442505	+	422	15890668	glyA	Atu4314	-	serine hydroxymethyltransferase
1278	 57.40	0	1442632..1443516	+	294	159186111	purU	Atu4315	-	formyltetrahydrofolate deformylase
1279	 61.46	0	1443591..1444820	-	409	15890666	-	Atu4316	-	ABC transporter, membrane spanning protein
1280	 60.56	0	1444964..1445536	+	190	159186112	-	Atu4317	-	TetR family transcriptional regulator
1281	 60.97	0	1445784..1446836	+	350	15890664	-	Atu4318	-	xylitol dehydrogenase
1282	 59.55	0	1447208..1448092	+	294	159186113	-	Atu4319	-	AraC family transcriptional regulator
1283	 59.87	0	1448190..1449101	+	303	15890662	rbsB	Atu4320	-	ABC transporter, substrate binding protein (ribose)
1284	 59.55	0	1449173..1450675	+	500	159186114	rbsA	Atu4321	-	ABC transporter, nucleotide binding/ATPase protein (ribose)
1285	 63.39	+1	1450665..1451642	+	325	159186115	rbsC	Atu4322	-	ABC transporter, membrane spanning protein (ribose)
1286	 60.38	0	1451682..1452413	+	243	15890659	rdh	Atu4323	-	ribitol 2-dehydrogenase
1287	 62.69	0	1452503..1454113	+	536	15890658	-	Atu4324	-	ribitol kinase
1288	 62.67	0	1454163..1454888	+	241	159186116	cbr	Atu4325	-	short chain dehydrogenase
1289	 58.30	0	1454974..1456467	-	497	159186117	-	Atu4326	-	proline/glycine betaine transporter
1290	 56.74	0	1456654..1457076	+	140	159186118	-	Atu4327	-	hypothetical protein
1291	 56.72	0	1457193..1457393	-	66	17938017	-	Atu4328	-	hypothetical protein
1292	 62.02	0	1457455..1458357	+	300	15890654	bexD	Atu4329	-	polysaccharide export protein
1293	 60.76	0	1458366..1459178	-	270	159186119	impN	Atu4330	-	serine/threonine protein kinase
1294	 60.31	0	1459258..1460673	-	471	159186120	impM	Atu4331	-	serine/threonine phosphoprotein phosphatase
1295	 60.89	0	1460756..1464235	-	1159	15890651	impL	Atu4332	-	IcmF family protein
1296	 62.28	0	1464232..1465737	-	501	159186121	impK	Atu4333	-	OmpA-like porin
1297	 62.19	0	1465734..1467074	-	446	15890649	impJ	Atu4334	-	hypothetical protein
1298	 61.92	0	1467064..1468263	-	399	15890648	impI	Atu4335	-	putative forkhead-type phosphopeptide-binding protein
1299	 62.79	+1	1468274..1469278	-	334	15890647	impH	Atu4336	-	hypothetical protein
1300	 61.34	0	1469288..1471069	-	593	15890646	impG	Atu4337	-	hypothetical protein
1301	 61.18	0	1471062..1471571	-	169	159186122	impF	Atu4338	-	hypothetical protein
1302	 62.79	+1	1471564..1472388	-	274	15890644	impE	Atu4339	-	hypothetical protein
1303	 62.37	0	1472385..1473779	-	464	159186123	impD	Atu4340	-	hypothetical protein
1304	 60.32	0	1473834..1475315	-	493	15890642	impC	Atu4341	-	hypothetical protein
1305	 55.88	-1	1475409..1475918	-	169	159186124	impB	Atu4342	-	hypothetical protein
1306	 55.97	-1	1475984..1477039	-	351	15890640	impA	Atu4343	-	hypothetical protein
1307	 60.84	0	1477260..1479938	+	892	159186125	clpB	Atu4344	-	ATP-dependent Clp protease, ATP-binding subunit
1308	 54.30	-1	1479996..1480472	+	158	15890638	-	Atu4345	-	hypothetical protein
1309	 58.97	0	1480579..1480968	+	129	159186126	-	Atu4346	-	hypothetical protein
1310	 60.08	0	1480980..1481480	+	166	159186127	-	Atu4347	-	hypothetical protein
1311	 60.51	0	1481495..1483945	+	816	15890635	vgrG	Atu4348	-	VgrG protein
1312	 54.23	-1	1483948..1484904	+	318	159186128	-	Atu4349	-	hypothetical protein
1313	 52.21	-2	1484901..1485737	+	278	15890633	-	Atu4350	-	hypothetical protein
1314	 45.19	-2	1485765..1486439	+	224	15890632	-	Atu4351	-	hypothetical protein
1315	 59.15	0	1486452..1486757	+	101	15890631	-	Atu4352	-	hypothetical protein
1316	 57.91	0	1486896..1488734	-	612	159186129	-	Atu4353	-	hypothetical protein
1317	 61.34	0	1489103..1490773	+	556	159186130	-	Atu4354	-	hypothetical protein
1318	 59.99	0	1490777..1492333	-	518	15890628	-	Atu4355	-	hypothetical protein
1319	 60.47	0	1492710..1493726	-	338	15890627	-	Atu4356	-	hypothetical protein
1320	 60.36	0	1493959..1494624	+	221	15890626	-	Atu4357	-	hypothetical protein
1321	 60.41	0	1494699..1495784	-	361	15890625	-	Atu4358	-	ABC transporter, nucleotide binding/ATPase protein
1322	 57.85	0	1495781..1496608	-	275	15890624	-	Atu4359	-	ABC transporter, membrane spanning protein (sugar)
1323	 57.81	0	1496605..1497507	-	300	15890623	thuF	Atu4360	-	ABC transporter, membrane spanning protein (sugar)
1324	 58.72	0	1497621..1498853	-	410	15890622	-	Atu4361	-	ABC transporter, substrate binding protein (sugar)
1325	 59.58	0	1498917..1499819	-	300	15890621	-	Atu4362	-	hypothetical protein
1326	 59.52	0	1499832..1500866	-	344	159186131	-	Atu4363	-	hypothetical protein
1327	 59.81	0	1501005..1502069	+	354	15890619	thuR	Atu4364	-	LacI family transcription regulator
1328	 59.36	0	1502059..1502934	-	291	159186132	-	Atu4365	-	hypothetical protein
1329	 59.17	0	1503110..1503883	-	257	159186133	sdhX	Atu4366	-	short chain dehydrogenase
1330	 61.89	0	1504020..1504919	+	299	159186134	gstR	Atu4367	-	LysR family transcriptional regulator
1331	 64.65	+1	1504990..1505385	-	131	159186135	-	Atu4368	-	hypothetical protein
1332	 59.04	0	1505684..1506706	+	340	15890614	rbsB	Atu4369	-	ABC transporter, substrate binding protein (sugar)
1333	 61.85	0	1506810..1508303	+	497	159186136	-	Atu4370	-	ABC transporter, nucleotide binding/ATPase protein (sugar)
1334	 62.65	0	1508300..1509244	+	314	15890612	-	Atu4371	-	ABC transporter, membrane spanning protein (sugar)
1335	 61.20	0	1509246..1510214	+	322	15890611	rbsC	Atu4372	-	ABC transporter, membrane spanning protein (ribose)
1336	 61.97	0	1510218..1511240	+	340	15890610	cytR	Atu4373	-	LacI family transcriptional regulator
1337	 59.81	0	1511274..1512323	+	349	15890609	-	Atu4374	-	hypothetical protein
1338	 63.33	+1	1512335..1513504	+	389	159186137	-	Atu4375	-	hypothetical protein
1339	 60.97	0	1513657..1514481	+	274	159186138	-	Atu4376	-	hypothetical protein
1340	 58.96	0	1514633..1516318	+	561	15890606	-	Atu4377	-	oxidoreductase
1341	 59.18	0	1516318..1516878	+	186	159186139	-	Atu4378	-	hypothetical protein
1342	 59.60	0	1516948..1517343	+	131	159186140	cy2	Atu4379	-	cytochrome c2
1343	 62.96	+1	1517414..1518115	-	233	159186141	nnrR	Atu4380	-	Crp family transcriptional regulator
1344	 62.31	0	1518265..1519182	-	305	159186142	nirV	Atu4381	-	nitrite reductase, NirV precursor
1345	 61.59	0	1519291..1520433	-	380	159186143	nirK	Atu4382	-	nitrite reductase, copper-containing
1346	 63.18	+1	1520670..1521902	+	410	159186144	-	Atu4383	-	hypothetical protein
1347	 62.17	0	1521986..1522519	-	177	15890599	-	Atu4384	-	hypothetical protein
1348	 60.22	0	1522598..1523047	-	149	15890598	-	Atu4385	-	hypothetical protein
1349	 64.56	+1	1523047..1524945	-	632	15890597	norD	Atu4386	-	nitric oxide reductase NorD protein
1350	 62.85	+1	1525017..1525829	-	270	159186145	norQ	Atu4387	-	nitric oxide reductase NorQ protein
1351	 57.83	0	1525894..1527240	-	448	15890595	norB	Atu4388	-	nitric oxide reductase, cytochrome b subunit
1352	 58.72	0	1527265..1527717	-	150	159186146	norC	Atu4389	-	nitric oxide reductase, cytochrome c-containing subunit
1353	 63.00	+1	1527884..1528183	-	99	15890593	norF	Atu8197	-	NorF protein
1354	 59.36	0	1528180..1528713	-	177	159186147	norE	Atu4391	-	nitric oxide reductase NorE protein
1355	 58.93	0	1528839..1529006	+	55	15890591	-	Atu8040	-	hypothetical protein
1356	 65.04	+1	1529019..1529696	+	225	15890590	nnrU	Atu4392	-	denitrification regulatory protein
1357	 62.27	0	1529701..1530291	-	196	15890589	-	Atu4393	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1358	 62.94	+1	1530288..1531844	-	518	159186148	-	Atu4394	-	hypothetical protein
1359	 58.69	0	1531871..1532221	-	116	159186149	-	Atu4395	-	hypothetical protein
1360	 62.98	+1	1532371..1532886	+	171	15890586	-	Atu4396	-	hypothetical protein
1361	 63.29	+1	1532877..1533854	+	325	15890585	-	Atu4397	-	protease
1362	 63.05	+1	1533860..1534798	+	312	159186150	-	Atu4398	-	hypothetical protein
1363	 61.64	0	1534795..1535172	+	125	15890583	-	Atu4399	-	hypothetical protein
1364	 62.26	0	1535270..1537423	+	717	15890582	-	Atu4400	-	ferrienterobactin-like protein
1365	 63.82	+1	1537442..1538425	+	327	15890581	-	Atu4401	-	hypothetical protein
1366	 65.68	+1	1538431..1539240	+	269	15890580	-	Atu4402	-	ABC transporter, membrane spanning protein (anion)
1367	 62.02	0	1539237..1539989	+	250	159186151	-	Atu4403	-	ABC transporter, nucleotide binding/ATPase protein (anion)
1368	 63.22	+1	1539986..1541173	+	395	15890578	-	Atu4404	-	hypothetical protein
1369	 58.60	0	1541384..1541569	+	61	15890577	napE	Atu4405	-	periplasmic nitrate reductase protein NapE
1370	 63.07	+1	1541577..1542077	+	166	15890576	napF	Atu4406	-	periplasmic nitrate reductase, ferredoxin-like protein
1371	 56.60	0	1542070..1542357	+	95	15890575	napD	Atu4407	-	periplasmic nitrate reductase, NapD protein
59.48	MEAN

3.31	STD DEV
