IslandPath Analysis: Agrobacterium tumefaciens str. C58

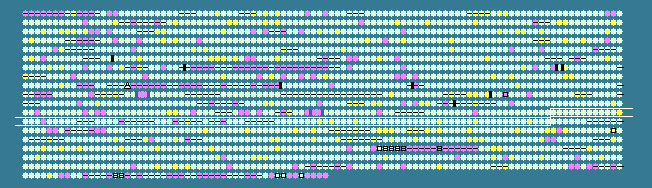

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 59.48   STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1189	 60.49	0	1352037..1352942	+	301	15890755	purF	Atu4227	-	amidophosphoribosyltransferase
1190	 58.52	0	1352980..1353666	+	228	15890754	fwdC	Atu4228	-	formyl-methanofuran dehydrogenase
1191	 62.90	+1	1353683..1355011	+	442	15890753	gltB	Atu4229	-	glutamate synthase large subunit
1192	 59.56	0	1355097..1356404	+	435	15890752	glnA	Atu4230	-	glutamine synthetase III
1193	 58.19	0	1356493..1357377	+	294	159186072	purU	Atu4231	-	formyltetrahydrofolate deformylase
1194	 60.63	0	1357532..1358227	+	231	159186073	-	Atu4232	-	GntR family transcriptional regulator
1195	 60.39	0	1358411..1359271	+	286	159186074	-	Atu4233	-	ABC transporter, substrate binding protein (amino acid)
1196	 58.75	0	1359445..1360038	+	197	159186075	-	Atu4234	-	ABC transporter, membrane spanning protein (amino acid)
1197	 59.02	0	1360068..1360799	+	243	159186076	-	Atu4235	-	ABC transporter, nucleotide binding/ATPase protein (amino acid)
1198	 61.41	0	1360880..1362058	+	392	15890746	-	Atu4236	-	dehydrogenase
1199	 61.36	0	1362176..1362778	+	200	15890745	-	Atu4237	-	hypothetical protein
1200	 63.12	+1	1362790..1363635	+	281	159186077	-	Atu4238	-	hydrolase
1201	 60.49	0	1363632..1364570	+	312	15890743	-	Atu4239	-	flavoprotein oxidoreductase
1202	 59.27	0	1364567..1365607	+	346	15890742	-	Atu4240	-	alkanal monooxygenase alpha chain
1203	 61.28	0	1365612..1367078	+	488	159186078	dhaS	Atu4241	-	aldehyde dehydrogenase
1204	 55.87	-1	1367083..1367397	+	104	15890740	-	Atu4242	-	hypothetical protein
1205	 57.76	0	1367454..1368464	+	336	15890739	-	Atu4243	-	ABC transporter, substrate binding protein (polyamine)
1206	 60.50	0	1368524..1369399	+	291	159186079	-	Atu4244	-	ABC transporter, membrane spanning protein (polyamine)
1207	 60.17	0	1369401..1370201	+	266	15890737	-	Atu4245	-	ABC transporter, membrane spanning protein (polyamine)
1208	 59.46	0	1370198..1371280	+	360	15890736	-	Atu4246	-	ABC transporter, nucleotide binding/ATPase protein (polyamine)
1209	 61.03	0	1371293..1372747	+	484	15890735	attK	Atu4247	-	aldehyde dehydrogenase
1210	 59.57	0	1372755..1373036	-	93	159186080	-	Atu4248	-	hypothetical protein
1211	 60.25	0	1373286..1374329	-	347	15890733	-	Atu4249	-	ABC transporter, nucleotide binding/ATPase protein (sugars)
1212	 57.18	0	1374344..1375186	-	280	15890732	-	Atu4250	-	ABC transporter, membrane spanning protein (sugar)
1213	 59.33	0	1375176..1376102	-	308	159186081	-	Atu4251	-	ABC transporter, membrane spanning protein (sugar)
1214	 58.65	0	1376158..1377417	-	419	15890730	-	Atu4252	-	ABC transporter, substrate binding protein (sugar)
1215	 62.32	0	1377447..1379057	-	536	159186082	-	Atu4253	-	hypothetical protein
1216	 61.76	0	1379059..1380117	-	352	15890728	-	Atu4254	-	LacI family transcription regulator
1217	 53.14	-1	1380352..1380876	+	174	159186083	atsA	Atu4255	-	hypothetical protein
1218	 58.46	0	1381036..1382571	-	511	159186084	-	Atu4256	-	ABC transporter, nucleotide binding/ATPase protein (oligopeptide)
1219	 58.21	0	1382645..1383661	-	338	159186085	-	Atu4257	-	ABC transporter, membrane spanning protein (oligopeptide)
1220	 58.12	0	1383768..1384691	-	307	15890724	-	Atu4258	-	ABC transporter, membrane spanning protein (oligopeptide)
1221	 56.45	0	1384746..1386341	-	531	159186086	-	Atu4259	-	ABC transporter, substrate binding protein (oligopeptide)
1222	 58.56	0	1386627..1387403	-	258	159186087	-	Atu4260	-	ABC transporter, membrane spanning protein
1223	 59.00	0	1387390..1388211	-	273	15890721	-	Atu4261	-	ABC transporter, nucleotide binding/ATPase protein
1224	 58.39	0	1388221..1389150	-	309	159186088	-	Atu4262	-	ABC transporter, substrate binding protein
1225	 60.75	0	1389268..1390365	-	365	15890719	-	Atu4263	-	hypothetical protein
1226	 55.85	-1	1390459..1391355	+	298	15890718	-	Atu4264	-	LysR family transcriptional regulator
1227	 58.86	0	1391447..1392061	-	204	15890717	-	Atu4265	-	hypothetical protein
1228	 63.33	+1	1392096..1393442	-	448	15890716	-	Atu4266	-	GntR family transcriptional regulator
1229	 60.99	0	1393578..1393982	+	134	15890715	-	Atu4267	-	hypothetical protein
1230	 61.59	0	1394014..1394643	+	209	159186089	-	Atu4268	-	RhtB family transporter
1231	 62.53	0	1394700..1395545	+	281	159186090	phzC	Atu4269	-	phenazine biosynthesis protein
1232	 56.78	0	1395572..1396168	+	198	159186091	-	Atu4270	-	hypothetical protein
1233	 57.55	0	1396284..1397171	-	295	15890711	-	Atu4271	-	LysR family transcriptional regulator
1234	 53.01	-1	1397284..1397649	+	121	159186365	-	Atu8039	-	hypothetical protein
1235	 57.88	0	1397935..1398378	+	147	15890709	accB	Atu4272	-	acetyl-CoA carboxylase biotin carboxyl carrier protein
1236	 58.49	0	1398375..1399769	+	464	15890708	accC	Atu4273	-	acetyl-CoA carboxylase, biotin carboxylase
1237	 61.77	0	1399766..1400194	+	142	159186092	-	Atu4274	-	hypothetical protein
1238	 57.91	0	1400191..1400898	+	235	15890706	-	Atu4275	-	hypothetical protein
1239	 61.95	0	1400895..1401890	+	331	15890705	-	Atu4276	-	hypothetical protein
1240	 61.59	0	1401921..1402688	+	255	159186093	-	Atu4277	-	hypothetical protein
1241	 58.71	0	1402734..1403939	+	401	159186094	aatA	Atu4278	-	aspartate aminotransferase
1242	 58.50	0	1403998..1404903	-	301	159186095	nac	Atu4279	-	LysR family transcriptional regulator
1243	 58.21	0	1405144..1405923	+	259	15890701	-	Atu4280	-	short-chain dehydrogenase
1244	 57.20	0	1405920..1406627	+	235	15890700	-	Atu4281	-	ABC transporter, membrane spanning protein (amino acid)
1245	 59.16	0	1406624..1407382	+	252	15890699	-	Atu4282	-	ABC transporter, membrane spanning protein (amino acid)
1246	 59.22	0	1407379..1408143	+	254	15890698	-	Atu4283	-	ABC transporter, nucleotide binding/ATPase protein
1247	 58.78	0	1408174..1409010	+	278	15890697	-	Atu4284	-	ABC transporter, substrate binding protein (amino acid)
1248	 58.07	0	1409104..1409778	+	224	159186096	menG	Atu4285	-	S-adenosylmethionine:2-demethylmenaquinone methyltransferase
1249	 58.93	0	1409923..1410762	-	279	159186097	-	Atu4286	-	hypothetical protein
1250	 63.35	+1	1410846..1411538	-	230	15890694	-	Atu4287	-	NonF-related protein
1251	 61.33	0	1411727..1412626	+	299	159186098	-	Atu4288	-	LysR family transcriptional regulator
1252	 64.64	+1	1412652..1413590	-	312	15890692	adhC	Atu4289	-	alcohol dehydrogenase
1253	 56.72	0	1413630..1413830	+	66	17937979	-	Atu4290	-	hypothetical protein
1254	 60.18	0	1413855..1414763	-	302	159186099	-	Atu4291	-	LysR family transcriptional regulator
1255	 61.68	0	1414920..1416101	+	393	159186100	-	Atu4292	-	chloramphenicol resistance protein
1256	 65.50	+1	1416166..1417191	+	341	159186101	-	Atu4293	-	monooxygenase
1257	 59.47	0	1417206..1418039	+	277	15890688	yafB	Atu4294	-	oxidoreductase
1258	 62.54	0	1418147..1418995	-	282	159186102	aroE	Atu4295	-	shikimate 5-dehydrogenase
1259	 60.73	0	1418985..1420568	-	527	15890686	-	Atu4296	-	dehydrogenase
1260	 61.07	0	1420708..1421601	+	297	159186103	-	Atu4297	-	AraC family transcriptional regulator
1261	 59.34	0	1421591..1423609	-	672	15890684	-	Atu4298	-	hypothetical protein
1262	 58.89	0	1423945..1424484	+	179	159186104	-	Atu4299	-	hypothetical protein
1263	 60.53	0	1424686..1425321	+	211	159186105	nwsB	Atu4300	-	two component response regulator
1264	 60.21	0	1425633..1426391	+	252	159186106	-	Atu4301	-	hypothetical protein
1265	 56.76	0	1426469..1426882	+	137	15890680	-	Atu4302	-	hypothetical protein
1266	 59.49	0	1427019..1427450	+	143	15890679	-	Atu4303	-	hypothetical protein
1267	 56.74	0	1427475..1428965	+	496	15890678	-	Atu4304	-	hypothetical protein
1268	 61.67	0	1429208..1431850	+	880	15890677	-	Atu4305	-	two component sensor kinase
1269	 61.11	0	1431872..1432231	+	119	159186107	-	Atu4306	-	two component response regulator
1270	 63.05	+1	1432576..1433544	+	322	159186108	-	Atu4307	-	hypothetical protein
1271	 58.21	0	1433832..1434647	+	271	159186109	-	Atu4308	-	hypothetical protein
1272	 62.89	+1	1434893..1435924	-	343	159186110	-	Atu4309	-	AraC family transcriptional regulator
1273	 61.40	0	1436024..1437277	+	417	15890672	soxB	Atu4310	-	sarcosine oxidase beta subunit
1274	 61.99	0	1437344..1437664	+	106	15890671	soxD	Atu4311	-	sarcosine oxidase delta subunit
1275	 62.45	0	1437661..1440651	+	996	15890670	soxA	Atu4312	-	sarcosine oxidase alpha subunit
1276	 64.17	+1	1440658..1441218	+	186	15890669	soxG	Atu4313	-	sarcosine oxidase gamma subunit
1277	 62.10	0	1441237..1442505	+	422	15890668	glyA	Atu4314	-	serine hydroxymethyltransferase
1278	 57.40	0	1442632..1443516	+	294	159186111	purU	Atu4315	-	formyltetrahydrofolate deformylase
1279	 61.46	0	1443591..1444820	-	409	15890666	-	Atu4316	-	ABC transporter, membrane spanning protein
1280	 60.56	0	1444964..1445536	+	190	159186112	-	Atu4317	-	TetR family transcriptional regulator
1281	 60.97	0	1445784..1446836	+	350	15890664	-	Atu4318	-	xylitol dehydrogenase
1282	 59.55	0	1447208..1448092	+	294	159186113	-	Atu4319	-	AraC family transcriptional regulator
1283	 59.87	0	1448190..1449101	+	303	15890662	rbsB	Atu4320	-	ABC transporter, substrate binding protein (ribose)
1284	 59.55	0	1449173..1450675	+	500	159186114	rbsA	Atu4321	-	ABC transporter, nucleotide binding/ATPase protein (ribose)
1285	 63.39	+1	1450665..1451642	+	325	159186115	rbsC	Atu4322	-	ABC transporter, membrane spanning protein (ribose)
1286	 60.38	0	1451682..1452413	+	243	15890659	rdh	Atu4323	-	ribitol 2-dehydrogenase
1287	 62.69	0	1452503..1454113	+	536	15890658	-	Atu4324	-	ribitol kinase
1288	 62.67	0	1454163..1454888	+	241	159186116	cbr	Atu4325	-	short chain dehydrogenase
59.48	MEAN

3.31	STD DEV
