IslandPath Analysis: Agrobacterium tumefaciens str. C58

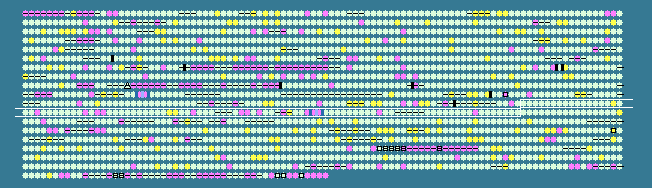

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.48 STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1084	 58.13	0	1232024..1233628	+	534	15890861	dppA	Atu4113	-	ABC transporter, substrate binding protein (dipeptide)
1085	 60.02	0	1233691..1234698	+	335	15890860	dppB	Atu4114	-	ABC transporter, membrane spanning protein (dipeptide)
1086	 62.95	+1	1234695..1235609	+	304	15890859	dppC	Atu4115	-	ABC transporter, membrane spanning protein (dipeptide)
1087	 60.24	0	1235613..1236452	+	279	15890858	dppD	Atu4116	-	ABC transporter, nucleotide binding/ATPase protein (dipeptide)
1088	 61.94	0	1236449..1237294	+	281	15890857	dppF	Atu4117	-	ABC transporter, nucleotide binding/ATPase protein (dipeptide)
1089	 60.00	0	1237357..1238031	-	224	15890856	-	Atu4118	-	GntR family transcriptional regulator
1090	 58.98	0	1238259..1239377	+	372	15890855	-	Atu4120	-	mandelate racemase
1091	 61.97	0	1239429..1240451	-	340	159186033	-	Atu4121	-	monooxygenase
1092	 58.93	0	1240588..1241505	-	305	15890853	-	Atu4122	-	LysR family transcriptional regulator
1093	 59.22	0	1241719..1242927	+	402	15890852	-	Atu4123	-	ABC transporter, substrate binding protein (branched chain amino acid)
1094	 61.71	0	1242956..1243762	+	268	15890851	-	Atu4124	-	ABC transporter, nucleotide binding/ATPase protein (branched chain amino acid)
1095	 59.69	0	1243764..1244465	+	233	15890850	-	Atu4125	-	ABC transporter, nucleotide binding/ATPase protein (branched chain amino acid)
1096	 59.68	0	1244468..1245355	+	295	15890849	-	Atu4126	-	ABC transporter, membrane spanning protein (branched chain amino acid)
1097	 59.42	0	1245357..1246364	+	335	15890848	-	Atu4127	-	ABC transporter, membrane spanning protein (branched chain amino acid)
1098	 60.84	0	1246439..1248034	+	531	159186034	-	Atu4128	-	GMC type oxidoreductase
1099	 63.39	+1	1248048..1248932	+	294	159186035	mmsB	Atu4129	-	3-hydroxyisobutyrate dehydrogenase
1100	 60.17	0	1248929..1250884	+	651	15890845	acsA	Atu4130	-	acetoacetyl-CoA synthetase
1101	 62.21	0	1250889..1251674	+	261	15890844	-	Atu4131	-	hydroxybutyrate dehydrogenase
1102	 60.92	0	1251793..1252836	+	347	159186036	-	Atu4132	-	AraC family transcriptional regulator
1103	 52.19	-2	1252868..1253164	+	98	159186037	-	Atu4133	-	hypothetical protein
1104	 62.01	0	1253290..1253697	+	135	159186038	-	Atu4134	-	hypothetical protein
1105	 60.59	0	1253793..1256129	+	778	15890840	gcd	Atu4135	-	glucose dehydrogenase
1106	 56.89	0	1256201..1256701	-	166	159186039	-	Atu4136	-	hypothetical protein
1107	 61.73	0	1256875..1257360	+	161	15890838	-	Atu4137	-	hypothetical protein
1108	 61.70	0	1257367..1258593	-	408	15890837	-	Atu4138	-	oxidoreductase
1109	 57.18	0	1258613..1259023	-	136	15890836	-	Atu4139	-	hypothetical protein
1110	 58.30	0	1259031..1259891	-	286	15890835	-	Atu4140	-	hypothetical protein
1111	 55.56	-1	1259947..1260387	-	146	159186040	-	Atu4141	-	hypothetical protein
1112	 57.40	0	1260446..1261006	-	186	15890833	pfpI	Atu4142	-	proteinase
1113	 52.70	-2	1261025..1261246	-	73	15890832	-	Atu4143	-	hypothetical protein
1114	 53.65	-1	1261290..1261481	+	63	17937839	-	Atu4144	-	hypothetical protein
1115	 57.70	0	1261534..1262358	+	274	159186041	-	Atu4145	-	hypothetical protein
1116	 60.49	0	1262358..1264235	+	625	159186042	-	Atu4146	-	hypothetical protein
1117	 58.74	0	1264246..1265292	+	348	159186043	gshB	Atu4147	-	glutathione synthetase
1118	 57.94	0	1265293..1266312	-	339	15890828	lspL	Atu4148	-	UDP-glucuronic acid epimerase
1119	 60.21	0	1266399..1267730	-	443	15890827	ugdH	Atu4149	-	UDP-glucose 6-dehydrogenase
1120	 58.78	0	1268112..1268999	+	295	159186044	-	Atu4150	-	hypothetical protein
1121	 60.58	0	1269033..1269935	-	300	159186045	gcvA	Atu4151	-	LysR family transcriptional regulator
1122	 62.22	0	1270148..1271677	+	509	159186046	-	Atu4153	-	aldehyde dehydrogenase
1123	 60.17	0	1271907..1272860	+	317	159186047	-	Atu4154	-	ABC transporter, substrate binding protein (aliphatic sulfonate)
1124	 59.39	0	1272881..1273663	+	260	15890822	-	Atu4155	-	ABC transporter, membrane spanning protein (aliphatic sulphonate)
1125	 63.42	+1	1273672..1274502	+	276	15890821	-	Atu4156	-	ABC transporter, nucleotide binding/ATPase protein (aliphatic sulfonate)
1126	 63.52	+1	1274540..1278226	-	1228	15890820	putA	Atu4157	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
1127	 56.05	-1	1278402..1278872	+	156	15890819	putR	Atu4159	-	AsnC family transcriptional regulator
1128	 60.67	0	1278940..1279506	-	188	159186048	-	Atu4160	-	RNA polymerase sigma factor
1129	 54.59	-1	1279506..1279712	-	68	15890817	-	Atu4161	-	hypothetical protein
1130	 56.60	0	1279850..1280644	+	264	159186049	-	Atu4162	-	two-component response regulator
1131	 57.68	0	1280740..1281729	+	329	15890815	-	Atu4163	-	two component sensor kinase
1132	 58.91	0	1281990..1283729	-	579	15890814	-	Atu4164	-	two component sensor kinase
1133	 60.59	0	1283944..1284519	+	191	15890813	-	Atu4165	-	hypothetical protein
1134	 59.57	0	1284621..1285607	-	328	159186050	galE/exoB	Atu4166	-	UDP-glucose 4-epimerase
1135	 62.33	0	1285777..1286214	-	145	15890811	-	Atu4167	-	hypothetical protein
1136	 59.06	0	1286219..1286665	-	148	159186051	-	Atu4168	-	hypothetical protein
1137	 55.56	-1	1286842..1287939	+	365	15890809	nspC	Atu4169	-	carboxynorspermidine decarboxylase
1138	 55.77	-1	1288000..1289238	+	412	15890808	-	Atu4170	-	hypothetical protein
1139	 62.55	0	1289460..1291307	-	615	15890807	deaD	Atu4171	-	cold-shock dead-box protein A
1140	 55.29	-1	1291308..1291562	-	84	15890806	-	Atu8038	-	hypothetical protein
1141	 60.41	0	1291699..1292976	+	425	159186052	lysC	Atu4172	-	aspartate kinase
1142	 60.58	0	1293152..1295419	+	755	15890804	ptsI	Atu4173	-	phosphoenolpyruvate-protein phosphotransferase
1143	 59.10	0	1295449..1296531	+	360	15890803	prfA	Atu4174	-	peptide chain release factor 1
1144	 55.52	-1	1296528..1297397	+	289	15890802	hemK	Atu4175	-	protoporphyrinogen oxidase
1145	 63.61	+1	1297793..1298578	+	261	159186053	-	Atu4176	-	hypothetical protein
1146	 60.23	0	1298943..1301567	+	874	159186054	clpB	Atu4177	-	ATP-dependent Clp protease, ATP-binding subunit
1147	 59.78	0	1301637..1303583	-	648	15890798	-	Atu4178	-	hypothetical protein
1148	 47.46	-2	1303752..1304204	-	150	17937874	-	Atu4179	-	hypothetical protein
1149	 49.23	-2	1306725..1307114	-	129	159186055	-	Atu4183	-	hypothetical protein
1150	 50.67	-2	1309700..1309999	+	99	15890795	-	Atu4185	-	hypothetical protein
1151	 59.75	0	1310831..1311727	-	298	159186056	dapA	Atu4189	-	dihydropicolinate synthase
1152	 57.48	0	1311759..1312640	-	293	159186057	-	Atu4190	-	calcium-binding protein, regucalcin
1153	 59.97	0	1312684..1313415	-	243	159186058	-	Atu4191	-	GntR family transcriptional regulator
1154	 57.23	0	1313719..1315668	+	649	15890790	-	Atu4192	-	ABC transporter, substrate binding protein (oligopeptide)
1155	 58.16	0	1315779..1316765	+	328	15890789	-	Atu4193	-	ABC transporter, membrane spanning protein (oligopeptide)
1156	 59.82	0	1316775..1317899	+	374	15890788	-	Atu4194	-	ABC transporter, membrane spanning protein (oligopeptide)
1157	 58.70	0	1317928..1319634	+	568	159186059	-	Atu4195	-	ABC transporter, nucleotide binding/ATPase protein (oligopeptide)
1158	 58.00	0	1319679..1320866	+	395	15890786	-	Atu4196	-	hypothetical protein
1159	 57.42	0	1320844..1321719	+	291	15890785	-	Atu4197	-	hypothetical protein
1160	 54.88	-1	1321906..1322202	-	98	15890784	-	Atu4198	-	hypothetical protein
1161	 60.03	0	1322273..1322845	-	190	159186060	-	Atu4199	-	TetR family transcriptional regulator
1162	 56.65	0	1322941..1323429	-	162	159186061	-	Atu4200	-	hypothetical protein
1163	 56.53	0	1323428..1324009	+	193	15890781	-	Atu4201	-	flavodoxin, WrbA-like protein
1164	 57.83	0	1324449..1325150	-	233	15890780	-	Atu4202	-	methyltransferase
1165	 59.77	0	1325168..1325878	-	236	15890779	-	Atu4203	-	hypothetical protein
1166	 61.13	0	1325969..1326709	-	246	159186062	-	Atu4204	-	AraC family transcriptional regulator
1167	 58.33	0	1327589..1328236	-	215	159186063	tetR	Atu4205	-	TetR family transcriptional regulator
1168	 60.51	0	1328325..1329509	+	394	15890776	tetA	Atu4206	-	tetracycline resistance protein
1169	 57.70	0	1329649..1330797	-	382	159186064	-	Atu4207	-	ROK family transcriptional regulator
1170	 58.37	0	1330887..1332260	+	457	15890774	-	Atu4208	-	ABC transporter, substrate binding protein (sugar)
1171	 60.09	0	1332328..1333239	+	303	159186065	-	Atu4209	-	ABC transporter, membrane spanning protein (sugar)
1172	 58.17	0	1333239..1334297	+	352	159186066	-	Atu4210	-	ABC transporter, membrane spanning protein (sugars)
1173	 59.30	0	1334303..1335415	+	370	15890771	-	Atu4211	-	ABC transporter, nucleotide binding/ATPase protein (sugar)
1174	 57.70	0	1335428..1336174	+	248	15890770	ugpQ	Atu4212	-	glycerophosphodiester phosphodiesterase
1175	 57.74	0	1336285..1336665	-	126	159186067	-	Atu4213	-	hypothetical protein
1176	 52.38	-2	1336799..1337029	-	76	15890768	cspA	Atu4214	-	cold shock protein
1177	 57.27	0	1337330..1337776	-	148	15890767	ftsZ	Atu4215	-	cell division protein
1178	 61.12	0	1337832..1339130	-	432	159186068	fabF	Atu4216	-	3-oxoacyl-(acyl carrier protein) synthase II
1179	 60.20	0	1339277..1339864	-	195	159186069	-	Atu4217	-	TetR family transcriptional regulator
1180	 62.25	0	1339962..1341071	+	369	159186070	-	Atu4218	-	multidrug efflux protein
1181	 59.69	0	1341071..1344181	+	1036	15890763	-	Atu4219	-	cation efflux system protein
1182	 56.96	0	1344211..1345086	+	291	15890762	-	Atu4220	-	short-chain dehydrogenase
1183	 61.75	0	1345110..1345658	-	182	15890761	-	Atu4221	-	hypothetical protein
59.48	MEAN

3.31	STD DEV
