IslandPathversion 1.0

IslandPath Analysis: Agrobacterium tumefaciens str. C58

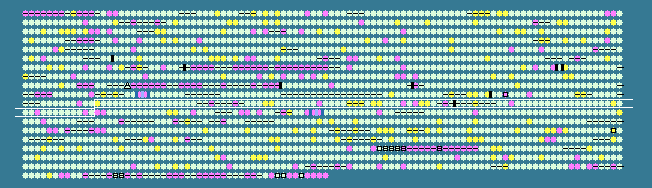

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.48 STD DEV: 3.31
Agrobacterium tumefaciens str. C58 chromosome linear, complete sequence - 1..2075577
1851 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1013	 64.57	+1	1155303..1155779	-	158	15890929	-	Atu4042	-	hypothetical protein
1014	 62.91	+1	1155832..1157187	+	451	15890928	-	Atu4043	-	hypothetical protein
1015	 60.73	0	1157179..1158240	-	353	159186004	-	Atu4044	-	ABC transporter, nucleotide binding/ATPase protein (glycine betaine)
1016	 59.12	0	1158233..1159120	-	295	159186005	-	Atu4045	-	ABC transporter, membrane spanning protein (glycine betaine)
1017	 59.66	0	1159339..1160337	-	332	159186006	-	Atu4046	-	ABC transporter, substrate binding protein (glycine betaine)
1018	 60.65	0	1160701..1163676	+	991	15890924	-	Atu4047	-	two component sensor kinase/response regulator hybrid
1019	 61.80	0	1163701..1164645	-	314	15890923	-	Atu4048	-	2-hydroxyacid dehydrogenase
1020	 60.11	0	1164770..1167163	-	797	15890922	exoP	Atu4049	-	exopolysaccharide polymerization/transport protein
1021	 58.94	0	1167226..1168131	-	301	159186007	exoN	Atu4050	-	UTP-glucose-1-phosphate uridylyltransferase
1022	 59.73	0	1168216..1169196	-	326	15890920	exoO	Atu4051	-	succinoglycan biosynthesis glycosyltransferase
1023	 62.33	0	1169196..1170140	-	314	15890919	exoM	Atu4052	-	UDP-hexose transferase
1024	 58.96	0	1170137..1171135	-	332	159186008	exoA	Atu4053	-	succinoglycan biosynthesis protein
1025	 61.84	0	1171153..1172334	-	393	15890917	exoL	Atu4054	-	succinoglycan biosynthesis protein
1026	 56.82	0	1172360..1173151	-	263	159186009	exoK	Atu4055	-	endo-1,3-1,4-beta-glycanase
1027	 57.44	0	1173156..1174304	-	382	159186010	exoH	Atu4056	-	succinoglycan biosynthesis protein
1028	 60.38	0	1174676..1176154	-	492	159186011	exoT	Atu4057	-	succinoglycan biosynthesis transport protein
1029	 56.73	0	1176272..1177237	+	321	159186012	exoW	Atu4058	-	succinoglycan biosynthesis protein
1030	 62.02	0	1177289..1178257	+	322	15890912	exoV	Atu4059	-	succinoglycan biosynthesis protein
1031	 60.10	0	1178491..1179480	-	329	159186013	exoU	Atu4060	-	succinoglycan biosynthesis glycosyltransferase
1032	 51.61	-2	1179591..1179869	-	92	159186014	exoX	Atu4061	-	exopolysaccharide production repressor protein
1033	 60.30	0	1180214..1180480	+	88	159186015	-	Atu4062	-	hypothetical protein
1034	 60.65	0	1180552..1181448	-	298	159186016	-	Atu4063	-	O-linked GlcNAc transferase
1035	 59.65	0	1181584..1181811	-	75	15890907	rpsU	Atu4064	-	30S ribosomal protein S21
1036	 51.14	-2	1181813..1182031	-	72	17937761	-	Atu4065	-	hypothetical protein
1037	 59.73	0	1182128..1183381	+	417	159186017	soxB	Atu4066	-	sarcosine oxidase beta subunit
1038	 57.58	0	1183396..1183791	+	131	159186018	-	Atu4067	-	hypothetical protein
1039	 57.46	0	1183803..1184117	+	104	15890904	soxD	Atu4068	-	sarcosine oxidase delta subunit
1040	 61.90	0	1184114..1187074	+	986	15890903	soxA	Atu4069	-	sarcosine oxidase alpha subunit
1041	 64.68	+1	1187067..1187621	+	184	15890902	soxG	Atu4070	-	sarcosine oxidase gamma subunit
1042	 64.46	+1	1187618..1188658	-	346	15890901	-	Atu4071	-	hypothetical protein
1043	 58.69	0	1188681..1189169	-	162	15890900	nodN	Atu4072	-	nodulation protein N
1044	 60.94	0	1189224..1191179	-	651	15890899	glgX	Atu4073	-	glycogen debranching enzyme
1045	 59.79	0	1191284..1192912	-	542	159186019	exoC	Atu4074	-	phosphoglucomutase
1046	 60.50	0	1192917..1194359	-	480	15890897	glgA	Atu4075	-	glycogen synthase
1047	 57.96	0	1194365..1195627	-	420	15890896	glgC	Atu4076	-	glucose-1-phosphate adenylyltransferase
1048	 59.10	0	1195649..1197856	-	735	15890895	glgB	Atu4077	-	glycogen branching enzyme
1049	 59.44	0	1197856..1200318	-	820	15890894	glgP	Atu4078	-	glycogen phosphorylase
1050	 50.00	-2	1200453..1200728	+	91	159186020	-	Atu4079	-	hypothetical protein
1051	 62.00	0	1200803..1201573	-	256	15890893	-	Atu4080	-	glutamine amidotransferase
1052	 62.04	0	1201574..1202287	-	237	159186021	-	Atu4081	-	aspartate racemase
1053	 56.28	0	1202455..1202916	+	153	159186022	-	Atu4082	-	AsnC family transcriptional regulator
1054	 60.37	0	1202935..1203918	-	327	15890890	-	Atu4083	-	putative aldose epimerase
1055	 64.09	+1	1204057..1204950	-	297	159186023	garR	Atu4085	-	2-hydroxy-3-oxopropionate reductase
1056	 63.10	+1	1205038..1205793	-	251	159186024	idnO	Atu4086	-	gluconate 5-dehydrogenase
1057	 63.66	+1	1206009..1207040	+	343	15890887	-	Atu4087	-	zinc-binding dehydrogenase
1058	 58.55	0	1207368..1207946	+	192	159186025	-	Atu4088	-	transcriptional regulator
1059	 63.20	+1	1208208..1209734	+	508	159186026	cydD	Atu4089	-	ABC transporter, nucleotide binding/ATPase protein
1060	 65.19	+1	1209731..1211422	+	563	15890884	cydC	Atu4090	-	ABC transporter, nucleotide binding/ATPase protein
1061	 59.70	0	1211490..1213067	+	525	159186027	cydA	Atu4091	-	cytochrome d oxidase
1062	 59.76	0	1213074..1214231	+	385	15890882	cydB	Atu4092	-	cytochrome d oxidase subunit II
1063	 56.10	-1	1214271..1214393	+	40	159186364	-	Atu8036	-	protein YBGT-related protein
1064	 54.50	-1	1214469..1214657	-	62	17937789	-	Atu4093	-	hypothetical protein
1065	 61.19	0	1214680..1215099	-	139	15890880	-	Atu4094	-	hypothetical protein
1066	 55.16	-1	1215112..1215363	-	83	15890879	-	Atu4095	-	hypothetical protein
1067	 63.17	+1	1215509..1216366	-	285	159186028	nadC	Atu4096	-	nicotinate-nucleotide pyrophosphorylase
1068	 66.79	+2	1216368..1217936	-	522	15890877	nadB	Atu4097	-	L-aspartate oxidase
1069	 58.19	0	1217933..1218970	-	345	15890876	nadA	Atu4098	-	quinolinate synthetase
1070	 62.02	0	1218974..1219876	-	300	159186029	-	Atu4099	-	hypothetical protein
1071	 55.42	-1	1219969..1220457	+	162	15890874	-	Atu4100	-	hypothetical protein
1072	 62.90	+1	1220530..1221033	+	167	15890873	-	Atu4101	-	hypothetical protein
1073	 57.18	0	1221338..1221727	-	129	15890872	-	Atu8037	-	hypothetical protein
1074	 61.77	0	1221954..1222586	+	210	15890871	cmk	Atu4103	-	cytidylate kinase
1075	 58.38	0	1222756..1224456	+	566	159186030	rpsA	Atu4104	-	30S ribosomal protein S1
1076	 63.94	+1	1224556..1226097	-	513	15890869	-	Atu4105	-	hypothetical protein
1077	 61.17	0	1226357..1226665	-	102	159186031	-	Atu4106	-	hypothetical protein
1078	 58.86	0	1226713..1227942	-	409	15890867	-	Atu8196	-	hypothetical protein
1079	 61.56	0	1228027..1228653	-	208	15890866	rnd	Atu4108	-	ribonuclease D
1080	 57.25	0	1228724..1229413	+	229	15890865	-	Atu4109	-	hypothetical protein
1081	 60.40	0	1229427..1230176	+	249	15890864	sdh	Atu4110	-	serine dehydrogenase
1082	 52.27	-2	1230231..1230494	+	87	15890863	-	Atu4111	-	hypothetical protein
1083	 60.69	0	1230719..1231906	+	395	159186032	-	Atu4112	-	proline dipeptidase
1084	 58.13	0	1232024..1233628	+	534	15890861	dppA	Atu4113	-	ABC transporter, substrate binding protein (dipeptide)
1085	 60.02	0	1233691..1234698	+	335	15890860	dppB	Atu4114	-	ABC transporter, membrane spanning protein (dipeptide)
1086	 62.95	+1	1234695..1235609	+	304	15890859	dppC	Atu4115	-	ABC transporter, membrane spanning protein (dipeptide)
1087	 60.24	0	1235613..1236452	+	279	15890858	dppD	Atu4116	-	ABC transporter, nucleotide binding/ATPase protein (dipeptide)
1088	 61.94	0	1236449..1237294	+	281	15890857	dppF	Atu4117	-	ABC transporter, nucleotide binding/ATPase protein (dipeptide)
1089	 60.00	0	1237357..1238031	-	224	15890856	-	Atu4118	-	GntR family transcriptional regulator
1090	 58.98	0	1238259..1239377	+	372	15890855	-	Atu4120	-	mandelate racemase
1091	 61.97	0	1239429..1240451	-	340	159186033	-	Atu4121	-	monooxygenase
1092	 58.93	0	1240588..1241505	-	305	15890853	-	Atu4122	-	LysR family transcriptional regulator
1093	 59.22	0	1241719..1242927	+	402	15890852	-	Atu4123	-	ABC transporter, substrate binding protein (branched chain amino acid)
1094	 61.71	0	1242956..1243762	+	268	15890851	-	Atu4124	-	ABC transporter, nucleotide binding/ATPase protein (branched chain amino acid)
1095	 59.69	0	1243764..1244465	+	233	15890850	-	Atu4125	-	ABC transporter, nucleotide binding/ATPase protein (branched chain amino acid)
1096	 59.68	0	1244468..1245355	+	295	15890849	-	Atu4126	-	ABC transporter, membrane spanning protein (branched chain amino acid)
1097	 59.42	0	1245357..1246364	+	335	15890848	-	Atu4127	-	ABC transporter, membrane spanning protein (branched chain amino acid)
1098	 60.84	0	1246439..1248034	+	531	159186034	-	Atu4128	-	GMC type oxidoreductase
1099	 63.39	+1	1248048..1248932	+	294	159186035	mmsB	Atu4129	-	3-hydroxyisobutyrate dehydrogenase
1100	 60.17	0	1248929..1250884	+	651	15890845	acsA	Atu4130	-	acetoacetyl-CoA synthetase
1101	 62.21	0	1250889..1251674	+	261	15890844	-	Atu4131	-	hydroxybutyrate dehydrogenase
1102	 60.92	0	1251793..1252836	+	347	159186036	-	Atu4132	-	AraC family transcriptional regulator
1103	 52.19	-2	1252868..1253164	+	98	159186037	-	Atu4133	-	hypothetical protein
1104	 62.01	0	1253290..1253697	+	135	159186038	-	Atu4134	-	hypothetical protein
1105	 60.59	0	1253793..1256129	+	778	15890840	gcd	Atu4135	-	glucose dehydrogenase
1106	 56.89	0	1256201..1256701	-	166	159186039	-	Atu4136	-	hypothetical protein
1107	 61.73	0	1256875..1257360	+	161	15890838	-	Atu4137	-	hypothetical protein
1108	 61.70	0	1257367..1258593	-	408	15890837	-	Atu4138	-	oxidoreductase
1109	 57.18	0	1258613..1259023	-	136	15890836	-	Atu4139	-	hypothetical protein
1110	 58.30	0	1259031..1259891	-	286	15890835	-	Atu4140	-	hypothetical protein
1111	 55.56	-1	1259947..1260387	-	146	159186040	-	Atu4141	-	hypothetical protein
1112	 57.40	0	1260446..1261006	-	186	15890833	pfpI	Atu4142	-	proteinase
59.48	MEAN

3.31	STD DEV
