IslandPath Analysis: Aeromonas hydrophila subsp. hydrophila ATCC 7966

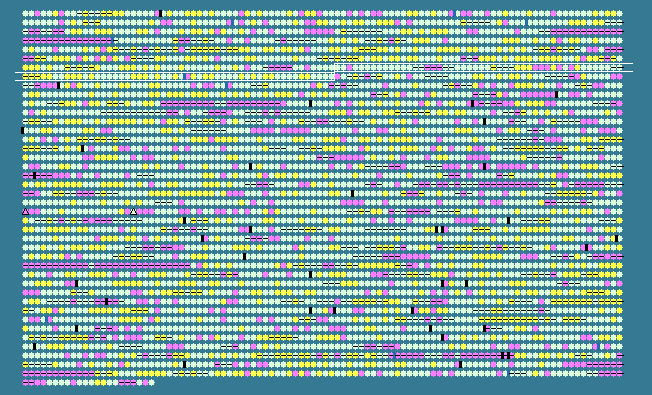

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.23 STD DEV: 5.38
Aeromonas hydrophila subsp. hydrophila ATCC 7966, complete genome - 1..4744448
4122 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
653	 60.02	0	725099..726031	+	310	117621063	nhaR	AHA_0677	-	transcriptional activator NhaR
654	 59.02	0	726057..726383	+	108	117620739	-	AHA_0678	-	nodulation protein NolR
655	 54.92	-1	726434..726697	-	87	117618088	rpsT	AHA_0679	-	ribosomal protein S20
656	 62.52	0	726889..728454	+	521	117618300	mviN	AHA_0680	-	integral membrane protein MviN
657	 60.41	0	728596..729570	+	324	117619272	ribF	AHA_0681	-	riboflavin biosynthesis protein RibF
658	 62.51	0	729570..732431	+	953	117619483	ileS	AHA_0682	-	isoleucyl-tRNA synthetase
659	 60.52	0	732431..732934	+	167	117618899	lspA	AHA_0683	-	signal peptidase II
660	 62.03	0	732931..733383	+	150	117620110	fkpB	AHA_0684	-	FKBP-type peptidyl-prolyl cis-trans isomerase FkpB
661	 64.10	0	733383..734318	+	311	117619589	ispH	AHA_0685	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
662	 61.71	0	734580..735083	+	167	117620299	-	AHA_0686	-	putative type IV pilin
663	 62.56	0	735080..735493	+	137	117619848	pilV	AHA_0687	-	type IV pilus modification protein PilV
664	 63.56	0	735490..736584	+	364	117618164	-	AHA_0688	-	putative type IV pilin
665	 63.73	0	736595..737071	+	158	117617938	-	AHA_0689	-	hypothetical protein
666	 60.79	0	737083..740436	+	1117	117621096	-	AHA_0690	-	type IV pilus biogenesis protein
667	 61.94	0	740445..740846	+	133	117620932	-	AHA_0691	-	type IV pilin
668	 56.59	-1	740851..741237	-	128	117620472	-	AHA_0692	-	type IV pilin
669	 57.91	0	741332..741868	+	178	117619228	-	AHA_0693	-	putative type IV pilin
670	 56.73	-1	741859..742482	+	207	117619288	-	AHA_0694	-	putative type IV pilin
671	 58.93	0	742484..743581	+	365	117619936	-	AHA_0695	-	hypothetical protein
672	 59.52	0	743594..745693	+	699	117620495	-	AHA_0696	-	putative type IV pilin
673	 62.23	0	745767..747389	+	540	117620870	nadE	AHA_0697	-	NAD synthetase
674	 59.00	0	747399..747737	+	112	117621431	glnB	AHA_0698	-	nitrogen regulatory protein P-II 1
675	 61.24	0	747748..748392	+	214	117619947	-	AHA_0699	-	transcriptional regulatory protein
676	 62.55	0	748411..748920	+	169	117620514	luxS	AHA_0700	-	S-ribosylhomocysteinase
677	 61.18	0	748983..749948	-	321	117618610	-	AHA_0701	-	GGDEF family protein
678	 61.67	0	750140..752539	+	799	117619104	rnr	AHA_0702	-	ribonuclease R
679	 66.27	0	752536..753285	+	249	117617585	-	AHA_0703	-	RNA methyltransferase
680	 62.79	0	753296..753862	+	188	117618186	-	AHA_0704	-	cAMP-binding proteins - catabolite gene activator and regulatory subunit of cAMP-dependent protein kinase
681	 62.00	0	753920..754369	+	149	117619781	-	AHA_0705	-	acetyltransferase
682	 65.02	0	754597..755448	+	283	117620335	-	AHA_0706	-	drug/metabolite exporter family protein
683	 68.70	+1	755566..756402	+	278	117620152	-	AHA_0707	-	drug/metabolite exporter (DME) family protein
684	 66.78	0	756436..757284	-	282	117618710	-	AHA_0708	-	hypothetical protein
685	 66.02	0	757392..758630	-	412	117619097	mntH	AHA_0709	-	manganese transport protein MntH
686	 55.04	-1	758853..759239	+	128	117617863	rpsF	AHA_0710	-	ribosomal protein S6
687	 52.38	-1	759270..759500	+	76	117618475	rpsR	AHA_0711	-	ribosomal protein S18
688	 56.38	-1	759553..759999	+	148	117620987	rplI	AHA_0712	-	ribosomal protein L9
689	 65.72	0	760101..760841	+	246	117621443	-	AHA_0713	-	ferredoxin--NADP reductase
690	 57.55	0	760894..761211	-	105	117621217	-	AHA_0714	-	hypothetical protein
691	 64.22	0	761574..762512	+	312	117620370	-	AHA_0715	-	hypothetical protein
692	 56.86	0	762562..762765	-	67	117619827	-	AHA_0716	-	hypothetical protein
693	 68.81	+1	762774..763751	+	325	117621466	-	AHA_0717	-	quinone oxidoreductase
694	 62.33	0	763748..764185	+	145	117620984	-	AHA_0718	-	hypothetical protein
695	 63.47	0	764205..767018	+	937	117620388	-	AHA_0719	-	M16B family peptidase
696	 63.96	0	767079..768668	+	529	117619815	gshA	AHA_0720	-	glutamate--cysteine ligase
697	 63.79	0	768923..770137	+	404	117618747	-	AHA_0721	-	hypothetical protein
698	 63.32	0	770220..772010	-	596	117618031	-	AHA_0722	-	long-chain-fatty-acid--CoA ligase-like protein
699	 65.57	0	772197..772742	+	181	117617473	-	AHA_0723	-	hypothetical protein
700	 64.89	0	772768..773217	-	149	117621110	rimI	AHA_0724	-	ribosomal-protein-alanine acetyltransferase
701	 66.00	0	773947..775593	+	548	117621394	-	AHA_0725	-	ATPase
702	 67.42	0	775781..777100	+	439	117619908	yieM	AHA_0726	-	hypothetical protein
703	 66.07	0	777110..778114	-	334	117620507	-	AHA_0727	-	diguanylate cyclase/phosphodiesterase
704	 66.67	0	778338..779258	+	306	117618901	-	AHA_0728	-	TPR repeat-containing protein
705	 65.80	0	779375..780184	+	269	117621244	-	AHA_0729	-	GGDEF/response regulator receiver domain-containing protein
706	 61.31	0	780442..782028	+	528	117617465	prfC	AHA_0730	-	peptide chain release factor 3
707	 60.77	0	782197..782535	+	112	117618535	-	AHA_0731	-	steroid delta-isomerase domain-containing protein
708	 72.12	+1	782602..783096	-	164	117619174	-	AHA_0732	-	transcriptional regulatory protein
709	 70.15	+1	783159..783617	+	152	117620283	-	AHA_0733	-	alkylhydroperoxidase AhpD core
710	 69.33	+1	783675..784613	-	312	117619941	-	AHA_0734	-	MarR family transcriptional regulator
711	 64.17	0	784819..785940	-	373	117620292	xenB	AHA_0735	-	xenobiotic reductase B
712	 67.55	0	786045..786611	+	188	117619843	-	AHA_0736	-	TetR family transcriptional regulator
713	 64.16	0	786751..787707	-	318	117619194	-	AHA_0737	-	LysR family transcriptional regulator
714	 63.66	0	787858..788955	+	365	117618745	-	AHA_0738	-	agmatine deiminase
715	 65.43	0	789082..790785	+	567	117618013	-	AHA_0739	-	amidase
716	 62.60	0	792493..793254	+	253	117617449	-	AHA_0740	-	beta-lactamase
717	 60.79	0	793418..794710	+	430	117619892	-	AHA_0741	-	hypothetical protein
718	 65.31	0	794781..796031	-	416	117621455	-	AHA_0742	-	putative ATP-dependent RNA helicase RhlE
719	 68.05	+1	796134..797003	-	289	117618645	-	AHA_0743	-	regulatory protein, LysR:LysR, substrate-binding
720	 70.15	+1	797223..798455	+	410	117619225	-	AHA_0744	-	valanimycin resistance, putative
721	 69.08	+1	798462..798917	-	151	117617475	-	AHA_0745	-	hypothetical protein
722	 61.39	0	799088..799996	+	302	117618043	-	AHA_0746	-	hypothetical protein
723	 69.39	+1	800063..800356	-	97	117620970	-	AHA_0747	-	hypothetical protein
724	 61.50	0	800502..801062	-	186	117621527	-	AHA_0748	-	carbonic anhydrase
725	 64.25	0	801320..801940	+	206	117619766	-	AHA_0749	-	ribonuclease T2 family protein
726	 65.96	0	802009..802293	+	94	117620331	-	AHA_0750	-	hypothetical protein
727	 65.34	0	802290..803348	+	352	117620898	-	AHA_0751	-	2-nitropropane dioxygenase family oxidoreductase
728	 58.39	0	809221..810054	+	277	117621531	-	AHA_0757	-	MutT/nudix family protein
729	 67.32	0	810083..811306	-	407	117619558	-	AHA_0758	-	two-component system sensor kinase
730	 64.76	0	811363..812043	-	226	117620485	-	AHA_0759	-	transcriptional regulatory protein CpxR
731	 68.56	+1	812205..813365	+	386	117619326	-	AHA_0760	-	macrolide-specific efflux protein MacA
732	 68.21	+1	813368..815314	+	648	117619856	-	AHA_0761	-	macrolide-specific ABC-type efflux carrier
733	 62.01	0	815619..816455	-	278	117618623	-	AHA_0762	-	glutamine/glutamate ABC transporter, periplasmic glutamine/glutamate-binding protein
734	 62.34	0	816452..817213	-	253	117619239	-	AHA_0763	-	ABC transporter
735	 65.61	0	817210..817872	-	220	117621263	-	AHA_0764	-	glutamine transport system permease protein GlnP
736	 64.41	0	817947..818612	-	221	117617583	-	AHA_0765	-	glutamine/glutamate ABC transporter, permease protein
737	 70.05	+1	818609..819820	-	403	117620451	-	AHA_0766	-	threonine synthase
738	 65.32	0	820056..822203	+	715	117620927	-	AHA_0767	-	prolyl endopeptidase
739	 67.55	0	822407..824566	+	719	117621162	-	AHA_0768	-	AsmA protein
740	 61.45	0	824742..825278	+	178	117619692	-	AHA_0769	-	acetyltransferase
741	 68.84	+1	825334..826068	+	244	117620215	-	AHA_0770	-	3-oxoacyl-[acyl-carrier-protein] reductase
742	 67.21	0	826119..829052	-	977	117618634	-	AHA_0771	-	glutamate-ammonia ligase adenylyltransferase
743	 63.49	0	829124..829564	-	146	117618826	-	AHA_0772	-	acetyltransferase
744	 64.91	0	829745..830995	-	416	117619329	-	AHA_0773	-	methyl-accepting chemotaxis protein
745	 60.10	0	831027..831848	+	273	117617903	-	AHA_0774	-	ion transporter, putative
746	 60.23	0	832001..832606	+	201	117618349	-	AHA_0775	-	arylsulfatase
747	 66.45	0	832876..836040	+	1054	117620021	-	AHA_0776	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
748	 67.18	0	836241..837020	+	259	117620428	-	AHA_0777	-	NUDIX family hydrolase
749	 63.14	0	837040..838230	+	396	117619073	hemE	AHA_0778	-	uroporphyrinogen decarboxylase
750	 63.87	0	838411..839340	+	309	117617581	-	AHA_0779	-	ROK family protein
751	 59.64	0	839390..840400	+	336	117618136	epd	AHA_0780	-	erythrose 4-phosphate dehydrogenase
752	 59.79	0	840463..841626	+	387	117621197	pgk	AHA_0781	-	phosphoglycerate kinase
62.23	MEAN

5.38	STD DEV
