IslandPathversion 1.0

IslandPath Analysis: Aeromonas hydrophila subsp. hydrophila ATCC 7966

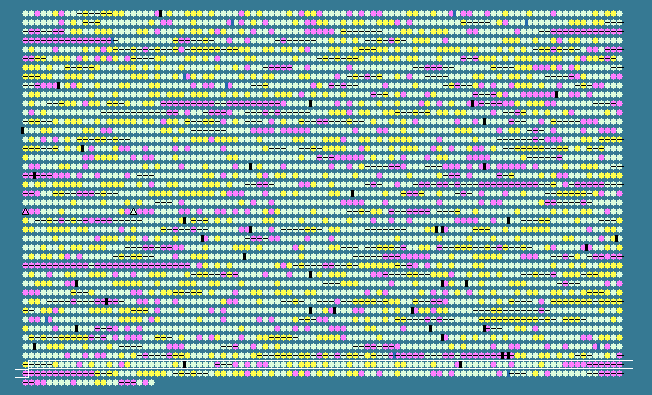

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.23 STD DEV: 5.38
Aeromonas hydrophila subsp. hydrophila ATCC 7966, complete genome - 1..4744448
4122 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3902	 65.03	0	4495658..4496938	-	426	117619500	-	AHA_4059	-	transcriptional regulatory protein ZraR
3903	 64.73	0	4496935..4497450	-	171	117620380	-	AHA_4060	-	hypothetical protein
3904	 61.81	0	4497459..4498859	-	466	117618807	-	AHA_4061	-	sensor histidine kinase
3905	 65.31	0	4499180..4499695	+	171	117619747	-	AHA_4062	-	7, 8-dihydro-6-hydroxymethylpterin-pyrophosphokinase
3906	 67.09	0	4499699..4500403	-	234	117620184	-	AHA_4063	-	pteridine reductase 1
3907	 63.46	0	4500523..4500927	+	134	117620748	-	AHA_4065	-	CBS domain-containing protein
3908	 65.18	0	4500924..4501460	-	178	117621059	-	AHA_4064	-	hypothetical protein
3909	 62.61	0	4501546..4502310	+	254	117617888	-	AHA_4066	-	glutamine transport system substrate-binding protein, putative
3910	 56.49	-1	4502405..4502866	-	153	117618479	asnC	AHA_4067	-	DNA-binding transcriptional regulator AsnC
3911	 60.92	0	4502900..4504012	+	370	117618980	asnA	AHA_4068	-	asparagine synthetase AsnA
3912	 69.30	+1	4504023..4504136	-	37	117619378	-	AHA_4069	-	hypothetical protein
3913	 64.97	0	4504222..4505046	-	274	117618802	-	AHA_4070	-	metallo-beta-lactamase superfamily protein
3914	 64.14	0	4505107..4507680	-	857	117619764	clpB	AHA_4071	-	ATP-dependent chaperone protein ClpB
3915	 68.29	+1	4507852..4508589	-	245	117618449	-	AHA_4072	-	hypothetical protein
3916	 62.59	0	4508708..4509688	-	326	117618510	-	AHA_4073	-	ribosomal large subunit pseudouridine synthase D
3917	 55.01	-1	4509644..4510561	+	305	117621430	-	AHA_4074	-	ComL family lipoprotein
3918	 65.99	0	4510710..4512038	-	442	117617887	-	AHA_4075	-	coenzyme A disulfide reductase
3919	 63.38	0	4512132..4513532	-	466	117620755	-	AHA_4076	-	sodium/dicarboxylate symporter family protein
3920	 64.84	0	4513698..4515011	-	437	117619569	-	AHA_4077	-	hypothetical protein
3921	 62.55	0	4515317..4516069	-	250	117620118	-	AHA_4078	-	periplasmic binding protein, putative
3922	 62.69	0	4516166..4517650	-	494	117619102	pntB	AHA_4079	-	pyridine nucleotide transhydrogenase
3923	 61.95	0	4517662..4519188	-	508	117618516	pntA	AHA_4080	-	NAD(P) transhydrogenase subunit alpha
3924	 65.67	0	4519696..4520898	-	400	117618205	-	AHA_4081	-	alcohol dehydrogenase, iron-containing
3925	 65.67	0	4521006..4521908	+	300	117617632	-	AHA_4082	-	putative HTH-type transcriptional regulator YqhC
3926	 67.78	+1	4522504..4524396	-	630	117620665	-	AHA_4083	-	methyl-accepting chemotaxis protein
3927	 64.04	0	4524647..4526017	-	456	117620847	-	AHA_4084	-	phosphatidylserine decarboxylase
3928	 60.22	0	4526595..4527137	+	180	117620276	-	AHA_4086	-	hypothetical protein
3929	 61.18	0	4527403..4528332	+	309	117619960	pyrB	AHA_4087	-	aspartate carbamoyltransferase catalytic subunit
3930	 59.14	0	4528349..4528813	+	154	117618992	pyrI	AHA_4088	-	aspartate carbamoyltransferase regulatory subunit
3931	 64.40	0	4528950..4529522	+	190	117620436	-	AHA_4089	-	arginine repressor
3932	 61.40	0	4529701..4531104	-	467	117617535	-	AHA_4090	-	putative transporter
3933	 56.72	-1	4531228..4532232	-	334	117620615	argF-2	AHA_4091	-	ornithine carbamoyltransferase
3934	 61.60	0	4532363..4533289	-	308	117621279	arcC-2	AHA_4092	-	carbamate kinase
3935	 59.38	0	4533353..4534573	-	406	117619675	arcA-2	AHA_4093	-	arginine deiminase
3936	 55.95	-1	4535244..4535495	+	83	117619867	-	AHA_4094	-	hypothetical protein
3937	 59.26	0	4535596..4536243	+	215	117618886	-	AHA_4095	-	ParA family protein
3938	 51.22	-2	4536245..4536613	+	122	117619338	-	AHA_4096	-	CopG family transcriptional regulator
3939	 61.88	0	4537215..4538948	-	577	117617924	-	AHA_4097	-	methyl-accepting chemotaxis protein
3940	 58.46	0	4539000..4540010	-	336	117617979	mglC	AHA_4098	-	beta-methylgalactoside transporter inner membrane component
3941	 56.67	-1	4540027..4541547	-	506	117621108	mglA	AHA_4099	-	galactose/methyl galaxtoside transporter ATP-binding protein
3942	 59.57	0	4541602..4542588	-	328	117620811	mglB	AHA_4100	-	galactose ABC transporter, periplasmic galactose-binding protein
3943	 65.53	0	4542823..4545900	-	1025	117618533	lacZ	AHA_4101	-	beta-D-galactosidase
3944	 65.07	0	4546119..4547123	-	334	117618214	galR	AHA_4102	-	transcriptional regulator GalR
3945	 66.27	0	4547328..4548341	+	337	117619106	galE-2	AHA_4103	-	UDP-glucose 4-epimerase
3946	 65.06	0	4548448..4549506	+	352	117618551	galT	AHA_4104	-	galactose-1-phosphate uridylyltransferase
3947	 67.45	0	4549503..4550651	+	382	117620488	galK	AHA_4105	-	galactokinase
3948	 67.81	+1	4550572..4551708	+	378	117619928	galM	AHA_4106	-	galactose mutarotase
3949	 68.05	+1	4551894..4552904	+	336	117621009	-	AHA_4107	-	aldo/keto reductase family oxidoreductase
3950	 63.97	0	4553085..4553900	+	271	117620408	-	AHA_4108	-	undecaprenyl pyrophosphate phosphatase
3951	 68.92	+1	4553962..4554627	-	221	117618049	-	AHA_4109	-	transcriptional activator ChrR
3952	 62.41	0	4554620..4555300	-	226	117620536	-	AHA_4110	-	ECF subfamily RNA polymerase sigma factor
3953	 65.00	0	4555322..4555981	-	219	117619398	-	AHA_4111	-	ATP-dependent protease La
3954	 62.14	0	4556202..4557947	+	581	117617648	argS	AHA_4112	-	arginyl-tRNA synthetase
3955	 67.62	+1	4557951..4558790	+	279	117620407	-	AHA_4113	-	cell division protein
3956	 62.17	0	4558979..4559512	+	177	117618959	hslV	AHA_4114	-	ATP-dependent protease peptidase subunit
3957	 62.30	0	4559605..4560933	+	442	117619601	hslU	AHA_4115	-	ATP-dependent protease ATP-binding subunit
3958	 71.16	+1	4561026..4562450	-	474	117620140	-	AHA_4116	-	major facilitator transporter
3959	 72.31	+1	4562573..4563529	+	318	117618456	-	AHA_4117	-	regulatory protein, LysR:LysR, substrate-binding
3960	 63.99	0	4563784..4566363	+	859	117621058	nirB-2	AHA_4118	-	nitrite reductase [NAD(P)H], large subunit
3961	 62.58	0	4566470..4566787	+	105	117620286	nirD	AHA_4119	-	nitrite reductase small subunit
3962	 65.19	0	4566839..4567651	+	270	117618511	-	AHA_4120	-	nitrite transporter NirC
3963	 68.66	+1	4567664..4569070	+	468	117619192	-	AHA_4121	-	siroheme synthase
3964	 65.79	0	4569143..4570627	+	494	117618341	mgtE-2	AHA_4122	-	magnesium transporter
3965	 63.05	0	4570685..4572538	-	617	117618167	-	AHA_4123	-	methyl-accepting chemotaxis protein
3966	 60.49	0	4572685..4573170	+	161	117621554	rraA-2	AHA_4124	-	ribonuclease activity regulator protein RraA
3967	 59.85	0	4573439..4574113	-	224	117617739	-	AHA_4125	-	hypothetical protein
3968	 63.89	0	4574246..4574569	-	107	117620079	-	AHA_4126	-	hypothetical protein
3969	 66.53	0	4574544..4575971	-	475	117620918	-	AHA_4127	-	YdiU family protein
3970	 61.33	0	4576075..4576374	+	99	117619187	-	AHA_4128	-	cytochrome c-552
3971	 64.05	0	4576443..4578278	-	611	117621322	recQ	AHA_4129	-	ATP-dependent DNA helicase RecQ
3972	 61.40	0	4578421..4578876	+	151	117618824	-	AHA_4130	-	thioesterase (4HBT) superfamily protein
3973	 54.36	-1	4579001..4579528	+	175	117619296	-	AHA_4131	-	hypothetical protein
3974	 64.70	0	4580082..4580792	-	236	117619261	-	AHA_4133	-	mosc domain-containing protein
3975	 63.11	0	4580838..4581680	-	280	117619602	potI	AHA_4134	-	putrescine ABC transporter, permease protein PotI
3976	 60.24	0	4581677..4582579	-	300	117620023	potH	AHA_4135	-	putrescine ABC transporter, permease protein PotH
3977	 61.56	0	4582579..4583733	-	384	117620980	-	AHA_4136	-	putrescine transport ATP-binding protein PotG
3978	 60.77	0	4583809..4584894	-	361	117621460	potD	AHA_4137	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
3979	 58.47	0	4585012..4586109	-	365	117617823	potF	AHA_4138	-	putrescine ABC transporter, periplasmic putrescine-binding protein
3980	 63.36	0	4586164..4587525	-	453	117619456	-	AHA_4139	-	putative aminotransferase
3981	 63.29	0	4587713..4589044	-	443	117620680	-	AHA_4140	-	glutamine synthetase
3982	 57.36	0	4589513..4589899	+	128	117618292	-	AHA_4141	-	putative RNA polymerase-binding protein DksA
3983	 59.56	0	4590070..4590927	+	285	117617945	-	AHA_4142	-	hypothetical protein
3984	 64.43	0	4590979..4591425	+	148	117619467	-	AHA_4143	-	hypothetical protein
3985	 64.38	0	4591447..4591926	+	159	117620117	-	AHA_4144	-	CreA
3986	 62.83	0	4592004..4592993	+	329	117619573	-	AHA_4145	-	D-lactate dehydrogenase
3987	 67.83	+1	4593085..4594464	+	459	117619633	-	AHA_4146	-	putative chaperone
3988	 63.52	0	4594436..4595038	+	200	117621206	-	AHA_4147	-	heat shock protein HslJ
3989	 62.66	0	4595109..4595957	+	282	117620770	-	AHA_4148	-	hypothetical protein
3990	 64.63	0	4596071..4597792	+	573	117618904	-	AHA_4149	-	maltodextrin glucosidase
3991	 57.61	0	4598015..4599019	+	334	117619495	-	AHA_4150	-	lipopolysaccharide O-Ag biosynthesis protein FlmA
3992	 56.44	-1	4599016..4600149	+	377	117618895	flmB	AHA_4151	-	lipopolysaccharide O-Ag biosynthesis protein FlmB
3993	 51.19	-2	4600278..4601033	-	251	117618315	-	AHA_4152	-	transferase, putative
3994	 52.58	-1	4601040..4601678	-	212	117620144	-	AHA_4153	-	hypothetical protein
3995	 51.69	-1	4601675..4604071	-	798	117620556	-	AHA_4154	-	hypothetical protein
3996	 52.42	-1	4604068..4604790	-	240	117619686	-	AHA_4155	-	methionyl-tRNA formyltransferase-like protein
3997	 48.26	-2	4604787..4605362	-	191	117621125	-	AHA_4156	-	hypothetical protein
3998	 43.68	-2	4605362..4605883	-	173	117620151	-	AHA_4157	-	adenylyl-sulfate kinase
3999	 35.32	-2	4605931..4606887	-	318	117620557	-	AHA_4158	-	hypothetical protein
4000	 34.18	-2	4606989..4608884	-	631	117619932	-	AHA_4159	-	hypothetical protein
4001	 33.52	-2	4608995..4610074	-	359
