IslandPathversion 1.0

IslandPath Analysis: Actinobacillus succinogenes 130Z

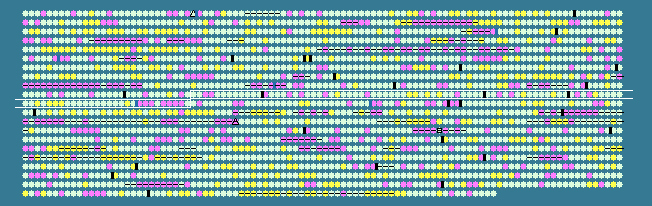

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
929	 48.94	0	1010343..1012226	+	627	152978617	-	Asuc_0943	-	dihydrolipoamide acetyltransferase
930	 47.23	0	1012284..1013708	+	474	152978618	-	Asuc_0944	-	dihydrolipoamide dehydrogenase
931	 39.38	-1	1013882..1014493	+	203	152978619	-	Asuc_0945	-	NLP/P60 protein
932	 39.04	-1	1014618..1015055	-	145	152978620	-	Asuc_0946	-	putative prophage repressor
933	 44.66	0	1015308..1016552	+	414	152978621	-	Asuc_0947	-	serine/threonine transporter SstT
934	 45.09	0	1016614..1018059	+	481	152978622	-	Asuc_0948	-	putative molybdenum transport ATP-binding protein ModF
935	 47.39	0	1018105..1019022	+	305	152978623	-	Asuc_0949	-	band 7 protein
936	 46.98	0	1019032..1019478	+	148	152978624	-	Asuc_0950	-	hypothetical protein
937	 46.15	0	1019482..1020066	+	194	152978625	-	Asuc_0951	-	NAD(P)H dehydrogenase (quinone)
938	 47.49	0	1020171..1021625	-	484	152978626	-	Asuc_0952	-	leucyl aminopeptidase
939	 44.08	0	1021773..1022879	+	368	152978627	-	Asuc_0953	-	permease YjgP/YjgQ family protein
940	 44.60	0	1022883..1023947	+	354	152978628	-	Asuc_0954	-	permease YjgP/YjgQ family protein
941	 41.42	0	1024377..1024982	-	201	152978629	-	Asuc_0955	-	hypothetical protein
942	 42.94	0	1025082..1026476	-	464	152978630	-	Asuc_0956	-	fumarate hydratase
943	 44.69	0	1026634..1027716	+	360	152978631	-	Asuc_0957	-	hypothetical protein
944	 43.59	0	1027791..1028765	+	324	152978632	-	Asuc_0958	-	sigma-54 factor interaction domain-containing protein
945	 38.62	-1	1028814..1029248	-	144	152978633	-	Asuc_0959	-	ferric uptake regulator family protein
946	 43.43	0	1029258..1029782	-	174	152978634	-	Asuc_0960	-	flavodoxin FldA
947	 40.59	-1	1029817..1030119	-	100	152978635	-	Asuc_0961	-	hypothetical protein
948	 46.49	0	1030198..1030995	-	265	152978636	-	Asuc_0962	-	alpha/beta hydrolase fold
949	 46.17	0	1031071..1031709	+	212	152978637	-	Asuc_0963	-	replication initiation regulator SeqA
950	 46.79	0	1031724..1033142	+	472	152978638	-	Asuc_0964	-	O-succinylbenzoic acid--CoA ligase
951	 41.69	0	1033133..1036483	+	1116	152978639	-	Asuc_0965	-	potassium efflux protein KefA
952	 48.85	0	1036496..1037578	+	360	152978640	-	Asuc_0966	-	chorismate synthase
953	 49.88	+1	1037662..1038519	+	285	152978641	-	Asuc_0967	-	penicillin-insensitive murein endopeptidase
954	 43.40	0	1038548..1039312	+	254	152978642	-	Asuc_0968	-	hypothetical protein
955	 47.59	0	1039312..1040265	+	317	152978643	-	Asuc_0969	-	lipid A biosynthesis (KDO)2-(lauroyl)-lipid IVA acyltransferase
956	 44.75	0	1040332..1040874	+	180	152978644	-	Asuc_0970	-	adenine phosphoribosyltransferase
957	 47.19	0	1040899..1042998	+	699	152978645	-	Asuc_0971	-	DNA polymerase III subunits gamma and tau
958	 39.38	-1	1043291..1044133	-	280	152978646	-	Asuc_0972	-	transcriptional antiterminator, BglG
959	 44.63	0	1044204..1045673	-	489	152978647	-	Asuc_0973	-	glycoside hydrolase family protein
960	 45.82	0	1045867..1046691	-	274	152978648	-	Asuc_0974	-	Cof-like hydrolase
961	 46.44	0	1046768..1048651	-	627	152978649	-	Asuc_0975	-	PTS system, beta-glucoside-specific IIABC subunit
962	 45.45	0	1049352..1050077	+	241	152978650	-	Asuc_0976	-	hypothetical protein
963	 48.56	0	1050128..1052380	-	750	152978651	-	Asuc_0977	-	DNA topoisomerase IV subunit A
964	 47.71	0	1052782..1053894	-	370	152978652	-	Asuc_0978	-	nitrite reductase, copper-containing
965	 49.58	0	1053933..1055858	-	641	152978653	-	Asuc_0979	-	DNA topoisomerase IV subunit B
966	 49.61	0	1055967..1057649	-	560	152978654	-	Asuc_0980	-	putative ABC transporter ATP-binding protein
967	 48.07	0	1058008..1059378	-	456	152978655	-	Asuc_0981	-	peptidase U32
968	 50.22	+1	1059586..1061166	-	526	152978656	-	Asuc_0982	-	peptide chain release factor 3
969	 47.04	0	1061405..1062265	+	286	152978657	-	Asuc_0983	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
970	 49.13	0	1062328..1063131	+	267	152978658	-	Asuc_0984	-	hypothetical protein
971	 46.59	0	1063215..1064549	+	444	152978659	-	Asuc_0985	-	argininosuccinate synthase
972	 48.26	0	1064613..1065932	-	439	152978660	-	Asuc_0986	-	small GTP-binding protein
973	 41.00	-1	1065965..1066264	-	99	152978661	-	Asuc_0987	-	RNA chaperone Hfq
974	 47.02	0	1066344..1067300	-	318	152978662	-	Asuc_0988	-	tRNA delta(2)-isopentenylpyrophosphate transferase
975	 46.03	0	1067303..1069216	-	637	152978663	-	Asuc_0989	-	DNA mismatch repair protein
976	 44.02	0	1069219..1070940	-	573	152978664	-	Asuc_0990	-	N-acetylmuramoyl-L-alanine amidase
977	 46.25	0	1070944..1071423	-	159	152978665	-	Asuc_0991	-	hypothetical protein
978	 46.08	0	1071794..1072342	-	182	152978666	-	Asuc_0992	-	oligoribonuclease
979	 46.51	0	1072406..1073452	+	348	152978667	-	Asuc_0993	-	ribosome-associated GTPase
980	 41.47	0	1073724..1073981	+	85	152978668	-	Asuc_0994	-	phosphotransferase system, phosphocarrier protein HPr
981	 43.69	0	1074087..1075814	+	575	152978669	-	Asuc_0995	-	phosphoenolpyruvate-protein phosphotransferase
982	 39.92	-1	1075878..1076378	+	166	152978670	-	Asuc_0996	-	glucose-specific PTS system component
983	 45.76	0	1076500..1076829	+	109	152978671	-	Asuc_0997	-	hypothetical protein
984	 50.41	+1	1076962..1077564	+	200	152978672	-	Asuc_0998	-	recombination protein RecR
985	 47.67	0	1077568..1078125	+	185	152978673	-	Asuc_0999	-	TorD protein
986	 44.76	0	1078171..1080297	-	708	152978674	-	Asuc_1000	-	hypothetical protein
987	 44.74	0	1080290..1080745	-	151	152978675	-	Asuc_1001	-	hypothetical protein
988	 46.00	0	1080883..1081545	-	220	152978676	-	Asuc_1002	-	hypothetical protein
989	 52.38	+1	1081690..1081962	+	90	152978677	-	Asuc_1003	-	acylphosphatase
990	 46.67	0	1082078..1082407	-	109	152978678	-	Asuc_1004	-	DsrC family protein
991	 45.68	0	1082477..1083148	-	223	152978679	-	Asuc_1005	-	hypothetical protein
992	 44.32	0	1085469..1093241	+	2590	152978680	-	Asuc_1007	-	filamentous haemagglutinin outer membrane protein
993	 25.33	-2	1094867..1095166	+	99	152978681	-	Asuc_1009	-	hypothetical protein
994	 46.91	0	1095290..1097476	+	728	152978682	-	Asuc_1010	-	hypothetical protein
995	 28.04	-2	1097476..1097985	+	169	152978683	-	Asuc_1011	-	hypothetical protein
996	 54.45	+2	1098315..1098797	+	160	152978684	-	Asuc_1012	-	FhaB protein
997	 43.41	0	1098993..1099250	+	85	152978685	-	Asuc_1013	-	FeoA family protein
998	 47.54	0	1099325..1101196	+	623	152978686	-	Asuc_1014	-	ferrous iron transport protein B
999	 42.36	0	1101198..1101341	+	47	152978687	-	Asuc_1015	-	hypothetical protein
1000	 47.70	0	1101439..1102155	-	238	152978688	-	Asuc_1016	-	sugar fermentation stimulation protein A
1001	 45.90	0	1102290..1104311	-	673	152978689	-	Asuc_1017	-	TonB-dependent siderophore receptor
1002	 48.50	0	1104335..1106305	-	656	152978690	-	Asuc_1018	-	iron-hydroxamate transporter permease subunit
1003	 50.65	+1	1106299..1107216	-	305	152978691	-	Asuc_1019	-	periplasmic binding protein
1004	 46.14	0	1107216..1107980	-	254	152978692	-	Asuc_1020	-	ABC transporter related
1005	 51.08	+1	1108318..1109850	+	510	152978693	-	Asuc_1021	-	NAD(P) transhydrogenase subunit alpha
1006	 49.38	0	1109862..1111313	+	483	152978694	-	Asuc_1022	-	pyridine nucleotide transhydrogenase
1007	 49.81	+1	1111421..1113502	-	693	152978695	-	Asuc_1023	-	ATP-dependent DNA helicase RecG
1008	 47.83	0	1113517..1115379	-	620	152978696	-	Asuc_1024	-	(p)ppGpp synthetase I, SpoT/RelA
1009	 45.69	0	1115441..1115707	-	88	152978697	-	Asuc_1025	-	DNA-directed RNA polymerase subunit omega
1010	 44.18	0	1115776..1116402	-	208	152978698	-	Asuc_1026	-	guanylate kinase
1011	 43.82	0	1116671..1117690	+	339	152978699	-	Asuc_1027	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1012	 47.40	0	1117859..1120261	-	800	152978700	-	Asuc_1028	-	penicillin-binding protein 1B
1013	 43.09	0	1120385..1120753	-	122	152978701	-	Asuc_1029	-	hypothetical protein
1014	 44.74	0	1120772..1121113	-	113	152978702	-	Asuc_1030	-	iron-sulfur cluster insertion protein ErpA
1015	 45.40	0	1121244..1122047	+	267	152978703	-	Asuc_1031	-	methionine aminopeptidase
1016	 45.36	0	1122101..1124677	+	858	152978704	-	Asuc_1032	-	PII uridylyl-transferase
1017	 45.36	0	1124691..1125089	-	132	152978705	-	Asuc_1033	-	MerR family transcriptional regulator
1018	 49.08	0	1125160..1127928	+	922	152978706	-	Asuc_1034	-	copper-translocating P-type ATPase
1019	 42.84	0	1128051..1129985	+	644	152978707	-	Asuc_1035	-	ABC transporter ATPase component
1020	 32.99	-2	1136293..1137174	-	293	152978708	-	Asuc_1036	-	formyltetrahydrofolate deformylase
1021	 36.36	-2	1137210..1137605	-	131	152978709	-	Asuc_1037	-	histone family protein nucleoid-structuring protein H-NS
1022	 41.34	0	1137709..1139319	+	536	152978710	-	Asuc_1038	-	Na+ antiporter NhaC
1023	 44.27	0	1139564..1141282	+	572	152978711	-	Asuc_1039	-	acetolactate synthase 3 catalytic subunit
1024	 41.67	0	1141293..1141784	+	163	152978712	-	Asuc_1040	-	acetolactate synthase 3 regulatory subunit
1025	 35.71	-2	1141844..1143397	+	517	152978713	-	Asuc_1041	-	sulfatase
1026	 41.67	0	1143451..1143714	-	87	152978714	-	Asuc_1042	-	glutaredoxin 1
1027	 39.59	-1	1144173..1144715	+	180	152978715	-	Asuc_1043	-	hypothetical protein
1028	 45.84	0	1144766..1147843	-	1025	152978716	-	Asuc_1044	-	FAD linked oxidase domain-containing protein
45.47	MEAN

4.33	STD DEV
