IslandPath Analysis: Actinobacillus succinogenes 130Z

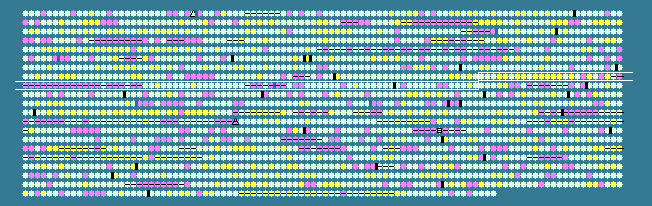

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 45.47   STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
777	 45.97	0	851001..851633	+	210	152978465	-	Asuc_0789	-	toluene tolerance family protein
778	 46.15	0	851638..851988	+	116	152978466	-	Asuc_0790	-	anti-sigma-factor antagonist
779	 42.64	0	852009..852266	+	85	152978467	-	Asuc_0791	-	BolA family protein
780	 49.25	0	852279..853541	+	420	152978468	-	Asuc_0792	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
781	 51.17	+1	853579..854217	-	212	152978469	-	Asuc_0793	-	ABC transporter related
782	 46.33	0	854204..854911	-	235	152978470	-	Asuc_0794	-	cobalt transport protein
783	 53.27	+1	854908..855519	-	203	152978471	-	Asuc_0795	-	cobalt transport protein CbiM
784	 51.48	+1	855519..856025	-	168	152978472	-	Asuc_0796	-	hypothetical protein
785	 48.79	0	856025..856729	-	234	152978473	-	Asuc_0797	-	putative ABC-type Co2+ transport system, periplasmic component
786	 50.61	+1	856848..857258	+	136	152978474	-	Asuc_0798	-	MerR family transcriptional regulator
787	 51.79	+1	857265..857963	-	232	152978475	-	Asuc_0799	-	alanine racemase domain-containing protein
788	 50.62	+1	858090..858656	+	188	152978476	-	Asuc_0800	-	superoxide dismutase
789	 49.41	0	858908..861364	+	818	152978477	-	Asuc_0801	-	bifunctional aspartokinase I/homeserine dehydrogenase I
790	 50.21	+1	861364..862311	+	315	152978478	-	Asuc_0802	-	homoserine kinase
791	 48.86	0	862403..863677	+	424	152978479	-	Asuc_0803	-	threonine synthase
792	 49.92	+1	863819..865705	+	628	152978480	-	Asuc_0804	-	bifunctional glutathionylspermidine amidase/glutathionylspermidine synthetase
793	 47.70	0	865702..866049	+	115	152978481	-	Asuc_0805	-	arsenate reductase and related
794	 33.90	-2	866281..866814	+	177	152978482	-	Asuc_0806	-	hypothetical protein
795	 49.69	0	866869..867999	+	376	152978483	-	Asuc_0807	-	succinyl-diaminopimelate desuccinylase
796	 47.58	0	868041..868721	+	226	152978484	-	Asuc_0808	-	peptidase M15B and M15C DD-carboxypeptidase VanY/endolysin
797	 41.94	0	868881..869426	-	181	152978485	-	Asuc_0809	-	hypothetical protein
798	 50.07	+1	869576..870931	+	451	152978486	-	Asuc_0810	-	peptidase U62 modulator of DNA gyrase
799	 44.32	0	871113..871649	+	178	152978487	-	Asuc_0811	-	hypoxanthine phosphoribosyltransferase
800	 39.60	-1	871694..872905	+	403	152978488	-	Asuc_0812	-	putative transcriptional regulator
801	 35.83	-2	873050..874090	+	346	152978489	-	Asuc_0813	-	lipopolysaccharide biosynthesis protein
802	 35.07	-2	874083..874889	+	268	152978490	-	Asuc_0814	-	hypothetical protein
803	 28.48	-2	874896..876152	+	418	152978491	-	Asuc_0815	-	polysaccharide biosynthesis protein
804	 30.72	-2	876134..876592	+	152	152978492	-	Asuc_0816	-	glycerol-3-phosphate cytidylyltransferase
805	 31.79	-2	876589..877686	+	365	152978493	-	Asuc_0817	-	CDP-glycerol:poly(glycerophosphate) glycerophosphotransferase
806	 26.55	-2	877688..879013	+	441	152978494	-	Asuc_0818	-	hypothetical protein
807	 35.19	-2	879177..880895	+	572	152978495	-	Asuc_0819	-	hypothetical protein
808	 26.38	-2	881379..882140	+	253	152978496	-	Asuc_0820	-	hypothetical protein
809	 35.96	-2	882216..883319	+	367	152978497	-	Asuc_0821	-	UDP-galactopyranose mutase
810	 36.93	-1	883708..885126	+	472	152978498	-	Asuc_0822	-	undecaprenyl-phosphate galactose phosphotransferase
811	 31.24	-2	885147..886247	+	366	152978499	-	Asuc_0823	-	acyltransferase 3
812	 29.14	-2	886259..887308	+	349	152978500	-	Asuc_0824	-	acyltransferase 3
813	 34.62	-2	887391..888092	+	233	152978501	-	Asuc_0825	-	hypothetical protein
814	 42.94	0	888143..889204	+	353	152978502	-	Asuc_0826	-	dTDP-glucose 4,6-dehydratase
815	 29.08	-2	889223..889669	+	148	152978503	-	Asuc_0827	-	HI0074 family nucleotidyltransferase substrate binding protein
816	 32.99	-2	889662..889955	+	97	152978504	-	Asuc_0828	-	DNA polymerase beta subunit
817	 41.67	0	889970..890845	+	291	152978505	-	Asuc_0829	-	glucose-1-phosphate thymidylyltransferase
818	 43.26	0	890928..891803	+	291	152978506	-	Asuc_0830	-	dTDP-4-dehydrorhamnose reductase
819	 29.45	-2	891815..892381	+	188	152978507	-	Asuc_0831	-	hypothetical protein
820	 41.44	0	892383..892925	+	180	152978508	-	Asuc_0832	-	dTDP-4-dehydrorhamnose 3,5-epimerase
821	 45.96	0	892999..894297	+	432	152978509	-	Asuc_0833	-	aminopeptidase B
822	 45.07	0	894299..894724	+	141	152978510	-	Asuc_0834	-	nucleoside diphosphate kinase
823	 50.61	+1	894848..895999	+	383	152978511	-	Asuc_0835	-	S-adenosylmethionine synthetase
824	 43.84	0	896141..896749	+	202	152978512	-	Asuc_0836	-	porin opacity type
825	 45.42	0	896824..897336	+	170	152978513	-	Asuc_0837	-	hypothetical protein
826	 45.49	0	897401..897976	+	191	152978514	-	Asuc_0838	-	porin opacity type
827	 47.38	0	898164..900050	+	628	152978515	-	Asuc_0839	-	heat shock protein 90
828	 48.54	0	900065..900886	+	273	152978516	-	Asuc_0840	-	4'-phosphopantetheinyl transferase
829	 49.36	0	900994..901617	+	207	152978517	-	Asuc_0841	-	ADP-ribose diphosphatase
830	 45.85	0	901760..902590	+	276	152978518	-	Asuc_0842	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
831	 45.13	0	902738..903373	+	211	152978519	-	Asuc_0843	-	cytochrome c biogenesis protein CcmA
832	 48.05	0	903377..904042	+	221	152978520	-	Asuc_0844	-	heme exporter protein CcmB
833	 45.36	0	904058..904789	+	243	152978521	-	Asuc_0845	-	heme exporter protein CcmC
834	 44.12	0	904828..905031	+	67	152978522	-	Asuc_0846	-	Heme exporter protein D (CcmD)
835	 47.40	0	905028..905546	+	172	152978523	-	Asuc_0847	-	cytochrome c-type biogenesis protein CcmE
836	 47.22	0	905546..907504	+	652	152978524	-	Asuc_0848	-	cytochrome c-type biogenesis protein CcmF
837	 42.86	0	907497..908042	+	181	152978525	-	Asuc_0849	-	periplasmic protein thiol--disulphide oxidoreductase DsbE
838	 44.31	0	908042..908524	+	160	152978526	-	Asuc_0850	-	cytochrome C biogenesis protein
839	 38.96	-1	908526..909431	+	301	152978527	-	Asuc_0851	-	NrfG protein
840	 36.53	-2	909441..909941	+	166	152978528	-	Asuc_0852	-	hypothetical protein
841	 45.42	0	909954..910259	+	101	152978529	-	Asuc_0853	-	hypothetical protein
842	 37.99	-1	910387..911181	+	264	152978530	-	Asuc_0854	-	glutamate racemase
843	 37.83	-1	916979..919378	+	799	152978531	-	Asuc_0855	-	hypothetical protein
844	 37.65	-1	919409..921190	+	593	152978532	-	Asuc_0856	-	polysaccharide deacetylase
845	 42.03	0	921200..922429	+	409	152978533	-	Asuc_0857	-	N-glycosyltransferase PgaC
846	 38.04	-1	922449..922724	+	91	152978534	-	Asuc_0858	-	hypothetical protein
847	 41.98	0	922847..924373	-	508	152978535	-	Asuc_0859	-	glycoside hydrolase family protein
848	 42.97	0	924497..926332	+	611	152978536	-	Asuc_0860	-	integral membrane sensor hybrid histidine kinase
849	 48.26	0	926345..927148	-	267	152978537	-	Asuc_0861	-	inositol-phosphate phosphatase
850	 43.60	0	927332..928081	+	249	152978538	-	Asuc_0862	-	RNA methyltransferase
851	 43.01	0	928138..928602	+	154	152978539	-	Asuc_0863	-	BadM/Rrf2 family transcriptional regulator
852	 46.09	0	928613..929827	+	404	152978540	-	Asuc_0864	-	cysteine desulfurase IscS
853	 46.09	0	929875..930258	+	127	152978541	-	Asuc_0865	-	scaffold protein
854	 41.05	-1	930324..930647	+	107	152978542	-	Asuc_0866	-	iron-sulfur cluster assembly protein IscA
855	 43.18	0	930660..931187	+	175	152978543	-	Asuc_0867	-	co-chaperone HscB
856	 50.51	+1	931194..933038	+	614	152978544	-	Asuc_0868	-	chaperone protein HscA
857	 46.78	0	933055..933396	+	113	152978545	-	Asuc_0869	-	ferredoxin, 2Fe-2S type, ISC system
858	 43.08	0	933396..933590	+	64	152978546	-	Asuc_0870	-	hypothetical protein
859	 44.29	0	933705..934343	+	212	152978547	-	Asuc_0871	-	uridine kinase
860	 47.35	0	934345..934929	+	194	152978548	-	Asuc_0872	-	deoxycytidine triphosphate deaminase
861	 43.19	0	934932..936281	+	449	152978549	-	Asuc_0873	-	hypothetical protein
862	 44.97	0	936563..938074	-	503	152978550	-	Asuc_0874	-	GTP-binding protein EngA
863	 42.05	0	938452..939231	-	259	152978551	-	Asuc_0875	-	DNA polymerase III subunit epsilon
864	 41.51	0	939303..939767	+	154	152978552	-	Asuc_0876	-	ribonuclease H
865	 45.02	0	939955..940587	-	210	152978553	-	Asuc_0877	-	LexA repressor
866	 44.93	0	940713..941195	-	160	152978554	-	Asuc_0878	-	SsrA-binding protein
867	 45.34	0	941325..942032	-	235	152978555	-	Asuc_0879	-	two-component response regulator
868	 48.42	0	942217..942501	-	94	152978556	-	Asuc_0880	-	YCII-related
869	 43.92	0	942528..942971	-	147	152978557	-	Asuc_0881	-	thioesterase superfamily protein
870	 39.48	-1	942974..943510	-	178	152978558	-	Asuc_0882	-	intracellular septation protein A
871	 40.83	-1	943512..944285	-	257	152978559	-	Asuc_0883	-	hypothetical protein
872	 43.05	0	944471..946147	-	558	152978560	-	Asuc_0884	-	DNA repair protein RecN
873	 44.96	0	946222..947133	-	303	152978561	-	Asuc_0885	-	inorganic polyphosphate/ATP-NAD kinase
874	 45.83	0	947259..947858	+	199	152978562	-	Asuc_0886	-	GrpE protein
875	 49.63	0	947927..949963	-	678	152978563	-	Asuc_0887	-	5-methylaminomethyl-2-thiouridine methyltransferase
876	 48.24	0	950129..951349	+	406	152978564	-	Asuc_0888	-	3-oxoacyl-(acyl carrier protein) synthase I
45.47	MEAN

4.33	STD DEV
