IslandPath Analysis: Actinobacillus succinogenes 130Z

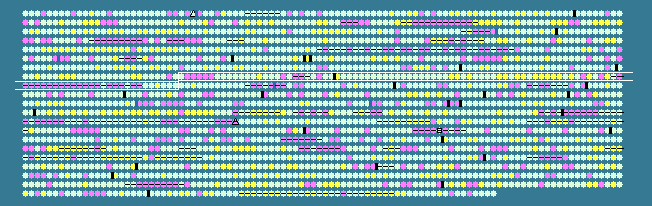

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
727	 42.15	0	796632..796994	+	120	152978415	-	Asuc_0737	-	putative mercuric transport protein
728	 40.29	-1	796991..797263	+	90	152978416	-	Asuc_0738	-	heavy metal transport/detoxification protein
729	 38.53	-1	797305..798708	-	467	152978417	-	Asuc_0739	-	hypothetical protein
730	 34.50	-2	798734..799246	-	170	152978418	-	Asuc_0740	-	prolyl aminopeptidase
731	 38.30	-1	799250..799672	-	140	152978419	-	Asuc_0741	-	MarR family transcriptional regulator
732	 36.54	-2	800032..801123	+	363	152978420	-	Asuc_0742	-	acyltransferase 3
733	 48.51	0	801324..803906	+	860	152978421	-	Asuc_0743	-	leucyl-tRNA synthetase
734	 43.98	0	803962..804675	+	237	152978422	-	Asuc_0744	-	hypothetical protein
735	 46.52	0	804678..805208	+	176	152978423	-	Asuc_0745	-	rare lipoprotein B
736	 47.71	0	805208..806257	+	349	152978424	-	Asuc_0746	-	DNA polymerase III subunit delta
737	 48.71	0	806630..807982	+	450	152978425	-	Asuc_0747	-	amino acid carrier protein
738	 47.07	0	808153..808938	+	261	152978426	-	Asuc_0748	-	DeoR family transcriptional regulator
739	 46.97	0	809001..810833	+	610	152978427	-	Asuc_0749	-	D-fructose-6-phosphate amidotransferase
740	 49.55	0	811011..812219	+	402	152978428	-	Asuc_0750	-	major facilitator transporter
741	 44.21	0	812274..813533	-	419	152978429	-	Asuc_0751	-	hypothetical protein
742	 42.71	0	813625..814413	-	262	152978430	-	Asuc_0752	-	cytochrome c assembly protein
743	 45.40	0	814538..815929	+	463	152978431	-	Asuc_0753	-	signal recognition particle protein
744	 40.81	-1	816029..816697	+	222	152978432	-	Asuc_0754	-	YheO domain-containing protein
745	 42.78	0	816697..817077	+	126	152978433	-	Asuc_0755	-	hypothetical protein
746	 39.67	-1	817074..817436	+	120	152978434	-	Asuc_0756	-	hypothetical protein
747	 41.84	0	817446..817727	+	93	152978435	-	Asuc_0757	-	hypothetical protein
748	 43.56	0	817868..818317	-	149	152978436	-	Asuc_0758	-	50S ribosomal protein L9
749	 44.30	0	818333..818560	-	75	152978437	-	Asuc_0759	-	30S ribosomal protein S18
750	 40.12	-1	818573..818896	-	107	152978438	-	Asuc_0760	-	primosomal replication protein N
751	 44.62	0	818883..819263	-	126	152978439	-	Asuc_0761	-	30S ribosomal protein S6
752	 45.18	0	819605..821056	-	483	152978440	-	Asuc_0762	-	lytic transglycosylase catalytic
753	 51.52	+1	821532..822389	+	285	152978441	-	Asuc_0763	-	methenyltetrahydrofolate cyclohydrolase
754	 44.67	0	822536..822976	+	146	152978442	-	Asuc_0764	-	hypothetical protein
755	 44.75	0	823117..824412	+	431	152978443	-	Asuc_0765	-	trigger factor
756	 47.86	0	824552..825136	+	194	152978444	-	Asuc_0766	-	ATP-dependent Clp protease proteolytic subunit
757	 45.15	0	825152..826387	+	411	152978445	-	Asuc_0767	-	ATP-dependent protease ATP-binding subunit
758	 47.71	0	826515..828935	+	806	152978446	-	Asuc_0768	-	ATP-dependent protease La
759	 43.21	0	829116..830006	+	296	152978447	-	Asuc_0769	-	peptidase S11 D-alanyl-D-alanine carboxypeptidase 1
760	 44.80	0	830125..831999	+	624	152978448	-	Asuc_0770	-	PpiC-type peptidyl-prolyl cis-trans isomerase
761	 46.27	0	832876..834870	+	664	152978449	-	Asuc_0773	-	YadA domain-containing protein
762	 42.42	0	835097..835822	+	241	152978450	-	Asuc_0774	-	30S ribosomal protein S2
763	 46.36	0	835951..836802	+	283	152978451	-	Asuc_0775	-	elongation factor Ts
764	 43.84	0	836911..837900	-	329	152978452	-	Asuc_0776	-	hypothetical protein
765	 43.72	0	838102..839901	-	599	152978453	-	Asuc_0777	-	sulfatase
766	 43.52	0	839923..840138	-	71	152978454	-	Asuc_0778	-	hypothetical protein
767	 45.69	0	840250..841269	+	339	152978455	-	Asuc_0779	-	nucleoid-associated protein NdpA
768	 46.38	0	841339..841752	+	137	152978456	-	Asuc_0780	-	SmpA/OmlA domain-containing protein
769	 45.53	0	841792..842496	+	234	152978457	-	Asuc_0781	-	two component transcriptional regulator
770	 44.94	0	842506..843927	+	473	152978458	-	Asuc_0782	-	two-component sensor protein
771	 46.67	0	843988..845202	-	404	152978459	-	Asuc_0783	-	aminotransferase AlaT
772	 49.96	+1	845614..846894	+	426	152978460	-	Asuc_0784	-	isochorismate synthase
773	 51.14	+1	846897..848603	+	568	152978461	-	Asuc_0785	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
774	 48.75	0	848781..849578	+	265	152978462	-	Asuc_0786	-	ABC transporter related
775	 51.41	+1	849575..850354	+	259	152978463	-	Asuc_0787	-	hypothetical protein
776	 44.18	0	850458..850964	+	168	152978464	-	Asuc_0788	-	hypothetical protein
777	 45.97	0	851001..851633	+	210	152978465	-	Asuc_0789	-	toluene tolerance family protein
778	 46.15	0	851638..851988	+	116	152978466	-	Asuc_0790	-	anti-sigma-factor antagonist
779	 42.64	0	852009..852266	+	85	152978467	-	Asuc_0791	-	BolA family protein
780	 49.25	0	852279..853541	+	420	152978468	-	Asuc_0792	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
781	 51.17	+1	853579..854217	-	212	152978469	-	Asuc_0793	-	ABC transporter related
782	 46.33	0	854204..854911	-	235	152978470	-	Asuc_0794	-	cobalt transport protein
783	 53.27	+1	854908..855519	-	203	152978471	-	Asuc_0795	-	cobalt transport protein CbiM
784	 51.48	+1	855519..856025	-	168	152978472	-	Asuc_0796	-	hypothetical protein
785	 48.79	0	856025..856729	-	234	152978473	-	Asuc_0797	-	putative ABC-type Co2+ transport system, periplasmic component
786	 50.61	+1	856848..857258	+	136	152978474	-	Asuc_0798	-	MerR family transcriptional regulator
787	 51.79	+1	857265..857963	-	232	152978475	-	Asuc_0799	-	alanine racemase domain-containing protein
788	 50.62	+1	858090..858656	+	188	152978476	-	Asuc_0800	-	superoxide dismutase
789	 49.41	0	858908..861364	+	818	152978477	-	Asuc_0801	-	bifunctional aspartokinase I/homeserine dehydrogenase I
790	 50.21	+1	861364..862311	+	315	152978478	-	Asuc_0802	-	homoserine kinase
791	 48.86	0	862403..863677	+	424	152978479	-	Asuc_0803	-	threonine synthase
792	 49.92	+1	863819..865705	+	628	152978480	-	Asuc_0804	-	bifunctional glutathionylspermidine amidase/glutathionylspermidine synthetase
793	 47.70	0	865702..866049	+	115	152978481	-	Asuc_0805	-	arsenate reductase and related
794	 33.90	-2	866281..866814	+	177	152978482	-	Asuc_0806	-	hypothetical protein
795	 49.69	0	866869..867999	+	376	152978483	-	Asuc_0807	-	succinyl-diaminopimelate desuccinylase
796	 47.58	0	868041..868721	+	226	152978484	-	Asuc_0808	-	peptidase M15B and M15C DD-carboxypeptidase VanY/endolysin
797	 41.94	0	868881..869426	-	181	152978485	-	Asuc_0809	-	hypothetical protein
798	 50.07	+1	869576..870931	+	451	152978486	-	Asuc_0810	-	peptidase U62 modulator of DNA gyrase
799	 44.32	0	871113..871649	+	178	152978487	-	Asuc_0811	-	hypoxanthine phosphoribosyltransferase
800	 39.60	-1	871694..872905	+	403	152978488	-	Asuc_0812	-	putative transcriptional regulator
801	 35.83	-2	873050..874090	+	346	152978489	-	Asuc_0813	-	lipopolysaccharide biosynthesis protein
802	 35.07	-2	874083..874889	+	268	152978490	-	Asuc_0814	-	hypothetical protein
803	 28.48	-2	874896..876152	+	418	152978491	-	Asuc_0815	-	polysaccharide biosynthesis protein
804	 30.72	-2	876134..876592	+	152	152978492	-	Asuc_0816	-	glycerol-3-phosphate cytidylyltransferase
805	 31.79	-2	876589..877686	+	365	152978493	-	Asuc_0817	-	CDP-glycerol:poly(glycerophosphate) glycerophosphotransferase
806	 26.55	-2	877688..879013	+	441	152978494	-	Asuc_0818	-	hypothetical protein
807	 35.19	-2	879177..880895	+	572	152978495	-	Asuc_0819	-	hypothetical protein
808	 26.38	-2	881379..882140	+	253	152978496	-	Asuc_0820	-	hypothetical protein
809	 35.96	-2	882216..883319	+	367	152978497	-	Asuc_0821	-	UDP-galactopyranose mutase
810	 36.93	-1	883708..885126	+	472	152978498	-	Asuc_0822	-	undecaprenyl-phosphate galactose phosphotransferase
811	 31.24	-2	885147..886247	+	366	152978499	-	Asuc_0823	-	acyltransferase 3
812	 29.14	-2	886259..887308	+	349	152978500	-	Asuc_0824	-	acyltransferase 3
813	 34.62	-2	887391..888092	+	233	152978501	-	Asuc_0825	-	hypothetical protein
814	 42.94	0	888143..889204	+	353	152978502	-	Asuc_0826	-	dTDP-glucose 4,6-dehydratase
815	 29.08	-2	889223..889669	+	148	152978503	-	Asuc_0827	-	HI0074 family nucleotidyltransferase substrate binding protein
816	 32.99	-2	889662..889955	+	97	152978504	-	Asuc_0828	-	DNA polymerase beta subunit
817	 41.67	0	889970..890845	+	291	152978505	-	Asuc_0829	-	glucose-1-phosphate thymidylyltransferase
818	 43.26	0	890928..891803	+	291	152978506	-	Asuc_0830	-	dTDP-4-dehydrorhamnose reductase
819	 29.45	-2	891815..892381	+	188	152978507	-	Asuc_0831	-	hypothetical protein
820	 41.44	0	892383..892925	+	180	152978508	-	Asuc_0832	-	dTDP-4-dehydrorhamnose 3,5-epimerase
821	 45.96	0	892999..894297	+	432	152978509	-	Asuc_0833	-	aminopeptidase B
822	 45.07	0	894299..894724	+	141	152978510	-	Asuc_0834	-	nucleoside diphosphate kinase
823	 50.61	+1	894848..895999	+	383	152978511	-	Asuc_0835	-	S-adenosylmethionine synthetase
824	 43.84	0	896141..896749	+	202	152978512	-	Asuc_0836	-	porin opacity type
825	 45.42	0	896824..897336	+	170	152978513	-	Asuc_0837	-	hypothetical protein
826	 45.49	0	897401..897976	+	191	152978514	-	Asuc_0838	-	porin opacity type
45.47	MEAN

4.33	STD DEV
