IslandPathversion 1.0

IslandPath Analysis: Actinobacillus succinogenes 130Z

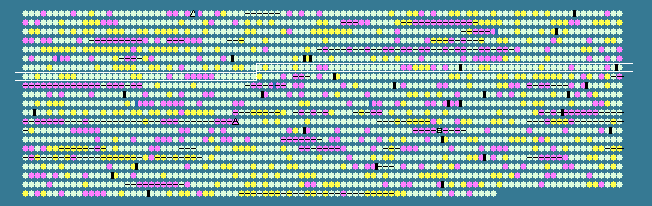

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
640	 48.44	0	708434..709426	-	330	152978328	-	Asuc_0649	-	O-succinylbenzoate synthase
641	 51.86	+1	709509..710366	-	285	152978329	-	Asuc_0650	-	naphthoate synthase
642	 48.53	0	710503..711048	-	181	152978330	-	Asuc_0651	-	alkylhydroperoxidase
643	 46.83	0	711124..711864	-	246	152978331	-	Asuc_0652	-	acyl-CoA thioester hydrolase YfbB
644	 44.13	0	711864..713447	-	527	152978332	-	Asuc_0653	-	sulfatase
645	 46.38	0	713670..715202	-	510	152978333	-	Asuc_0654	-	catalase
646	 50.14	+1	715483..716196	+	237	152978334	-	Asuc_0655	-	uridylate kinase
647	 44.62	0	716291..716848	+	185	152978335	-	Asuc_0656	-	ribosome recycling factor
648	 46.55	0	716912..718099	+	395	152978336	-	Asuc_0657	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
649	 44.91	0	718188..718757	-	189	152978337	-	Asuc_0658	-	5-formyltetrahydrofolate cyclo-ligase
650	 41.36	0	719013..719336	-	107	152978338	-	Asuc_0659	-	hypothetical protein
651	 41.26	0	719443..719997	+	184	152978339	-	Asuc_0660	-	yecA family protein
652	 48.01	0	720006..721334	+	442	152978340	-	Asuc_0661	-	peptidase M24
653	 48.72	0	721475..723118	-	547	152978341	-	Asuc_0662	-	chaperonin GroEL
654	 46.05	0	723224..723514	-	96	152978342	-	Asuc_0663	-	co-chaperonin GroES
655	 42.22	0	723708..723932	+	74	152978343	-	Asuc_0664	-	twin argininte translocase protein A
656	 46.36	0	723936..724526	+	196	152978344	-	Asuc_0665	-	sec-independent translocase
657	 46.43	0	724523..725278	+	251	152978345	-	Asuc_0666	-	Sec-independent protein translocase, TatC subunit
658	 48.09	0	725344..726366	+	340	152978346	-	Asuc_0667	-	delta-aminolevulinic acid dehydratase
659	 46.26	0	726468..727109	-	213	152978347	-	Asuc_0668	-	superoxide dismutase
660	 47.98	0	727245..728528	-	427	152978348	-	Asuc_0669	-	malate dehydrogenase
661	 47.41	0	728666..729361	+	231	152978349	-	Asuc_0670	-	pseudouridine synthase
662	 48.16	0	729358..730551	+	397	152978350	-	Asuc_0671	-	bicyclomycin/multidrug efflux system
663	 47.62	0	730567..730797	+	76	152978351	-	Asuc_0672	-	hypothetical protein
664	 33.50	-2	731303..733138	+	611	152978352	-	Asuc_0673	-	DNA methylase N-4/N-6 domain-containing protein
665	 40.45	-1	733148..735787	+	879	152978353	-	Asuc_0674	-	type III restriction protein res subunit
666	 51.65	+1	735951..736436	-	161	152978354	-	Asuc_0675	-	phosphopantetheine adenylyltransferase
667	 49.49	0	736438..737706	-	422	152978355	-	Asuc_0676	-	3-deoxy-D-manno-octulosonic-acid transferase
668	 49.03	0	737797..738567	-	256	152978356	-	Asuc_0677	-	triosephosphate isomerase
669	 40.92	-1	738746..739180	+	144	152978357	-	Asuc_0678	-	WecD protein
670	 45.33	0	739235..740026	-	263	152978358	-	Asuc_0679	-	peptidylprolyl isomerase FKBP-type
671	 39.91	-1	740121..740333	+	70	152978359	-	Asuc_0680	-	hypothetical protein
672	 43.84	0	740335..740553	+	72	152978360	-	Asuc_0681	-	hypothetical protein
673	 45.51	0	740550..742577	+	675	152978361	-	Asuc_0682	-	ATP-dependent DNA helicase Rep
674	 48.50	0	743202..743801	+	199	152978362	-	Asuc_0683	-	beta-phosphoglucomutase family hydrolase
675	 45.54	0	743801..744406	+	201	152978363	-	Asuc_0684	-	hexapaptide repeat-containing transferase
676	 44.58	0	744648..745154	+	168	152978364	-	Asuc_0685	-	S-ribosylhomocysteinase
677	 50.42	+1	745166..746347	+	393	152978365	-	Asuc_0686	-	phosphoribosylglycinamide formyltransferase 2
678	 49.17	0	746413..747378	-	321	152978366	-	Asuc_0687	-	6-phosphofructokinase
679	 46.17	0	747544..748992	-	482	152978367	-	Asuc_0688	-	type IV pilus secretin PilQ
680	 45.93	0	749002..749382	-	126	152978368	-	Asuc_0689	-	hypothetical protein
681	 43.43	0	749385..749978	-	197	152978369	-	Asuc_0690	-	competence C protein, putative
682	 43.59	0	749975..750481	-	168	152978370	-	Asuc_0691	-	fimbrial assembly family protein
683	 44.68	0	750487..751323	-	278	152978371	-	Asuc_0692	-	competence protein A
684	 48.59	0	751453..754041	+	862	152978372	-	Asuc_0693	-	1A family penicillin-binding protein
685	 47.28	0	754118..754963	+	281	152978373	-	Asuc_0694	-	hypothetical protein
686	 45.71	0	755003..755317	+	104	152978374	-	Asuc_0695	-	iojap-like protein
687	 52.14	+1	755353..755820	+	155	152978375	-	Asuc_0696	-	hypothetical protein
688	 48.49	0	755840..757924	+	694	152978376	-	Asuc_0697	-	peptidoglycan glycosyltransferase
689	 45.58	0	757929..759047	+	372	152978377	-	Asuc_0698	-	rod shape-determining protein RodA
690	 43.62	0	759123..759608	+	161	152978378	-	Asuc_0699	-	rare lipoprotein A
691	 45.45	0	759625..760812	+	395	152978379	-	Asuc_0700	-	Serine-type D-Ala-D-Ala carboxypeptidase
692	 41.75	0	760927..761223	+	98	152978380	-	Asuc_0701	-	hypothetical protein
693	 47.21	0	761229..761891	+	220	152978381	-	Asuc_0702	-	lipoyltransferase
694	 46.42	0	761925..762887	+	320	152978382	-	Asuc_0703	-	lipoyl synthase
695	 44.64	0	763321..764823	+	500	152978383	-	Asuc_0704	-	cytochrome c nitrite reductase
696	 43.46	0	764904..765545	+	213	152978384	-	Asuc_0705	-	cytochrome c-type protein NrfB
697	 44.79	0	765542..766222	+	226	152978385	-	Asuc_0706	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
698	 41.04	-1	766222..767181	+	319	152978386	-	Asuc_0707	-	polysulphide reductase NrfD
699	 46.51	0	767266..769170	+	634	152978387	-	Asuc_0708	-	cytochrome c-type biogenesis protein CcmF
700	 43.18	0	769334..769861	+	175	152978388	-	Asuc_0709	-	periplasmic protein thiol--disulphide oxidoreductase DsbE
701	 45.39	0	769858..770313	+	151	152978389	-	Asuc_0710	-	cytochrome C biogenesis protein
702	 45.85	0	770313..771143	+	276	152978390	-	Asuc_0711	-	TPR repeat-containing protein
703	 50.21	+1	771143..772357	+	404	152978391	-	Asuc_0712	-	hypothetical protein
704	 45.36	0	772477..773565	+	362	152978392	-	Asuc_0713	-	methionine synthase vitamin-B12 independent
705	 46.17	0	773630..774112	-	160	152978393	-	Asuc_0714	-	dihydrofolate reductase
706	 46.88	0	774127..774591	-	154	152978394	-	Asuc_0715	-	hypothetical protein
707	 49.62	0	774593..775372	-	259	152978395	-	Asuc_0716	-	hypothetical protein
708	 50.99	+1	775542..776651	+	369	152978396	-	Asuc_0717	-	gamma-glutamyl kinase
709	 52.63	+1	776765..777391	-	208	152978397	-	Asuc_0718	-	peptidylprolyl isomerase FKBP-type
710	 46.51	0	777404..778291	-	295	152978398	-	Asuc_0719	-	phosphatidylserine decarboxylase
711	 42.13	0	780712..780927	+	71	152978399	-	Asuc_0721	-	30S ribosomal protein S21
712	 46.54	0	781020..782783	+	587	152978400	-	Asuc_0722	-	DNA primase
713	 45.89	0	782865..784736	+	623	152978401	-	Asuc_0723	-	RNA polymerase sigma factor RpoD
714	 45.36	0	784784..785332	-	182	152978402	-	Asuc_0724	-	CMP/dCMP deaminase zinc-binding
715	 48.36	0	785859..786710	-	283	152978403	-	Asuc_0725	-	thymidylate synthase
716	 46.69	0	786720..787535	-	271	152978404	-	Asuc_0726	-	prolipoprotein diacylglyceryl transferase
717	 47.98	0	787559..788350	-	263	152978405	-	Asuc_0727	-	hypothetical protein
718	 45.29	0	788347..788940	-	197	152978406	-	Asuc_0728	-	dinucleoside polyphosphate hydrolase
719	 49.33	0	789526..790563	+	345	152978407	-	Asuc_0729	-	phosphoribosylaminoimidazole synthetase
720	 49.14	0	790621..791259	+	212	152978408	-	Asuc_0730	-	phosphoribosylglycinamide formyltransferase
721	 44.07	0	791344..791883	+	179	152978409	-	Asuc_0731	-	pyrimidine regulatory protein PyrR
722	 46.75	0	791947..792900	+	317	152978410	-	Asuc_0732	-	PpiC-type peptidyl-prolyl cis-trans isomerase
723	 48.90	0	793019..793885	+	288	152978411	-	Asuc_0733	-	dimethyladenosine transferase
724	 48.19	0	793963..794790	+	275	152978412	-	Asuc_0734	-	diadenosine tetraphosphatase
725	 41.26	0	794790..795407	+	205	152978413	-	Asuc_0735	-	hypothetical protein
726	 45.74	0	795554..796657	+	367	152978414	-	Asuc_0736	-	transglutaminase domain-containing protein
727	 42.15	0	796632..796994	+	120	152978415	-	Asuc_0737	-	putative mercuric transport protein
728	 40.29	-1	796991..797263	+	90	152978416	-	Asuc_0738	-	heavy metal transport/detoxification protein
729	 38.53	-1	797305..798708	-	467	152978417	-	Asuc_0739	-	hypothetical protein
730	 34.50	-2	798734..799246	-	170	152978418	-	Asuc_0740	-	prolyl aminopeptidase
731	 38.30	-1	799250..799672	-	140	152978419	-	Asuc_0741	-	MarR family transcriptional regulator
732	 36.54	-2	800032..801123	+	363	152978420	-	Asuc_0742	-	acyltransferase 3
733	 48.51	0	801324..803906	+	860	152978421	-	Asuc_0743	-	leucyl-tRNA synthetase
734	 43.98	0	803962..804675	+	237	152978422	-	Asuc_0744	-	hypothetical protein
735	 46.52	0	804678..805208	+	176	152978423	-	Asuc_0745	-	rare lipoprotein B
736	 47.71	0	805208..806257	+	349	152978424	-	Asuc_0746	-	DNA polymerase III subunit delta
737	 48.71	0	806630..807982	+	450	152978425	-	Asuc_0747	-	amino acid carrier protein
738	 47.07	0	808153..808938	+	261	152978426	-	Asuc_0748	-	DeoR family transcriptional regulator
739	 46.97	0	809001..810833	+	610	152978427	-	Asuc_0749	-	D-fructose-6-phosphate amidotransferase
45.47	MEAN

4.33	STD DEV
