IslandPath Analysis: Actinobacillus succinogenes 130Z

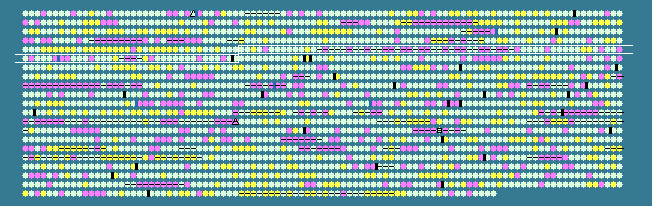

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
437	 48.32	0	499454..501328	+	624	152978125	-	Asuc_0442	-	selenocysteine-specific translation elongation factor
438	 47.67	0	501481..502101	+	206	152978126	-	Asuc_0443	-	hypothetical protein
439	 49.17	0	502154..502759	-	201	152978127	-	Asuc_0444	-	putative methyltransferase
440	 47.52	0	502819..504333	+	504	152978128	-	Asuc_0445	-	signal recognition particle-docking protein FtsY
441	 41.85	0	504412..505644	-	410	152978129	-	Asuc_0446	-	hypothetical protein
442	 46.35	0	505646..506644	-	332	152978130	-	Asuc_0447	-	2-keto-3-deoxygluconate permease
443	 45.04	0	507288..508133	-	281	152978131	-	Asuc_0449	-	RNA polymerase factor sigma-32
444	 42.86	0	508292..508606	-	104	152978132	-	Asuc_0450	-	hypothetical protein
445	 46.05	0	508628..509665	-	345	152978133	-	Asuc_0451	-	UDP-N-acetylenolpyruvoylglucosamine reductase
446	 45.99	0	509758..510966	-	402	152978134	-	Asuc_0452	-	sodium/glutamate symporter
447	 45.74	0	511164..511421	+	85	152978135	-	Asuc_0453	-	DinI family protein
448	 50.14	+1	511482..512873	-	463	152978136	-	Asuc_0454	-	chloride channel core
449	 46.98	0	513224..515113	+	629	152978137	-	Asuc_0455	-	PTS system, mannitol-specific IIC subunit
450	 44.04	0	515200..516348	+	382	152978138	-	Asuc_0456	-	mannitol-1-phosphate 5-dehydrogenase
451	 41.86	0	516434..516949	+	171	152978139	-	Asuc_0457	-	mannitol repressor protein
452	 42.63	0	517212..517523	+	103	152978140	-	Asuc_0458	-	ribosomal protein S10
453	 42.26	0	517540..518166	+	208	152978141	-	Asuc_0459	-	50S ribosomal protein L3
454	 42.41	0	518182..518787	+	201	152978142	-	Asuc_0460	-	50S ribosomal protein L4
455	 38.24	-1	518784..519089	+	101	152978143	-	Asuc_0461	-	50S ribosomal protein L23
456	 45.26	0	519110..519931	+	273	152978144	-	Asuc_0462	-	50S ribosomal protein L2
457	 44.20	0	519956..520231	+	91	152978145	-	Asuc_0463	-	30S ribosomal protein S19
458	 41.14	-1	520243..520575	+	110	152978146	-	Asuc_0464	-	50S ribosomal protein L22
459	 44.21	0	520593..521300	+	235	152978147	-	Asuc_0465	-	30S ribosomal protein S3
460	 43.07	0	521314..521724	+	136	152978148	-	Asuc_0466	-	50S ribosomal protein L16
461	 39.06	-1	521724..521915	+	63	152978149	-	Asuc_0467	-	50S ribosomal protein L29
462	 35.27	-2	521915..522172	+	85	152978150	-	Asuc_0468	-	30S ribosomal protein S17
463	 43.01	0	522380..522751	+	123	152978151	-	Asuc_0469	-	50S ribosomal protein L14
464	 37.50	-1	522762..523073	+	103	152978152	-	Asuc_0470	-	50S ribosomal protein L24
465	 41.48	0	523091..523630	+	179	152978153	-	Asuc_0471	-	50S ribosomal protein L5
466	 44.44	0	523642..523947	+	101	152978154	-	Asuc_0472	-	30S ribosomal protein S14
467	 40.97	-1	523985..524377	+	130	152978155	-	Asuc_0473	-	30S ribosomal protein S8
468	 41.01	-1	524393..524926	+	177	152978156	-	Asuc_0474	-	ribosomal protein L6
469	 45.76	0	524941..525294	+	117	152978157	-	Asuc_0475	-	50S ribosomal protein L18
470	 44.71	0	525309..525809	+	166	152978158	-	Asuc_0476	-	30S ribosomal protein S5
471	 40.56	-1	525816..525995	+	59	152978159	-	Asuc_0477	-	50S ribosomal protein L30
472	 42.30	0	526000..526434	+	144	152978160	-	Asuc_0478	-	50S ribosomal protein L15
473	 39.89	-1	526442..527767	+	441	152978161	-	Asuc_0479	-	preprotein translocase subunit SecY
474	 36.84	-1	527795..527908	+	37	152978162	-	Asuc_0480	-	ribosomal protein L36
475	 42.58	0	528047..528403	+	118	152978163	-	Asuc_0481	-	ribosomal protein S13
476	 44.36	0	528419..528808	+	129	152978164	-	Asuc_0482	-	30S ribosomal protein S11
477	 39.29	-1	528838..529458	+	206	152978165	-	Asuc_0483	-	30S ribosomal protein S4
478	 41.41	0	529491..530480	+	329	152978166	-	Asuc_0484	-	DNA-directed RNA polymerase subunit alpha
479	 42.05	0	530521..530910	+	129	152978167	-	Asuc_0485	-	50S ribosomal protein L17
480	 38.45	-1	530984..531667	-	227	152978168	-	Asuc_0486	-	metallophosphoesterase
481	 38.58	-1	531676..532953	-	425	152978169	-	Asuc_0487	-	nicotinamide-nucleotide adenylyltransferase
482	 47.17	0	533309..533944	+	211	152978170	-	Asuc_0488	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
483	 41.85	0	535345..536847	+	500	152978171	-	Asuc_0490	-	L-arabinose transporter ATP-binding protein
484	 45.82	0	536863..537831	+	322	152978172	-	Asuc_0491	-	L-arabinose transporter permease protein
485	 43.94	0	537841..538698	+	285	152978173	-	Asuc_0492	-	DNA-binding transcriptional regulator AraC
486	 45.61	0	538911..540515	+	534	152978174	-	Asuc_0493	-	carbohydrate kinase FGGY
487	 44.83	0	540536..542023	+	495	152978175	-	Asuc_0494	-	L-arabinose isomerase
488	 41.56	0	542127..543305	-	392	152978176	-	Asuc_0495	-	helix-turn-helix domain-containing protein
489	 42.50	0	543404..544843	-	479	152978177	-	Asuc_0496	-	D-xylose transporter XylE
490	 46.10	0	545183..546310	-	375	152978178	-	Asuc_0497	-	monosaccharide-transporting ATPase
491	 42.24	0	546314..547828	-	504	152978179	-	Asuc_0498	-	xylose transporter ATP-binding subunit
492	 42.84	0	547914..548912	-	332	152978180	-	Asuc_0499	-	D-xylose transporter subunit XylF
493	 43.61	0	549164..550477	+	437	152978181	-	Asuc_0500	-	xylose isomerase
494	 49.24	0	550545..551990	+	481	152978182	-	Asuc_0501	-	xylulokinase
495	 50.05	+1	552142..553122	+	326	152978183	-	Asuc_0502	-	tRNA-dihydrouridine synthase A
496	 43.71	0	553275..554267	-	330	152978184	-	Asuc_0503	-	asparagine synthetase AsnA
497	 38.85	-1	554454..554906	+	150	152978185	-	Asuc_0504	-	DNA-binding transcriptional regulator AsnC
498	 48.31	0	554985..556520	-	511	152978186	-	Asuc_0505	-	Mg chelatase, subunit ChlI
499	 47.34	0	556628..557248	-	206	152978187	-	Asuc_0506	-	GTPase EngB
500	 37.92	-1	557303..557716	-	137	152978188	-	Asuc_0507	-	transmembrane pair domain-containing protein
501	 46.23	0	557786..559150	-	454	152978189	-	Asuc_0508	-	ascorbate-specific PTS system enzyme IIC
502	 38.89	-1	559181..559450	-	89	152978190	-	Asuc_0509	-	phosphotransferase system lactose/cellobiose-specific IIB subunit
503	 46.25	0	559648..559887	-	79	152978191	-	Asuc_0510	-	SirA family protein
504	 44.01	0	559966..560574	+	202	152978192	-	Asuc_0511	-	hypothetical protein
505	 43.78	0	560592..562055	+	487	152978193	-	Asuc_0512	-	TrkH family potassium uptake protein
506	 39.02	-1	562055..562564	+	169	152978194	-	Asuc_0513	-	protoporphyrinogen oxidase
507	 39.74	-1	568259..568960	-	233	152978195	-	Asuc_0514	-	hypothetical protein
508	 41.28	0	569042..569947	+	301	152978196	-	Asuc_0515	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
509	 43.11	0	569992..570492	+	166	152978197	-	Asuc_0516	-	ribonuclease activity regulator protein RraA
510	 43.30	0	570621..570971	-	116	152978198	-	Asuc_0517	-	50S ribosomal protein L19
511	 45.66	0	571005..571742	-	245	152978199	-	Asuc_0518	-	tRNA (guanine-N(1)-)-methyltransferase
512	 41.48	0	571790..572317	-	175	152978200	-	Asuc_0519	-	16S rRNA-processing protein
513	 45.38	0	572348..572596	-	82	152978201	-	Asuc_0520	-	30S ribosomal protein S16
514	 46.65	0	572771..574339	-	522	152978202	-	Asuc_0521	-	glycosyl transferase family protein
515	 46.02	0	574477..575004	+	175	152978203	-	Asuc_0522	-	inorganic pyrophosphatase
516	 50.20	+1	575062..575820	+	252	152978204	-	Asuc_0523	-	peptidase M48 Ste24p
517	 44.29	0	575877..576944	-	355	152978205	-	Asuc_0524	-	glycosyl transferase group 1
518	 41.20	0	577022..577237	-	71	152978206	-	Asuc_0525	-	50S ribosomal protein L31
519	 32.33	-2	577383..578180	-	265	152978207	-	Asuc_0526	-	glycosyl transferase family protein
520	 48.68	0	578181..580421	+	746	152978208	-	Asuc_0527	-	primosome assembly protein PriA
521	 51.95	+1	580563..581384	+	273	152978209	-	Asuc_0528	-	cell division protein FtsN
522	 36.16	-2	581553..582119	+	188	152978210	-	Asuc_0529	-	TetR family transcriptional regulator
523	 45.03	0	582147..583343	+	398	152978211	-	Asuc_0530	-	RND family efflux transporter MFP subunit
524	 46.08	0	583360..586449	+	1029	152978212	-	Asuc_0531	-	acriflavin resistance protein
525	 45.30	0	586591..587175	-	194	152978213	-	Asuc_0532	-	phosphoheptose isomerase
526	 48.28	0	587362..587622	-	86	152978214	-	Asuc_0533	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
527	 48.38	0	587690..588520	+	276	152978215	-	Asuc_0534	-	ribonuclease T2
528	 47.70	0	588650..589825	+	391	152978216	-	Asuc_0535	-	phosphoglycerate kinase
529	 45.00	0	589929..591008	+	359	152978217	-	Asuc_0536	-	fructose-bisphosphate aldolase
530	 41.75	0	591086..592333	+	415	152978218	-	Asuc_0537	-	O-antigen polymerase
531	 46.67	0	592395..592739	-	114	152978219	-	Asuc_0538	-	hypothetical protein
532	 46.25	0	592763..593521	-	252	152978220	-	Asuc_0539	-	tRNA (guanine-N(7))-methyltransferase
533	 48.40	0	593663..594784	+	373	152978221	-	Asuc_0540	-	A/G-specific adenine glycosylase
534	 38.83	-1	594777..595049	+	90	152978222	-	Asuc_0541	-	hypothetical protein
535	 44.29	0	595059..596135	+	358	152978223	-	Asuc_0542	-	murein transglycosylase C
536	 43.64	0	596732..597226	-	164	152978224	-	Asuc_0543	-	hypothetical protein
45.47	MEAN

4.33	STD DEV
