IslandPath Analysis: Actinobacillus succinogenes 130Z

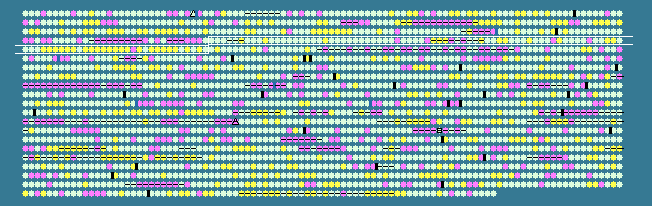

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
332	 43.79	0	380457..382838	+	793	152978020	-	Asuc_0336	-	organic solvent tolerance protein
333	 45.93	0	382909..383718	-	269	152978021	-	Asuc_0337	-	shikimate 5-dehydrogenase
334	 44.93	0	383721..384272	-	183	152978022	-	Asuc_0338	-	SUA5/yciO/yrdC domain-containing protein
335	 46.08	0	384269..384817	-	182	152978023	-	Asuc_0339	-	DNA topoisomerase type IA Zn finger domain-containing protein
336	 44.76	0	384896..386365	+	489	152978024	-	Asuc_0340	-	hypothetical protein
337	 49.89	+1	386512..386946	-	144	152978025	-	Asuc_0341	-	D-tyrosyl-tRNA(Tyr) deacylase
338	 43.75	0	386943..387806	-	287	152978026	-	Asuc_0342	-	ribonuclease BN
339	 44.52	0	387803..388267	-	154	152978027	-	Asuc_0343	-	hypothetical protein
340	 47.90	0	388416..389918	+	500	152978028	-	Asuc_0344	-	protein of unknown function DUF853 NPT hydrolase putative
341	 50.21	+1	389981..392557	+	858	152978029	-	Asuc_0345	-	DNA mismatch repair protein
342	 48.87	0	392566..392874	+	102	152978030	-	Asuc_0346	-	frataxin-like protein
343	 47.15	0	392874..394718	+	614	152978031	-	Asuc_0347	-	ATP-dependent DNA helicase RecQ
344	 45.60	0	394853..395227	+	124	152978032	-	Asuc_0348	-	hypothetical protein
345	 44.64	0	395363..395884	+	173	152978033	-	Asuc_0349	-	ATP-dependent protease peptidase subunit
346	 45.48	0	395960..397285	+	441	152978034	-	Asuc_0350	-	ATP-dependent protease ATP-binding subunit
347	 46.86	0	397467..398486	-	339	152978035	-	Asuc_0351	-	HCP oxidoreductase, NADH-dependent
348	 44.89	0	398576..400237	-	553	152978036	-	Asuc_0352	-	hydroxylamine reductase
349	 44.34	0	400441..401703	-	420	152978037	-	Asuc_0353	-	HemY protein
350	 46.21	0	401715..403151	-	478	152978038	-	Asuc_0354	-	protein of unknown function DUF513 hemX
351	 49.60	0	403161..403910	-	249	152978039	-	Asuc_0355	-	uroporphyrinogen III synthase HEM4
352	 48.82	0	403931..404860	-	309	152978040	-	Asuc_0356	-	porphobilinogen deaminase
353	 47.46	0	404994..405977	+	327	152978041	-	Asuc_0357	-	alanine racemase
354	 44.36	0	406088..407311	+	407	152978042	-	Asuc_0358	-	nucleoside:H symporter
355	 47.06	0	407313..408368	+	351	152978043	-	Asuc_0359	-	xylose isomerase domain-containing protein
356	 46.96	0	408380..409531	+	383	152978044	-	Asuc_0360	-	oxidoreductase domain-containing protein
357	 43.96	0	409689..412229	+	846	152978045	-	Asuc_0361	-	adenylate cyclase
358	 43.33	0	412438..413067	+	209	152978046	-	Asuc_0362	-	two component LuxR family transcriptional regulator
359	 47.96	0	413332..415170	+	612	152978047	-	Asuc_0363	-	surface antigen (D15)
360	 47.18	0	415180..419094	+	1304	152978048	-	Asuc_0364	-	hypothetical protein
361	 48.28	0	419104..420648	+	514	152978049	-	Asuc_0365	-	Ppx/GppA phosphatase
362	 43.25	0	420952..421959	+	335	152978050	-	Asuc_0366	-	TRAP dicarboxylate transporter, DctP subunit
363	 41.96	0	421982..422491	+	169	152978051	-	Asuc_0367	-	tripartite ATP-independent periplasmic transporter DctQ
364	 48.48	0	422501..423781	+	426	152978052	-	Asuc_0368	-	TRAP dicarboxylate transporter, DctM subunit
365	 47.06	0	423793..424812	+	339	152978053	-	Asuc_0369	-	alcohol dehydrogenase
366	 44.41	0	424843..425916	+	357	152978054	-	Asuc_0370	-	mannonate dehydratase
367	 44.01	0	425916..427517	+	533	152978055	-	Asuc_0371	-	mannitol dehydrogenase domain-containing protein
368	 37.00	-1	427527..428207	+	226	152978056	-	Asuc_0372	-	GntR family transcriptional regulator
369	 53.14	+1	428208..429146	+	312	152978057	-	Asuc_0373	-	ribokinase-like domain-containing protein
370	 54.77	+2	429176..429814	+	212	152978058	-	Asuc_0374	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
371	 49.04	0	430008..431357	-	449	152978059	-	Asuc_0375	-	glutamate dehydrogenase
372	 40.67	-1	431928..435116	+	1062	152978060	-	Asuc_0376	-	CRISPR-associated endonuclease Csn1 family protein
373	 42.59	0	435171..436088	+	305	152978061	-	Asuc_0377	-	CRISPR-associated Cas1 family protein
374	 39.14	-1	436081..436407	+	108	152978062	-	Asuc_0378	-	CRISPR-associated Cas2 family protein
375	 45.73	0	436995..437462	-	155	152978063	-	Asuc_0379	-	thioredoxin-dependent thiol peroxidase
376	 46.88	0	437559..438134	+	191	152978064	-	Asuc_0380	-	hypothetical protein
377	 50.69	+1	438138..438569	+	143	152978065	-	Asuc_0381	-	hypothetical protein
378	 46.20	0	438623..439990	+	455	152978066	-	Asuc_0382	-	coproporphyrinogen III oxidase
379	 44.87	0	440060..440770	-	236	152978067	-	Asuc_0383	-	hypothetical protein
380	 49.75	0	440861..441658	-	265	152978068	-	Asuc_0384	-	serine acetyltransferase
381	 52.08	+1	441668..442675	-	335	152978069	-	Asuc_0385	-	glycerol-3-phosphate dehydrogenase (NAD(P)(+))
382	 46.51	0	442735..443235	-	166	152978070	-	Asuc_0386	-	preprotein translocase subunit SecB
383	 42.24	0	443246..443683	-	145	152978071	-	Asuc_0387	-	rhodanese domain-containing protein
384	 45.63	0	443804..444730	-	308	152978072	-	Asuc_0388	-	cell division protein FtsX
385	 49.46	0	444748..445398	-	216	152978073	-	Asuc_0389	-	cell division ATP-binding protein FtsE
386	 46.61	0	445627..446349	-	240	152978074	-	Asuc_0390	-	glutaredoxin family protein
387	 47.62	0	446482..447384	+	300	152978075	-	Asuc_0391	-	DNA-binding transcriptional regulator OxyR
388	 47.17	0	447386..447985	+	199	152978076	-	Asuc_0392	-	DNA-binding transcriptional repressor FabR
389	 38.81	-1	448052..448270	-	72	152978077	-	Asuc_0393	-	hypothetical protein
390	 50.10	+1	448440..449453	+	337	152978078	-	Asuc_0394	-	fructose 1,6-bisphosphatase II
391	 48.59	0	449641..450138	-	165	152978079	-	Asuc_0395	-	pentapeptide repeat-containing protein
392	 48.78	0	450149..451216	-	355	152978080	-	Asuc_0396	-	Sel1 domain-containing protein
393	 45.87	0	451230..452816	-	528	152978081	-	Asuc_0397	-	peptidoglycan binding domain-containing protein
394	 44.00	0	452877..453251	-	124	152978082	-	Asuc_0398	-	hypothetical protein
395	 38.16	-1	453323..453736	-	137	152978083	-	Asuc_0399	-	hypothetical protein
396	 48.21	0	453807..454169	-	120	152978084	-	Asuc_0400	-	hypothetical protein
397	 44.01	0	454489..455415	+	308	152978085	-	Asuc_0401	-	ADP-L-glycero-D-mannoheptose-6-epimerase
398	 49.77	0	455450..455893	+	147	152978086	-	Asuc_0402	-	flavodoxin
399	 50.69	+1	455976..457133	-	385	152978087	-	Asuc_0403	-	iron-containing alcohol dehydrogenase
400	 48.17	0	457509..458027	+	172	152978088	-	Asuc_0404	-	rhodanese domain-containing protein
401	 47.57	0	458160..459494	+	444	152978089	-	Asuc_0405	-	MiaB-like tRNA modifying enzyme YliG
402	 47.14	0	459515..461521	+	668	152978090	-	Asuc_0406	-	hypothetical protein
403	 47.17	0	461688..462005	-	105	152978091	-	Asuc_0407	-	transcriptional repressor protein MetJ
404	 50.22	+1	462203..462895	+	230	152978092	-	Asuc_0408	-	aquaporin Z
405	 49.63	0	463110..464054	+	314	152978093	-	Asuc_0409	-	glycyl-tRNA synthetase subunit alpha
406	 49.18	0	464289..466358	+	689	152978094	-	Asuc_0410	-	glycyl-tRNA synthetase subunit beta
407	 54.86	+2	466425..466805	-	126	152978095	-	Asuc_0411	-	CrcB protein
408	 49.21	0	466807..467625	-	272	152978096	-	Asuc_0412	-	Cof-like hydrolase
409	 53.59	+1	467787..469445	+	552	152978097	-	Asuc_0413	-	acetolactate synthase 2 catalytic subunit
410	 48.72	0	469460..469693	+	77	152978098	-	Asuc_0414	-	acetolactate synthase 2 regulatory subunit
411	 52.03	+1	469833..471677	+	614	152978099	-	Asuc_0415	-	dihydroxy-acid dehydratase
412	 52.47	+1	471749..472579	+	276	152978100	-	Asuc_0416	-	zinc/iron permease
413	 52.24	+1	472687..474225	+	512	152978101	-	Asuc_0417	-	threonine dehydratase
414	 50.36	+1	474314..475135	-	273	152978102	-	Asuc_0418	-	aminomethyltransferase
415	 50.00	+1	475138..476001	-	287	152978103	-	Asuc_0419	-	hypothetical protein
416	 55.51	+2	476167..476883	+	238	152978104	-	Asuc_0420	-	ribonuclease PH
417	 52.40	+1	476912..477556	+	214	152978105	-	Asuc_0421	-	orotate phosphoribosyltransferase
418	 53.39	+1	477728..481621	+	1297	152978106	-	Asuc_0422	-	phosphoribosylformylglycinamidine synthase
419	 25.19	-2	481650..482423	+	257	152978107	-	Asuc_0423	-	hypothetical protein
420	 51.85	+1	483418..484308	+	296	152978108	-	Asuc_0425	-	cytidine deaminase
421	 48.50	0	484571..485335	+	254	152978109	-	Asuc_0426	-	hypothetical protein
422	 54.52	+2	485469..486242	+	257	152978110	-	Asuc_0427	-	uridine phosphorylase
423	 50.51	+1	486380..486769	+	129	152978111	-	Asuc_0428	-	putative endoribonuclease L-PSP
424	 49.01	0	486862..487971	+	369	152978112	-	Asuc_0429	-	tRNA (uracil-5-)-methyltransferase
425	 55.30	+2	487968..488741	+	257	152978113	-	Asuc_0430	-	hypothetical protein
426	 53.14	+1	488757..489488	+	243	152978114	-	Asuc_0431	-	pseudouridine synthase
427	 44.11	0	490160..491170	+	336	152978115	-	Asuc_0432	-	extracellular solute-binding protein
428	 52.12	+1	491238..492839	+	533	152978116	-	Asuc_0433	-	tannase and feruloyl esterase
429	 43.48	0	493120..493671	+	183	152978117	-	Asuc_0434	-	PTS system, glucitol/sorbitol-specific, IIC subunit
430	 50.20	+1	493727..494734	+	335	152978118	-	Asuc_0435	-	PTS system, glucitol/sorbitol-specific, IIBC subunit
431	 48.78	0	494817..495185	+	122	152978119	-	Asuc_0436	-	glucitol/sorbitol-specific PTS system component IIA
45.47	MEAN

4.33	STD DEV
