IslandPath Analysis: Actinobacillus succinogenes 130Z

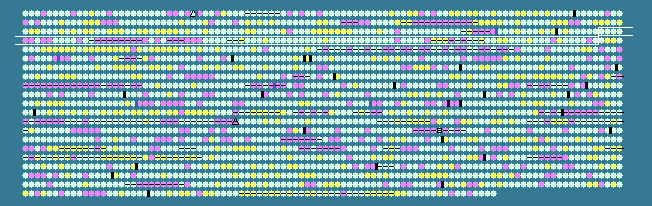

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
297	 46.56	0	339433..340740	-	435	152977985	-	Asuc_0301	-	sodium ion-translocating decarboxylase, beta subunit
298	 48.31	0	340751..342559	-	602	152977986	-	Asuc_0302	-	pyruvate carboxylase subunit B
299	 43.70	0	342579..342848	-	89	152977987	-	Asuc_0303	-	oxaloacetate decarboxylase subunit gamma
300	 44.52	0	343007..344284	-	425	152977988	-	Asuc_0304	-	anion transporter
301	 41.62	0	344511..345560	-	349	152977989	-	Asuc_0305	-	citrate lyase ligase
302	 41.85	0	345617..346450	-	277	152977990	-	Asuc_0306	-	hypothetical protein
303	 43.94	0	346530..346859	-	109	152977991	-	Asuc_0307	-	hypothetical protein
304	 40.45	-1	346873..347490	-	205	152977992	-	Asuc_0308	-	DSBA oxidoreductase
305	 36.67	-2	347501..347770	-	89	152977993	-	Asuc_0309	-	hypothetical protein
306	 43.68	0	347845..348414	+	189	152977994	-	Asuc_0310	-	molybdopterin-guanine dinucleotide biosynthesis protein A
307	 43.67	0	348433..349332	+	299	152977995	-	Asuc_0311	-	aldo/keto reductase
308	 45.52	0	349444..351519	-	691	152977996	-	Asuc_0312	-	4-alpha-glucanotransferase
309	 43.59	0	351600..353969	-	789	152977997	-	Asuc_0313	-	glycogen/starch/alpha-glucan phosphorylase
310	 41.62	0	354073..356859	+	928	152977998	-	Asuc_0314	-	transcriptional regulator MalT
311	 44.56	0	356912..358969	-	685	152977999	-	Asuc_0315	-	periplasmic alpha-amylase precursor
312	 45.34	0	359119..360009	-	296	152978000	-	Asuc_0316	-	maltose transporter permease
313	 39.78	-1	360063..361598	-	511	152978001	-	Asuc_0317	-	maltose transporter membrane protein
314	 41.31	0	361680..362870	-	396	152978002	-	Asuc_0318	-	maltose ABC transporter periplasmic protein
315	 40.46	-1	362890..364095	-	401	152978003	-	Asuc_0319	-	maltose ABC transporter periplasmic protein
316	 40.39	-1	364446..365564	+	372	152978004	-	Asuc_0320	-	maltose/maltodextrin transporter ATP-binding protein
317	 39.04	-1	365581..366912	+	443	152978005	-	Asuc_0321	-	alpha amylase catalytic region
318	 41.45	0	366941..368233	+	430	152978006	-	Asuc_0322	-	maltoporin
319	 41.44	0	368401..369288	+	295	152978007	-	Asuc_0323	-	maltose regulon periplasmic protein
320	 38.57	-1	369370..370152	-	260	152978008	-	Asuc_0324	-	Cof-like hydrolase
321	 40.56	-1	370273..370701	-	142	152978009	-	Asuc_0325	-	F0F1 ATP synthase subunit epsilon
322	 45.46	0	370741..372117	-	458	152978010	-	Asuc_0326	-	F0F1 ATP synthase subunit beta
323	 41.03	-1	372133..373002	-	289	152978011	-	Asuc_0327	-	F0F1 ATP synthase subunit gamma
324	 43.45	0	373021..374562	-	513	152978012	-	Asuc_0328	-	F0F1 ATP synthase subunit alpha
325	 38.79	-1	374578..375108	-	176	152978013	-	Asuc_0329	-	F0F1 ATP synthase subunit delta
326	 40.55	-1	375122..375592	-	156	152978014	-	Asuc_0330	-	F0F1 ATP synthase subunit B
327	 36.86	-1	375660..375914	-	84	152978015	-	Asuc_0331	-	F0F1 ATP synthase subunit C
328	 39.19	-1	375971..376756	-	261	152978016	-	Asuc_0332	-	F0F1 ATP synthase subunit A
329	 33.85	-2	376771..377154	-	127	152978017	-	Asuc_0333	-	F0F1 ATP synthase subunit I
330	 39.31	-1	377435..378070	-	211	152978018	-	Asuc_0334	-	glucose-inhibited division protein B
331	 46.30	0	378060..379949	-	629	152978019	-	Asuc_0335	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
332	 43.79	0	380457..382838	+	793	152978020	-	Asuc_0336	-	organic solvent tolerance protein
333	 45.93	0	382909..383718	-	269	152978021	-	Asuc_0337	-	shikimate 5-dehydrogenase
334	 44.93	0	383721..384272	-	183	152978022	-	Asuc_0338	-	SUA5/yciO/yrdC domain-containing protein
335	 46.08	0	384269..384817	-	182	152978023	-	Asuc_0339	-	DNA topoisomerase type IA Zn finger domain-containing protein
336	 44.76	0	384896..386365	+	489	152978024	-	Asuc_0340	-	hypothetical protein
337	 49.89	+1	386512..386946	-	144	152978025	-	Asuc_0341	-	D-tyrosyl-tRNA(Tyr) deacylase
338	 43.75	0	386943..387806	-	287	152978026	-	Asuc_0342	-	ribonuclease BN
339	 44.52	0	387803..388267	-	154	152978027	-	Asuc_0343	-	hypothetical protein
340	 47.90	0	388416..389918	+	500	152978028	-	Asuc_0344	-	protein of unknown function DUF853 NPT hydrolase putative
341	 50.21	+1	389981..392557	+	858	152978029	-	Asuc_0345	-	DNA mismatch repair protein
342	 48.87	0	392566..392874	+	102	152978030	-	Asuc_0346	-	frataxin-like protein
343	 47.15	0	392874..394718	+	614	152978031	-	Asuc_0347	-	ATP-dependent DNA helicase RecQ
344	 45.60	0	394853..395227	+	124	152978032	-	Asuc_0348	-	hypothetical protein
345	 44.64	0	395363..395884	+	173	152978033	-	Asuc_0349	-	ATP-dependent protease peptidase subunit
346	 45.48	0	395960..397285	+	441	152978034	-	Asuc_0350	-	ATP-dependent protease ATP-binding subunit
347	 46.86	0	397467..398486	-	339	152978035	-	Asuc_0351	-	HCP oxidoreductase, NADH-dependent
348	 44.89	0	398576..400237	-	553	152978036	-	Asuc_0352	-	hydroxylamine reductase
349	 44.34	0	400441..401703	-	420	152978037	-	Asuc_0353	-	HemY protein
350	 46.21	0	401715..403151	-	478	152978038	-	Asuc_0354	-	protein of unknown function DUF513 hemX
351	 49.60	0	403161..403910	-	249	152978039	-	Asuc_0355	-	uroporphyrinogen III synthase HEM4
352	 48.82	0	403931..404860	-	309	152978040	-	Asuc_0356	-	porphobilinogen deaminase
353	 47.46	0	404994..405977	+	327	152978041	-	Asuc_0357	-	alanine racemase
354	 44.36	0	406088..407311	+	407	152978042	-	Asuc_0358	-	nucleoside:H symporter
355	 47.06	0	407313..408368	+	351	152978043	-	Asuc_0359	-	xylose isomerase domain-containing protein
356	 46.96	0	408380..409531	+	383	152978044	-	Asuc_0360	-	oxidoreductase domain-containing protein
357	 43.96	0	409689..412229	+	846	152978045	-	Asuc_0361	-	adenylate cyclase
358	 43.33	0	412438..413067	+	209	152978046	-	Asuc_0362	-	two component LuxR family transcriptional regulator
359	 47.96	0	413332..415170	+	612	152978047	-	Asuc_0363	-	surface antigen (D15)
360	 47.18	0	415180..419094	+	1304	152978048	-	Asuc_0364	-	hypothetical protein
361	 48.28	0	419104..420648	+	514	152978049	-	Asuc_0365	-	Ppx/GppA phosphatase
362	 43.25	0	420952..421959	+	335	152978050	-	Asuc_0366	-	TRAP dicarboxylate transporter, DctP subunit
363	 41.96	0	421982..422491	+	169	152978051	-	Asuc_0367	-	tripartite ATP-independent periplasmic transporter DctQ
364	 48.48	0	422501..423781	+	426	152978052	-	Asuc_0368	-	TRAP dicarboxylate transporter, DctM subunit
365	 47.06	0	423793..424812	+	339	152978053	-	Asuc_0369	-	alcohol dehydrogenase
366	 44.41	0	424843..425916	+	357	152978054	-	Asuc_0370	-	mannonate dehydratase
367	 44.01	0	425916..427517	+	533	152978055	-	Asuc_0371	-	mannitol dehydrogenase domain-containing protein
368	 37.00	-1	427527..428207	+	226	152978056	-	Asuc_0372	-	GntR family transcriptional regulator
369	 53.14	+1	428208..429146	+	312	152978057	-	Asuc_0373	-	ribokinase-like domain-containing protein
370	 54.77	+2	429176..429814	+	212	152978058	-	Asuc_0374	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
371	 49.04	0	430008..431357	-	449	152978059	-	Asuc_0375	-	glutamate dehydrogenase
372	 40.67	-1	431928..435116	+	1062	152978060	-	Asuc_0376	-	CRISPR-associated endonuclease Csn1 family protein
373	 42.59	0	435171..436088	+	305	152978061	-	Asuc_0377	-	CRISPR-associated Cas1 family protein
374	 39.14	-1	436081..436407	+	108	152978062	-	Asuc_0378	-	CRISPR-associated Cas2 family protein
375	 45.73	0	436995..437462	-	155	152978063	-	Asuc_0379	-	thioredoxin-dependent thiol peroxidase
376	 46.88	0	437559..438134	+	191	152978064	-	Asuc_0380	-	hypothetical protein
377	 50.69	+1	438138..438569	+	143	152978065	-	Asuc_0381	-	hypothetical protein
378	 46.20	0	438623..439990	+	455	152978066	-	Asuc_0382	-	coproporphyrinogen III oxidase
379	 44.87	0	440060..440770	-	236	152978067	-	Asuc_0383	-	hypothetical protein
380	 49.75	0	440861..441658	-	265	152978068	-	Asuc_0384	-	serine acetyltransferase
381	 52.08	+1	441668..442675	-	335	152978069	-	Asuc_0385	-	glycerol-3-phosphate dehydrogenase (NAD(P)(+))
382	 46.51	0	442735..443235	-	166	152978070	-	Asuc_0386	-	preprotein translocase subunit SecB
383	 42.24	0	443246..443683	-	145	152978071	-	Asuc_0387	-	rhodanese domain-containing protein
384	 45.63	0	443804..444730	-	308	152978072	-	Asuc_0388	-	cell division protein FtsX
385	 49.46	0	444748..445398	-	216	152978073	-	Asuc_0389	-	cell division ATP-binding protein FtsE
386	 46.61	0	445627..446349	-	240	152978074	-	Asuc_0390	-	glutaredoxin family protein
387	 47.62	0	446482..447384	+	300	152978075	-	Asuc_0391	-	DNA-binding transcriptional regulator OxyR
388	 47.17	0	447386..447985	+	199	152978076	-	Asuc_0392	-	DNA-binding transcriptional repressor FabR
389	 38.81	-1	448052..448270	-	72	152978077	-	Asuc_0393	-	hypothetical protein
390	 50.10	+1	448440..449453	+	337	152978078	-	Asuc_0394	-	fructose 1,6-bisphosphatase II
391	 48.59	0	449641..450138	-	165	152978079	-	Asuc_0395	-	pentapeptide repeat-containing protein
392	 48.78	0	450149..451216	-	355	152978080	-	Asuc_0396	-	Sel1 domain-containing protein
393	 45.87	0	451230..452816	-	528	152978081	-	Asuc_0397	-	peptidoglycan binding domain-containing protein
394	 44.00	0	452877..453251	-	124	152978082	-	Asuc_0398	-	hypothetical protein
395	 38.16	-1	453323..453736	-	137	152978083	-	Asuc_0399	-	hypothetical protein
396	 48.21	0	453807..454169	-	120	152978084	-	Asuc_0400	-	hypothetical protein
45.47	MEAN

4.33	STD DEV
