IslandPath Analysis: Actinobacillus succinogenes 130Z

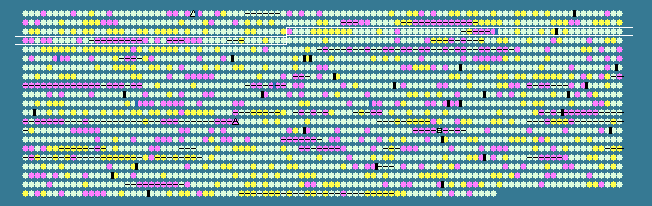

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
245	 41.67	0	281866..282117	+	83	152977933	-	Asuc_0248	-	hypothetical protein
246	 44.27	0	282228..282803	+	191	152977934	-	Asuc_0249	-	RNA polymerase sigma factor RpoE
247	 47.52	0	282826..283389	+	187	152977935	-	Asuc_0250	-	anti sigma-E protein, RseA
248	 44.20	0	283472..284428	+	318	152977936	-	Asuc_0251	-	periplasmic negative regulator of sigmaE
249	 51.03	+1	284444..284878	+	144	152977937	-	Asuc_0252	-	positive regulator of sigma E, RseC/MucC
250	 50.69	+1	284949..286331	-	460	152977938	-	Asuc_0253	-	argininosuccinate lyase
251	 49.22	0	286414..287187	-	257	152977939	-	Asuc_0254	-	acetylglutamate kinase
252	 48.96	0	287267..288277	-	336	152977940	-	Asuc_0255	-	N-acetyl-gamma-glutamyl-phosphate reductase
253	 49.17	0	288380..289522	+	380	152977941	-	Asuc_0256	-	acetylornithine deacetylase
254	 51.26	+1	289667..290581	-	304	152977942	-	Asuc_0257	-	N-acetylmuramic acid-6-phosphate etherase
255	 50.18	+1	290583..291692	-	369	152977943	-	Asuc_0258	-	anhydro-N-acetylmuramic acid kinase
256	 47.91	0	291748..293592	-	614	152977944	-	Asuc_0259	-	ABC transporter related
257	 42.50	0	293721..294200	-	159	152977945	-	Asuc_0260	-	recombination regulator RecX
258	 45.56	0	294358..295461	-	367	152977946	-	Asuc_0261	-	recombinase A
259	 43.48	0	295673..296539	-	288	152977947	-	Asuc_0262	-	DNA adenine methylase
260	 50.14	+1	296545..297633	-	362	152977948	-	Asuc_0263	-	3-dehydroquinate synthase
261	 45.08	0	297707..298234	-	175	152977949	-	Asuc_0264	-	shikimate kinase
262	 48.43	0	298524..300530	-	668	152977950	-	Asuc_0265	-	transketolase
263	 41.83	0	300974..301762	-	262	152977951	-	Asuc_0267	-	transcriptional regulator IclR
264	 46.75	0	301939..302937	+	332	152977952	-	Asuc_0268	-	2,3-diketo-L-gulonate reductase
265	 43.88	0	303040..303513	+	157	152977953	-	Asuc_0269	-	hypothetical protein
266	 43.06	0	303510..303992	+	160	152977954	-	Asuc_0270	-	tripartite ATP-independent periplasmic transporter DctQ
267	 46.01	0	303989..305266	+	425	152977955	-	Asuc_0271	-	TRAP dicarboxylate transporter, DctM subunit
268	 44.68	0	305339..306325	+	328	152977956	-	Asuc_0272	-	TRAP dicarboxylate transporter, DctP subunit
269	 46.36	0	306385..307374	+	329	152977957	-	Asuc_0273	-	TRAP dicarboxylate transporter, DctP subunit
270	 48.49	0	307447..308904	+	485	152977958	-	Asuc_0274	-	carbohydrate kinase FGGY
271	 44.38	0	309022..310008	-	328	152977959	-	Asuc_0275	-	bile acid:sodium symporter
272	 45.92	0	310362..311267	-	301	152977960	-	Asuc_0276	-	MscS mechanosensitive ion channel
273	 45.29	0	311359..312303	-	314	152977961	-	Asuc_0277	-	lysophospholipase
274	 46.99	0	312372..313484	-	370	152977962	-	Asuc_0278	-	aspartate-semialdehyde dehydrogenase
275	 49.03	0	313706..314890	-	394	152977963	-	Asuc_0279	-	elongation factor Tu
276	 41.56	0	314960..317062	-	700	152977964	-	Asuc_0280	-	elongation factor G
277	 41.19	0	317161..317631	-	156	152977965	-	Asuc_0281	-	30S ribosomal protein S7
278	 41.49	0	317739..318167	-	142	152977966	-	Asuc_0282	-	30S ribosomal protein S12
279	 30.76	-2	318248..318907	-	219	152977967	-	Asuc_0283	-	regulator of competence-specific genes
280	 45.42	0	324953..326458	-	501	152977968	-	Asuc_0284	-	sodium:neurotransmitter symporter
281	 45.95	0	326675..327229	+	184	152977969	-	Asuc_0285	-	hypothetical protein
282	 46.91	0	327457..328428	+	323	152977970	-	Asuc_0286	-	PTS system mannose/fructose/sorbose family IIA subunit
283	 50.13	+1	328443..329240	+	265	152977971	-	Asuc_0287	-	PTS system mannose/fructose/sorbose family IIC subunit
284	 48.91	0	329255..330082	+	275	152977972	-	Asuc_0288	-	PTS system mannose/fructose/sorbose family IID subunit
285	 43.75	0	330189..330572	+	127	152977973	-	Asuc_0289	-	hypothetical protein
286	 48.10	0	330569..331069	+	166	152977974	-	Asuc_0290	-	molybdopterin-guanine dinucleotide biosynthesis protein B
287	 50.32	+1	331072..332496	+	474	152977975	-	Asuc_0291	-	EmrB/QacA family drug resistance transporter
288	 45.64	0	332641..333363	-	240	152977976	-	Asuc_0292	-	MgtC/SapB transporter
289	 53.10	+1	333501..334178	-	225	152977977	-	Asuc_0293	-	competence protein F
290	 46.49	0	334491..334946	+	151	152977978	-	Asuc_0294	-	NUDIX hydrolase
291	 50.10	+1	334947..335423	-	158	152977979	-	Asuc_0295	-	transcription elongation factor GreB
292	 47.18	0	335606..336190	+	194	152977980	-	Asuc_0296	-	putative DNA uptake protein
293	 46.88	0	336244..336819	+	191	152977981	-	Asuc_0297	-	DNA-3-methyladenine glycosylase I
294	 47.15	0	336925..337713	+	262	152977982	-	Asuc_0298	-	extracellular solute-binding protein
295	 48.54	0	337703..338419	+	238	152977983	-	Asuc_0299	-	polar amino acid ABC transporter, inner membrane subunit
296	 47.20	0	338435..339184	+	249	152977984	-	Asuc_0300	-	ABC transporter related
297	 46.56	0	339433..340740	-	435	152977985	-	Asuc_0301	-	sodium ion-translocating decarboxylase, beta subunit
298	 48.31	0	340751..342559	-	602	152977986	-	Asuc_0302	-	pyruvate carboxylase subunit B
299	 43.70	0	342579..342848	-	89	152977987	-	Asuc_0303	-	oxaloacetate decarboxylase subunit gamma
300	 44.52	0	343007..344284	-	425	152977988	-	Asuc_0304	-	anion transporter
301	 41.62	0	344511..345560	-	349	152977989	-	Asuc_0305	-	citrate lyase ligase
302	 41.85	0	345617..346450	-	277	152977990	-	Asuc_0306	-	hypothetical protein
303	 43.94	0	346530..346859	-	109	152977991	-	Asuc_0307	-	hypothetical protein
304	 40.45	-1	346873..347490	-	205	152977992	-	Asuc_0308	-	DSBA oxidoreductase
305	 36.67	-2	347501..347770	-	89	152977993	-	Asuc_0309	-	hypothetical protein
306	 43.68	0	347845..348414	+	189	152977994	-	Asuc_0310	-	molybdopterin-guanine dinucleotide biosynthesis protein A
307	 43.67	0	348433..349332	+	299	152977995	-	Asuc_0311	-	aldo/keto reductase
308	 45.52	0	349444..351519	-	691	152977996	-	Asuc_0312	-	4-alpha-glucanotransferase
309	 43.59	0	351600..353969	-	789	152977997	-	Asuc_0313	-	glycogen/starch/alpha-glucan phosphorylase
310	 41.62	0	354073..356859	+	928	152977998	-	Asuc_0314	-	transcriptional regulator MalT
311	 44.56	0	356912..358969	-	685	152977999	-	Asuc_0315	-	periplasmic alpha-amylase precursor
312	 45.34	0	359119..360009	-	296	152978000	-	Asuc_0316	-	maltose transporter permease
313	 39.78	-1	360063..361598	-	511	152978001	-	Asuc_0317	-	maltose transporter membrane protein
314	 41.31	0	361680..362870	-	396	152978002	-	Asuc_0318	-	maltose ABC transporter periplasmic protein
315	 40.46	-1	362890..364095	-	401	152978003	-	Asuc_0319	-	maltose ABC transporter periplasmic protein
316	 40.39	-1	364446..365564	+	372	152978004	-	Asuc_0320	-	maltose/maltodextrin transporter ATP-binding protein
317	 39.04	-1	365581..366912	+	443	152978005	-	Asuc_0321	-	alpha amylase catalytic region
318	 41.45	0	366941..368233	+	430	152978006	-	Asuc_0322	-	maltoporin
319	 41.44	0	368401..369288	+	295	152978007	-	Asuc_0323	-	maltose regulon periplasmic protein
320	 38.57	-1	369370..370152	-	260	152978008	-	Asuc_0324	-	Cof-like hydrolase
321	 40.56	-1	370273..370701	-	142	152978009	-	Asuc_0325	-	F0F1 ATP synthase subunit epsilon
322	 45.46	0	370741..372117	-	458	152978010	-	Asuc_0326	-	F0F1 ATP synthase subunit beta
323	 41.03	-1	372133..373002	-	289	152978011	-	Asuc_0327	-	F0F1 ATP synthase subunit gamma
324	 43.45	0	373021..374562	-	513	152978012	-	Asuc_0328	-	F0F1 ATP synthase subunit alpha
325	 38.79	-1	374578..375108	-	176	152978013	-	Asuc_0329	-	F0F1 ATP synthase subunit delta
326	 40.55	-1	375122..375592	-	156	152978014	-	Asuc_0330	-	F0F1 ATP synthase subunit B
327	 36.86	-1	375660..375914	-	84	152978015	-	Asuc_0331	-	F0F1 ATP synthase subunit C
328	 39.19	-1	375971..376756	-	261	152978016	-	Asuc_0332	-	F0F1 ATP synthase subunit A
329	 33.85	-2	376771..377154	-	127	152978017	-	Asuc_0333	-	F0F1 ATP synthase subunit I
330	 39.31	-1	377435..378070	-	211	152978018	-	Asuc_0334	-	glucose-inhibited division protein B
331	 46.30	0	378060..379949	-	629	152978019	-	Asuc_0335	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
332	 43.79	0	380457..382838	+	793	152978020	-	Asuc_0336	-	organic solvent tolerance protein
333	 45.93	0	382909..383718	-	269	152978021	-	Asuc_0337	-	shikimate 5-dehydrogenase
334	 44.93	0	383721..384272	-	183	152978022	-	Asuc_0338	-	SUA5/yciO/yrdC domain-containing protein
335	 46.08	0	384269..384817	-	182	152978023	-	Asuc_0339	-	DNA topoisomerase type IA Zn finger domain-containing protein
336	 44.76	0	384896..386365	+	489	152978024	-	Asuc_0340	-	hypothetical protein
337	 49.89	+1	386512..386946	-	144	152978025	-	Asuc_0341	-	D-tyrosyl-tRNA(Tyr) deacylase
338	 43.75	0	386943..387806	-	287	152978026	-	Asuc_0342	-	ribonuclease BN
339	 44.52	0	387803..388267	-	154	152978027	-	Asuc_0343	-	hypothetical protein
340	 47.90	0	388416..389918	+	500	152978028	-	Asuc_0344	-	protein of unknown function DUF853 NPT hydrolase putative
341	 50.21	+1	389981..392557	+	858	152978029	-	Asuc_0345	-	DNA mismatch repair protein
342	 48.87	0	392566..392874	+	102	152978030	-	Asuc_0346	-	frataxin-like protein
343	 47.15	0	392874..394718	+	614	152978031	-	Asuc_0347	-	ATP-dependent DNA helicase RecQ
344	 45.60	0	394853..395227	+	124	152978032	-	Asuc_0348	-	hypothetical protein
45.47	MEAN

4.33	STD DEV
