IslandPath Analysis: Actinobacillus succinogenes 130Z

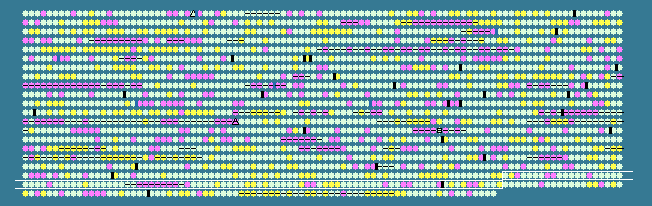

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1881	 47.86	0	2107200..2107922	-	240	152979569	-	Asuc_1915	-	cytochrome c-type protein TorY
1882	 50.36	+1	2108175..2110505	-	776	152979570	-	Asuc_1916	-	trimethylamine-N-oxide reductase (cytochrome c)
1883	 40.18	-1	2110656..2110874	+	72	152979571	-	Asuc_1917	-	translation initiation factor IF-1
1884	 47.98	0	2110926..2112461	-	511	152979572	-	Asuc_1918	-	apolipoprotein N-acyltransferase
1885	 44.70	0	2112567..2113472	-	301	152979573	-	Asuc_1919	-	CBS domain-containing protein
1886	 43.15	0	2113635..2113970	+	111	152979574	-	Asuc_1920	-	alkylphosphonate utilization operon protein PhnA
1887	 43.58	0	2114099..2115415	-	438	152979575	-	Asuc_1921	-	TRAP dicarboxylate transporter, DctM subunit
1888	 39.43	-1	2115415..2115906	-	163	152979576	-	Asuc_1922	-	tripartite ATP-independent periplasmic transporter DctQ
1889	 37.59	-1	2116008..2116994	-	328	152979577	-	Asuc_1923	-	TRAP dicarboxylate transporter, DctP subunit
1890	 43.58	0	2117237..2118397	-	386	152979578	-	Asuc_1924	-	chorismate mutase
1891	 43.06	0	2118440..2120095	-	551	152979579	-	Asuc_1925	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
1892	 42.70	0	2120161..2121078	-	305	152979580	-	Asuc_1926	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1893	 46.37	0	2121122..2122333	-	403	152979581	-	Asuc_1927	-	cell division protein FtsZ
1894	 44.08	0	2122416..2123708	-	430	152979582	-	Asuc_1928	-	cell division protein FtsA
1895	 40.47	-1	2123719..2124489	-	256	152979583	-	Asuc_1929	-	cell division protein FtsQ
1896	 45.78	0	2124489..2125412	-	307	152979584	-	Asuc_1930	-	D-alanine--D-alanine ligase
1897	 47.59	0	2125499..2126929	-	476	152979585	-	Asuc_1931	-	UDP-N-acetylmuramate--L-alanine ligase
1898	 46.29	0	2127036..2128100	-	354	152979586	-	Asuc_1932	-	N-acetylglucosaminyl transferase
1899	 42.40	0	2128119..2129309	-	396	152979587	-	Asuc_1933	-	cell division protein FtsW
1900	 45.97	0	2129323..2130636	-	437	152979588	-	Asuc_1934	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1901	 44.14	0	2130674..2131756	-	360	152979589	-	Asuc_1935	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1902	 46.78	0	2131763..2133205	-	480	152979590	-	Asuc_1936	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
1903	 47.65	0	2133206..2134672	-	488	152979591	-	Asuc_1937	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1904	 46.32	0	2134681..2136543	-	620	152979592	-	Asuc_1938	-	peptidoglycan glycosyltransferase
1905	 39.64	-1	2136543..2136875	-	110	152979593	-	Asuc_1939	-	cell division protein FtsL
1906	 47.83	0	2136875..2137840	-	321	152979594	-	Asuc_1940	-	S-adenosyl-methyltransferase MraW
1907	 45.53	0	2137984..2138442	-	152	152979595	-	Asuc_1941	-	cell division protein MraZ
1908	 45.36	0	2138672..2140192	-	506	152979596	-	Asuc_1942	-	carbon starvation protein CstA
1909	 43.86	0	2140318..2140488	-	56	152979597	-	Asuc_1943	-	hypothetical protein
1910	 47.20	0	2140531..2142384	-	617	152979598	-	Asuc_1944	-	protein of unknown function DUF699 ATPase putative
1911	 49.04	0	2142381..2142851	-	156	152979599	-	Asuc_1945	-	putative metalloprotease
1912	 44.14	0	2143146..2144228	-	360	152979600	-	Asuc_1946	-	PhoH family protein
1913	 47.32	0	2144393..2146672	-	759	152979601	-	Asuc_1947	-	bifunctional glutamate--cysteine ligase/glutathione synthetase
1914	 45.33	0	2146813..2147679	-	288	152979602	-	Asuc_1948	-	extracellular solute-binding protein
1915	 44.71	0	2147663..2148427	-	254	152979603	-	Asuc_1949	-	ABC transporter related
1916	 46.04	0	2148433..2149101	-	222	152979604	-	Asuc_1950	-	polar amino acid ABC transporter, inner membrane subunit
1917	 44.85	0	2149103..2149762	-	219	152979605	-	Asuc_1951	-	polar amino acid ABC transporter, inner membrane subunit
1918	 47.86	0	2149920..2151344	-	474	152979606	-	Asuc_1952	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
1919	 43.81	0	2151994..2152995	+	333	152979607	-	Asuc_1953	-	4-hydroxythreonine-4-phosphate dehydrogenase
1920	 37.77	-1	2153014..2153892	+	292	152979608	-	Asuc_1954	-	dihydrodipicolinate synthase
1921	 37.82	-1	2153918..2155075	+	385	152979609	-	Asuc_1955	-	iron-containing alcohol dehydrogenase
1922	 36.87	-1	2155294..2156283	+	329	152979610	-	Asuc_1956	-	TRAP transporter solute receptor TAXI family protein
1923	 36.88	-1	2156342..2158228	+	628	152979611	-	Asuc_1957	-	TRAP transporter, 4TM/12TM fusion protein
1924	 39.16	-1	2159191..2160597	+	468	152979612	-	Asuc_1959	-	Na+ symporter
1925	 41.16	0	2160615..2161802	+	395	152979613	-	Asuc_1960	-	glycosyl hydrolase BNR repeat-containing glycosyl hydrolase
1926	 39.57	-1	2161853..2162317	+	154	152979614	-	Asuc_1961	-	hypothetical protein
1927	 46.39	0	2162616..2163641	-	341	152979615	-	Asuc_1962	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1928	 41.58	0	2163663..2164220	-	185	152979616	-	Asuc_1963	-	outer membrane chaperone Skp (OmpH)
1929	 46.83	0	2164322..2166685	-	787	152979617	-	Asuc_1964	-	surface antigen (D15)
1930	 47.71	0	2166730..2168058	-	442	152979618	-	Asuc_1965	-	putative membrane-associated zinc metalloprotease
1931	 46.25	0	2168068..2168934	-	288	152979619	-	Asuc_1966	-	phosphatidate cytidylyltransferase
1932	 45.00	0	2168947..2169666	-	239	152979620	-	Asuc_1967	-	undecaprenyl diphosphate synthase
1933	 50.30	+1	2169920..2170744	+	274	152979621	-	Asuc_1968	-	diaminopimelate epimerase
1934	 42.14	0	2170784..2171476	+	230	152979622	-	Asuc_1969	-	hypothetical protein
1935	 46.74	0	2171723..2173318	+	531	152979623	-	Asuc_1970	-	L-lactate transport
1936	 47.64	0	2173375..2174115	+	246	152979624	-	Asuc_1971	-	hypothetical protein
1937	 47.98	0	2174117..2175529	+	470	152979625	-	Asuc_1972	-	iron-sulfur cluster binding protein
1938	 50.93	+1	2175529..2176227	+	232	152979626	-	Asuc_1973	-	hypothetical protein
1939	 50.45	+1	2176367..2177254	+	295	152979627	-	Asuc_1974	-	site-specific tyrosine recombinase XerC
1940	 46.55	0	2177260..2177970	+	236	152979628	-	Asuc_1975	-	HAD family hydrolase
1941	 50.18	+1	2178059..2179417	-	452	152979629	-	Asuc_1976	-	tRNA modification GTPase TrmE
1942	 46.80	0	2179534..2179830	-	98	152979630	-	Asuc_1977	-	hypothetical protein
1943	 46.35	0	2179872..2180447	-	191	152979631	-	Asuc_1978	-	protein of unknown function YGGT
1944	 45.89	0	2180550..2181497	-	315	152979632	-	Asuc_1979	-	magnesium/nickel/cobalt transporter CorA
1945	 47.97	0	2181841..2183172	-	443	152979633	-	Asuc_1980	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1946	 48.43	0	2183426..2184220	+	264	152979634	-	Asuc_1981	-	NADH pyrophosphatase
1947	 50.80	+1	2184320..2185384	+	354	152979635	-	Asuc_1982	-	uroporphyrinogen decarboxylase
1948	 39.83	-1	2185394..2185978	+	194	152979636	-	Asuc_1983	-	hypothetical protein
1949	 41.67	0	2186133..2186408	+	91	152979637	-	Asuc_1984	-	histone family protein DNA-binding protein
1950	 46.33	0	2186473..2187195	-	240	152979638	-	Asuc_1985	-	3-deoxy-D-manno-octulosonic-acid kinase
1951	 49.39	0	2187269..2188327	+	352	152979639	-	Asuc_1986	-	glycosyl transferase family protein
1952	 50.45	+1	2188343..2189002	-	219	152979640	-	Asuc_1987	-	pseudouridine synthase
1953	 51.84	+1	2189084..2190034	-	316	152979641	-	Asuc_1988	-	TRAP transporter solute receptor TAXI family protein
1954	 45.54	0	2190132..2190557	-	141	152979642	-	Asuc_1989	-	UspA domain-containing protein
1955	 48.28	0	2190567..2193209	-	880	152979643	-	Asuc_1990	-	TRAP transporter, 4TM/12TM fusion protein
1956	 47.87	0	2193360..2194322	-	320	152979644	-	Asuc_1991	-	TRAP transporter solute receptor TAXI family protein
1957	 48.60	0	2194658..2197558	-	966	152979645	-	Asuc_1992	-	ATP-dependent helicase HepA
1958	 43.94	0	2197770..2198495	+	241	152979646	-	Asuc_1993	-	nicotinamide mononucleotide transporter PnuC
1959	 44.86	0	2198560..2199123	-	187	152979647	-	Asuc_1994	-	hypothetical protein
1960	 44.44	0	2199236..2200405	-	389	152979648	-	Asuc_1995	-	Na+/H+ antiporter NhaA
1961	 41.79	0	2200636..2201451	+	271	152979649	-	Asuc_1996	-	Cof-like hydrolase
1962	 42.34	0	2202850..2204382	-	510	152979650	-	Asuc_1998	-	hypothetical protein
1963	 42.03	0	2204750..2206417	-	555	152979651	-	Asuc_1999	-	anaerobic c4-dicarboxylate antiporter
1964	 33.33	-2	2206648..2206878	-	76	152979652	-	Asuc_2000	-	acyl carrier protein
1965	 41.84	0	2207110..2207838	-	242	152979653	-	Asuc_2001	-	3-ketoacyl-(acyl-carrier-protein) reductase
1966	 47.60	0	2207958..2208896	-	312	152979654	-	Asuc_2002	-	malonyl CoA-acyl carrier protein transacylase
1967	 43.95	0	2208969..2209919	-	316	152979655	-	Asuc_2003	-	3-oxoacyl-(acyl-carrier-protein) synthase III
1968	 42.95	0	2209946..2210974	-	342	152979656	-	Asuc_2004	-	putative glycerol-3-phosphate acyltransferase PlsX
1969	 43.27	0	2210999..2211169	-	56	152979657	-	Asuc_2005	-	50S ribosomal protein L32
1970	 41.14	0	2211191..2211715	-	174	152979658	-	Asuc_2006	-	hypothetical protein
1971	 43.39	0	2212097..2213458	-	453	152979659	-	Asuc_2007	-	phosphatidylserine synthase
1972	 48.99	0	2213563..2214648	+	361	152979660	-	Asuc_2008	-	tRNA/rRNA methyltransferase (SpoU)
1973	 45.75	0	2214707..2215423	-	238	152979661	-	Asuc_2009	-	hypothetical protein
1974	 49.37	0	2215625..2216422	-	265	152979662	-	Asuc_2010	-	TonB family protein
1975	 38.76	-1	2216423..2216809	-	128	152979663	-	Asuc_2011	-	TonB system transport protein ExbD type-2
1976	 41.67	0	2216822..2217277	-	151	152979664	-	Asuc_2012	-	TonB-system energizer ExbB type-2
1977	 52.12	+1	2217506..2218543	+	345	152979665	-	Asuc_2013	-	metalloendopeptidase glycoprotease family
1978	 48.46	0	2218706..2221276	+	856	152979666	-	Asuc_2014	-	ATPase
1979	 46.96	0	2221401..2222075	+	224	152979667	-	Asuc_2015	-	deoxyribose-phosphate aldolase
1980	 51.55	+1	2222381..2223220	-	279	152979668	-	Asuc_2016	-	protein of unknown function zinc metallopeptidase putative
45.47	MEAN

4.33	STD DEV
