IslandPath Analysis: Actinobacillus succinogenes 130Z

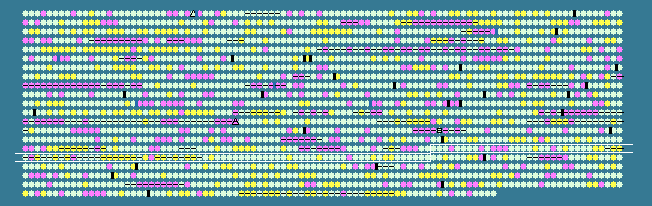

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1569	 46.22	0	1759732..1760181	-	149	152979257	-	Asuc_1597	-	ribose 5-phosphate isomerase B
1570	 47.40	0	1760192..1761556	-	454	152979258	-	Asuc_1598	-	hypothetical protein
1571	 48.17	0	1761579..1762589	-	336	152979259	-	Asuc_1599	-	4-hydroxythreonine-4-phosphate dehydrogenase
1572	 40.99	-1	1762810..1763580	+	256	152979260	-	Asuc_1600	-	DeoR family transcriptional regulator
1573	 45.67	0	1763603..1764388	+	261	152979261	-	Asuc_1601	-	Triose-phosphate isomerase
1574	 46.07	0	1764613..1766874	+	753	152979262	-	Asuc_1602	-	nitric oxide reductase large subunit
1575	 46.83	0	1766954..1767694	-	246	152979263	-	Asuc_1603	-	major intrinsic protein
1576	 46.06	0	1768077..1769585	+	502	152979264	-	Asuc_1604	-	glycerol kinase
1577	 41.58	0	1769939..1770241	-	100	152979265	-	Asuc_1605	-	hypothetical protein
1578	 48.68	0	1770308..1770724	+	138	152979266	-	Asuc_1606	-	hypothetical protein
1579	 40.12	-1	1770975..1771460	+	161	152979267	-	Asuc_1607	-	ferroxidase
1580	 40.20	-1	1771475..1771969	+	164	152979268	-	Asuc_1608	-	ferroxidase
1581	 41.03	-1	1772017..1772211	-	64	152979269	-	Asuc_1609	-	hypothetical protein
1582	 43.02	0	1772332..1773105	+	257	152979270	-	Asuc_1610	-	fumarate/nitrate reduction transcriptional regulator
1583	 44.69	0	1773245..1774177	+	310	152979271	-	Asuc_1611	-	universal stress protein UspE
1584	 46.54	0	1774402..1775340	-	312	152979272	-	Asuc_1612	-	malate dehydrogenase
1585	 43.98	0	1775530..1776036	+	168	152979273	-	Asuc_1613	-	arginine repressor
1586	 49.95	+1	1776036..1776956	+	306	152979274	-	Asuc_1614	-	hypothetical protein
1587	 47.27	0	1776968..1778323	-	451	152979275	-	Asuc_1615	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
1588	 48.39	0	1778320..1779003	-	227	152979276	-	Asuc_1616	-	LrgB family protein
1589	 41.67	0	1779000..1779431	-	143	152979277	-	Asuc_1617	-	hypothetical protein
1590	 46.59	0	1779533..1780030	+	165	152979278	-	Asuc_1618	-	nuclease
1591	 49.21	0	1780030..1781226	+	398	152979279	-	Asuc_1619	-	aminotransferase class V
1592	 43.12	0	1781257..1781634	+	125	152979280	-	Asuc_1620	-	Fe-S metabolism associated SufE
1593	 46.82	0	1781631..1782905	+	424	152979281	-	Asuc_1621	-	hypothetical protein
1594	 47.93	0	1783052..1783969	+	305	152979282	-	Asuc_1622	-	protein of unknown function UPF0052 and CofD
1595	 47.39	0	1784059..1785324	-	421	152979283	-	Asuc_1623	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
1596	 50.60	+1	1785506..1786252	-	248	152979284	-	Asuc_1624	-	short-chain dehydrogenase/reductase SDR
1597	 50.15	+1	1786551..1788851	+	766	152979285	-	Asuc_1625	-	(NiFe) hydrogenase maturation protein HypF
1598	 47.55	0	1789059..1789487	-	142	152979286	-	Asuc_1626	-	MarR family transcriptional regulator
1599	 49.24	0	1789474..1789932	-	152	152979287	-	Asuc_1627	-	transmembrane pair domain-containing protein
1600	 50.00	+1	1790074..1790307	+	77	152979288	-	Asuc_1628	-	hypothetical protein
1601	 46.20	0	1790553..1790855	+	100	152979289	-	Asuc_1629	-	hypothetical protein
1602	 40.56	-1	1790877..1791056	+	59	152979290	-	Asuc_1630	-	exonuclease
1603	 50.68	+1	1791131..1792012	-	293	152979291	-	Asuc_1631	-	LysR family transcriptional regulator
1604	 46.30	0	1792131..1792454	+	107	152979292	-	Asuc_1632	-	small multidrug resistance protein
1605	 47.84	0	1792465..1792788	+	107	152979293	-	Asuc_1633	-	small multidrug resistance protein
1606	 52.80	+1	1792850..1795114	+	754	152979294	-	Asuc_1634	-	ABC transporter related
1607	 48.48	0	1795895..1796620	-	241	152979295	-	Asuc_1636	-	hypothetical protein
1608	 49.36	0	1796610..1799873	-	1087	152979296	-	Asuc_1637	-	HsdR family type I site-specific deoxyribonuclease
1609	 34.03	-2	1802013..1803161	-	382	152979297	-	Asuc_1639	-	restriction modification system DNA specificity subunit
1610	 47.17	0	1803405..1804922	-	505	152979298	-	Asuc_1640	-	type I restriction-modification system, M subunit
1611	 42.33	0	1804919..1805752	-	277	152979299	-	Asuc_1641	-	DNA-damage-inducible protein D
1612	 43.39	0	1805762..1806328	-	188	152979300	-	Asuc_1642	-	restriction modification system DNA specificity subunit
1613	 48.94	0	1806498..1807439	-	313	152979301	-	Asuc_1643	-	alpha/beta hydrolase fold
1614	 51.20	+1	1807725..1808351	-	208	152979302	-	Asuc_1644	-	glutathione S-transferase domain-containing protein
1615	 50.99	+1	1808362..1808967	-	201	152979303	-	Asuc_1645	-	glutathione S-transferase domain-containing protein
1616	 52.07	+1	1808986..1809540	-	184	152979304	-	Asuc_1646	-	NAD(P)H dehydrogenase (quinone)
1617	 57.87	+2	1809737..1810771	-	344	152979305	-	Asuc_1647	-	alpha/beta hydrolase domain-containing protein
1618	 49.77	0	1810890..1811321	-	143	152979306	-	Asuc_1648	-	OsmC family protein
1619	 52.02	+1	1811426..1812094	-	222	152979307	-	Asuc_1649	-	nitroreductase
1620	 45.70	0	1812115..1812486	-	123	152979308	-	Asuc_1650	-	hypothetical protein
1621	 55.43	+2	1812603..1813394	-	263	152979309	-	Asuc_1651	-	2-dehydro-3-deoxyglucarate aldolase
1622	 40.40	-1	1813429..1813881	-	150	152979310	-	Asuc_1652	-	Ferritin Dps family protein
1623	 53.49	+1	1814150..1815295	+	381	152979311	-	Asuc_1653	-	NADH:flavin oxidoreductase/NADH oxidase
1624	 50.70	+1	1815305..1816162	+	285	152979312	-	Asuc_1654	-	hypothetical protein
1625	 47.54	0	1816162..1816506	+	114	152979313	-	Asuc_1655	-	hypothetical protein
1626	 52.18	+1	1816516..1817226	+	236	152979314	-	Asuc_1656	-	DSBA oxidoreductase
1627	 46.80	0	1817517..1818533	+	338	152979315	-	Asuc_1657	-	beta-lactamase domain-containing protein
1628	 54.60	+2	1818842..1819819	+	325	152979316	-	Asuc_1658	-	2-nitropropane dioxygenase NPD
1629	 53.72	+1	1819963..1820850	+	295	152979317	-	Asuc_1659	-	LysR family transcriptional regulator
1630	 46.85	0	1820917..1821774	+	285	152979318	-	Asuc_1660	-	AraC-like transcriptional regulator
1631	 44.86	0	1822071..1823285	+	404	152979319	-	Asuc_1661	-	acetate kinase
1632	 48.97	0	1823344..1825485	+	713	152979320	-	Asuc_1662	-	phosphate acetyltransferase
1633	 44.29	0	1825841..1827766	+	641	152979321	-	Asuc_1663	-	iron permease FTR1
1634	 47.05	0	1827876..1828400	+	174	152979322	-	Asuc_1664	-	hypothetical protein
1635	 45.99	0	1828473..1829870	+	465	152979323	-	Asuc_1665	-	YHS domain-containing protein
1636	 48.36	0	1829870..1831180	+	436	152979324	-	Asuc_1666	-	hypothetical protein
1637	 45.47	0	1831170..1832306	+	378	152979325	-	Asuc_1667	-	hypothetical protein
1638	 47.92	0	1832309..1832980	+	223	152979326	-	Asuc_1668	-	ABC transporter related
1639	 44.24	0	1832970..1833455	+	161	152979327	-	Asuc_1669	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
1640	 46.79	0	1833457..1833768	+	103	152979328	-	Asuc_1670	-	cytochrome c class I
1641	 47.86	0	1834439..1835374	+	311	152979329	-	Asuc_1671	-	KpsF/GutQ family protein
1642	 48.62	0	1835414..1835956	+	180	152979330	-	Asuc_1672	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
1643	 42.69	0	1836011..1836352	+	113	152979331	-	Asuc_1673	-	invasion gene expression up-regulator SirB
1644	 48.12	0	1836376..1836855	-	159	152979332	-	Asuc_1674	-	molybdopterin biosynthesis MoaE protein
1645	 52.85	+1	1836857..1837102	-	81	152979333	-	Asuc_1675	-	molybdopterin converting factor, subunit 1
1646	 48.22	0	1837112..1837588	-	158	152979334	-	Asuc_1676	-	molybdenum cofactor biosynthesis protein C
1647	 48.07	0	1837597..1838607	-	336	152979335	-	Asuc_1677	-	molybdenum cofactor biosynthesis protein A
1648	 47.32	0	1838892..1839227	-	111	152979336	-	Asuc_1678	-	branched-chain amino acid transport
1649	 44.35	0	1839228..1839953	-	241	152979337	-	Asuc_1679	-	AzlC family protein
1650	 49.31	0	1839953..1840891	-	312	152979338	-	Asuc_1680	-	LysR family transcriptional regulator
1651	 45.82	0	1841044..1842084	+	346	152979339	-	Asuc_1681	-	extracellular solute-binding protein
1652	 42.58	0	1842162..1843199	+	345	152979340	-	Asuc_1682	-	extracellular solute-binding protein
1653	 46.55	0	1843276..1845333	+	685	152979341	-	Asuc_1683	-	binding-protein-dependent transport systems inner membrane component
1654	 47.54	0	1845465..1846520	+	351	152979342	-	Asuc_1684	-	ferric transporter ATP-binding subunit
1655	 39.35	-1	1846762..1847226	+	154	152979343	-	Asuc_1685	-	hypothetical protein
1656	 46.24	0	1847336..1849102	-	588	152979344	-	Asuc_1686	-	sulfite reductase subunit beta
1657	 48.80	0	1849186..1850976	-	596	152979345	-	Asuc_1687	-	sulfite reductase (NADPH) flavoprotein, alpha chain
1658	 47.13	0	1851273..1852562	-	429	152979346	-	Asuc_1688	-	sulfate adenylyltransferase, large subunit
1659	 50.59	+1	1852664..1853590	-	308	152979347	-	Asuc_1689	-	sulfate adenylyltransferase subunit 2
1660	 46.99	0	1853858..1854589	-	243	152979348	-	Asuc_1690	-	phosphoadenosine phosphosulfate reductase
1661	 49.97	+1	1854661..1856091	-	476	152979349	-	Asuc_1691	-	uroporphyrin-III C-methyltransferase
1662	 49.28	0	1856091..1857125	-	344	152979350	-	Asuc_1692	-	sulfate ABC transporter, periplasmic sulfate-binding protein
1663	 46.72	0	1857373..1858194	+	273	152979351	-	Asuc_1693	-	sulfate ABC transporter, inner membrane subunit CysT
1664	 47.52	0	1858194..1859060	+	288	152979352	-	Asuc_1694	-	sulfate ABC transporter, inner membrane subunit CysW
1665	 44.75	0	1859098..1860174	+	358	152979353	-	Asuc_1695	-	sulfate ABC transporter, ATPase subunit
1666	 45.94	0	1860233..1861327	-	364	152979354	-	Asuc_1696	-	putative RNA 2'-O-ribose methyltransferase
1667	 44.14	0	1861320..1862207	-	295	152979355	-	Asuc_1697	-	DNA-binding transcriptional activator GcvA
1668	 47.09	0	1862659..1863690	+	343	152979356	-	Asuc_1698	-	branched-chain amino acid aminotransferase
45.47	MEAN

4.33	STD DEV
