IslandPath Analysis: Actinobacillus succinogenes 130Z

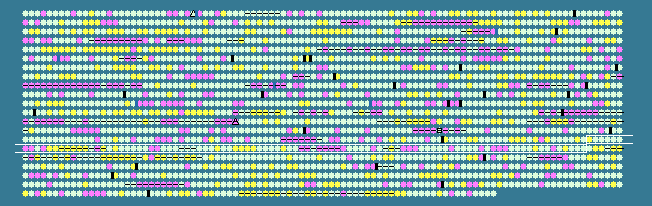

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1495	 50.18	+1	1680819..1681376	-	185	152979183	-	Asuc_1519	-	ferredoxin-type protein NapF
1496	 45.54	0	1681391..1681996	-	201	152979184	-	Asuc_1520	-	twin-argninine leader-binding protein DmsD
1497	 46.72	0	1682072..1682893	-	273	152979185	-	Asuc_1521	-	DMSO reductase anchor subunit (DmsC)
1498	 44.98	0	1682895..1683512	-	205	152979186	-	Asuc_1522	-	dimethylsulfoxide reductase chain B
1499	 46.44	0	1683522..1685954	-	810	152979187	-	Asuc_1523	-	anaerobic dimethyl sulfoxide reductase subunit A
1500	 43.28	0	1685980..1688412	-	810	152979188	-	Asuc_1524	-	anaerobic dimethyl sulfoxide reductase subunit A
1501	 41.37	0	1688703..1689785	-	360	152979189	-	Asuc_1525	-	extracellular solute-binding protein
1502	 40.52	-1	1689813..1690661	-	282	152979190	-	Asuc_1526	-	binding-protein-dependent transport systems inner membrane component
1503	 42.18	0	1690658..1691527	-	289	152979191	-	Asuc_1527	-	binding-protein-dependent transport systems inner membrane component
1504	 40.13	-1	1691524..1692597	-	357	152979192	-	Asuc_1528	-	ABC transporter related
1505	 49.64	0	1692846..1693820	-	324	152979193	-	Asuc_1529	-	2-nitropropane dioxygenase NPD
1506	 51.85	+1	1694385..1694681	-	98	152979194	-	Asuc_1531	-	hypothetical protein
1507	 52.90	+1	1694694..1695245	-	183	152979195	-	Asuc_1532	-	NAD(P)H dehydrogenase (quinone)
1508	 54.11	+1	1695257..1695973	-	238	152979196	-	Asuc_1533	-	antibiotic biosynthesis monooxygenase
1509	 55.47	+2	1696017..1696766	-	249	152979197	-	Asuc_1534	-	short-chain dehydrogenase/reductase SDR
1510	 54.02	+1	1696794..1697813	-	339	152979198	-	Asuc_1535	-	aldo/keto reductase
1511	 53.33	+1	1698160..1699059	+	299	152979199	-	Asuc_1536	-	LysR family transcriptional regulator
1512	 46.31	0	1699398..1700684	+	428	152979200	-	Asuc_1537	-	hypothetical protein
1513	 26.65	-2	1700645..1701571	+	308	152979201	-	Asuc_1538	-	hypothetical protein
1514	 49.19	0	1702031..1703020	-	329	152979202	-	Asuc_1540	-	alcohol dehydrogenase
1515	 48.03	0	1703242..1704255	-	337	152979203	-	Asuc_1541	-	beta-lactamase domain-containing protein
1516	 54.02	+1	1704381..1705289	+	302	152979204	-	Asuc_1542	-	LysR family transcriptional regulator
1517	 46.13	0	1706157..1707086	+	309	152979205	-	Asuc_1545	-	LysR family transcriptional regulator
1518	 45.80	0	1707293..1707958	+	221	152979206	-	Asuc_1546	-	nitroreductase
1519	 45.40	0	1708069..1708383	-	104	152979207	-	Asuc_1547	-	translation initiation factor Sui1
1520	 45.21	0	1708397..1709095	-	232	152979208	-	Asuc_1548	-	orotidine 5'-phosphate decarboxylase
1521	 42.07	0	1709129..1710307	-	392	152979209	-	Asuc_1549	-	hypothetical protein
1522	 37.00	-1	1710304..1710603	-	99	152979210	-	Asuc_1550	-	hypothetical protein
1523	 37.89	-1	1710712..1710996	-	94	152979211	-	Asuc_1551	-	integration host factor, beta subunit
1524	 42.53	0	1711140..1712792	-	550	152979212	-	Asuc_1552	-	30S ribosomal protein S1
1525	 48.54	0	1712894..1713577	-	227	152979213	-	Asuc_1553	-	cytidylate kinase
1526	 45.71	0	1713602..1714441	-	279	152979214	-	Asuc_1554	-	hypothetical protein
1527	 45.75	0	1714564..1716585	+	673	152979215	-	Asuc_1555	-	lytic transglycosylase catalytic
1528	 47.06	0	1716620..1716925	+	101	152979216	-	Asuc_1556	-	Trp operon repressor
1529	 44.36	0	1716906..1717658	+	250	152979217	-	Asuc_1557	-	monofunctional biosynthetic peptidoglycan transglycosylase
1530	 48.82	0	1717668..1718558	+	296	152979218	-	Asuc_1558	-	transporter DMT superfamily protein
1531	 46.12	0	1718684..1719457	-	257	152979219	-	Asuc_1559	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
1532	 45.91	0	1719595..1720365	+	256	152979220	-	Asuc_1560	-	ModE family transcriptional regulator
1533	 50.12	+1	1720377..1720799	+	140	152979221	-	Asuc_1561	-	thioesterase superfamily protein
1534	 48.51	0	1720792..1721766	+	324	152979222	-	Asuc_1562	-	ferrochelatase
1535	 44.26	0	1721837..1722376	-	179	152979223	-	Asuc_1563	-	hypothetical protein
1536	 51.61	+1	1722485..1723354	-	289	152979224	-	Asuc_1564	-	succinyl-CoA synthetase, alpha subunit
1537	 49.35	0	1723366..1724526	-	386	152979225	-	Asuc_1565	-	succinyl-CoA synthetase, beta subunit
1538	 49.96	+1	1724715..1725893	-	392	152979226	-	Asuc_1566	-	2-oxoglutarate dehydrogenase, E2 subunit, dihydrolipoamide succinyltransferase
1539	 49.96	+1	1725917..1728742	-	941	152979227	-	Asuc_1567	-	2-oxoglutarate dehydrogenase, E1 subunit
1540	 47.49	0	1728936..1730327	+	463	152979228	-	Asuc_1568	-	anion transporter
1541	 47.96	0	1730389..1731516	-	375	152979229	-	Asuc_1569	-	bifunctional chorismate mutase/prephenate dehydrogenase
1542	 47.62	0	1731655..1732704	-	349	152979230	-	Asuc_1570	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1543	 47.82	0	1732885..1734762	-	625	152979231	-	Asuc_1571	-	signal peptide peptidase SppA, 67K type
1544	 53.41	+1	1735022..1735519	+	165	152979232	-	Asuc_1572	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
1545	 47.78	0	1735620..1736699	+	359	152979233	-	Asuc_1573	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1546	 47.10	0	1736834..1738024	+	396	152979234	-	Asuc_1574	-	aromatic amino acid aminotransferase
1547	 37.99	-1	1738111..1739184	-	357	152979235	-	Asuc_1575	-	triosephosphate isomerase
1548	 37.19	-1	1739195..1739869	-	224	152979236	-	Asuc_1576	-	cyclase family protein
1549	 42.13	0	1739881..1741176	-	431	152979237	-	Asuc_1577	-	TRAP dicarboxylate transporter, DctM subunit
1550	 32.29	-2	1741176..1741652	-	158	152979238	-	Asuc_1578	-	tripartite ATP-independent periplasmic transporter DctQ
1551	 39.98	-1	1741758..1742735	-	325	152979239	-	Asuc_1579	-	TRAP dicarboxylate transporter, DctP subunit
1552	 41.72	0	1742799..1743251	-	150	152979240	-	Asuc_1580	-	ribose 5-phosphate isomerase B
1553	 41.69	0	1743271..1744227	-	318	152979241	-	Asuc_1581	-	DeoR family transcriptional regulator
1554	 33.68	-2	1744227..1745090	-	287	152979242	-	Asuc_1582	-	xylose isomerase domain-containing protein
1555	 44.08	0	1745109..1746029	-	306	152979243	-	Asuc_1583	-	amidohydrolase 2
1556	 45.55	0	1746040..1747308	-	422	152979244	-	Asuc_1584	-	major facilitator transporter
1557	 48.80	0	1747363..1747989	-	208	152979245	-	Asuc_1585	-	dihydroxyacetone kinase, L subunit
1558	 46.17	0	1747991..1748995	-	334	152979246	-	Asuc_1586	-	Glycerone kinase
1559	 41.30	0	1749027..1750043	-	338	152979247	-	Asuc_1587	-	4-hydroxythreonine-4-phosphate dehydrogenase
1560	 46.76	0	1750418..1752457	-	679	152979248	-	Asuc_1588	-	oligopeptidase A
1561	 45.11	0	1752790..1753638	+	282	152979249	-	Asuc_1589	-	thioredoxin domain-containing protein
1562	 52.52	+1	1753812..1754765	+	317	152979250	-	Asuc_1590	-	thioredoxin reductase
1563	 43.43	0	1754849..1755046	+	65	152979251	-	Asuc_1591	-	ferredoxin
1564	 40.91	-1	1755058..1755585	+	175	152979252	-	Asuc_1592	-	hypothetical protein
1565	 34.86	-2	1755585..1756175	+	196	152979253	-	Asuc_1593	-	hypothetical protein
1566	 36.19	-2	1756403..1756822	+	139	152979254	-	Asuc_1594	-	hypothetical protein
1567	 47.77	0	1757283..1758245	-	320	152979255	-	Asuc_1595	-	aspartate-semialdehyde dehydrogenase
1568	 46.04	0	1758614..1759660	-	348	152979256	-	Asuc_1596	-	2-keto-3-deoxygluconate permease
1569	 46.22	0	1759732..1760181	-	149	152979257	-	Asuc_1597	-	ribose 5-phosphate isomerase B
1570	 47.40	0	1760192..1761556	-	454	152979258	-	Asuc_1598	-	hypothetical protein
1571	 48.17	0	1761579..1762589	-	336	152979259	-	Asuc_1599	-	4-hydroxythreonine-4-phosphate dehydrogenase
1572	 40.99	-1	1762810..1763580	+	256	152979260	-	Asuc_1600	-	DeoR family transcriptional regulator
1573	 45.67	0	1763603..1764388	+	261	152979261	-	Asuc_1601	-	Triose-phosphate isomerase
1574	 46.07	0	1764613..1766874	+	753	152979262	-	Asuc_1602	-	nitric oxide reductase large subunit
1575	 46.83	0	1766954..1767694	-	246	152979263	-	Asuc_1603	-	major intrinsic protein
1576	 46.06	0	1768077..1769585	+	502	152979264	-	Asuc_1604	-	glycerol kinase
1577	 41.58	0	1769939..1770241	-	100	152979265	-	Asuc_1605	-	hypothetical protein
1578	 48.68	0	1770308..1770724	+	138	152979266	-	Asuc_1606	-	hypothetical protein
1579	 40.12	-1	1770975..1771460	+	161	152979267	-	Asuc_1607	-	ferroxidase
1580	 40.20	-1	1771475..1771969	+	164	152979268	-	Asuc_1608	-	ferroxidase
1581	 41.03	-1	1772017..1772211	-	64	152979269	-	Asuc_1609	-	hypothetical protein
1582	 43.02	0	1772332..1773105	+	257	152979270	-	Asuc_1610	-	fumarate/nitrate reduction transcriptional regulator
1583	 44.69	0	1773245..1774177	+	310	152979271	-	Asuc_1611	-	universal stress protein UspE
1584	 46.54	0	1774402..1775340	-	312	152979272	-	Asuc_1612	-	malate dehydrogenase
1585	 43.98	0	1775530..1776036	+	168	152979273	-	Asuc_1613	-	arginine repressor
1586	 49.95	+1	1776036..1776956	+	306	152979274	-	Asuc_1614	-	hypothetical protein
1587	 47.27	0	1776968..1778323	-	451	152979275	-	Asuc_1615	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
1588	 48.39	0	1778320..1779003	-	227	152979276	-	Asuc_1616	-	LrgB family protein
1589	 41.67	0	1779000..1779431	-	143	152979277	-	Asuc_1617	-	hypothetical protein
1590	 46.59	0	1779533..1780030	+	165	152979278	-	Asuc_1618	-	nuclease
1591	 49.21	0	1780030..1781226	+	398	152979279	-	Asuc_1619	-	aminotransferase class V
1592	 43.12	0	1781257..1781634	+	125	152979280	-	Asuc_1620	-	Fe-S metabolism associated SufE
1593	 46.82	0	1781631..1782905	+	424	152979281	-	Asuc_1621	-	hypothetical protein
1594	 47.93	0	1783052..1783969	+	305	152979282	-	Asuc_1622	-	protein of unknown function UPF0052 and CofD
45.47	MEAN

4.33	STD DEV
