IslandPath Analysis: Actinobacillus succinogenes 130Z

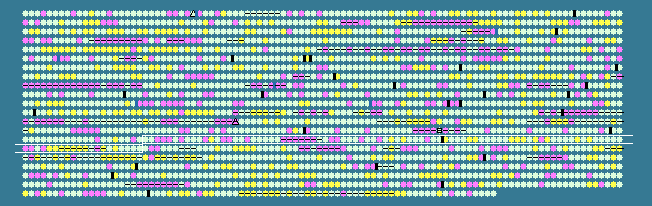

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1421	 43.56	0	1605125..1606903	-	592	152979109	-	Asuc_1444	-	ATP-dependent protease
1422	 42.00	0	1607039..1607488	+	149	152979110	-	Asuc_1445	-	hypothetical protein
1423	 36.19	-2	1607768..1607977	-	69	152979111	-	Asuc_1446	-	cold-shock DNA-binding domain-containing protein
1424	 41.53	0	1608181..1608534	-	117	152979112	-	Asuc_1447	-	ribosomal protein L20
1425	 37.88	-1	1608614..1608811	-	65	152979113	-	Asuc_1448	-	50S ribosomal protein L35
1426	 44.63	0	1609038..1609586	-	182	152979114	-	Asuc_1449	-	translation initiation factor IF-3
1427	 39.70	-1	1609877..1611322	-	481	152979115	-	Asuc_1450	-	hypothetical protein
1428	 45.92	0	1611366..1611929	-	187	152979116	-	Asuc_1451	-	hypothetical protein
1429	 45.16	0	1611967..1613040	-	357	152979117	-	Asuc_1452	-	DNA polymerase IV
1430	 43.33	0	1613115..1614674	-	519	152979118	-	Asuc_1453	-	ATP-dependent OLD family endonuclease
1431	 41.36	0	1614728..1615636	+	302	152979119	-	Asuc_1454	-	protein of unknown function DUF340 membrane
1432	 50.16	+1	1615780..1616094	+	104	152979120	-	Asuc_1455	-	hypothetical protein
1433	 43.07	0	1616166..1617593	-	475	152979121	-	Asuc_1456	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
1434	 41.72	0	1617759..1618235	+	158	152979122	-	Asuc_1457	-	transcription elongation factor GreA
1435	 40.40	-1	1618288..1618584	-	98	152979123	-	Asuc_1458	-	hypothetical protein
1436	 45.06	0	1618689..1620641	-	650	152979124	-	Asuc_1459	-	ATP-dependent metalloprotease FtsH
1437	 44.02	0	1620733..1621359	-	208	152979125	-	Asuc_1460	-	23S rRNA methyltransferase J
1438	 40.17	-1	1621429..1622013	-	194	152979126	-	Asuc_1461	-	GmhA protein
1439	 43.89	0	1622026..1622385	-	119	152979127	-	Asuc_1462	-	hypothetical protein
1440	 42.32	0	1622390..1624114	-	574	152979128	-	Asuc_1463	-	LppC family lipoprotein
1441	 43.85	0	1624192..1625037	+	281	152979129	-	Asuc_1464	-	uroporphyrin-III C/tetrapyrrole methyltransferase
1442	 42.17	0	1625140..1626135	-	331	152979130	-	Asuc_1465	-	DNA-binding transcriptional regulator FruR
1443	 45.00	0	1626466..1628736	+	756	152979131	-	Asuc_1466	-	ribonucleotide-diphosphate reductase subunit alpha
1444	 37.20	-1	1628952..1630115	-	387	152979132	-	Asuc_1467	-	oligogalacturonide lyase
1445	 40.02	-1	1630193..1631926	-	577	152979133	-	Asuc_1468	-	Na+ symporter
1446	 36.44	-2	1632124..1634346	-	740	152979134	-	Asuc_1469	-	hypothetical protein
1447	 36.11	-2	1634632..1634955	-	107	152979135	-	Asuc_1470	-	cupin 2 domain-containing protein
1448	 39.75	-1	1634967..1635605	-	212	152979136	-	Asuc_1471	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1449	 40.26	-1	1635615..1636553	-	312	152979137	-	Asuc_1472	-	ribokinase-like domain-containing protein
1450	 42.21	0	1636613..1637254	-	213	152979138	-	Asuc_1473	-	hypothetical protein
1451	 43.12	0	1637295..1638050	-	251	152979139	-	Asuc_1474	-	2-deoxy-D-gluconate 3-dehydrogenase
1452	 38.35	-1	1638278..1639075	+	265	152979140	-	Asuc_1475	-	transcriptional regulator IclR
1453	 37.79	-1	1639343..1640374	-	343	152979141	-	Asuc_1477	-	porin
1454	 45.61	0	1640873..1642069	+	398	152979142	-	Asuc_1478	-	tryptophan synthase subunit beta
1455	 47.65	0	1642069..1642878	+	269	152979143	-	Asuc_1479	-	tryptophan synthase subunit alpha
1456	 43.68	0	1643027..1644157	+	376	152979144	-	Asuc_1480	-	ribonucleotide-diphosphate reductase subunit beta
1457	 41.47	0	1644227..1644484	+	85	152979145	-	Asuc_1481	-	ferredoxin
1458	 46.89	0	1644489..1645949	-	486	152979146	-	Asuc_1482	-	anion transporter
1459	 47.97	0	1646101..1646913	-	270	152979147	-	Asuc_1483	-	dihydrodipicolinate reductase
1460	 39.81	-1	1646931..1647563	-	210	152979148	-	Asuc_1484	-	lysine exporter protein LysE/YggA
1461	 43.24	0	1647567..1648091	-	174	152979149	-	Asuc_1485	-	phosphatidylglycerophosphatase A
1462	 50.10	+1	1648190..1649185	-	331	152979150	-	Asuc_1486	-	thiamine-monophosphate kinase
1463	 46.85	0	1649373..1649801	-	142	152979151	-	Asuc_1487	-	transcription antitermination protein NusB
1464	 51.27	+1	1649804..1650277	-	157	152979152	-	Asuc_1488	-	riboflavin synthase subunit beta
1465	 48.09	0	1650470..1651675	+	401	152979153	-	Asuc_1489	-	aromatic amino acid transporter
1466	 45.99	0	1651810..1654716	+	968	152979154	-	Asuc_1490	-	(glutamate--ammonia-ligase) adenylyltransferase
1467	 44.37	0	1654768..1655220	-	150	152979155	-	Asuc_1491	-	ClpXP protease specificity-enhancing factor
1468	 40.38	-1	1655220..1655858	-	212	152979156	-	Asuc_1492	-	glutathione S-transferase domain-containing protein
1469	 45.96	0	1656068..1656463	-	131	152979157	-	Asuc_1493	-	30S ribosomal protein S9
1470	 43.36	0	1656479..1656907	-	142	152979158	-	Asuc_1494	-	50S ribosomal protein L13
1471	 50.55	+1	1657748..1659112	+	454	152979159	-	Asuc_1495	-	diaminobutyrate--2-oxoglutarate aminotransferase
1472	 48.57	0	1659281..1660816	+	511	152979160	-	Asuc_1496	-	pyridoxal-dependent decarboxylase
1473	 43.87	0	1660997..1661404	+	135	152979161	-	Asuc_1497	-	hypothetical protein
1474	 47.50	0	1661555..1662034	+	159	152979162	-	Asuc_1498	-	cupin 2 domain-containing protein
1475	 49.90	+1	1662158..1663171	-	337	152979163	-	Asuc_1499	-	hydrogenase expression/formation protein HypE
1476	 50.94	+1	1663251..1664363	-	370	152979164	-	Asuc_1500	-	hydrogenase expression/formation protein HypD
1477	 46.59	0	1664366..1665157	-	263	152979165	-	Asuc_1501	-	hydrogenase nickel incorporation protein HypB
1478	 46.79	0	1665260..1665913	-	217	152979166	-	Asuc_1502	-	GTP cyclohydrolase II
1479	 46.14	0	1665997..1666722	+	241	152979167	-	Asuc_1503	-	phosphatidylglycerophosphatase
1480	 47.87	0	1666772..1667686	+	304	152979168	-	Asuc_1504	-	N-acetyl-D-glucosamine kinase
1481	 44.44	0	1667686..1668558	+	290	152979169	-	Asuc_1505	-	hypothetical protein
1482	 50.37	+1	1668858..1669667	+	269	152979170	-	Asuc_1506	-	hydroxyethylthiazole kinase
1483	 51.62	+1	1669678..1670481	+	267	152979171	-	Asuc_1507	-	phosphomethylpyrimidine kinase
1484	 49.25	0	1670474..1671139	+	221	152979172	-	Asuc_1508	-	thiamine-phosphate pyrophosphorylase
1485	 47.66	0	1671275..1672279	+	334	152979173	-	Asuc_1509	-	ornithine carbamoyltransferase
1486	 49.06	0	1672395..1673087	-	230	152979174	-	Asuc_1510	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
1487	 41.44	0	1673084..1673749	-	221	152979175	-	Asuc_1511	-	TrxA protein
1488	 49.73	0	1673750..1675426	-	558	152979176	-	Asuc_1512	-	single-stranded-DNA-specific exonuclease RecJ
1489	 46.67	0	1675670..1676359	-	229	152979177	-	Asuc_1513	-	DsbG protein
1490	 48.81	0	1676630..1677637	+	335	152979178	-	Asuc_1514	-	peptide chain release factor 2
1491	 48.21	0	1677731..1679242	+	503	152979179	-	Asuc_1515	-	lysyl-tRNA synthetase
1492	 45.61	0	1679304..1679645	+	113	152979180	-	Asuc_1516	-	hydrogenase nickel insertion protein HypA
1493	 50.64	+1	1679745..1680368	-	207	152979181	-	Asuc_1517	-	cation efflux protein
1494	 45.16	0	1680457..1680828	+	123	152979182	-	Asuc_1518	-	MerR family transcriptional regulator
1495	 50.18	+1	1680819..1681376	-	185	152979183	-	Asuc_1519	-	ferredoxin-type protein NapF
1496	 45.54	0	1681391..1681996	-	201	152979184	-	Asuc_1520	-	twin-argninine leader-binding protein DmsD
1497	 46.72	0	1682072..1682893	-	273	152979185	-	Asuc_1521	-	DMSO reductase anchor subunit (DmsC)
1498	 44.98	0	1682895..1683512	-	205	152979186	-	Asuc_1522	-	dimethylsulfoxide reductase chain B
1499	 46.44	0	1683522..1685954	-	810	152979187	-	Asuc_1523	-	anaerobic dimethyl sulfoxide reductase subunit A
1500	 43.28	0	1685980..1688412	-	810	152979188	-	Asuc_1524	-	anaerobic dimethyl sulfoxide reductase subunit A
1501	 41.37	0	1688703..1689785	-	360	152979189	-	Asuc_1525	-	extracellular solute-binding protein
1502	 40.52	-1	1689813..1690661	-	282	152979190	-	Asuc_1526	-	binding-protein-dependent transport systems inner membrane component
1503	 42.18	0	1690658..1691527	-	289	152979191	-	Asuc_1527	-	binding-protein-dependent transport systems inner membrane component
1504	 40.13	-1	1691524..1692597	-	357	152979192	-	Asuc_1528	-	ABC transporter related
1505	 49.64	0	1692846..1693820	-	324	152979193	-	Asuc_1529	-	2-nitropropane dioxygenase NPD
1506	 51.85	+1	1694385..1694681	-	98	152979194	-	Asuc_1531	-	hypothetical protein
1507	 52.90	+1	1694694..1695245	-	183	152979195	-	Asuc_1532	-	NAD(P)H dehydrogenase (quinone)
1508	 54.11	+1	1695257..1695973	-	238	152979196	-	Asuc_1533	-	antibiotic biosynthesis monooxygenase
1509	 55.47	+2	1696017..1696766	-	249	152979197	-	Asuc_1534	-	short-chain dehydrogenase/reductase SDR
1510	 54.02	+1	1696794..1697813	-	339	152979198	-	Asuc_1535	-	aldo/keto reductase
1511	 53.33	+1	1698160..1699059	+	299	152979199	-	Asuc_1536	-	LysR family transcriptional regulator
1512	 46.31	0	1699398..1700684	+	428	152979200	-	Asuc_1537	-	hypothetical protein
1513	 26.65	-2	1700645..1701571	+	308	152979201	-	Asuc_1538	-	hypothetical protein
1514	 49.19	0	1702031..1703020	-	329	152979202	-	Asuc_1540	-	alcohol dehydrogenase
1515	 48.03	0	1703242..1704255	-	337	152979203	-	Asuc_1541	-	beta-lactamase domain-containing protein
1516	 54.02	+1	1704381..1705289	+	302	152979204	-	Asuc_1542	-	LysR family transcriptional regulator
1517	 46.13	0	1706157..1707086	+	309	152979205	-	Asuc_1545	-	LysR family transcriptional regulator
1518	 45.80	0	1707293..1707958	+	221	152979206	-	Asuc_1546	-	nitroreductase
1519	 45.40	0	1708069..1708383	-	104	152979207	-	Asuc_1547	-	translation initiation factor Sui1
1520	 45.21	0	1708397..1709095	-	232	152979208	-	Asuc_1548	-	orotidine 5'-phosphate decarboxylase
45.47	MEAN

4.33	STD DEV
