IslandPath Analysis: Actinobacillus succinogenes 130Z

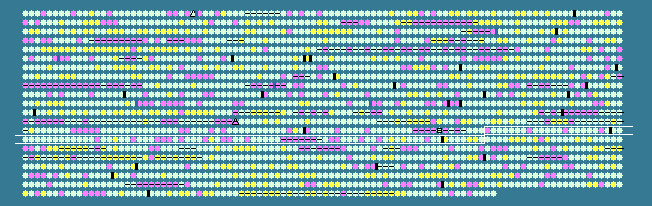

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1378	 39.94	-1	1558197..1558544	-	115	152979066	-	Asuc_1401	-	hypothetical protein
1379	 42.30	0	1558627..1559496	-	289	152979067	-	Asuc_1402	-	putative permease
1380	 48.48	0	1559579..1564114	-	1511	152979068	-	Asuc_1403	-	cell division protein MukB
1381	 48.24	0	1564114..1564851	-	245	152979069	-	Asuc_1404	-	condesin subunit E
1382	 47.49	0	1564917..1566251	-	444	152979070	-	Asuc_1405	-	condesin subunit F
1383	 43.56	0	1566471..1567409	+	312	152979071	-	Asuc_1406	-	PP-loop domain-containing protein
1384	 45.04	0	1567655..1569781	+	708	152979072	-	Asuc_1407	-	anaerobic ribonucleoside triphosphate reductase
1385	 30.09	-2	1569811..1570674	+	287	152979073	-	Asuc_1408	-	hypothetical protein
1386	 47.80	0	1570705..1571181	+	158	152979074	-	Asuc_1409	-	anaerobic ribonucleotide reductase-activating protein
1387	 42.21	0	1571246..1571977	-	243	152979075	-	Asuc_1410	-	acid phosphatase/phosphotransferase
1388	 46.01	0	1572114..1572902	-	262	152979076	-	Asuc_1411	-	TatD-related deoxyribonuclease
1389	 47.86	0	1573090..1573674	+	194	152979077	-	Asuc_1412	-	peptidyl-tRNA hydrolase
1390	 47.89	0	1573776..1574867	+	363	152979078	-	Asuc_1413	-	translation-associated GTPase
1391	 41.61	0	1574925..1575371	+	148	152979079	-	Asuc_1414	-	putative protein-S-isoprenylcysteine methyltransferase
1392	 48.77	0	1575381..1576274	+	297	152979080	-	Asuc_1415	-	homocysteine S-methyltransferase
1393	 45.46	0	1576336..1577745	+	469	152979081	-	Asuc_1416	-	amino acid permease-associated region
1394	 47.49	0	1577829..1578287	-	152	152979082	-	Asuc_1417	-	NLP/P60 protein
1395	 47.14	0	1578392..1578688	-	98	152979083	-	Asuc_1418	-	integration host factor, alpha subunit
1396	 47.07	0	1578692..1581079	-	795	152979084	-	Asuc_1419	-	phenylalanyl-tRNA synthetase subunit beta
1397	 39.92	-1	1581098..1581568	-	156	152979085	-	Asuc_1420	-	hypothetical protein
1398	 42.93	0	1581579..1582568	-	329	152979086	-	Asuc_1421	-	phenylalanyl-tRNA synthetase subunit alpha
1399	 48.31	0	1582902..1584236	-	444	152979087	-	Asuc_1422	-	phosphoglucosamine mutase
1400	 48.31	0	1584314..1585141	-	275	152979088	-	Asuc_1423	-	dihydropteroate synthase
1401	 45.44	0	1585249..1586421	+	390	152979089	-	Asuc_1424	-	major facilitator transporter
1402	 43.07	0	1586560..1588254	-	564	152979090	-	Asuc_1425	-	glucose-6-phosphate isomerase
1403	 47.45	0	1588317..1589393	-	358	152979091	-	Asuc_1426	-	alanine racemase
1404	 48.41	0	1589475..1590893	-	472	152979092	-	Asuc_1427	-	replicative DNA helicase
1405	 47.05	0	1591027..1592112	-	361	152979093	-	Asuc_1428	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1406	 46.17	0	1592299..1593537	-	412	152979094	-	Asuc_1429	-	outer membrane-specific lipoprotein transporter subunit LolE
1407	 45.47	0	1593541..1594224	-	227	152979095	-	Asuc_1430	-	lipoprotein releasing system, ATP-binding protein
1408	 43.51	0	1594502..1595719	-	405	152979096	-	Asuc_1431	-	LolC/E family lipoprotein releasing system, transmembrane protein
1409	 44.90	0	1595719..1596660	-	313	152979097	-	Asuc_1432	-	glycerate dehydrogenase
1410	 46.08	0	1596806..1597660	-	284	152979098	-	Asuc_1433	-	2-dehydro-3-deoxyphosphooctonate aldolase
1411	 44.24	0	1597699..1598514	-	271	152979099	-	Asuc_1434	-	hypothetical protein
1412	 44.83	0	1598525..1599385	-	286	152979100	-	Asuc_1435	-	HemK family modification methylase
1413	 41.22	0	1599390..1599896	-	168	152979101	-	Asuc_1436	-	RDD domain-containing protein
1414	 47.02	0	1599914..1601038	-	374	152979102	-	Asuc_1437	-	peptide chain release factor 1
1415	 47.01	0	1601126..1601593	+	155	152979103	-	Asuc_1438	-	phosphohistidine phosphatase, SixA
1416	 50.36	+1	1601662..1602072	-	136	152979104	-	Asuc_1439	-	dihydroxyacetone kinase, phosphotransfer subunit
1417	 47.85	0	1602077..1602703	-	208	152979105	-	Asuc_1440	-	dihydroxyacetone kinase ADP-binding subunit
1418	 47.43	0	1602706..1603776	-	356	152979106	-	Asuc_1441	-	dihydroxyacetone kinase subunit DhaK
1419	 40.44	-1	1603950..1604399	+	149	152979107	-	Asuc_1442	-	ribosomal-protein-alanine N-acetyltransferase
1420	 46.63	0	1604468..1605001	-	177	152979108	-	Asuc_1443	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
1421	 43.56	0	1605125..1606903	-	592	152979109	-	Asuc_1444	-	ATP-dependent protease
1422	 42.00	0	1607039..1607488	+	149	152979110	-	Asuc_1445	-	hypothetical protein
1423	 36.19	-2	1607768..1607977	-	69	152979111	-	Asuc_1446	-	cold-shock DNA-binding domain-containing protein
1424	 41.53	0	1608181..1608534	-	117	152979112	-	Asuc_1447	-	ribosomal protein L20
1425	 37.88	-1	1608614..1608811	-	65	152979113	-	Asuc_1448	-	50S ribosomal protein L35
1426	 44.63	0	1609038..1609586	-	182	152979114	-	Asuc_1449	-	translation initiation factor IF-3
1427	 39.70	-1	1609877..1611322	-	481	152979115	-	Asuc_1450	-	hypothetical protein
1428	 45.92	0	1611366..1611929	-	187	152979116	-	Asuc_1451	-	hypothetical protein
1429	 45.16	0	1611967..1613040	-	357	152979117	-	Asuc_1452	-	DNA polymerase IV
1430	 43.33	0	1613115..1614674	-	519	152979118	-	Asuc_1453	-	ATP-dependent OLD family endonuclease
1431	 41.36	0	1614728..1615636	+	302	152979119	-	Asuc_1454	-	protein of unknown function DUF340 membrane
1432	 50.16	+1	1615780..1616094	+	104	152979120	-	Asuc_1455	-	hypothetical protein
1433	 43.07	0	1616166..1617593	-	475	152979121	-	Asuc_1456	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
1434	 41.72	0	1617759..1618235	+	158	152979122	-	Asuc_1457	-	transcription elongation factor GreA
1435	 40.40	-1	1618288..1618584	-	98	152979123	-	Asuc_1458	-	hypothetical protein
1436	 45.06	0	1618689..1620641	-	650	152979124	-	Asuc_1459	-	ATP-dependent metalloprotease FtsH
1437	 44.02	0	1620733..1621359	-	208	152979125	-	Asuc_1460	-	23S rRNA methyltransferase J
1438	 40.17	-1	1621429..1622013	-	194	152979126	-	Asuc_1461	-	GmhA protein
1439	 43.89	0	1622026..1622385	-	119	152979127	-	Asuc_1462	-	hypothetical protein
1440	 42.32	0	1622390..1624114	-	574	152979128	-	Asuc_1463	-	LppC family lipoprotein
1441	 43.85	0	1624192..1625037	+	281	152979129	-	Asuc_1464	-	uroporphyrin-III C/tetrapyrrole methyltransferase
1442	 42.17	0	1625140..1626135	-	331	152979130	-	Asuc_1465	-	DNA-binding transcriptional regulator FruR
1443	 45.00	0	1626466..1628736	+	756	152979131	-	Asuc_1466	-	ribonucleotide-diphosphate reductase subunit alpha
1444	 37.20	-1	1628952..1630115	-	387	152979132	-	Asuc_1467	-	oligogalacturonide lyase
1445	 40.02	-1	1630193..1631926	-	577	152979133	-	Asuc_1468	-	Na+ symporter
1446	 36.44	-2	1632124..1634346	-	740	152979134	-	Asuc_1469	-	hypothetical protein
1447	 36.11	-2	1634632..1634955	-	107	152979135	-	Asuc_1470	-	cupin 2 domain-containing protein
1448	 39.75	-1	1634967..1635605	-	212	152979136	-	Asuc_1471	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1449	 40.26	-1	1635615..1636553	-	312	152979137	-	Asuc_1472	-	ribokinase-like domain-containing protein
1450	 42.21	0	1636613..1637254	-	213	152979138	-	Asuc_1473	-	hypothetical protein
1451	 43.12	0	1637295..1638050	-	251	152979139	-	Asuc_1474	-	2-deoxy-D-gluconate 3-dehydrogenase
1452	 38.35	-1	1638278..1639075	+	265	152979140	-	Asuc_1475	-	transcriptional regulator IclR
1453	 37.79	-1	1639343..1640374	-	343	152979141	-	Asuc_1477	-	porin
1454	 45.61	0	1640873..1642069	+	398	152979142	-	Asuc_1478	-	tryptophan synthase subunit beta
1455	 47.65	0	1642069..1642878	+	269	152979143	-	Asuc_1479	-	tryptophan synthase subunit alpha
1456	 43.68	0	1643027..1644157	+	376	152979144	-	Asuc_1480	-	ribonucleotide-diphosphate reductase subunit beta
1457	 41.47	0	1644227..1644484	+	85	152979145	-	Asuc_1481	-	ferredoxin
1458	 46.89	0	1644489..1645949	-	486	152979146	-	Asuc_1482	-	anion transporter
1459	 47.97	0	1646101..1646913	-	270	152979147	-	Asuc_1483	-	dihydrodipicolinate reductase
1460	 39.81	-1	1646931..1647563	-	210	152979148	-	Asuc_1484	-	lysine exporter protein LysE/YggA
1461	 43.24	0	1647567..1648091	-	174	152979149	-	Asuc_1485	-	phosphatidylglycerophosphatase A
1462	 50.10	+1	1648190..1649185	-	331	152979150	-	Asuc_1486	-	thiamine-monophosphate kinase
1463	 46.85	0	1649373..1649801	-	142	152979151	-	Asuc_1487	-	transcription antitermination protein NusB
1464	 51.27	+1	1649804..1650277	-	157	152979152	-	Asuc_1488	-	riboflavin synthase subunit beta
1465	 48.09	0	1650470..1651675	+	401	152979153	-	Asuc_1489	-	aromatic amino acid transporter
1466	 45.99	0	1651810..1654716	+	968	152979154	-	Asuc_1490	-	(glutamate--ammonia-ligase) adenylyltransferase
1467	 44.37	0	1654768..1655220	-	150	152979155	-	Asuc_1491	-	ClpXP protease specificity-enhancing factor
1468	 40.38	-1	1655220..1655858	-	212	152979156	-	Asuc_1492	-	glutathione S-transferase domain-containing protein
1469	 45.96	0	1656068..1656463	-	131	152979157	-	Asuc_1493	-	30S ribosomal protein S9
1470	 43.36	0	1656479..1656907	-	142	152979158	-	Asuc_1494	-	50S ribosomal protein L13
1471	 50.55	+1	1657748..1659112	+	454	152979159	-	Asuc_1495	-	diaminobutyrate--2-oxoglutarate aminotransferase
1472	 48.57	0	1659281..1660816	+	511	152979160	-	Asuc_1496	-	pyridoxal-dependent decarboxylase
1473	 43.87	0	1660997..1661404	+	135	152979161	-	Asuc_1497	-	hypothetical protein
1474	 47.50	0	1661555..1662034	+	159	152979162	-	Asuc_1498	-	cupin 2 domain-containing protein
1475	 49.90	+1	1662158..1663171	-	337	152979163	-	Asuc_1499	-	hydrogenase expression/formation protein HypE
1476	 50.94	+1	1663251..1664363	-	370	152979164	-	Asuc_1500	-	hydrogenase expression/formation protein HypD
1477	 46.59	0	1664366..1665157	-	263	152979165	-	Asuc_1501	-	hydrogenase nickel incorporation protein HypB
45.47	MEAN

4.33	STD DEV
