IslandPath Analysis: Actinobacillus succinogenes 130Z

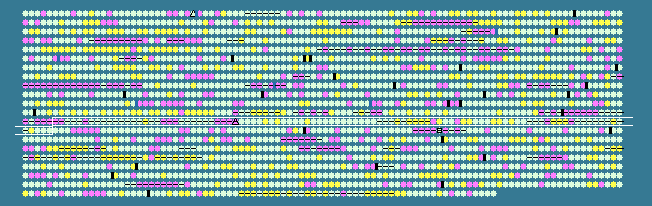

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1206	 38.98	-1	1376899..1377819	+	306	152978894	-	Asuc_1227	-	antirepressor protein
1207	 34.72	-2	1377975..1378553	-	192	152978895	-	Asuc_1228	-	hypothetical protein
1208	 45.38	0	1378791..1379180	+	129	152978896	-	Asuc_1229	-	phage holin
1209	 44.44	0	1379200..1379748	+	182	152978897	-	Asuc_1230	-	LysM domain-containing protein
1210	 42.91	0	1380096..1380377	+	93	152978898	-	Asuc_1232	-	hypothetical protein
1211	 41.37	0	1380387..1380635	+	82	152978899	-	Asuc_1233	-	hypothetical protein
1212	 44.73	0	1380616..1380966	+	116	152978900	-	Asuc_1234	-	HNH endonuclease
1213	 44.65	0	1381082..1381576	+	164	152978901	-	Asuc_1235	-	P27 family phage terminase small subunit
1214	 45.19	0	1381564..1383267	+	567	152978902	-	Asuc_1236	-	phage terminase
1215	 48.37	0	1383264..1383416	+	50	152978903	-	Asuc_1237	-	hypothetical protein
1216	 45.54	0	1383413..1384633	+	406	152978904	-	Asuc_1238	-	HK97 family phage portal protein
1217	 47.43	0	1384626..1385228	+	200	152978905	-	Asuc_1239	-	HK97 family phage prohead protease
1218	 45.56	0	1385293..1386519	+	408	152978906	-	Asuc_1240	-	HK97 family phage major capsid protein
1219	 42.99	0	1386568..1386888	+	106	152978907	-	Asuc_1241	-	uncharacterized phage protein
1220	 47.80	0	1386885..1387202	+	105	152978908	-	Asuc_1242	-	phage head-tail adaptor, putative
1221	 51.55	+1	1387202..1387684	+	160	152978909	-	Asuc_1243	-	HK97 family phage protein
1222	 44.64	0	1387686..1388030	+	114	152978910	-	Asuc_1244	-	hypothetical protein
1223	 45.21	0	1388034..1388690	+	218	152978911	-	Asuc_1245	-	hypothetical protein
1224	 38.24	-1	1388751..1389158	+	135	152978912	-	Asuc_1246	-	hypothetical protein
1225	 37.08	-1	1389167..1389433	+	88	152978913	-	Asuc_1247	-	hypothetical protein
1226	 32.56	-2	1389478..1389735	+	85	152978914	-	Asuc_1248	-	hypothetical protein
1227	 44.98	0	1389792..1393088	+	1098	152978915	-	Asuc_1249	-	phage tape measure protein
1228	 44.05	0	1393098..1393433	+	111	152978916	-	Asuc_1250	-	phage minor tail family protein
1229	 44.99	0	1393433..1394170	+	245	152978917	-	Asuc_1251	-	phage minor tail protein L
1230	 42.31	0	1394172..1394951	+	259	152978918	-	Asuc_1252	-	NLP/P60 protein
1231	 43.19	0	1394885..1395493	+	202	152978919	-	Asuc_1253	-	bacteriophage lambda tail assembly I
1232	 44.64	0	1395564..1399535	+	1323	152978920	-	Asuc_1254	-	hypothetical protein
1233	 36.52	-2	1399532..1399813	+	93	152978921	-	Asuc_1255	-	hypothetical protein
1234	 37.49	-1	1399800..1400810	+	336	152978922	-	Asuc_1256	-	hypothetical protein
1235	 41.59	0	1400823..1401161	+	112	152978923	-	Asuc_1257	-	hypothetical protein
1236	 40.26	-1	1401199..1402482	-	427	152978924	-	Asuc_1258	-	phage integrase family protein
1237	 42.90	0	1403089..1403412	-	107	152978925	-	Asuc_1259	-	dsDNA-mimic protein
1238	 46.94	0	1403422..1404237	-	271	152978926	-	Asuc_1260	-	Cof-like hydrolase
1239	 46.89	0	1404352..1405251	-	299	152978927	-	Asuc_1261	-	formate dehydrogenase accessory protein FdhE
1240	 45.12	0	1405482..1406168	-	228	152978928	-	Asuc_1262	-	formate dehydrogenase, gamma subunit
1241	 49.42	0	1406161..1407105	-	314	152978929	-	Asuc_1263	-	formate dehydrogenase, beta subunit
1242	 46.02	0	1407105..1409531	-	808	152978930	-	Asuc_1264	-	formate dehydrogenase, alpha subunit
1243	 51.36	+1	1409580..1410167	-	195	152978931	-	Asuc_1265	-	formate dehydrogenase
1244	 47.37	0	1410471..1411289	+	272	152978932	-	Asuc_1266	-	formate dehydrogenase family accessory protein FdhD
1245	 45.81	0	1411390..1412439	-	349	152978933	-	Asuc_1267	-	extracellular solute-binding protein
1246	 47.36	0	1412698..1414893	+	731	152978934	-	Asuc_1268	-	DNA-dependent helicase II
1247	 46.08	0	1414963..1416405	-	480	152978935	-	Asuc_1269	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
1248	 50.10	+1	1416428..1417429	-	333	152978936	-	Asuc_1270	-	anthranilate phosphoribosyltransferase
1249	 47.45	0	1417480..1418067	-	195	152978937	-	Asuc_1271	-	anthranilate synthase component II
1250	 46.24	0	1418078..1419619	-	513	152978938	-	Asuc_1272	-	anthranilate synthase component I
1251	 46.06	0	1419851..1420777	+	308	152978939	-	Asuc_1273	-	ABC transporter related
1252	 42.58	0	1420774..1421541	+	255	152978940	-	Asuc_1274	-	ABC-2 type transporter
1253	 44.73	0	1421620..1422681	+	353	152978941	-	Asuc_1275	-	putative periplasmic protease
1254	 42.40	0	1422813..1423661	+	282	152978942	-	Asuc_1276	-	SmpA/OmlA domain-containing protein
1255	 47.03	0	1423900..1425045	+	381	152978943	-	Asuc_1277	-	hydrogenase 2 small subunit
1256	 47.03	0	1425065..1426057	+	330	152978944	-	Asuc_1278	-	hydrogenase 2 protein HybA
1257	 42.66	0	1426050..1427261	+	403	152978945	-	Asuc_1279	-	putative hydrogenase 2 b cytochrome subunit
1258	 47.08	0	1427277..1428986	+	569	152978946	-	Asuc_1280	-	hydrogenase 2 large subunit
1259	 45.81	0	1428986..1429474	+	162	152978947	-	Asuc_1281	-	hydrogenase 2 maturation endopeptidase
1260	 48.52	0	1429483..1429989	+	168	152978948	-	Asuc_1282	-	hydrogenase 2-specific chaperone
1261	 46.89	0	1430015..1430287	+	90	152978949	-	Asuc_1283	-	hydrogenase 2 accessory protein HypG
1262	 46.51	0	1430489..1432924	+	811	152978950	-	Asuc_1284	-	CRISPR-associated helicase Cas3
1263	 49.60	0	1432939..1433682	+	247	152978951	-	Asuc_1285	-	CRISPR-associated Cas5 family protein
1264	 43.22	0	1433679..1435742	+	687	152978952	-	Asuc_1286	-	CRISPR-associated RAMP Csd1 family protein
1265	 50.60	+1	1435764..1436603	+	279	152978953	-	Asuc_1287	-	CRISPR-associated Csd2 family protein
1266	 56.00	+2	1436604..1437278	+	224	152978954	-	Asuc_1288	-	CRISPR-associated Cas4 family protein
1267	 51.13	+1	1437319..1437627	-	102	152978955	-	Asuc_1289	-	carboxymuconolactone decarboxylase
1268	 51.16	+1	1437880..1438266	+	128	152978956	-	Asuc_1290	-	HxlR family transcriptional regulator
1269	 33.67	-2	1438455..1439357	+	300	152978957	-	Asuc_1291	-	hypothetical protein
1270	 53.94	+1	1439371..1440384	+	337	152978958	-	Asuc_1292	-	CRISPR-associated Cas1 family protein
1271	 47.28	0	1440424..1440717	+	97	152978959	-	Asuc_1293	-	CRISPR-associated Cas2 family protein
1272	 47.08	0	1441746..1443149	-	467	152978960	-	Asuc_1294	-	asparaginyl-tRNA synthetase
1273	 41.90	0	1443396..1444049	+	217	152978961	-	Asuc_1295	-	GTP cyclohydrolase I
1274	 53.86	+1	1444152..1444643	-	163	152978962	-	Asuc_1296	-	YbaK/prolyl-tRNA synthetase associated region
1275	 52.42	+1	1444653..1445747	-	364	152978963	-	Asuc_1297	-	pyridoxal-5'-phosphate-dependent protein beta subunit
1276	 47.93	0	1445758..1446120	-	120	152978964	-	Asuc_1298	-	endoribonuclease L-PSP
1277	 42.31	0	1446120..1446743	-	207	152978965	-	Asuc_1299	-	YheO domain-containing protein
1278	 42.93	0	1447178..1448386	-	402	152978966	-	Asuc_1300	-	ATPase
1279	 54.17	+2	1448775..1449134	+	119	152978967	-	Asuc_1301	-	rhodanese domain-containing protein
1280	 51.82	+1	1449220..1449933	-	237	152978968	-	Asuc_1302	-	B3/4 domain-containing protein
1281	 45.75	0	1450174..1451502	-	442	152978969	-	Asuc_1303	-	citrate transporter
1282	 49.33	0	1452081..1452830	+	249	152978970	-	Asuc_1304	-	short-chain dehydrogenase/reductase SDR
1283	 45.92	0	1452944..1453531	+	195	152978971	-	Asuc_1305	-	NAD(P)H dehydrogenase (quinone)
1284	 45.68	0	1453585..1454532	+	315	152978972	-	Asuc_1306	-	aldo/keto reductase
1285	 42.03	0	1454630..1454767	+	45	152978973	-	Asuc_1307	-	hypothetical protein
1286	 46.48	0	1454769..1455833	+	354	152978974	-	Asuc_1308	-	carboxymuconolactone decarboxylase
1287	 44.58	0	1455979..1456734	+	251	152978975	-	Asuc_1309	-	hypothetical protein
1288	 41.60	0	1456968..1457354	+	128	152978976	-	Asuc_1310	-	DoxX family protein
1289	 50.11	+1	1457581..1458456	+	291	152978977	-	Asuc_1311	-	LysR family transcriptional regulator
1290	 52.87	+1	1458551..1459333	+	260	152978978	-	Asuc_1312	-	MerR family transcriptional regulator
1291	 49.46	0	1459291..1460772	-	493	152978979	-	Asuc_1313	-	multi anti extrusion protein MatE
1292	 41.67	0	1460868..1461131	+	87	152978980	-	Asuc_1314	-	helix-turn-helix domain-containing protein
1293	 42.07	0	1461125..1462417	+	430	152978981	-	Asuc_1315	-	HipA domain-containing protein
1294	 46.83	0	1462574..1463440	-	288	152978982	-	Asuc_1316	-	LysR family transcriptional regulator
1295	 43.51	0	1463974..1465359	+	461	152978983	-	Asuc_1317	-	major facilitator transporter
1296	 46.53	0	1465519..1466397	-	292	152978984	-	Asuc_1318	-	LysR family transcriptional regulator
1297	 47.78	0	1466497..1467105	+	202	152978985	-	Asuc_1319	-	lysine exporter protein LysE/YggA
1298	 46.79	0	1467265..1467576	+	103	152978986	-	Asuc_1320	-	regulatory protein ArsR
1299	 51.25	+1	1467653..1468333	+	226	152978987	-	Asuc_1321	-	DSBA oxidoreductase
1300	 47.60	0	1468333..1468998	+	221	152978988	-	Asuc_1322	-	phospholipase/carboxylesterase
1301	 45.72	0	1469013..1470005	+	330	152978989	-	Asuc_1323	-	beta-lactamase domain-containing protein
1302	 49.58	0	1470070..1471251	+	393	152978990	-	Asuc_1324	-	major facilitator transporter
1303	 45.02	0	1471447..1472481	-	344	152978991	-	Asuc_1325	-	alpha/beta hydrolase domain-containing protein
1304	 42.81	0	1472649..1473545	+	298	152978992	-	Asuc_1326	-	hypothetical protein
1305	 45.75	0	1473618..1474487	-	289	152978993	-	Asuc_1327	-	fructosamine kinase
45.47	MEAN

4.33	STD DEV
