IslandPath Analysis: Actinobacillus succinogenes 130Z

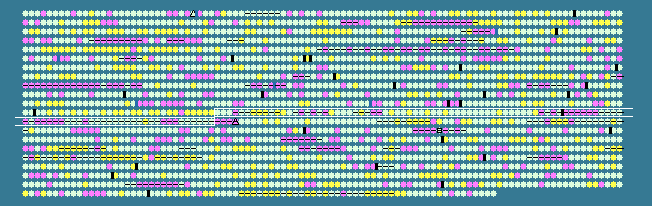

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1133	 45.75	0	1279229..1280170	-	313	152978821	-	Asuc_1150	-	auxin efflux carrier
1134	 47.46	0	1280296..1280748	+	150	152978822	-	Asuc_1151	-	hypothetical protein
1135	 48.54	0	1280821..1284759	+	1312	152978823	-	Asuc_1152	-	ATP-dependent RNA helicase HrpA
1136	 26.23	-2	1285279..1285926	+	215	152978824	-	Asuc_1153	-	glycosyl transferase family protein
1137	 48.26	0	1286211..1286726	-	171	152978825	-	Asuc_1154	-	carbohydrate kinase
1138	 48.37	0	1286952..1287995	+	347	152978826	-	Asuc_1155	-	L-idonate 5-dehydrogenase
1139	 49.93	+1	1288007..1288771	+	254	152978827	-	Asuc_1156	-	gluconate 5-dehydrogenase
1140	 50.67	+1	1288794..1290143	+	449	152978828	-	Asuc_1157	-	gluconate transporter
1141	 49.77	0	1290754..1306533	+	5259	152978829	-	Asuc_1158	-	YadA domain-containing protein
1142	 47.84	0	1306728..1307678	+	316	152978830	-	Asuc_1159	-	bile acid:sodium symporter
1143	 49.68	0	1308139..1309533	+	464	152978831	-	Asuc_1160	-	protease Do
1144	 52.08	+1	1309730..1311505	+	591	152978832	-	Asuc_1161	-	gamma-glutamyltransferase
1145	 47.47	0	1311661..1312827	+	388	152978833	-	Asuc_1162	-	hypothetical protein
1146	 44.44	0	1313097..1314086	+	329	152978834	-	Asuc_1163	-	TRAP dicarboxylate transporter- DctP subunit
1147	 36.02	-2	1314106..1314588	+	160	152978835	-	Asuc_1164	-	tripartite ATP-independent periplasmic transporter DctQ
1148	 42.37	0	1314599..1315870	+	423	152978836	-	Asuc_1165	-	TRAP dicarboxylate transporter, DctM subunit
1149	 39.92	-1	1315877..1316893	+	338	152978837	-	Asuc_1166	-	regulatory protein LacI
1150	 44.34	0	1316893..1317837	+	314	152978838	-	Asuc_1167	-	ribokinase-like domain-containing protein
1151	 39.38	-1	1317847..1318821	+	324	152978839	-	Asuc_1168	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
1152	 52.80	+1	1318986..1320341	-	451	152978840	-	Asuc_1169	-	hypothetical protein
1153	 42.86	0	1320351..1320623	-	90	152978841	-	Asuc_1170	-	hypothetical protein
1154	 48.50	0	1320851..1322287	+	478	152978842	-	Asuc_1171	-	pyruvate kinase
1155	 46.82	0	1322569..1324347	-	592	152978843	-	Asuc_1172	-	ABC transporter
1156	 47.76	0	1324422..1326542	-	706	152978844	-	Asuc_1173	-	TonB-dependent siderophore receptor
1157	 50.64	+1	1326838..1328235	-	465	152978845	-	Asuc_1174	-	multidrug efflux protein
1158	 48.94	0	1328276..1328890	+	204	152978846	-	Asuc_1175	-	riboflavin synthase subunit alpha
1159	 24.64	-2	1329011..1330483	-	490	152978847	-	Asuc_1176	-	hypothetical protein
1160	 27.74	-2	1331437..1331865	-	142	152978848	-	Asuc_1178	-	GtrA family protein
1161	 48.47	0	1331995..1332582	-	195	152978849	-	Asuc_1179	-	hypothetical protein
1162	 49.73	0	1332897..1334207	+	436	152978850	-	Asuc_1180	-	xanthine/uracil/vitamin C permease
1163	 48.46	0	1334227..1334583	+	118	152978851	-	Asuc_1181	-	DsrE family protein
1164	 48.26	0	1334659..1338342	+	1227	152978852	-	Asuc_1182	-	exodeoxyribonuclease V, beta subunit
1165	 49.49	0	1338335..1340296	+	653	152978853	-	Asuc_1183	-	exodeoxyribonuclease V, alpha subunit
1166	 47.39	0	1340350..1341231	-	293	152978854	-	Asuc_1184	-	hypothetical protein
1167	 47.19	0	1341307..1343067	-	586	152978855	-	Asuc_1185	-	hypothetical protein
1168	 49.14	0	1343123..1343818	-	231	152978856	-	Asuc_1186	-	methyltransferase type 11
1169	 45.30	0	1343830..1344531	+	233	152978857	-	Asuc_1187	-	hydroxyacylglutathione hydrolase
1170	 45.96	0	1344574..1345389	-	271	152978858	-	Asuc_1188	-	DNA ligase
1171	 49.30	0	1345561..1346781	+	406	152978859	-	Asuc_1189	-	cytosine permease
1172	 48.85	0	1346797..1348059	+	420	152978860	-	Asuc_1190	-	cytosine deaminase
1173	 45.08	0	1348230..1349378	+	382	152978861	-	Asuc_1191	-	methionine synthase vitamin-B12 independent
1174	 43.17	0	1349460..1350089	-	209	152978862	-	Asuc_1192	-	OmpW family protein
1175	 44.91	0	1350635..1351645	-	336	152978863	-	Asuc_1193	-	DNA-binding transcriptional repressor PurR
1176	 45.14	0	1351835..1352122	+	95	152978864	-	Asuc_1194	-	citrate lyase subunit gamma
1177	 46.20	0	1352119..1353012	+	297	152978865	-	Asuc_1195	-	citrate lyase, beta subunit
1178	 47.24	0	1353027..1354529	+	500	152978866	-	Asuc_1196	-	citrate lyase, alpha subunit
1179	 45.00	0	1354609..1355088	+	159	152978867	-	Asuc_1197	-	regulator of ribonuclease activity A
1180	 50.25	+1	1355109..1356491	+	460	152978868	-	Asuc_1198	-	Holo-ACP synthase, triphosphoribosyl-dephospho-CoA synthase
1181	 45.89	0	1356770..1357462	-	230	152978869	-	Asuc_1199	-	carbonate dehydratase
1182	 45.98	0	1357486..1358853	-	455	152978870	-	Asuc_1200	-	hypothetical protein
1183	 45.24	0	1358856..1359695	-	279	152978871	-	Asuc_1201	-	7-cyano-7-deazaguanine reductase
1184	 46.79	0	1359682..1360476	-	264	152978872	-	Asuc_1202	-	hypothetical protein
1185	 47.04	0	1360531..1360851	+	106	152978873	-	Asuc_1203	-	hypothetical protein
1186	 49.37	0	1360851..1361567	+	238	152978874	-	Asuc_1204	-	tRNA pseudouridine synthase C
1187	 40.86	-1	1361710..1361895	-	61	152978875	-	Asuc_1205	-	hypothetical protein
1188	 42.22	0	1362486..1362980	-	164	152978876	-	Asuc_1208	-	putative methyltransferase
1189	 40.96	-1	1363212..1363880	-	222	152978877	-	Asuc_1209	-	hypothetical protein
1190	 44.18	0	1363877..1364641	-	254	152978878	-	Asuc_1210	-	hypothetical protein
1191	 38.99	-1	1366601..1366918	+	105	152978879	-	Asuc_1211	-	addiction module killer protein
1192	 39.52	-1	1366911..1367201	+	96	152978880	-	Asuc_1212	-	putative transcriptional regulator
1193	 38.95	-1	1367284..1368297	-	337	152978881	-	Asuc_1213	-	XRE family plasmid maintenance system antidote protein
1194	 38.01	-1	1368376..1368717	-	113	152978882	-	Asuc_1214	-	killer suppression protein HigA, putative
1195	 38.72	-1	1368950..1369636	-	228	152978883	-	Asuc_1215	-	putative phage repressor
1196	 39.22	-1	1369762..1369965	+	67	152978884	-	Asuc_1216	-	hypothetical protein
1197	 47.30	0	1370014..1370457	+	147	152978885	-	Asuc_1217	-	hypothetical protein
1198	 43.12	0	1370516..1370791	+	91	152978886	-	Asuc_1218	-	hypothetical protein
1199	 46.73	0	1371632..1372288	+	218	152978887	-	Asuc_1220	-	replication P family protein
1200	 42.25	0	1372298..1372813	+	171	152978888	-	Asuc_1221	-	DNA N-6-adenine-methyltransferase
1201	 40.72	-1	1372780..1373415	+	211	152978889	-	Asuc_1222	-	hypothetical protein
1202	 48.11	0	1373540..1373830	+	96	152978890	-	Asuc_1223	-	hypothetical protein
1203	 40.16	-1	1373827..1374192	+	121	152978891	-	Asuc_1224	-	endodeoxyribonuclease RusA
1204	 39.32	-1	1374207..1374557	+	116	152978892	-	Asuc_1225	-	hypothetical protein
1205	 32.34	-2	1375092..1376603	+	503	152978893	-	Asuc_1226	-	hypothetical protein
1206	 38.98	-1	1376899..1377819	+	306	152978894	-	Asuc_1227	-	antirepressor protein
1207	 34.72	-2	1377975..1378553	-	192	152978895	-	Asuc_1228	-	hypothetical protein
1208	 45.38	0	1378791..1379180	+	129	152978896	-	Asuc_1229	-	phage holin
1209	 44.44	0	1379200..1379748	+	182	152978897	-	Asuc_1230	-	LysM domain-containing protein
1210	 42.91	0	1380096..1380377	+	93	152978898	-	Asuc_1232	-	hypothetical protein
1211	 41.37	0	1380387..1380635	+	82	152978899	-	Asuc_1233	-	hypothetical protein
1212	 44.73	0	1380616..1380966	+	116	152978900	-	Asuc_1234	-	HNH endonuclease
1213	 44.65	0	1381082..1381576	+	164	152978901	-	Asuc_1235	-	P27 family phage terminase small subunit
1214	 45.19	0	1381564..1383267	+	567	152978902	-	Asuc_1236	-	phage terminase
1215	 48.37	0	1383264..1383416	+	50	152978903	-	Asuc_1237	-	hypothetical protein
1216	 45.54	0	1383413..1384633	+	406	152978904	-	Asuc_1238	-	HK97 family phage portal protein
1217	 47.43	0	1384626..1385228	+	200	152978905	-	Asuc_1239	-	HK97 family phage prohead protease
1218	 45.56	0	1385293..1386519	+	408	152978906	-	Asuc_1240	-	HK97 family phage major capsid protein
1219	 42.99	0	1386568..1386888	+	106	152978907	-	Asuc_1241	-	uncharacterized phage protein
1220	 47.80	0	1386885..1387202	+	105	152978908	-	Asuc_1242	-	phage head-tail adaptor, putative
1221	 51.55	+1	1387202..1387684	+	160	152978909	-	Asuc_1243	-	HK97 family phage protein
1222	 44.64	0	1387686..1388030	+	114	152978910	-	Asuc_1244	-	hypothetical protein
1223	 45.21	0	1388034..1388690	+	218	152978911	-	Asuc_1245	-	hypothetical protein
1224	 38.24	-1	1388751..1389158	+	135	152978912	-	Asuc_1246	-	hypothetical protein
1225	 37.08	-1	1389167..1389433	+	88	152978913	-	Asuc_1247	-	hypothetical protein
1226	 32.56	-2	1389478..1389735	+	85	152978914	-	Asuc_1248	-	hypothetical protein
1227	 44.98	0	1389792..1393088	+	1098	152978915	-	Asuc_1249	-	phage tape measure protein
1228	 44.05	0	1393098..1393433	+	111	152978916	-	Asuc_1250	-	phage minor tail family protein
1229	 44.99	0	1393433..1394170	+	245	152978917	-	Asuc_1251	-	phage minor tail protein L
1230	 42.31	0	1394172..1394951	+	259	152978918	-	Asuc_1252	-	NLP/P60 protein
1231	 43.19	0	1394885..1395493	+	202	152978919	-	Asuc_1253	-	bacteriophage lambda tail assembly I
1232	 44.64	0	1395564..1399535	+	1323	152978920	-	Asuc_1254	-	hypothetical protein
45.47	MEAN

4.33	STD DEV
